Chapter 5 Mechanical Installation
25

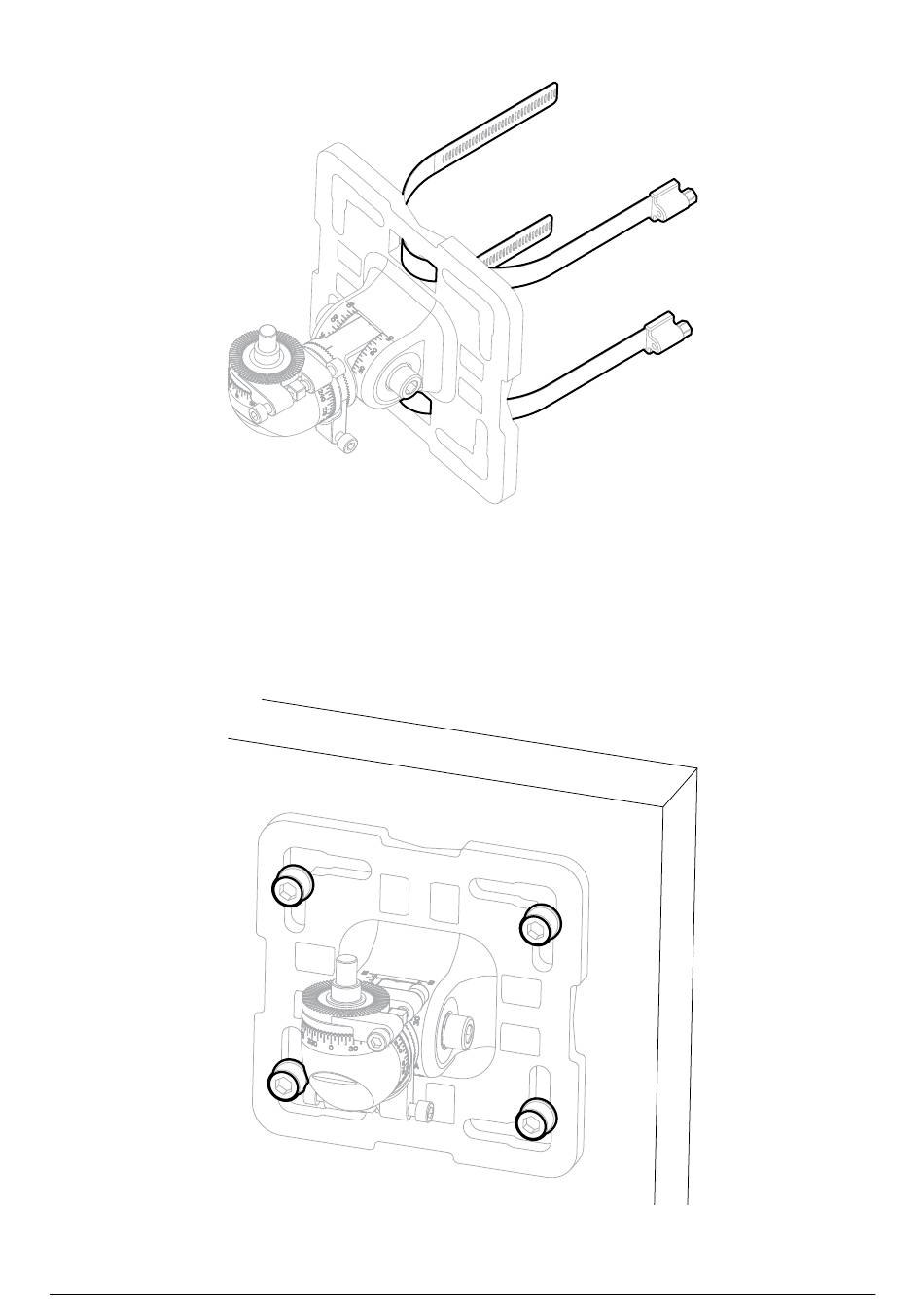

Figure 11. Universal Mounting Bracket fitment using Worm Drive Clips
5.8 Wall Mount Installation
For installation onto a wall, use M8 or M10 mounting bolts with washers (not supplied).
Figure 12. Wall mount installation
Searchline Excel™ Plus / Searchline Excel™ Edge – Technical Manual
