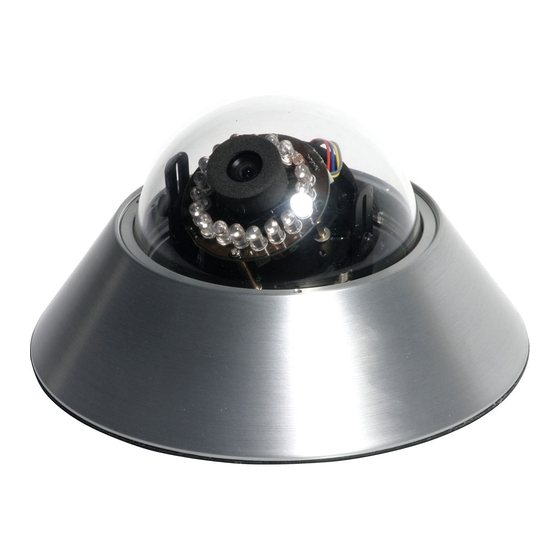

Bosch EX49N Installation Instructions Manual

“no-grip” high impact dome night vision camera
Hide thumbs Also See for EX49N:
Table of Contents

Advertisement

Quick Links

Download this manual
Precision Engineered Opto-Electronics™
INSTALLATION INSTRUCTIONS
EX49N
"No-Grip" High Impact Dome
Night Vision Camera
MAN-49N-00

Advertisement

Table of Contents
loading

Related Manuals for Bosch EX49N

Summary of Contents for Bosch EX49N

  • Page 1 Precision Engineered Opto-Electronics™ INSTALLATION INSTRUCTIONS EX49N “No-Grip” High Impact Dome Night Vision Camera MAN-49N-00...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep this instruction. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with manufacturer instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
  • Page 3 consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the power where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer.
  • Page 4 IMPORTANT For best results, please read this Instruction Booklet prior to installing the EX49N camera.For best results in infrared image quality, when reassembling the dome to the housing, make sure the foam donut is in tight 360° contact with the dome.
  • Page 6 PSU box. 3) Contact BOSCH Service Center for further advice.

  • Page 7: Table Of Contents

    INDEX – EX49N Page Description...........1 Unpacking............2 Parts List............2 Items Required for Installation.....2 Initial Preparations ........3 Guidelines............3 Section 1. Dome Removal......4 Section 2. Input Power Connections ..6 Section 3. Mounting – Camera Base..10 Section 4. Camera/LED Adjustments ..15 Section 5. Camera Re-Assembly ....21 Section 6.

  • Page 8: Description

    A voltage regulator circuit allows for 12V dc or 24V ac operation, and a range in between, also providing protection from voltage surge, transient spikes, and reverse voltage. The EX49N is available in several models designed to meet specific needs.

  • Page 9: Unpacking

    Check the parts list and confirm all items have been located. Inspect the equipment thoroughly to ensure nothing was damaged in transit. Contact BOSCH Service Center if a problem is noted, see the rear page of this booklet for contact numbers.

  • Page 10: Initial Preparations

    GUIDELINES The installation of the EX49N camera is explained in Sections 1 to 5 listed below. It is important that these steps are followed in sequence: Dome Removal Input Power Connections Mounting –...

  • Page 11: Section 1. Dome Removal

    1. DOME REMOVAL The camera’s dome and its retaining ring must be removed prior to mounting the camera or performing any wiring disconnections and re- connections. The set-screws in the retaining ring are not tightened in the factory and protrude by 1/8"...
  • Page 12 Rotation Set Screws Retaining Ring Dome Camera Base FIGURE 1 – 1 Dome Removal...

  • Page 13: Section 2. Input Power Connections

    Attention: External Video Cable Systems Must Be Properly Grounded In Accordance With The National Electrical Code, ANSI/NFPA 70. The EX49N Camera Unit is pre-connected with an electrically isolated power board (VRB) for 24V ac or 12V dc operation, with no change to the polarity of the wires.
  • Page 14 Power Power FIGURE 2 – 1 12V dc or 24V ac Electrically Isolated Power Board (VRB)
  • Page 15 Power to Photocell LED Array Adjustment Enable Power Input FIGURE 2 – 2 LED Array Power Board...
  • Page 16 This view shows the location of the optional Heater Board for the “N” and “ZN” Cameras. Camera/LED Assembly Mounting Bracket Module Camera Heater From Input Power Board Terminal Block on VRB Module FIGURE 2 – 3 Optional Camera Heater for Camera / LED Array Board Units...

  • Page 17: Section 3. Mounting - Camera Base

    MOUNTING - CAMERA BASE Caution: The selected mounting location should not place the camera in a situation where its environmental specifications could be exceeded. See page 27. Ensure the selected location is protected from falling objects, accidental contact with moving objects, and unintentional interference from personnel.
  • Page 18 The mounting holes are configured for a single-gang electrical box or a round ceiling electrical box. The camera base can also be mounted to any flat surface. See the template on page 26. It would be advantageous if the power and video wires from the remote source could be routed into the electrical box at this time.
  • Page 19 Use four (4) screws for double-gang boxes or two (2) screws for ceiling boxes. FIGURE 3 – 1 – 1 EX47N Camera Adaptor Plate Mounting...
  • Page 20 FIGURE 3 – 1 – 2 EX47N Camera Base to Adaptor Plate Mounting...
  • Page 21 – –3 FIGURE 3 EX48/49N Camera Base Mounting...

  • Page 22: Section 4. Camera/Led Adjustments

    CAMERA / LED ARRAY, ADJUSTMENTS For optimum picture quality the camera lens must be as close as possible to the dome’s inside face, without touching. However, the foam ring around the lens should be adjusted to seal against the dome, minimizing any side light interference, but without obstructing the field of view.
  • Page 23 Note: Gasket Back Cover - Some products have a paper backing on the gasket. Please remove it before installation. Mounting - It is recommended that the camera be mounted to a flat non-porous surface for best results. The mounting holes and the area around the mounting screws should be sealed with silicone to prevent water or moisture from entering into the unit.
  • Page 24 Note: If light reflects from side walls or other adjacent surface, some bright spots or halo may appear on the image. Move lens away from the reflection surfaces in order to avoid back reflection. FIGURE 4 – 1 Camera Lens Directional Alignment...
  • Page 25 PTT Bracket PTT Locking Knob Adjustment Optional Knobs (2) Camera Heater Tilt Adjustment Board Vertical Camera/LED Array Adjustment Module Loosen the two adjustment knobs on the PTT bracket and tilt the lens to the desired viewing angle. The adjustment knobs are also used to position the lens for proximity to the dome.
  • Page 26 The LED Array is not shown for clarity reasons. Base Camera Rotation PTT Bracket Linear Adjustment Locking Knob Loosen the locking knob, rotate the PTT and Camera/Lens assembly to the desired position, and re-tighten the knob. The Camera Assembly can also be moved along the linear axis by this method.
  • Page 27 Photocell LED Array Board Disc Rotation This adjustment is necessary in case the image on the monitor is not perpendicular. DO NOT touch the camera lens during this adjustment. Grip the VRB Board between thumb and finger. Rotate the Board until the image is correctly shown on a monitor.

  • Page 28: Section 5. Camera Re-Assembly

    5. CAMERA RE-ASSEMBLY Make sure all wires are properly connected and tightened into the terminal blocks, all holes are sealed against moisture penetration, and all mounting screws are tight. Step 5.1 - Check that the large “O” ring gasket in the camera base has not been dislodged or distorted.
  • Page 29 Camera Base Adhesive Dome Retaining Ring Set Screws Tighten FIGURE 5 – 1 Camera Re-Assembly The Camera/LED Array and PTT Assemblies are not shown for clarity purposes.

  • Page 30: Section 6. Troubleshooting Guide

    6. TROUBLESHOOTING GUIDE PROBLEM POSSIBLE LIKELY SOLUTION CAUSE No Video 1. Power Supply: -Connections…. Check input power connections at the cable leads. Check for loose wires. -Voltage Range... If connected to DC, check input voltage range of 10.5 – 40V. If connected to AC, check input voltage range of 12 –...
  • Page 31 Check the video signal. If okay, the problem is with the interconnections. If still no video, contact BOSCH Service Center. See rear page of this manual for contact information. __________ ________________ ____________ Poor...
  • Page 32 Poor Picture Snowy Noisy Power Supply Check connections. Image Relocate or replace (cont’d.) the power supply. Horizontal Ground Looping on Check the coax Scan Lines, video cable cable shield is not Rolling Up or touching ground, Down e.g. at couplings. Check video polarity.

  • Page 33: Section 7. Mounting Holes Diagram

    7. MOUNTING HOLES DIAGRAM...

  • Page 34: Section 8. General Specifications

    8. GENERAL SPECIFICATIONS TV System ......Monochrome – EIA ..........(CCIR optional) Video Signal Output.... 1 V p-p, 75 Ohm Operational Range....-50°C to +40°C *with optional heater ..... -70°C to +40°C Humidity Range .....Up to 85% (relative) Power Supply (dc) ..... 12V dc or 24V ac ...............
  • Page 35 NOTE:...
  • Page 36 NOTE:...
  • Page 37 Phone: +65 6319 3450 Telephone+1 888-289-0096 Phone: + 31 40 2577 284 Fax: +65 6319 3499 +1 585-223-9180 Fax: +31 40 2577 330 apr.securitysystems@bosch.com Email: security.sales@us.bosch.com emea.securitysystems@bosch.com www.boschsecurity.com www.boschsecurity.us www.boschsecurity.com © Bosch Security Systems, Inc. 2009; Data subject to change without notice.
