INSTALLATION INSTRUCTIONS

EX49
Conical No-Grip Dome Camera
MAN-49-01

Advertisement

Table of Contents
loading

Related Manuals for Bosch EX49N

Summary of Contents for Bosch EX49N

  • Page 1: Installation Instructions

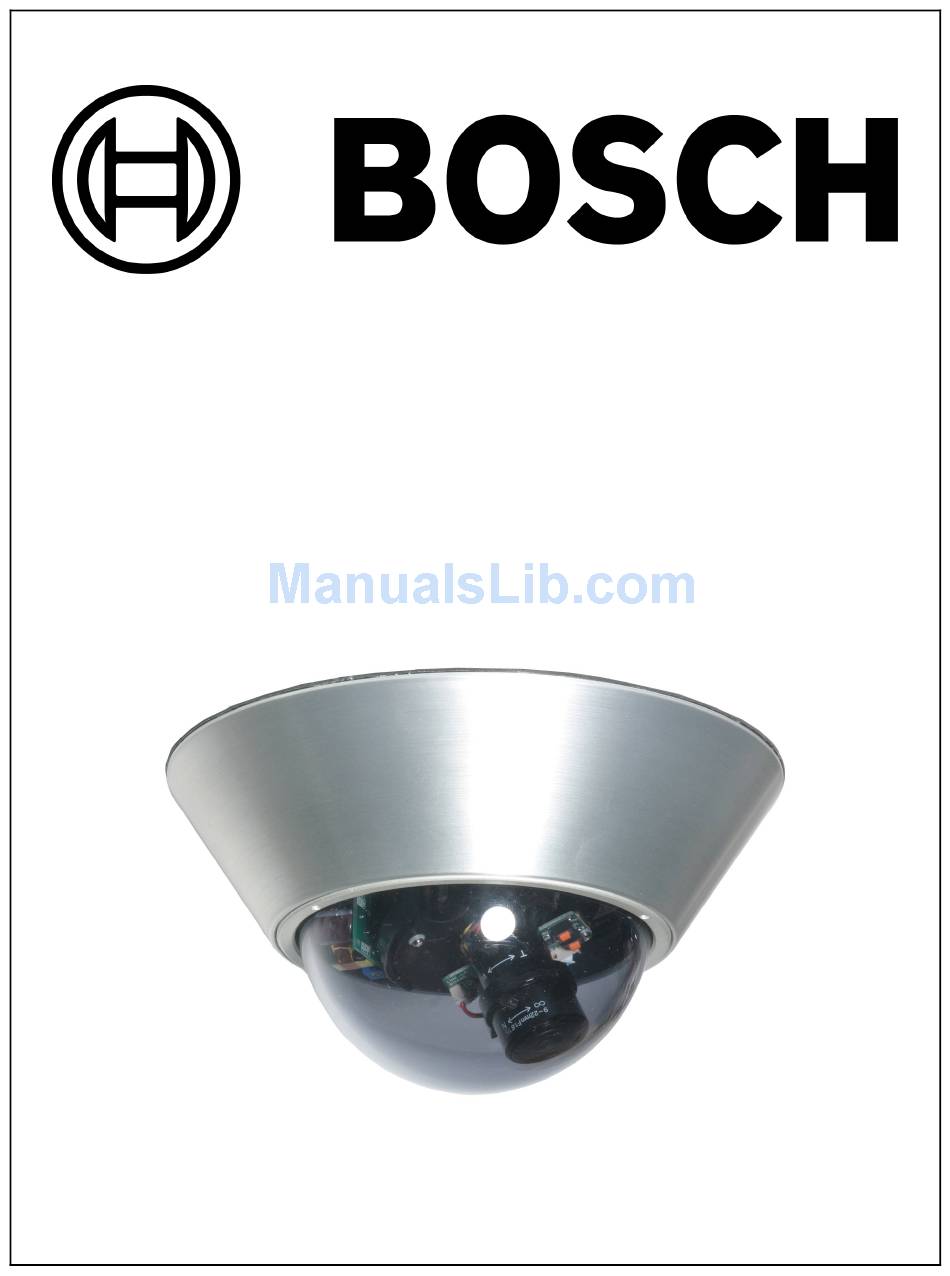

    INSTALLATION INSTRUCTIONS EX49 Conical No-Grip Dome Camera MAN-49-01...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep this instruction. Heed all warnings. Follow all instructions. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with manufacturer instructions. Do not install near any heat sources where the temperature goes above the product rating.
  • Page 3 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in a way, such as internal wiring is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped...
  • Page 4 89/336/EEC Electromagnetic Compatibility Directive This installation should be made by a qualified service person and Bosch will not be responsible for injuries or damages resulting from the improper installation or use of any camera sold by Bosch, their agents, distributors or dealers.
  • Page 5 PSU box. 3) Contact Bosch for further advice.

  • Page 6: Table Of Contents

    INDEX – EX49 Page Description ... 1 Unpacking ... 2 Parts List ... 2 Items Required for Installation... 2 Initial Preparations ... 3 Guidelines ... 3 Section 1. Dome Removal... 4 Section 2. Input Power Connections ... 6 Section 3. Mounting – Camera Base... 8 Section 4.

  • Page 7: Description

    DESCRIPTION The EX49 “No-Grip” High Impact Dome Camera for a Vari Focal “Auto-Iris” lens has been engineered for surveillance in hostile environments. Compact and good looking, the camera features a smooth “no-grip” housing for protection against theft and vandalism. An aluminum housing, CNC-machined from a solid billet, with an impact resistant polycarbonate dome and locking retaining ring, make it extremely rugged and weather-tight.

  • Page 8: Unpacking

    Check the parts list and confirm all items have been located. Inspect the equipment thoroughly to ensure nothing was damaged in transit. Contact a Bosch Service Center if a problem is noted, see the rear page of this booklet for contact numbers. (items supplied with unit) PARTS LIST ...

  • Page 9: Initial Preparations

    INITIAL PREPARATIONS  Determine the operating voltage at the installation site. The camera’s Voltage Regulator Board can accept a 12V DC or 24V AC input. See Section 2, Input Power Connections.  Determine the optimum location for the camera. Section 3, Mounting-Camera Base. ...

  • Page 10: Section 1. Dome Removal

    1. DOME REMOVAL The camera dome and its retaining ring must be removed prior to mounting the camera or adjusting the lens direction. The set-screws in the retaining ring are not tightened in the factory and protrude by 1/8" (3mm) in order for the ring to be rotated. Refer to Figure 1 - 1 on page 5.
  • Page 11 Rotation Set Screws Retaining Ring Dome Camera Base FIGURE 1 – 1 Dome Removal...

  • Page 12: Section 2. Input Power Connections

    2. INPUT POWER CONNECTIONS Attention: External Video Cable Systems Must Be Properly Grounded In Accordance With The National Electrical Code, ANSI/NFPA 70. The EX49 Camera Unit is pre-connected with an electrically isolated power board (VRB) for 24V AC or 12V DC operation, with no change to the polarity of the wires.
  • Page 13 Power Power FIGURE 2 – 1 12V – 24V AC / DC Electrically Isolated Power Board...

  • Page 14: Section 3. Mounting - Camera Base

    3. MOUNTING - CAMERA BASE IMPORTANT MOUNTING INSTRUCTIONS WARNING: THIS APPARATUS MUST BE SECURELY ATTACHED TO THE WALL OR CEILING IN ACCORDANCE WITH INSTALLATION INSTRUCTIONS. FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS MAY RESULT IN INJURY The selected mounting location should not place the camera in a situation where its environmental specifications could be exceeded.
  • Page 15  Secure all cabling.  Camera has been evaluated for wall/ceiling mounting using #8 1¼” long, 12 TPI, wood screws with Robertson heads secured into a 2x4 stud under ½” drywall  Camera has not been evaluated for safety requirements using other mounting kits. The mounting holes are configured for a single- gang electrical box or a round ceiling electrical box.
  • Page 16 FIGURE 3 – 1 EX49 Camera Base Mounting...
  • Page 17 Note: Gasket Back Cover - Some products have a paper backing on the gasket. Please remove it before installation. Mounting - It is recommended that the camera be mounted to a flat non-porous surface for best results. The mounting holes and the area around the mounting screws should be sealed with silicone to prevent water or moisture from entering into the unit.

  • Page 18: Section 4. Adjustments

    4. ADJUSTMENTS For optimum picture quality the camera lens must be as close as possible to the dome’s inside face, without touching. However, the foam ring around the lens should be adjusted to seal against the dome, minimizing any side light interference, but without obstructing the field of view.
  • Page 19 FIGURE 4 – 1 Camera Lens Directional Alignment...
  • Page 20 PTT Bracket Base Adjustment Knobs (2) Tilt Adjustment Loosen the two adjustment knobs on the PTT bracket and tilt the lens to the desired viewing angle. The adjustment knobs are also used to position the lens for proximity to the dome. See Figure 4-3 on page 15 for lens rotational adjustment.
  • Page 21 Base Linear Adjustment Loosen the locking knob and bolt in the center of the base with a crosshead screwdriver, rotate the PTT and Camera/Lens assembly to the desired position, and re-tighten the bolt and locking knob. The Camera Assembly can also be moved along the linear axis by this method.
  • Page 22 Disc Rotation This adjustment is necessary in case the image on the monitor is not aligned. DO NOT touch the camera lens during this adjustment. Grip the camera boards between thumb and finger. Rotate the disc until the image is correctly shown on a monitor.
  • Page 23 Loosen this set screw for Focus adjustments. Loosen this set screw for Zoom adjustments. Loosen the lens set-screws for focus/zoom adjustments. The set screw marked N ←→ ∞ is used for image focus. The set screw marked T←→ W is used for telephoto or wide-angle settings.
  • Page 24 Use a Neutral Density filter or Infra-Red Pass filter to cover the lens during focusing to simulate low light conditions on scene for correct 24-hour focusing. For camera with vari- focal lens, the camera should be focused with the lens iris fully opened to simulate the worst possible depth of field.

  • Page 25: Section 5. Camera Re-Assembly

    5. CAMERA RE-ASSEMBLY Make sure all wires are properly connected and tightened into the terminal blocks, all holes are sealed against moisture penetration, and all mounting screws are tight. Step 5.1 - Step 5.2 - Select the desired dome bubble Step 5.3 - Use the protruding set-screws in the Step 5.4 - Press firmly on the dome and rotate Check that the large “O”...
  • Page 26 Camera Base Adhesive Retaining Ring Set Screws FIGURE 5 – 1 Camera Re-Assembly The Camera/Lens and PTT Assemblies are not shown for clarity purposes. Dome Tighten...

  • Page 27: Section 6. Troubleshooting Guide

    If still no video, connect the camera directly to the monitor. Check the video signal. If okay, the problem is with the interconnections. If still no video, contact BOSCH Service Center. See rear page of this manual for contact information.
  • Page 28 Poor Picture Snowy Poor Video Image Signal Noisy Power Supply Hazy Image Condensation Inside dome Horizontal Ground Scan Lines, Looping on Rolling Up video cable or Down Negative, Low voltage scrambled, or faded image Ensure the video cable is correctly matched and terminated with 75 ohms at each end.

  • Page 29: Section 7. Template - Mounting Holes

    7. TEMPLATE – MOUNTING HOLES...

  • Page 30: Section 8. General Specifications

    8. GENERAL SPECIFICATIONS TV System ...Color / Mono (NTSC or PAL) Video Signal Output...1 V p-p, 75 Ohm Operational Range...-40°C to +60°C Humidity Range ...Up to 85% (relative) Power Supply ... 12V - 24V AC / DC ... 10W Max. Dome ...
  • Page 31 NOTES:...
  • Page 32 Primary Voice Secondary Voice Primary fax Secondary fax Europe RMADesk.STService@bosch.com E-mail 3021 Underhill Avenue, Burnaby, BC V5A 3C2 Bosch ST Service Center 8601East Cornhusker Hwy. Dock B Lincoln, NE 68507 800-366-2283 402-465-6776 800-366-1329 800-465-6729 Bosch ST RMA desk Ernst-Heinkel-Strasse 4...
