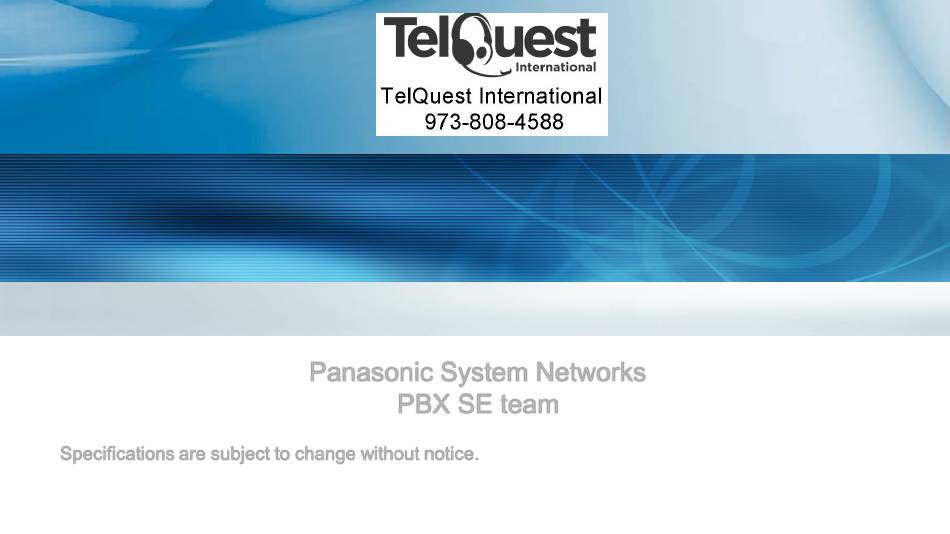

- Page 1 KX-NS Step by Step Guide KX-NTV / KX-HDV430 September 29, 2016 Panasonic System Networks PBX SE team Specifications are subject to change without notice.
- Page 2 1. Introduction PBX, phone and security camera can be provided by Panasonic Other major PBX maker do not have security camera. Internet Office Panasonic IP-PBX KX-NTV150 KXT7765 Ext 115 Ext 301 Ext 302 Bria SIP Software phone with Video KX-NTV160...
- Page 3 2. Basic Specifications KX-NTV150 : Communication SIP Camera - PoE / Wi-Fi - Built-in Speaker and Microphone - Call button (*) AC Adaptor KX-A239 is required. KX-NTV160 : SIP based Video Doorphone - PoE only - Built-in Speaker and Microphone - Call button - IP-Grade : IP43...
- Page 4 KX-HDV430 SIP software phone Bria by CounterPath for PC, tablet or smart-phone (Other SIP video phones such as Grandstream are not recommended.) Phone Protocol Virtual card AK for KX-NS KX-NT MGCP V-IPEXT card KX-NSM5xx KX-HDV / KX-NTV V-SIPEXT card KX-NSM5xx...
- Page 5 4. Table of Contents Chapter Contents KX-NS programming KX-NTV : Initial setup KX-NTV : SIP registration and video KX-HDV430 programming Bria KX-NTV : Maintenance...
- Page 6 Chapter 1 KX-NS Programming...
- Page 7 11. Make SIP Account for KX-NTV. See step by step guide No.12 for details.
- Page 8 Chapter 2 KX-NTV : Initial Setup...
- Page 9 21. Initialize KX-NTV. If KX-NTV has bee already registered to other PBX, it is required to initialize. Keep pressing reset button for 30s. <KX-NTV150> <KX-NTV160>...
- Page 10 KX-NTV150/160 gets IP address. (KX-NTV is not registered as SIP extension automatically.) - Wait until yellow LED starts flashing. - LED : Red (15s) -> Off (10s)-> Red (20s) -> Yellow Flash Panasonic Panasonic L2 Switch (PoE) KX-NS for example...
- Page 11 23. Find IP address of KX-NTV using IW.exe. Panasonic Panasonic L2 Switch (PoE) KX-NS for example http://panasonic.net/pcc/support/pbx/download/ntv/index1.html...
- Page 12 24. Log-in using Internet Explorer. Log-in to KX-NTV. ID = admin Password = adminpass If web browser is Internet Explorer, add-in module is installed automatically as camera viewer.
- Page 13 25. Connect KX-NTV150 by Wi-Fi. Remove LAN and KX-HTS connect AC Adapter. Confirm IP address of KX- NTV150 again.
- Page 14 Chapter 3 KX-NTV : SIP & Video...
- Page 15 31. Log in to KX-NTV for SIP registration. LED becomes green after registration.
- Page 16 32. Assign Destination of Call Button. Video is displayed automatically after call is answered. KX-HDV430 KX-NTV115 KX-NTV160 SIP Software phone Ext 102 Ext 115 Ext 116 Ext 111...
- Page 17 33. Reference : Group Call If the destination is extension number for group, group call is also available. Ring Ring Ext 102 Answered Ring Ring KX-NTV116 Ext 103...
- Page 18 34. Adjust General Settings. <KX-NTV150> <KX-NTV160> Default of call ring duration is 30s. This is too long for demo. KX-HDV430 can call KX-NTV150 without tone by above programming example.
- Page 19 35. Adjust Video for KX-HDV430 display.
- Page 20 Chapter 4 KX-HDV430...
- Page 21 41. Assign KX-NTV as Camera. Video can be displayed automatically before KX-HDV430 answers the call from KX-NTV, if extension number of KX-NTV is assigned. KX-HDV430 answers the call from KX-NTV automatically at technical point of view in order to start video communication if this feature is enabled by KX-HDV430.
- Page 22 42. Enable Automatic Video Call. Video call can be started automatically by off hook. It is not required to press <Video Call> button when calling.
- Page 23 43. Reference : Compatible IP Camera When KX-HDV430 receives a call from other extension, paired IP camera can be displayed automatically. KX-HDV430 Ext 103 Ext 102 Dial 102.
- Page 24 44. Reference : Assign IP address of Camera. IP address of camera and paired phone number can be assigned for 16 cameras.
- Page 25 Chapter 5 Bria KX-NTV115 SIP Software phone : Bria Ext 115 Ext 111...
- Page 26 51. Enable Video Call.
- Page 27 Chapter 6 KX-NTV : Maintenance...
- Page 28 61. Firmware Update Firmware update is available using web. Firmware update from PBX is not available.
- Page 29 62. System Initialize System initialize is available using web. Or keep pressing reset button for 30 seconds. Red rapid flash for 30 seconds to Green flash...
- Page 30 63. System Data Back-up System data can be saved.
- Page 31 Thank you !
- Page 32 Revision Date Change Sept 16, 2015 First release Nov 12, 2015 2 (Page 3) AC Adaptor KX-A239 is required for Wi-Fi. Sept 29, 2016 Revised for KX-HDV430 base.
