- Page 1 Smart Onboard Temperature Screening Terminal Installation Guide...
- Page 2 Smart Onboard Temperature Screening Terminal • Installation Guide © 2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved. This Manual is the property of Hangzhou Hikvision Digital Technology Co., Ltd. or its affiliates (hereinafter referred to as "Hikvision"), and it cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
- Page 3 Smart Onboard Temperature Screening Terminal • Installation Guide TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
- Page 4 Smart Onboard Temperature Screening Terminal • Installation Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 5 Smart Onboard Temperature Screening Terminal • Installation Guide Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text. Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results.
- Page 6 Smart Onboard Temperature Screening Terminal • Installation Guide Transportation, Use, and Storage To avoid heat accumulation, good ventilation is required for a proper operating environment. Store the device in dry, well-ventilated, corrosive-gas-free, no direct sunlight, and no heating source environment.
- Page 7 Smart Onboard Temperature Screening Terminal • Installation Guide Screen Clean the screen with soft and dry cloth or other substitutes to wipe the interior and exterior surface. DO NOT use alkaline detergents. Protect the screen from scratches. DO NOT install the device in the position obstructing the driver's sight to prevent it from affecting the normal driving of the vehicle.
-
Page 8: Table Of Contents
Smart Onboard Temperature Screening Terminal • Installation Guide TABLE OF CONTENTS Chapter 1 Introduction ........................5 1.1 Product Introduction ......................5 1.2 Panel Description ......................... 5 Chapter 2 Installation ........................7 2.1 Install SD/SIM Card ......................7 2.2 Install Device ........................7 Chapter 3 Power Cord Wiring ...................... -
Page 9: Chapter 1 Introduction

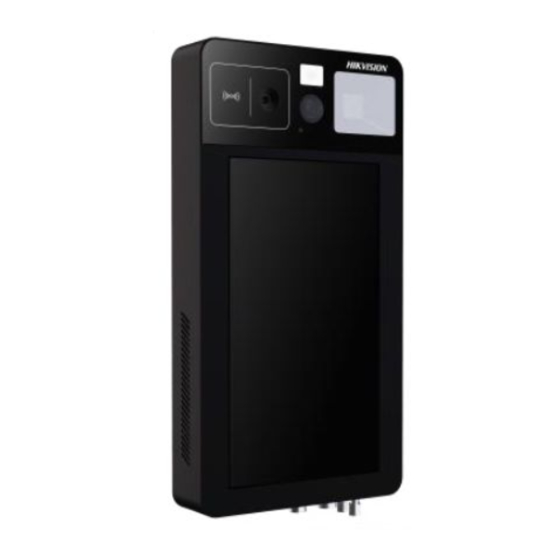

Smart Onboard Temperature Screening Terminal • Installation Guide Chapter 1 Introduction 1.1 Product Introduction The smart onboard temperature screening terminal (hereinafter referred to as “device”) supports human body temperature screening, face recognition, and mask detection. It is embedded with close-distance lens with scanning function, convenient for the passengers to scan the payment code or the travelling allowable code. - Page 10 Smart Onboard Temperature Screening Terminal • Installation Guide Displays the live view image, temperature screening Screen information, etc. of the face detection camera. You can open the card slot cover and insert the SD card SD card slot into the slot for local storage. You can open the card slot cover and insert the SIM card SIM card slot into the slot for network communication.
-
Page 11: Chapter 2 Installation
Smart Onboard Temperature Screening Terminal • Installation Guide Chapter 2 Installation Shut down the device before installation. 2.1 Install SD/SIM Card Install the SD card for the local storage, or install the SIM card for network connection. Before you start Prepare the SD/SIM card and screwdriver. - Page 12 Smart Onboard Temperature Screening Terminal • Installation Guide Figure 2-1 Place Device Step 2 Align the holes on the U-Type bracket with those on the device. Step 3 Fasten four M6 screws into the holes to fix the device on the vertical pole. Figure 2-2 Fix Device Never place the equipment in an unstable location.
-
Page 13: Chapter 3 Power Cord Wiring
Smart Onboard Temperature Screening Terminal • Installation Guide Chapter 3 Power Cord Wiring The device starts up when your automobile ignites and shuts down after automobile is off. Automobile ignition startup and shutdown are realized by positive pole ignition switch (providing high level signal when the switch closes). - Page 14 Smart Onboard Temperature Screening Terminal • Installation Guide Figure 3-2 Power Cord Wiring Contact the automobile manufacturer for the connection information of starting switch. The automobile ignition switch, also called car key, controls the startup and shutdown of your automobile.
- Page 15 Smart Onboard Temperature Screening Terminal • Installation Guide UD21321B...
