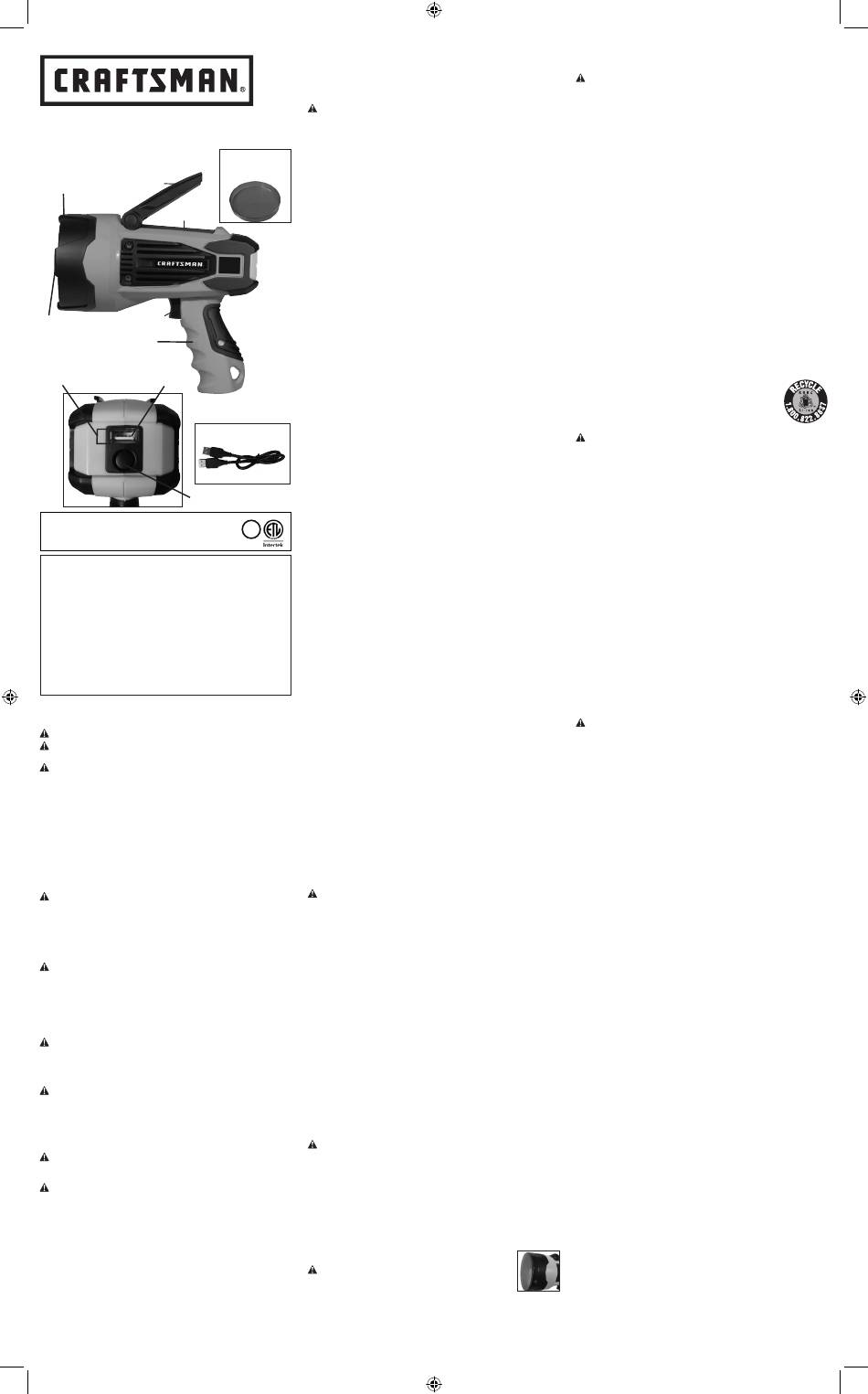

LITHIUM-ION LED SPOTLIGHT
INSTRUCTION MANUAL
SWING-UP
RUBBER
STAND
BEZEL
HEAT
SINK
ON/OFF
10W LED
TRIGGER
BULB
PISTOL GRIP
HANDLE
BATTERY/CHARGE
STATUS LED
USB
INDICATOR
PORT
USB POWER BUTTON
SAVE THIS INSTRUCTION MANUAL
FOR FUTURE REFERENCE.
Copyright © 2020 Baccus Global LLC
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
■
Increase the separation between equipment and receiver.
■
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■
Consult the dealer or an experienced radio/TV technician for help.
■
Changes or modifications not approved by the party responsible for compliance could void user' s authority to operate the
equipment.
SAFETY GUIDELINES / DEFINITIONS
DANGER:
Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING:
Indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION:
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury.
CAUTION:
Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided,
may result in property damage.
RISK OF UNSAFE OPERATION.
When using tools or equipment, basic safety precautions should
always be followed to reduce the risk of personal injury. Improper operation, maintenance or modification of tools
or equipment could result in serious injury and property damage. There are certain applications for which tools and
equipment are designed. Manufacturer strongly recommends that this product NOT be modified and/or used for any
application other than for which it was designed. Read and understand all warnings and operating instructions before
using any tool or equipment.
READ ALL INSTRUCTIONS
WARNING:
Read all instructions before operating the spotlight. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious injury.
IMPORTANT SAFETY INSTRUCTIONS
GENERAL SAFETY WARNINGS AND INSTRUCTIONS
WARNING –
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD
ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:
LED gets HOT quickly!
■
Do not touch the LED at any time when operating.
■
Only contact trigger when turning on.
■
Do not touch hot lens or enclosure.
■
Do not remain in light if skin feels warm.
■
Do not operate the spotlight with a missing or damaged lens or enclosure.
■
WARNING –
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD
ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:
The spotlight and the supplied charging cable are not toys and cannot be played with as toys. To reduce the risk of
■
injury, close supervision is necessary when these units are used near children.
Use only attachments recommended or sold by the manufacturer.
■
WARNING –
TO REDUCE THE RISK OF ELECTRIC SHOCK:
Use only the USB charging cable supplied by the manufacturer to charge and recharge.
■
Charge indoors only. Do not expose the USB charging cable to water or any other liquid.
■
Do not clean this appliance with a water spray or the like.
■
Do not put the spotlight in water or other liquid. Do not place or store this light where it can fall or be pulled into
■
water or become wet.
Do not store the unit or USB charging cable outdoors.
■
WARNING –
FIRE HAZARD:
Never contact combustible material to the lens or the heat sink.
■
Keep spotlight lamp away from materials that may burn.
■
CAUTION –
TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:
All lights give off heat:
■
– Do not touch lens while operating.
– Keep combustibles away from spotlight lens. Extreme heat can cause fires.
– Never place the light face down on any surface when lit, charging or not in use. Never store the light face
down on any surface.
Never look directly into the light or shine the light into another person' s eyes.
■
Keep sharp objects away from lens — it is glass and can break.
■
Do not submerge the spotlight in water.
■
Do not expose this unit to extremely high temperatures.
■
Do not drop or throw spotlight. It contains glass and a lithium-ion battery pack.
■
Use only with the USB charging cable provided with the unit. Plug in the charging cable at the light first, then plug
■
into the charging source.
After charging/recharging, disconnect the USB charging cable and wait 5 minutes before use.
■
Do not crush, cut, pull or expose the USB charging cable to extreme heat.
■
Position the USB charging cable so it does not become entangled or become a safety hazard. Keep the charging cable
■
away from sharp edges.
Use in a dry location only.
■
CMXLSB10_ManualENSP_051820.indd 1 CMXLSB10_ManualENSP_051820.indd 1
CMXLSB10
There are no user-serviceable parts inside. Do not attempt to disassemble any other parts of the unit.
■
To reduce risk of damage to the USB charging cable, pull by the plug rather than the cord when disconnecting.
■
Do not attempt to charge the unit if the USB charging cable is damaged.
■
SPECIFIC SAFETY INSTRUCTIONS FOR LITHIUM-ION
BATTERIES
WARNING –
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, BURST HAZARD, OR
INJURY TO PERSONS OR PROPERTY:
Lithium-ion batteries are small, compact and ideal for providing long-lasting power to this unit. However, they must be
used and charged properly. Improper use can result in serious injury, fire, or death.
Lithium-ion batteries can explode in the presence of a source of ignition. Do not use the product in the presence
■
of an open flame.
EMERGENCY RED
Do not place this lithium-ion battery powered unit in fire or apply heat to it.
LENS (OPTIONAL
■
Do not subject this lithium-ion battery powered unit to strong impacts or shocks. The battery in this unit contains
ACCESSORY)
■
safety and protection devices which, if damaged, may cause the battery to generate heat, rupture or ignite.
Do not expose this lithium-ion battery powered unit to water or salt water, or allow the battery to get wet.
■
Avoid storing this lithium-ion battery powered unit in the basement, bathroom or other areas of the house that are or
■
may become wet or humid or where moisture may concentrate.
Do not leave this lithium-ion battery powered unit in direct sunlight, or use or store the unit inside cars in hot weather.
■
Doing so may cause the battery to generate heat, rupture, or ignite. Using the battery in this manner may also result in
a loss of performance and a shortened life expectancy.
Never charge this unit near heat or flammable objects.
■
NEVER THROW WATER ON A BURNING LI-ION BATTERY!
■
does catch on fire, it will burn even more violently if it comes in contact with water or even moisture in the air. A fire
extinguisher must be used.
Battery Charging and Capacity
This unit is delivered in a partially charged state – you must fully charge it before using it for the first time.
When stored at room temperature with a full charge, Li-ion batteries will will begin to discharge from the time they
are manufactured, even when unused. Deep discharges also decrease their capacity. Battery life can be extended by
the following:
Charge battery to full capacity before storage.
■
Optimal storage temperature for this unit is between 5°C and 20°C (41°F and 68°F).
■
Never discharge the battery fully.
■
Charge after each use.
■
Always charge at least once every 3-6 months if not in frequent use to prevent overdischarge.
■
Transportation of Lithium-Ion Batteries
Always check all applicable local, national, and international regulations before transporting a unit containing a
■
Lithium-Ion battery.
Transporting an end-of-life, damaged, or recalled battery may, in certain cases, be specifically limited or prohibited.
■
USB CHARGING CABLE
INSTRUCTIONS PERTAINING TO THE USB PORT
IMPORTANT: Some household USB-powered electronics will not operate with the USB ports provided with this
■
device. Check the manual of the corresponding electronic device to confirm that it can be used with this type of
USB port.
The USB ports do not support data communication. They only provide power to an external USB
■
powered device (5V DC/1A using the USB port on the spotlight). Make sure the rating of equipment plugged into the
USB port does not exceed the amperage stated.
Do not attach a USB hub allowing connection of multiple personal electronic devices to the USB port.
■
SAVE THESE INSTRUCTIONS
BC
INTRODUCTION
Congratulations on purchasing your new Craftsman
follow the instructions carefully before using your new spotlight.
READING THE BATTERY/CHARGE STATUS LED
INDICATOR
The battery and charging status LED indicator is a translucent ring around the USB Port at the back of the unit. It lights
or flashes in three colors to indicate the following:
When charging:
Green:
Battery is in a fully charged state.
Green (flashing):
Battery is in a high partially charged state.
Orange (flashing):
Battery is in a low partially charged state.
Red (flashing):
Battery needs to be recharged.
Red (flashing rapidly):
charging process will stop at this stage and will automatically resume after a cool down period.
When operating (once the light has been turned on or the USB
power button has been pressed):
Green:
Battery is operating at full voltage.
Orange:
Battery is operating at partial voltage.
Red:
Battery is operating at low voltage, and should be recharged or the built-in low voltage protection will be
activated and the unit will automatically shut down shortly.
Red (flashing rapidly):
cold (the ambient temperature has dropped below -20°C). To avoid damage, the unit should be shut off at this stage and
allowed to either cool down or warm up to normal operating temperatures before resuming use.
CHARGING/RECHARGING THE SPOTLIGHT
This unit is shipped in a partially charged state. Charge unit after purchase and BEFORE first use until the battery/charge
status LED indicator lights green.
Recharge after each use until the battery/charge status LED indicator lights green.
IMPORTANT: When the unit is not in use, we recommend that the battery is charged at
least every 3 to 6 months.
CAUTION –
TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:
Never place the light face down on any surface when charging.
■
Make sure the light and the USB port are turned off during recharging, as using these features can slow the
■
recharging process.
Failure to keep the battery charged will cause permanent damage and result in poor performance.
■
Charging/recharging using the USB charging cable and a device with
a USB power port (not supplied)
1. Make sure the On/Off Trigger and the USB Power Button are both turned off* (the light is not lit and the Battery/
Charge Status LED Indicator inside the translucent ring around the USB port at the back of the unit is not lit).
* The USB Power Button does not operate the light, only the USB power port. The light cannot be charged when the
USB Power Port is on. Make sure the USB Power Button is turned off before charging.
2. Insert the USB charging cable into the USB port on the light.
3. Insert the other end of the USB charging cable into a device' s functional USB power port. The battery/charge
status LED indicator will light or flash in one of three colors (as described in the "Reading the Battery/Charge
Status LED Indicator" section) to indicate the charging status.
4. Charge until the Battery/Charge Status LED Indicator lights green.
5. When charging is complete, disconnect the USB charging cable from the device' s USB power port and the light.
Store the cable in a safe place.
OPERATING THE SPOTLIGHT
IMPORTANT: The light and the USB port on the light cannot not be operated simultaneously. If the On/Off Trigger is
pressed to turn the light on, the light will illuminate and the USB power port will automatically shut down, even if the
USB power port is in use.
The On/Off Trigger turns the unit on and off, and is also used to choose either the high or low brightness setting.
CAUTION:
DO NOT OPERATE WHILE CHARGING .
Disconnect the charging cable or adapter, then select the light mode as follows:
Press the On/Off trigger once to use the spotlight in its high (brightest) setting.
■
Press the On/Off trigger again within 5 seconds to use the spotlight in its low (dimmest) setting.
■
Press the On/Off trigger a third time to turn the unit off.
■
Press the On/Off trigger once to use the spotlight in its high (brightest) setting.
■
Press the On/Off trigger again after 5 seconds to turn the unit off.
■
Note:
The battery/charge status LED indicator will light in one of three colors (as described in the "Reading the
Battery/Charge Status LED Indicator" section) to indicate the battery status.
Using the Emergency Red Lens (Optional Accessory)
The Emergency Red Lens snaps into place directly over the Rubber Bezel, as shown.
CAUTION –
TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:
Never touch the Emergency Red Lens or place the light with an attached Red Emergency Lens
■
face down on any surface while it is operating.
Never use the Red Emergency Lens on the spotlight if it is damaged.
■
Always detach the Red Emergency Lens from the spotlight and store it properly when it is not in use.
■
Using the Swing-up Stand
Lift the Swing-up Stand up, invert the unit and set it upon a flat, stable surface for hands-free operation.
If a lithium-ion battery
® Spotlight. Read this Instruction Manual and
The battery of the unit is overheated due to extensive use or recharging. The
The battery of the unit is overheated (due to extensive use or recharging), or is too
or
Using the Carry Lanyard (Optional Accessory)
The carry lanyard may be used to carry the unit or to hang it for storage. Always adjust the slide on the cords to keep
the lanyard secure around any supporting object.
CAUTION –
TO REDUCE THE RISK OF PRODUCT DAMAGE:
When light is hung by the carry lanyard, do not shake the spotlight or object that it is hanging from. Do not hang the
■
spotlight from any electrical wires or anything that it is not secure.
Only use the carry lanyard for hanging this spotlight. The carry lanyard is not intended to support additional weight.
■
Do not attach or hang anything additional to the spotlight or risk of breakage may occur.
OPERATING THE LIGHT'S USB PORT
IMPORTANT: The light and the USB port on the light cannot not be operated simultaneously. Light operation takes
precedence over USB port operation. If the On/Off Trigger is pressed to turn the light on, the light will illuminate and the
USB power port will automatically shut down, even the USB power port is in use.
The light' s USB port provides 5 volts/1A of DC power to an external USB powered device.
1. Disconnect the charging adapter or cable and make sure the light is turned off.
2. Press the USB Power Button to power on the USB port. The Battery/Charge Status LED Indicator will light or flash
in one of three colors (as described in the "Reading the Battery/Charge Status LED Indicator" section) to indicate
the internal battery status.
3. Simply plug the USB device into the light' s USB port and operate normally.
4. Press the USB Power Button again to turn off the USB port. Make sure the USB Power Button is in the off
position when the unit is being recharged or stored.
CARE AND MAINTENANCE
All batteries lose energy from self-discharge over time and more rapidly at higher temperatures. When the unit is not in
use, we recommend that the battery is charged at least every 3 to 6 months.
Never submerge the unit in water. If the unit gets dirty, gently clean the outer surfaces of the spotlight unit with a soft cloth.
There are no user-replaceable parts. Periodically inspect the condition of adapters, connectors and wires. Contact
manufacturer to replace any components that have become worn or broken.
Battery Replacement/Disposal
BATTERY REPLACEMENT
The battery should last the service life of the unit. Service life is dependent on a number of factors including but not
limited to the number of recharge cycles, and proper care and maintenance of the battery by the end user. Contact
manufacturer for any information you may need.
SAFE BATTERY DISPOSAL
Contains a lithium-ion battery, which must be disposed of properly. Recycling is required.
Failure to comply with local, state and federal regulations can result in fines, or imprisonment.
Please recycle.
WARNINGS:
Do not dispose of the battery in fire as this may result in an explosion.
■
Before disposing of the battery, protect exposed terminals with heavy-duty electrical tape to prevent shorting (shorting
■
can result in injury or fire).
Do not expose battery to fire or intense heat as it may explode.
■
TROUBLESHOOTING
The spotlight will not charge
Check that the spotlight and the USB port are all turned off.
■
Check the connection to the spotlight and the power source. Make sure there is good contact.
■
Make sure the power source is functioning properly.
■
The unit may have shut down to protect the battery from overheating after a long period of operation or charging.
■
Unplug the charging adapter from the power source and disconnect the USB charging cable from the spotlight. Allow
the spotlight to cool down for a period before resuming charging.
The spotlight will not operate
Make sure the On/Off Trigger has been pressed to turn the spotlight on.
■
The internal battery may be completely discharged. Charge the unit following the directions given in this manual.
■
If the ambient temperature is too hot or too cold the spotlight will not operate.
■
The spotlight's USB port will not operate
Make sure the On/Off Trigger is turned off.
■
Some household USB-powered electronics will not operate with the USB ports provided with this device. Check the
■
manual of the corresponding electronic device to confirm that it can be used with this type of USB port..
Make sure the USB Power Button is pressed to turn the USB port on.
■
Make sure the rating of equipment plugged into the flashlight' s USB port does not exceed 1A continuous.
■
The internal battery may be completely discharged. Charge the unit following the directions given in this manual.
■
ACCESSORIES
Recommended accessories for use with your tool may be available from the manufacturer. If you need assistance
regarding accessories, please contact the manufacturer at 888-331-4569.
WARNING:
The use of any accessory not recommended for use with this appliance could be hazardous.
SERVICE INFORMATION
Whether you need technical advice, repair, or genuine factory replacement parts, contact the manufacturer at 888-
331-4569.
ONE-YEAR LIMITED WARRANTY
The manufacturer warrants this product against defects in materials and workmanship for a period of ONE (1) YEAR
from the date of retail purchase by the original end-user purchaser ("Warranty Period").
If there is a defect and a valid claim is received within the Warranty Period, the defective product can be replaced or
repaired in the following ways: (1) Return the product to the manufacturer for repair or replacement at manufacturer' s
option. Proof of purchase may be required by manufacturer. (2) Return the product to the retailer where product was
purchased for an exchange (provided that the store is a participating retailer). Returns to retailer should be made within
the time period of the retailer' s return policy for exchanges only (usually 30 to 90 days after the sale). Proof of purchase
may be required. Please check with the retailer for their specific return policy regarding returns that are beyond the time
set for exchanges.
This warranty does not apply to accessories, bulbs, fuses and batteries; defects resulting from normal wear and tear,
accidents; damages sustained during shipping; alterations; unauthorized use or repair; neglect, misuse, abuse; and
failure to follow instructions for care and maintenance for the product.
This warranty gives you, the original retail purchaser, specific legal rights and you may have other rights which vary
from state to state or province to province. This product is not intended for commercial use.
Please complete the Product Registration Card and return within 30 days from purchase of the product to: Baccus
Global LLC, 621 NW 53rd St., Suite 450, Boca Raton, FL 33487. Baccus Global LLC, toll-free number:
4569-331-888.
SPECIFICATIONS
Bulb: 10 watt LED
Battery: Lithium-Ion, 3.6V DC
Input: 5V DC, 1A
USB Output: 5V DC, 1A
To purchase optional accessories, contact the manufacturer at 888-331-4569.
Imported by Baccus Global LLC, 621 NW 53rd St., Suite 450, Boca Raton, FL 33487
www.Baccusglobal.com 888-331-4569
RD051820
7/6/2020 11:31:47 AM 7/6/2020 11:31:47 AM
