Nessuna informazione contenuta nel presente fascicolo può essere considerata d’interesse per l’utilizzatore finale. Questo manuale è allegato alla centralina K101M, non deve pertanto essere utilizzato per prodotti diversi! Avvertenze importanti: Togliere l’alimentazione di rete alla scheda prima di accedervi.
Page 3

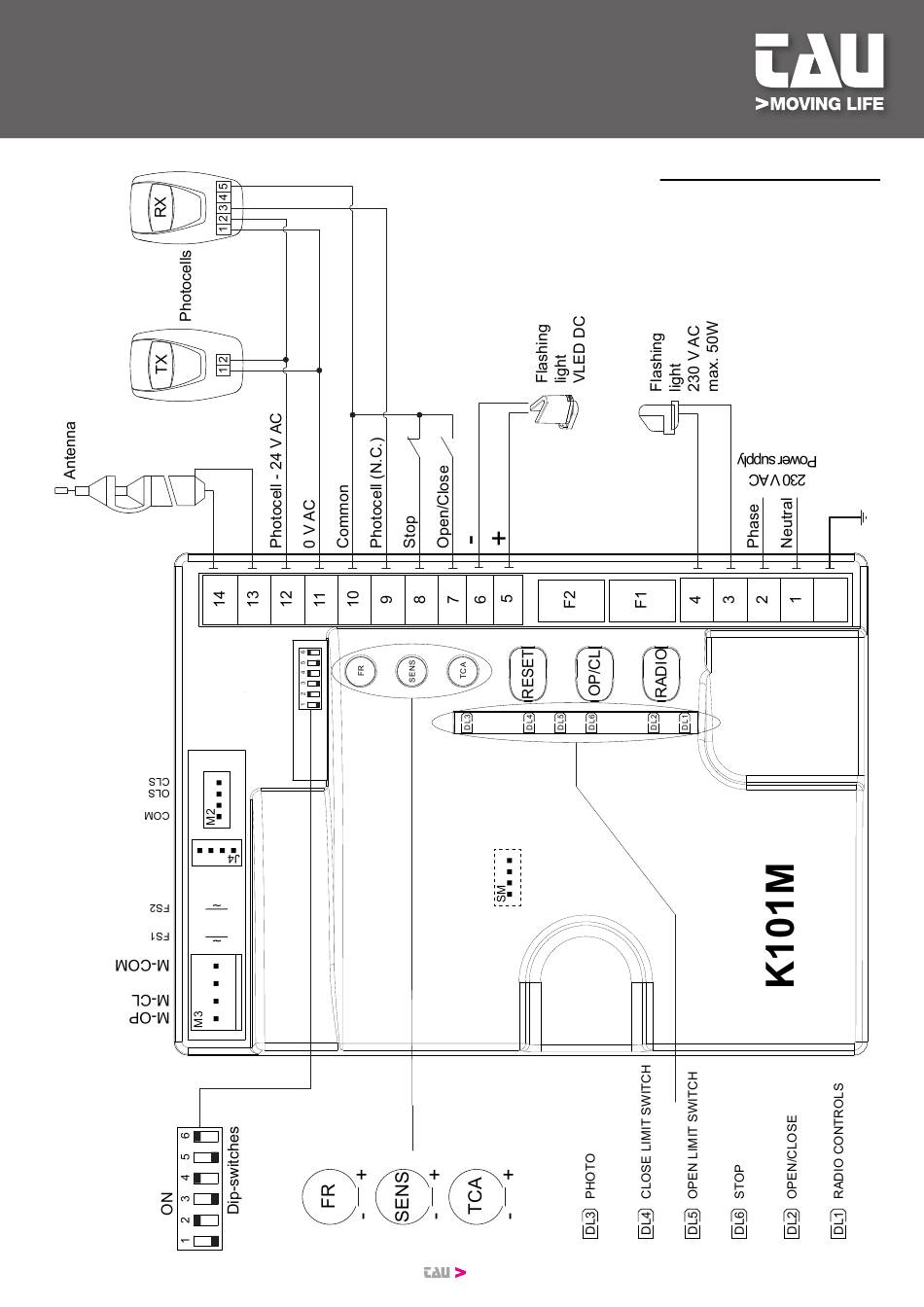

6. COLLEGAMENTI ALLA MORSETTIERA Morsetti Funzione Descrizione 1 - 2 ALIMENTAZIONE ingresso ALIMENTAZIONE 230/115 V AC 50÷60Hz. 1= NEUTRO, 2= FASE; uscita LAMPEGGIANTE 230/115 VAC 50 W max. Il segnale fornito è già opportunamente modulato per l’uso 3 - 4 LAMPEGGIANTE diretto.
11. LED DI DIAGNOSI LED - DL1 Il led, oltre ad indicare la programmazione dei radiocomandi, segnala eventuali errori con una serie di lampeggi predefiniti: sempre acceso: funzionamento regolare; Lampeggio breve: mancato rilevamento automatico della frequenza di rete; Contattare l’assistenza tecnica; 8 lampeggi: assenza segnale motore;...
Page 5
Effettuando un reset di fabbrica la memoria radio rimane invariata, pertanto i radiocomandi esistenti rimangono memorizzati. 14. PREDISPOSIZIONE AL FUNZIONAMENTO CON LE APPLICAZIONI TAU Per poter utilizzare le applicazioni TauApp e TauOpen si renderà necessario collegare all’ingresso J4 della centrale mediante il cavo in dotazione i rispettivi dispositivi T-WIFI e T-CONNECT.
Page 6
K101M TAU srl - Via Enrico Fermi, 43 - 36066 Sandrigo (VI) - Italy Tel +39 0444 750190 - Fax +39 0444 750376 www.tauitalia.com Control panel for RBLO-E automatic barrier D_MNL0K101M 21-10-2020 - Rev.06 GB - Translation of original instructions...
No information given in this manual can be considered as being of interest to end users. This manual is enclosed with control unit K101M and may therefore not be used for different products! Important information: Disconnect electric power to the system before making maintenance, repairs or removing covers The K101M control unit has been designed to control an automatic barrier.
6. TERMINAL BOARD CONNECTIONS Terminals Function Description 1 + 2 POWER SUPPLY POWER input 230/115 V AC 50-60 Hz. 1= NEUTRAL 2= PHASE; FLASHING LIGHT output 230/115 V AC, max. 50 W. The signal is already modulated for direct use; fast flashing 3 + 4 FLASHING LIGHT during closing, slow during opening.
11. DIAGNOSIS LED DL1 LED Other than indicating the programming of a transmitter is going on, DL1 LED advises error messages as follows: Steady light: Normal operation; Slow flashing: Automatic 50 / 60 HZ Frequency Detection Error; Contact Technical Service; 8 flashes: No motor signal;...
In case of Hard Reset the memory of the radio receiver will not be erased: all existing transmitters remain programmed. 14. SET-UP FOR OPERATION WITH TAU APPS In order to use the TauApp and TauOpen apps, it will be necessary to connect to input J4 of the control unit using the supplied cable, the re- spective T-WIFI and T-CONNECT devices.
