APPLICATION

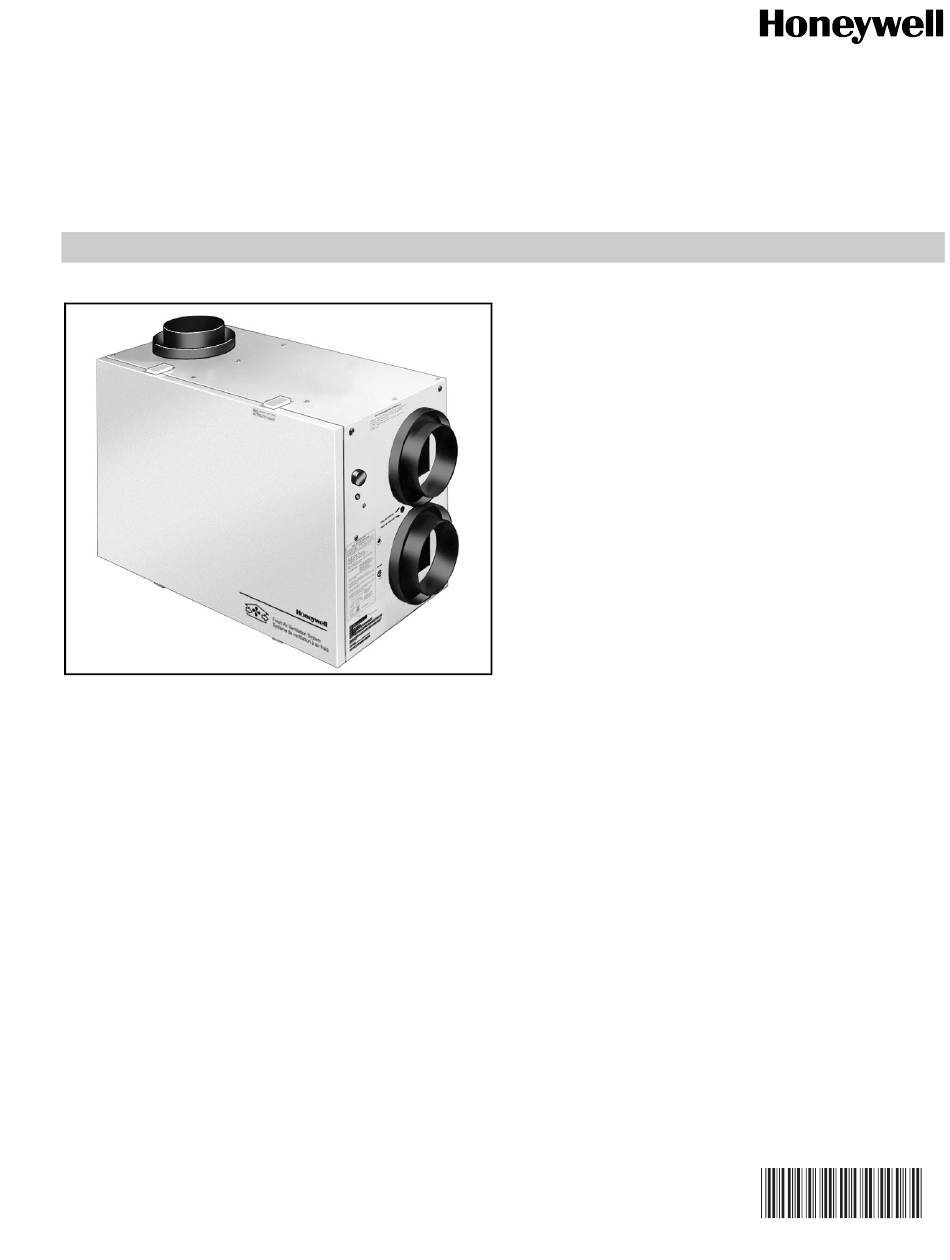

The HR150B, HR200B Perfect Window™ Fresh Air
Ventilation Systems provide proper levels of ventilation with
energy savings by transferring heat between the exhaust and
fresh air streams.
Fresh Air Ventilation Systems
FEATURES
• 220V, 50 Hz
• Low voltage, high-speed override.
• Integral balancing dampers for quick installation.
• Provides ventilation that helps contractors meet
ASHRAE 62-89.
• 4-speed fan control.
• Automatic, economical built-in frost control for
operation to design temperatures of -40°F (-40°C).
• Easy-to-clean aluminum cross-flow core.
• Includes vibration isolation hardware and duct collars.
• Insulated cabinet made of rugged steel.
• Permanent (washable) prefilters.
• Quiet operation.
• Digital fan timer option on all models.
Application/Features..........................................................1
Specifications/Ordering Information ..................................2
Planning the Installation ....................................................3
Installation .........................................................................7
Wiring ................................................................................8
Startup and Checkout/Service ...........................................10
Troubleshooting.................................................................11
Exploded View Details.......................................................12
HR150B, HR200B
Perfect Window™
PRODUCT DATA
Contents
68-0285
Advertisement
Related Manuals for Honeywell Perfect Window HR150B
Summary of Contents for Honeywell Perfect Window HR150B
-
Page 1: Table Of Contents
HR150B, HR200B Perfect Window™ Fresh Air Ventilation Systems PRODUCT DATA FEATURES • 220V, 50 Hz • Low voltage, high-speed override. • Integral balancing dampers for quick installation. • Provides ventilation that helps contractors meet ASHRAE 62-89. • 4-speed fan control. •... -
Page 2: Specifications/Ordering Information
If you have additional questions, need further information, or would like to comment on our products or services, please write or phone: 1. Your local Honeywell Automation and Control Products Sales Office (check white pages of your phone directory). 2. Honeywell Customer Care... -
Page 3: Planning The Installation
HR150B, HR200B PERFECT WINDOW™ FRESH AIR VENTILATION SYSTEMS (483) Fresh Air Ventilation System Système de ventilation à air frais DRAIN SPOUTS 33-5/8 (854) MOUNTING STRAP (4) ALL DUCT CONNECTIONS ARE 6 (150). (483) CONTROLS SERVICE CLEARANCE (635) WEIGHT: 70 lb (32 kg) M22700 SHIPPING WEIGHT: 72 lb (33 kg) 14-3/4 (375) - Page 4 HR150B, HR200B PERFECT WINDOW™ FRESH AIR VENTILATION SYSTEMS Mounting Position and Location Design and installation of ductwork must be according to standard HVAC practice to deliver required quantities of fresh The fresh air ventilation system can be suspended from air to temperature-controlled space and exhaust equivalent exposed ceiling joists, ceiling surface or floor mounted.
- Page 5 HR150B, HR200B PERFECT WINDOW™ FRESH AIR VENTILATION SYSTEMS RETURN OUTDOORS COLD AIR RETURN EXHAUST AIR FROM VARIOUS PARTS OF HOME (BATHROOMS IF REQUIRED; KITCHENS IF REQUIRED; ROOMS FORCED AIR WITHOUT OPERABLE WINDOWS, FURNACE AND POTENTIALLY BASEMENTS). COMBUSTION OR ELECTRIC NOTES: FURNACE BLOWER NEED NOT OPERATE TO PROVIDE GOOD AIR DISTRIBUTION/QUALITY WITH THIS SYSTEM.
- Page 6 HR150B, HR200B PERFECT WINDOW™ FRESH AIR VENTILATION SYSTEMS ADJUSTABLE DAMPERS FOR ADJUSTABLE ADJUSTABLE FRESH STALE AIR AIR SUPPLY BALANCING AIR FLOW INTO AND OUT OF THE HOUSE RETURN NOTES: FRESH AIR VENTILATOR EXHAUSTS FROM KITCHEN AND/OR SUPPLY HOOD BATHROOMS OR OTHER CENTRAL LOCATIONS TO OUTDOORS.
-
Page 7: Installation
HR150B, HR200B PERFECT WINDOW™ FRESH AIR VENTILATION SYSTEMS INSTALLATION When Installing this Product… 3. Place the ventilator on the frame. Secure the ventilator to the frame using screws and a strip of wood or metal; 1. Read these instructions carefully. Failure to follow screw into the side walls of the ventilator within 1 in. -
Page 8: Wiring
(disconnect) switch when cleaning or servicing unit. wired. Connect line voltage to the ventilator according to Fig. 9. Honeywell recommends that a licensed electrician make all electrical connections. It is very important that the unit be correctly grounded. 68-0285... - Page 9 HR150B, HR200B PERFECT WINDOW™ FRESH AIR VENTILATION SYSTEMS LEGEND SPEED CONTROL SWITCH HIGH VOLTAGE FIELD INSTALLED HIGH VOLTAGE 12V LOW VOLTAGE YELLOW FIELD INSTALLED BROWN 12V LOW VOLTAGE AUTO 220V 50 HZ. TRANSFORMER MICRO PROCESSOR BOARD FACTORY SETTING NEUTRAL GREEN DOOR INTERLOCK WHITE...
-
Page 10: Startup And Checkout/Service
For maximum efficiency, the Fresh Air Ventilation System must (0 to 62.5 Pa) of water are recommended for accurate airflow be maintained on a regular basis. Honeywell recom-mends measurements. To avoid airflow turbulence and incorrect checking and cleaning at least twice a year, preferably at the readings, flow stations should be located at a distant point of at beginning of each heating and cooling season. -
Page 11: Troubleshooting
HR150B, HR200B PERFECT WINDOW™ FRESH AIR VENTILATION SYSTEMS TROUBLESHOOTING (TABLE 3) Table 3. Troubleshooting Guide. Symptom Cause Solution Poor • Plugged outside hood 1/4 in. (6 mm) mesh. • Clean exterior hoods or vents airflow • Filters plugged. • Remove and clean filter. •... -
Page 12: Exploded View Details
HR150B, HR200B PERFECT WINDOW™ FRESH AIR VENTILATION SYSTEMS Table 3. Troubleshooting Guide. (Continued) Symptom Cause Solution Water in • Drain pans are plugged. • Ensure O-ring on drain nozzle adjusted correctly. ventilator • Improper connection of ventilator drain lines. • Look for kinks in line. bottom •... - Page 13 HR150B, HR200B PERFECT WINDOW™ FRESH AIR VENTILATION SYSTEMS M22702 Fig. 11. Exploded view. 68-0285...
- Page 14 68-0285...
- Page 15 68-0285...
- Page 16 Automation and Control Solutions Honeywell International Inc. Honeywell Limited-Honeywell Limitée 1985 Douglas Drive North 35 Dynamic Drive Golden Valley, MN 55422 Scarborough, Ontario M1V 4Z9 customer.honeywell.com ® U.S. Registered Trademark © 2005 Honeywell International Inc. 68-0285 G.H. 02-05...
