- Page 1 Manual Greenhouse ARROW 3,0 20-03-2018...
- Page 2 width 3,0 m any length multipple to 2m...

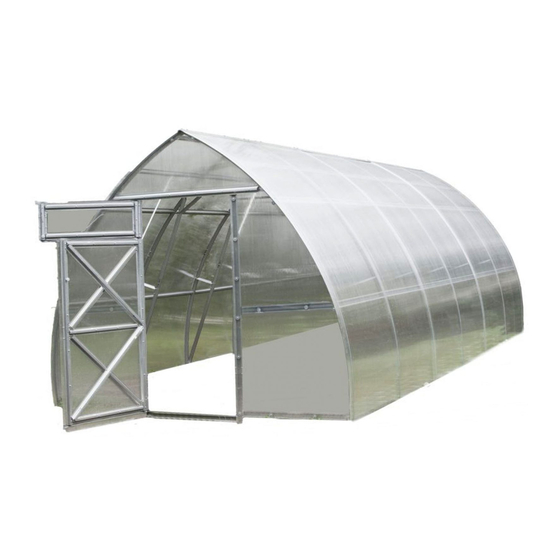

- Page 3 Technical certificate Perform installation and operation of the greenhouse in strict accordance with the manual and operating rules stated in the technical certificate. Please keep this technical certificate for further reference. Description Greenhouse ARROW is designed for creation of microclimate favorable for growing garden crops on cottage and household plots.
- Page 4 Technical certificate Detailed list of parts for Greenhouse ARROW Chart 4 Marking Name Quantity (pcs) Package 1 (beams and straight parts) Beam Door diagonal part Door diagonal strap Ventilating window horizontal part Ventilating window vertical part Hooks Package 2 (arch parts) 4н...
- Page 5 Technical certificate Detailed list of parts for Inset Chart 5 Package 1 balk Package 2 support stand 4н bottom arc 4в top arc horizontal strainer side brace brace strut liner stiffening boom Package 3 ridge profile Package 4 angle ridge cover plate bottom wire bandage top wire bandage screw M5x10...
-
Page 6: Operating Rules
Technical certificate Operating rules Before use of greenhouse, When installing the greenhouse by When installing the greenhouse by assembleand install it in accordance third parties, buyer should supervise third parties, buyer should supervise compliance of installation with the with the manual. manual. - Page 7 Technical certificate Warranty responsibility Warranty responsibility 1. The manufacturer shall be responsible for the complete set of parts for the greenhouse frame. 2. The manufacturer shall be responsible for assemblability of the greenhouse in accordance with the manual. 3. The manufacturer shall be responsible for the greenhouse endurance in the specified weather conditions.
- Page 8 Manual Installation manual for Greenhouse ARROW introduction General view of the frame is given in Picture 1 . Parts should be installed in such a way that side selves of the profile are facing the surface cover. The frame is assembled of numbered parts. Symbols: Some parts may have spare -arrow shows the direction of...
- Page 9 Manual General view of Greenhouse ARROW frame Pic. 1 4в А 4в Д 4н В 4н Б 6к 6к Е Г 4Н 4В 4В 4Н 4Н 6к ridge cover angle angle А (outside view) Б (inside view) В (inside view) 4В...
- Page 10 Manual General view of Greenhouse ARROW frame Pic. 2 General view of insert for Greenhouse ARROW. Each insert extends greenhouse length by 2 m. Pic. 3 Greenhouse ARROW extended by any number of inserts. 3000 1071 Pic. 4 Greenhouse foundation support layout plan.
-
Page 11: Installation Sequence
Manual Installation sequence Perform the installation close to location of the greenhouse. Install greenhouse in accordance with photographs of installation stages and units represented in Pic. 5…12. The figures show installation of greenhouse of 4 m length. Required length is reached using attachment of appropriate number of Insert packages. - Page 12 Manual Assembling stages 4в Connect arcs 4н to arcs 4в 4в from one side of 4в 4н 4н greenhouse. 4в 4н 4в 4н 4в 4н Pic. 7 4н 4н 4н Connect balks 2 to arcs 4н 4н 4н 4н 4н Pic.
- Page 13 Manual Assembling stages В А Г Д Е Б Pic. 11 А Б В 4н 4в Г 4в Д 4н Install side braces 10 on each arc inside of greenhouse frame. Assemble side brace assembled from two elements 10. Mount side brace liner 11 on the joint of elements 10 and connect it to arc 4н.
- Page 14 Manual Assembled door and end small window Assemble door and end small window from elements12, 13, 14, 15 (Pic.12) Small window А А Door Б Б Pic. 12...
- Page 15 Manual Cutting and fastening of coverage CUT POLYCARBONATE SHEET STRICTLY IN ACCORDANCE WITHС Pic. 13(а) or 13(б) and Pic. 14 2100 x 600 mm cellular polycarbonate sheet Warning! When cutting the surface cover in windy weather, fix the edges of polycarbonate sheets with a load.
- Page 16 Manual of elements 7 and 8, and top edge at 30 mm above bottom edge of element 5. Cut a stencil. Mark the rest of sheet using the stencil in accordance with cutting scheme (Pic.13а или Pic 13б. Mount cellular polycarbonate strictly facing sun with a side having protective layer (by all means, clarify it under purchase or before mounting).
- Page 17 Manual Раскрой и крепление покрытия торца Cutting and fastening of coverage Cut ridge coverage pieces located above the door at marking the place of installation from remaining pieces. Mark 4в marking4в coverage by elements 4в with allowance aligning bottom edge of the sheet with bottom edge of aligning bottom edge of the sheet with bottom edge of element 5 (Pic.15).
- Page 18 Manual Cutting and fastening of coverage door sealer adhesive Pic.18 hinge сoverage tape hinge сoverage hinge sealer adhesive door sealer handle tape door sealer hinge sealer washer adhesive tape сoverage hinge сoverage handle washer Angle сoverage screw hinge М5х14 Pic.19 adhesive adhesive tape...
- Page 19 Manual Cutting and fastening of coverage Mount end cover plate 16 on end coverage and fasten it on element 5 through coverage (Pic.20 and Pic.24). Joint of end coverage pieces is under element 16. Pic.21 Pic.20 ridged screw small panel window М5х50 сoverage...
- Page 20 Manual Cutting and fastening of coverage The washers and the hooks on the end install in accordance with Pic.24. washer screw М4х10 Angle end сoverage screw М5х35 hook washer ground Angle Pic.24 Install tubular reinforcing element door opening in accordance with Pic.25 tubular reinforcement Pic.25...
- Page 21 Manual Cutting and fastening of coverage into opposite outside both outside and inside Insert wire rotatorfor of the greenhouse the greenhouse. door closing in free direction (Pic. 27). Set holes (against the stop) elastic header on the through elements 12 and rotator (Pic.
- Page 22 Manual Cutting and fastening of coverage Cellular polycarbonate shall be installed strictly defined side out (towards the sun), which has a protective layer. The protective layer is usually at the side with the inscriptions on the transport film. The film on the other side of sheet is transparent.
- Page 23 Manual Cutting and fastening of coverage Before coating it is necessary to cut the outer surface of the upper polycarbonate sheet for bending on the ridge (middle of sheet)! The arrow on the details is directed L=1,05m to the front side х2 greenhouse х1...
- Page 24 Manual Cutting and fastening of coverage do not fully tighten! х3 х3...
- Page 25 Manual Cutting and fastening of coverage Adhesive tape х1...
- Page 26 Manual Cutting and fastening of coverage L=1,0m х1 х3 х3 х4 х4 х4...
- Page 27 Manual Cutting and fastening of coverage Details of ridge profile are joined in the length with the installation of the threaded end of the screws out. screw М5х14...
- Page 28 Manual Cutting and fastening of coverage Ridge х1 profile х1 х1 х1 top wire х2 bandage х1 х1 х1 top wire х2 bandage...
-
Page 29: Contact Information
Contact information Head office: Dancover A/S For more information Nordre Strandvej 119 G please visit: 3150 Hellebæk www.dancovershop.com Denmark National contact Denmark: 70 26 76 20 Spain: 911 436 828 denmark@dancover.com espana@dancover.com UK: 020 8099 7570 Italy: 02 479 21 198 uk@dancover.com...
