Connecting the Hydran M2-X to Hydran 201Ci
Controllers

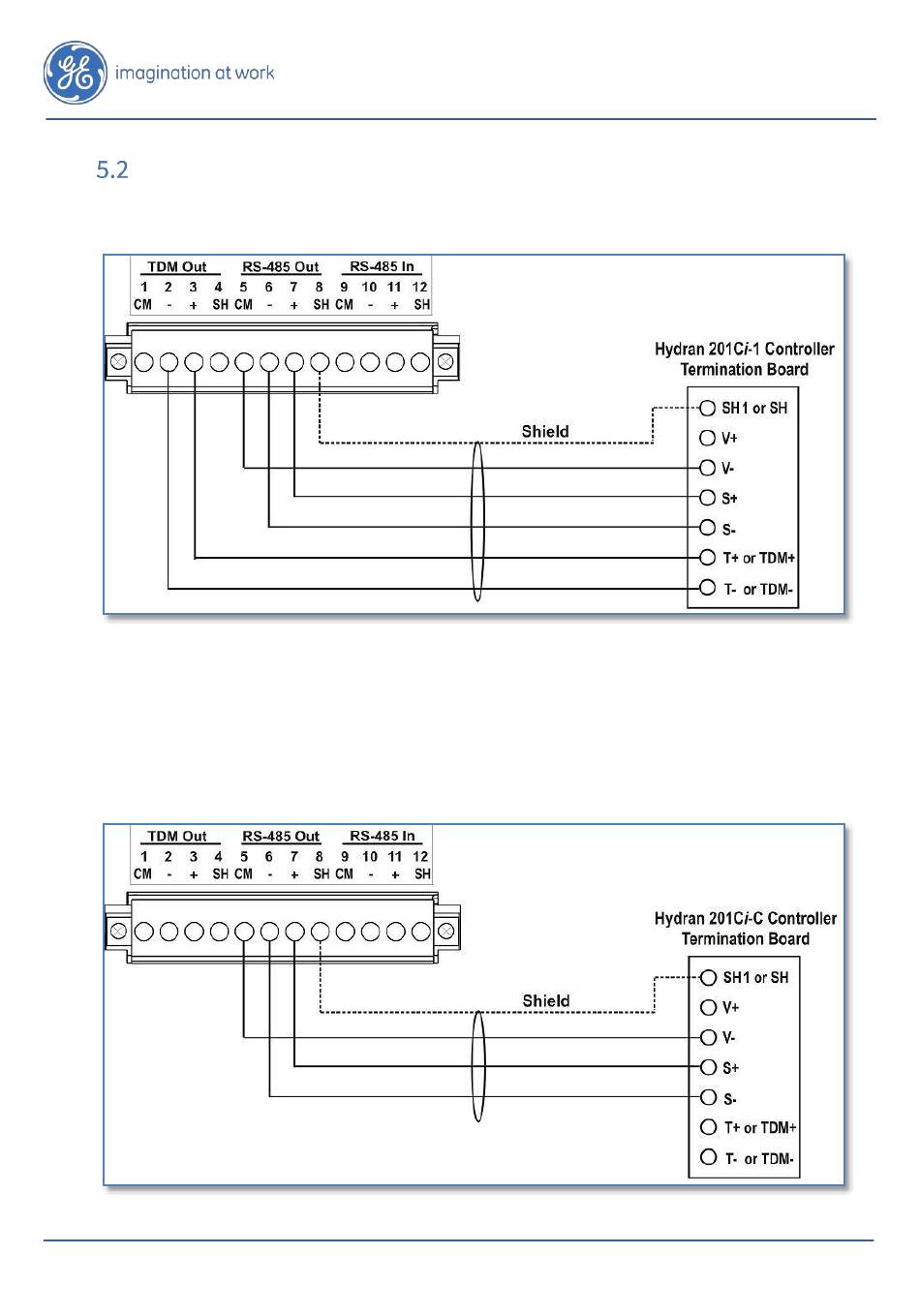

Figure 41: Wiring of the Supervisory Link between a Hydran M2-X and a Hydran 201Ci-1 Controller
Note: The Hydran 201Ci-1 Controller can only display the gas level measured by the
Hydran M2-X, not the moisture level.
Figure 42: Wiring of the Supervisory Link between a Hydran M2-X and a Hydran 201Ci-C Controller
