Zamel ledix SLR-11 Quick Start Manual

Wireless RGB controller
SLR-11
Mounting in a Ø60 Mounting
junction box indoor only

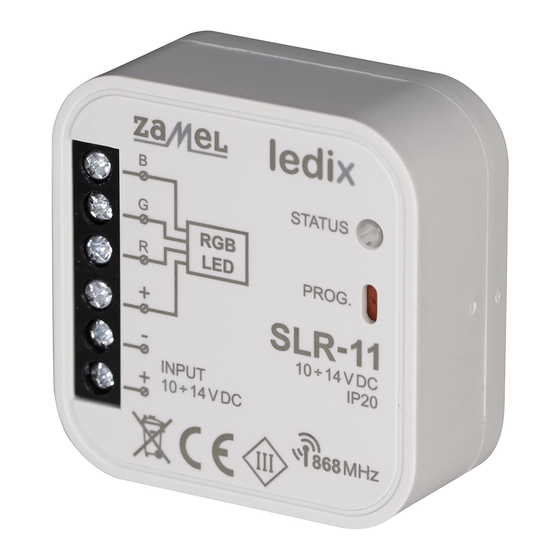

SLR-11 controller is designed to control LED RGB diodes in the circuit with common "+"
potential (RGB LEDIX series standard fittings, RGB strips and modules) supplied with
10 ÷ 14 V DC. The control is carried out wireless in cooperation with selected EXTA FREE
system transmitters or with dedicated P-260 remote control.
Characteristic features:
• 5 programmes: colour selection (to select 1 of 10 colours defined by the producer), bright-
ening/dimming, fluent automatic colour change mode (FLOATING), step by step auto-
matic colour change (STROBE) – only for the P-260 remote control, fluent colour selection
(RAINBOW) – only for P-260 remote control,
• wireless control system (EXTA FREE transmitters and dedicated P260 remote control-
remote control),
• 3 transistor outputs (MOSFET) with a maximum current capacity of 4 A per each output,
• 9-bits control system guarantees fluent colour change in FLOATING mode,
• wide operation range (up to 230 m in the open area),
• low power consumption in the standby mode – controller is designed for continuous op-
eration.
PL 43-200 Pszczyna, ul. Zielona 27, Poland
tel: +48 32 449 15 00, fax: +48 32 449 15 02
10÷14 V DC / 0,22 W; IP20
weight: 27 g
CET Lighting Sp. z o.o. declares that
the equipment complies with the principal
requirements and other applicable rules
of the RTTE Directive.
The symbol means selective
collecting of electrical and electronic
equipment. It is forbidden to put
the used equipment together with
other waste.
Declaration of Conformity is on www.ledix.pl
SCAN
the technical
data
Co-operation
with EXTA FREE
transmitters
Cet Lighting Sp. z o.o.
e-mail: ledix@ledix.pl, www.ledix.pl
Wireless RGB controller
TYPE: SLR-11
SLR-11 ENG Ver. 01
Wireless
RGB controller
SLR-11
10 ÷ 14 V DC
