Adjusting The Unit's Parallelism And Cutting Height; Parallelism - Husqvarna Rider Pro 18 AWD Workshop Manual

Adjusting the Unit's Parallelism
and Cutting Height
When a new cutting unit is attached, you
need to adjust the parallelism and cutting
height.
Starting position:
1. Check the air pressure in the tyres
60 kPa / 0.6 bar / 9 PSI.
2. The cutting unit shall be lowered onto a
flat surface.
3. The height adjustment lever shall be set
to the lowest cutting height.

Parallelism

Always start by adjusting the parallelism.
1. Loosen the two nuts on the strut.
2. Measure the distance between the
ground and the front and back edges of
the unit's cover.
3. Place a spanner over the bevel in the
middle of the strut and tighten so that the
cutting unit's rear edge is 2-4 mm /1/8"
higher than its front edge.
Screw out (extend) the strut to raise the
rear edge of the cover. Screw in
(shorten) the strut to lower the rear edge
of the cover.
4. Check the measurement.
5. Then tighten the two nuts on the strut.
REPAIR INSTRUCTIONS
Height adjustment lever

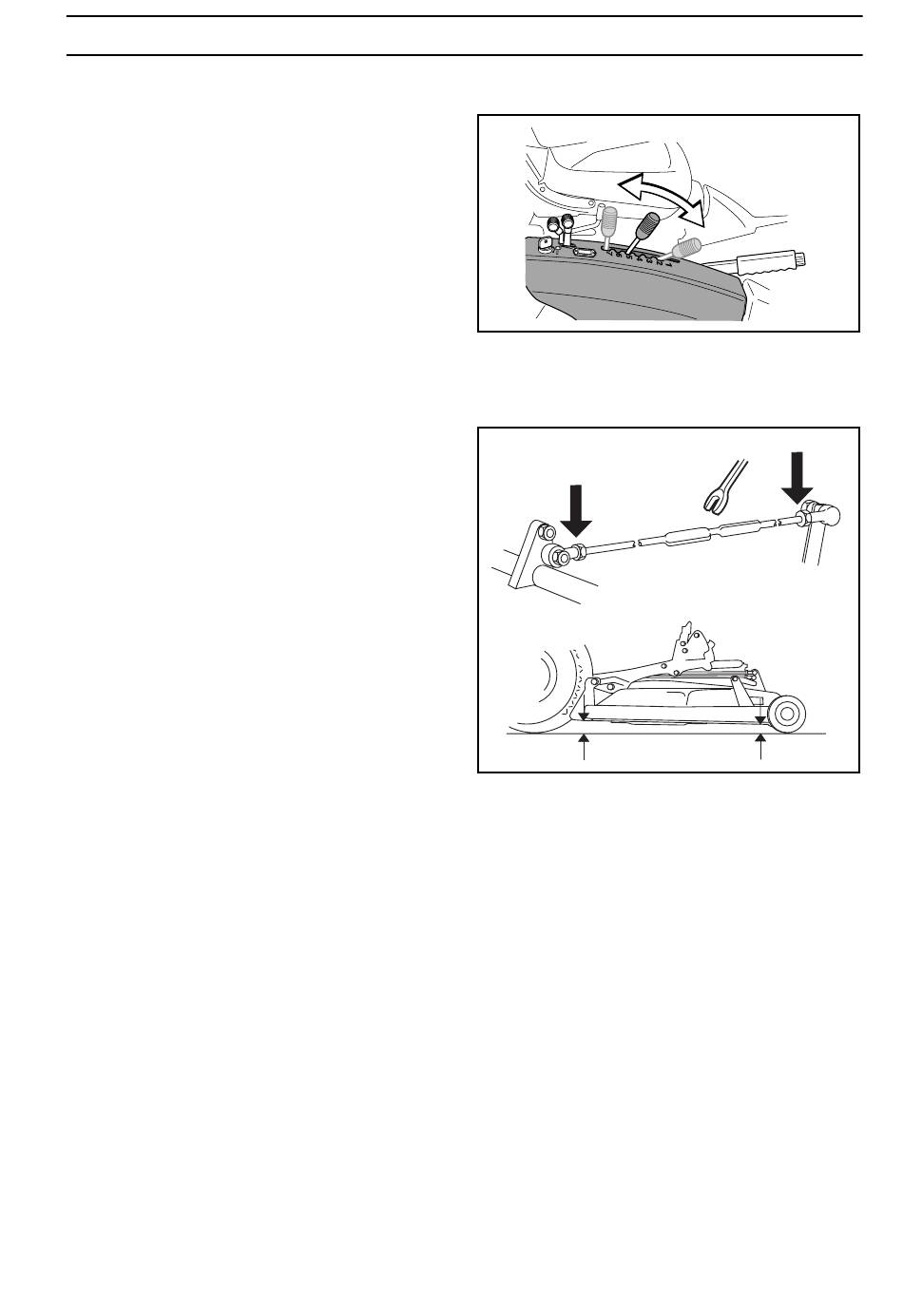

Adjusting the parallelism
8009-327
8009-027
8009-026
