M Series Probe Connections; Std/Tf Terminal Block Location - GE Moisture Image Series 1 Startup Manual

April 2004
M Series Probes (cont.)
1-22
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
If you connect a probe to the wrong channel, you can either reconnect
the probe to the assigned channel, or reconfigure the current channel
as described in Verifying and Entering Setup Data in Chapter 2.
NOTICE FOR BASEEFA CERTIFICATION
The M Series probe may not be capable of withstanding
the 500 V insulation test required by clause 5.7 of
EN50 020 when installed in the process media. This must
be taken into account in any installation in which it is used.
(See Cert. # Ex95C2002X in its entirety.) Copies of official
BASEEFA documentation (certificates of compliance,
licenses, etc.) are to be made in their entirety.
.
Table 1-2: M Series Probe Connections
Connect:
red wire (moisture H1)
green wire (moisture H2)
white wire (temperature T1)
black wire (temperature T2)
shield
IMPORTANT: To maintain good contact at each terminal block and
to avoid damaging the pins on the connector, pull the
connector straight off (not at an angle), make cable
connections while the connector is away from the
unit, and push the connector straight on (not at an
angle) when the wiring is complete.
When you have connected the probe(s), perform a calibration test as
described in Performing an MH Calibration Test/Adjustment in
Chapter 1 of the Service Manual to check for small electrical offsets
in the cable.
STD/TF Probe
Terminal Block

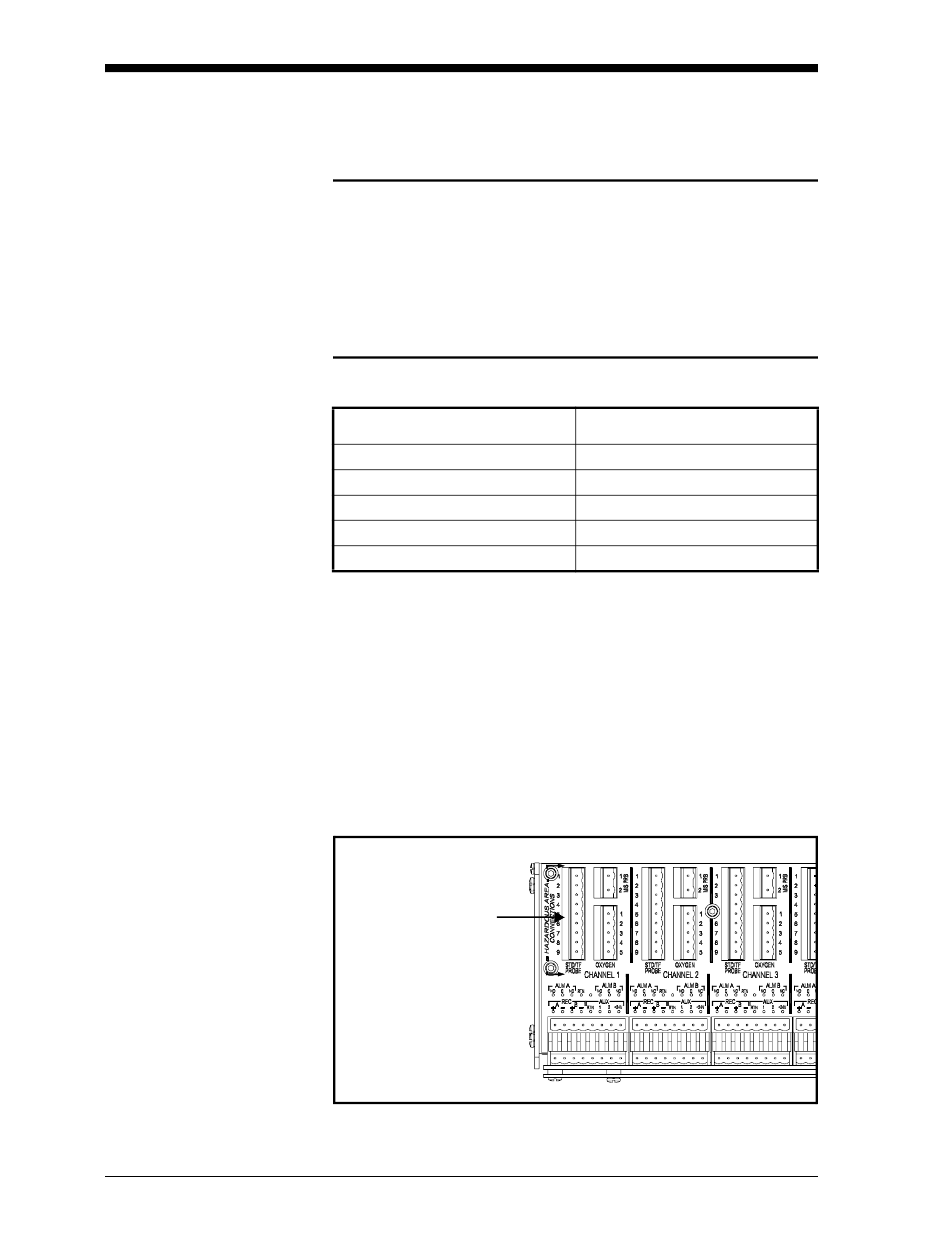

Figure 1-11: STD/TF Terminal Block Location
To STD/TF PROBE TB:
pin #1
pin #2
pin #3
pin #4
pin #9
Installation
