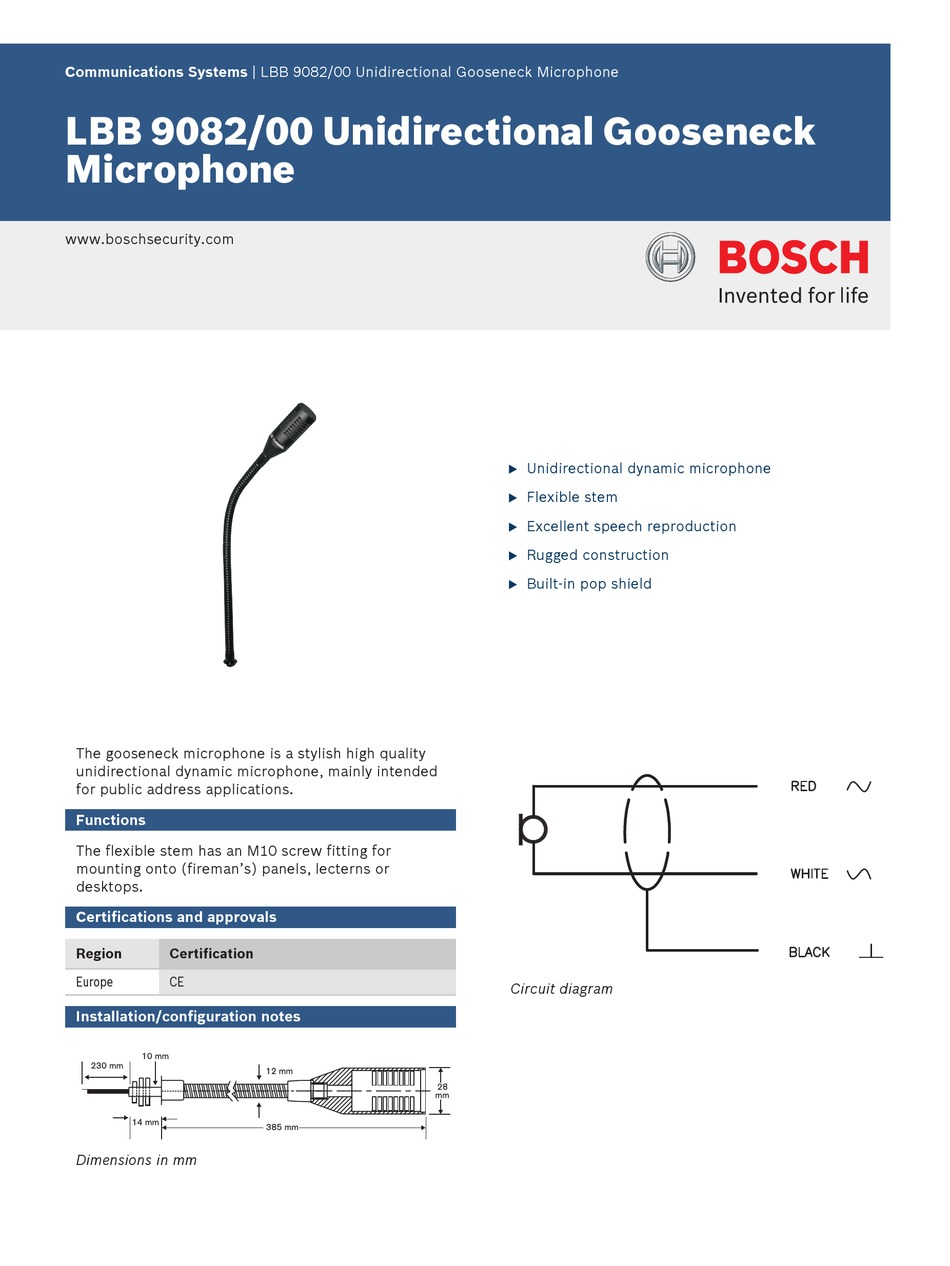

Bosch LBB 9082/00 Installation/Configuration

Communications Systems | LBB 9082/00 Unidirectional Gooseneck Microphone
LBB 9082/00 Unidirectional Gooseneck
Microphone
www.boschsecurity.com
The gooseneck microphone is a stylish high quality
unidirectional dynamic microphone, mainly intended
for public address applications.
Functions
The flexible stem has an M10 screw fitting for
mounting onto (fireman's) panels, lecterns or
desktops.
Certifications and approvals
Region Certification
Europe CE
Installation/configuration notes
Dimensions in mm
Unidirectional dynamic microphone
u
Flexible stem
u
Excellent speech reproduction
u
Rugged construction
u
Built-in pop shield
u
Circuit diagram
