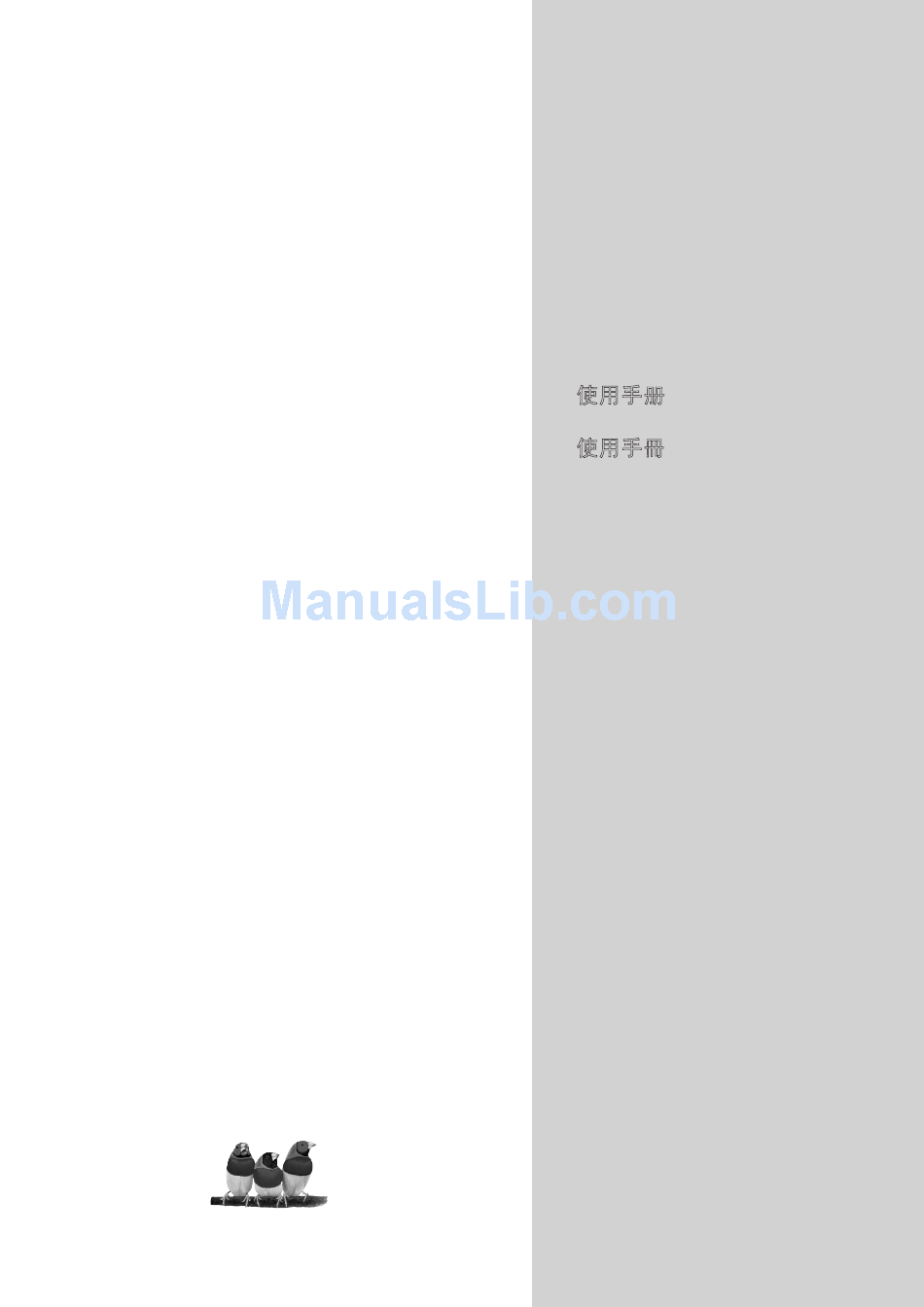

- Page 1 ViewSonic ® N1930w LCD TV - 使用手册 - 使用手冊 - User Guide ViewSonic Model No. : VS12197-1G ®...
-
Page 2: Table Of Contents
Antenna Installation Instructions ... 3 Cleaning the LCD TV ... 3 Getting Started Package Contents ... 4 Mounting ViewSonic LCD TV to the wall ... 4 Front View of the Product ... 6 Rear View of the product ... 7 Remote Control ... 8 Installation ... -
Page 3: Important Safety Instructions
15. This product is only to perform the useful function of entertainment and visual display tasks are excluded. ViewSonic N1930w... -
Page 4: Copyright Information
Purchase Date: Product disposal at end of product life ViewSonic is concerned about the preservation of our environment. Please dispose of this product properly at the end of its useful life. Your local waste disposal company may provide information about proper disposal. -
Page 5: Antenna Installation Instructions
LCD TV screen or ® case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD TV. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 6: Getting Started
• Do not install near heat source, or strong magnetic fields. • Use only ViewSonic approved wall-mounting brackets to support the LCD TV weight. • Before attaching the wall mount plate to the back cover, ensure the product is working. - Page 7 • Install the wall mount plate to the LCD TV using screws NO LONGER than 10mm, as longer screws found in universal (non-ViewSonic) wall mount kits may damage the power supply causing the unit to fail. The wall-mount screw type is M4 x L10.
-
Page 8: Front View Of The Product
Turn the power on from standby mode or turn the power off to return to the standby mode. Power LED Indicator Lights up in blue when the TV is turned on. Lights up in amber when the TV is in standby mode. ViewSonic N1930w... -
Page 9: Rear View Of The Product
Connect to the antenna or cable service. PC Audio input Connect this port to PC audio output jack. AV/S-Video/YPbPr Audio Input (left/ right) Connect the Audio in cable for AV/S-Video/YPbPr from this jack to the corresponding connectors on your A/V devices. ViewSonic N1930w... -
Page 10: Remote Control
Remote Control ( For China area ) ( For Hong Kong area ) ViewSonic N1930w... - Page 11 9 PROGRAM UP/ DOWN 10 MUTE 11 INFO 12 SLEEP 13 RETURN 14 MPX ViewSonic Select input source Enter the function setting Swap between TV. Swap to TV when in other source Adjust volume up or down Switch channel number keys...
-
Page 12: Installation
TV antenna or set-top-box with 75-ohm coaxial cable. Preset the TV chan- nels into memory with Auto Scan function when using an antenna or cable TV system without a cable connecter box (See page 18). ViewSonic RF Cable or Adapter N1930w... - Page 13 Connect Video / Audio cables from compatible devices into the back panel of your LCD TV. 1) With AV cable: 2) With S-Video cable: 3) With YPbPr cable: ViewSonic RCA A/V Cable VCD or DVD Player RCA A/V Cable S-Video Cable (not supplied)
-
Page 14: Connecting To A Computer
Connect the VGA cable from VGA output of the computer to the VGA terminal input of your LCD TV. Also, connect the Audio In cable (green) from the audio output of your computer to the audio input terminal (green) of the LCD TV. ViewSonic HDMI Cable (not supplied) Audio in Cable (not supplied) -
Page 15: Connecting With The Power Cord
Connect the power cord to the AC inlet at the back of your LCD TV, after all connections have been completed, and plug the other end of the power cord into a correctly grounded electrical outlet. AC wall socket Power Cord ViewSonic Audio in Cable (not supplied) HDMI-DVI Cable (not supplied) N1930w... -
Page 16: Basic Operation
To display the current information of the LCD TV, press INFO, and the current state will be displayed on the screen. Switch Sound Mode Repeatedly press MPX button on remote control to Switch the sound mode in NICAM- Stereo or NICAM-Dual. (only available for Hong Kong area) ViewSonic N1930w... - Page 17 Press ENTER or ▲▼ to enter the menu you select. t Use ▲▼ to appoint your desired optional item. t Press ◄► to adjust the settings. t Press MENU to finish adjustment and press MENU again to exit the OSD menu. ViewSonic N1930w...
-
Page 18: Osd Functions
4:3 image will stretch to fill the screen, but only the extreme edges will be distorted; anything toward the center of the screen will be displayed close to its proper proportions. ViewSonic When input source is AV, S-Video, YPbPr, HDMI:... -
Page 19: Sound Menu
• OSD Timeout: To automatically shut off the OSD after a preset period of time passed. Use ◄►to preset the time from 15 to 60 seconds. To keep the OSD on, select OFF. • Memory Recall: Press ► to restore the default settings. ViewSonic When input source is AV, S-Video, YPbPr, HDMI or PC:... -
Page 20: Channel Menu
To Erase/ Add channels: Use▲▼ to select the desired channel. Press “3” to erase the channel or press “2” to add it. When using ▲CH▼ key, the channels you erased will be passed over. You may press “2” to add the erased channels or use Auto Scan function to re-present them. ViewSonic N1930w... -
Page 21: Pc Menu
• Auto Adjust: To process auto image adjustment by pressing ►. • Contrast: To adjust foreground luminance of video. • Brightness: To adjust background luminance of video. • Colour Mode: To adjust the colour temperature. ViewSonic When input source is HDMI(PC mode): N1930w... - Page 22 • Clock: To adjust delay time of clock in order to reduce the noise of picture. • Phase: To adjust delay time of phase in order to reduce the noise of picture. Note: When input source is HDMI(PC), the Auto Adjust, H-Position, V-Position, Clock and Phase is not available. ViewSonic N1930w...
-
Page 23: Other Information
Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD TV. Note: Product Specifications are subject to change without notice. ViewSonic 19.0” TFT Active Matrix RGB 0.285 (H) x 0.285 (V) mm pixel... -
Page 24: Troubleshooting
• Press MENU button on the remote control to see if there is a MENU shown on the screen. • Press only one button at a time and it is the correct one for the operation you want to perform. ViewSonic Troubleshooting Possible Solution N1930w... - Page 25 • Is the image positioned correctly? Picture is cut • Are screen mode adjustments such as picture size set correctly? off/with sidebar • Press WIDE button repeatedly on the remote control to see if you can screen get the picture you prefer. ViewSonic N1930w...
-
Page 26: Customer Support
For technical support or product service, see the table below or contact your reseller. Note: You will need the product serial number. Country/ Web Site Region China www.viewsonic.com.cn Hong Kong www.hk.viewsonic.com Declaration of RoHS Compliance The toxic and hazardous substances or elements of this product are shown as below: Name of... -
Page 27: Limited Warranty
How long the warranty is effective: ViewSonic LCD TV are warranted for one (1) year for all parts excluding the light source and one (1) year for labor from the date of the first customer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser. - Page 28 ViewSonic ®...
