Page 19

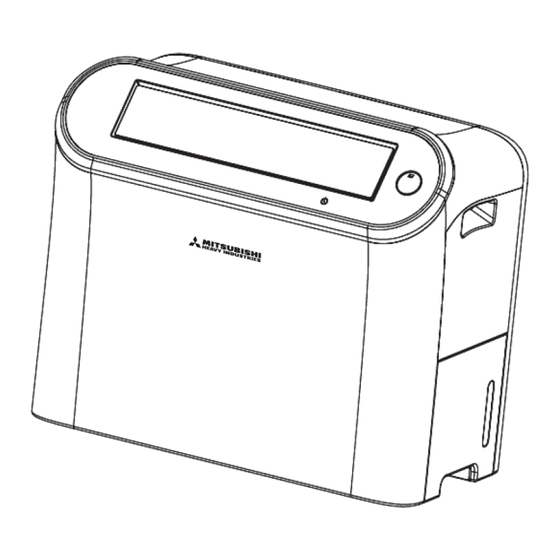

Index Important Safety Notices ..... . . 20 Ambient Environment For Operating ....23 Components Diagrams .
Page 20
Important Safety Notices Do not install and use the unit before carefully reading this instruction guide. ! Please keep this manual for product warranty and future use. 1) Please be sure your electricity is correct. 2) Do not place the machine near the appliance produced high temperature. Since the high temperature might damage the plastic and caused fire.
Page 21
8) Make sure the inlet and outlet ventilation is not blocked at all times. 9) Do not spray water on the machine, 10) Never pull the socket by using damp spraying water may cause malfunctioning hands. and electric shock. 11) Always switch off before unplugging to avoid electric shock. 12) If you do not use for a long time, shutdown and unplug the power plug, then pour the water from the tank and wipe it clean.
Page 22
Note: When dry clothes, please do not hang the clothes above the outlet. To prevent the water drop into the machine from outlet and cause malfunction. When the machine is running, should make sure the minimum distance between the unit and the wall or other obstacles from all sides as below requirement.
Page 23
Operating Environment 1. Working temperature:5℃-32℃, ambient temperature:30%RH–80%RH. 2. This machine is suitable for indoors, e.g. Living room, study, office room, warehouse, basement, underground garage. 3. Make sure the door and window are closed before turning on the unit to get the best result. 4.
Page 25
Operating Introduction 1. Touch Key and Display Panel 2. The Name and Function of Touch Key 1、 (POWER Mode Button)Touch the button to switch on/off the power. 2、 (Mode Setting Button) : Touch the button to set up (dry clothes function)or (dehumidify function).
Page 26
5、 (Fan SPEED Button) :In dehumidify mode, touch Speed button adjust the fan speed.(Total is two speed.)The display will show the setted speed accordingly (1or 2). In dry clothes mode, touch Speed button to open or close the PTC heater. The defaulted setting for PTC heater is closed and display “C”,touch the fan speed button again ,the PTC heater will open and display “H”.
Page 27
will show the shutdown time accordingly. The icon lights off. It indicates the shutdown timer function cancelled. Lock indication 4、 icon lights up, the lock function open. icon lights : off, the lock function close. Defrost indication 5、 icon lights up,the machine stop dehumidification :...
Page 28
<0℃. C3:Infrared detection head damaged. Open circuit or short circuit. C7:DC motor abnormal operation. C8: The temperature difference between what defrost sensor detected and what temperature & humidity sensor detected ≤3℃,it maybe the refrigerant leak. 4. Operating Introduction : .Power on When plug in appliance,touch Power button ,the machine start running,the air Deflector opens.
Page 29
≤30℃,the PTC come back to work automatically. (The Fan speed can not be setted under the dry clothes function.) ② Dehumidify Function: The icon lights up. The machine operate under the dehumidify function. Touch the button Up/Down swing or Light/Left swing can set the swing direction.
Page 30
timing is still valid, until reached the setted time, the machine stop automatically. 5. Fan Speed Setting In dehumidification function, Touch the Fan speed setting button could adjust the Fan speed. There are 1&2 two speed to be chosen,1 means low speed,2 means high speed.
Page 31
Touch Clothing Amount button to adjust the dry clothes working time. Total is 3 clothing amount could be selected.1.2.3.Different clothing amount correspond to different dry clothes time accordingly. The digital tube will show the clothing amount accordingly. (This function could be setted only under the dry clothes mode.). 5.
Page 32
dehumidification mode for 30 minutes, then the machine start defrost, the icon lighten, compressor stop working and fan motor operate under high speed. When the sensor detects the temperature of evaporator≥2℃ and the defrost time ≥10 minutes, the auto-defrost mode end and the compressor start to work, the machine began to dehumidify, the icon light off.
Page 33
10. Low humidity protection function When the machine detect the ambient humidity<30%,the digital tube will show Lo, the machine will stop dehumidifying, the fan motor will work at previous setted speed. When the machine detect the ambient humidity >35%,the digital tube will show the actual humidity, the machine will return back to dehumidify.
Page 34
13. Error codes 1.When the sensor, which detect the evaporator temperature, is damaged(open circuit or short circuit), the digital tube will show C1 and flashing. When NTC detect the evaporator’s temperature≥40℃ and last 2 minutes, the machine will stop working and the digital tube will show C1 and flashing.
Page 35
When under continuously drainage, the drainage hose have to place flatly on the ground. The drain hose could not be curved or cocked, otherwise, the water could not flow out smoothly. Maintenance ★ As its casing is made of plastic, do not place it in direct sunlight. ★...
Page 36
Mai n n pa r r ame odel DA25W - Rate d 220V/1 P P h/50HZ d voltage 25L/D ( 3 3 0℃ 80% R R H) Rated de h h umidificat i i on 15L/D(2 6 6 .7℃ 60 % % RH) 285W(2 6 6 .7℃...
