KX 155A and KX 165A
VHF Communication/Navigation Transceivers
KX 155A and KX 165A Operation (25 kHz Versions)
All controls required to operate the KX 155A and KX 165A are located on the unit
front panel.

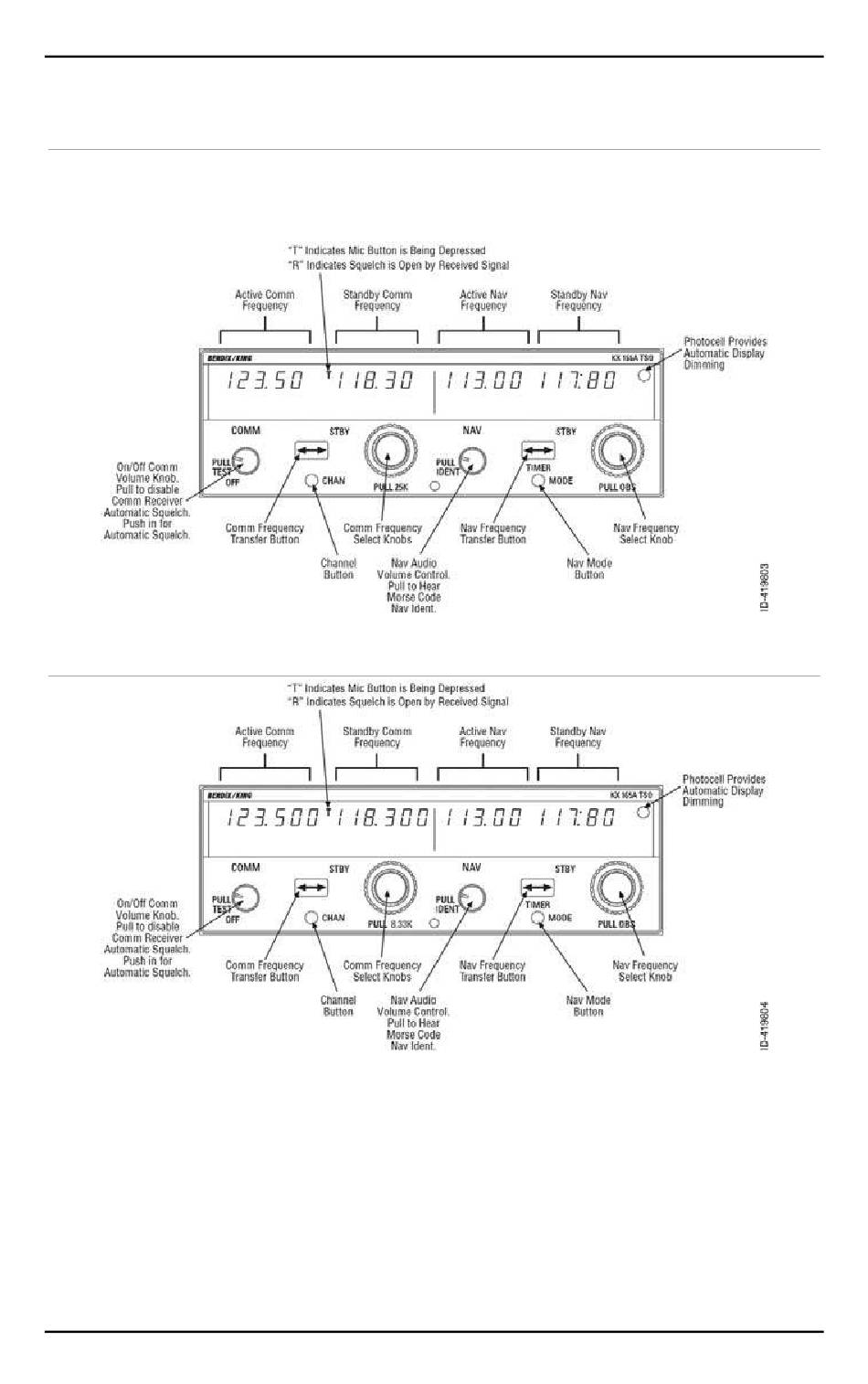

KX 155A and KX 165A (25 kHz Versions) CONTROL FUNCTION
KX 165A (8.33 kHz Versions) CONTROL FUNCTION
NOTE: The 25 kHz and 8.33 kHz versions of the KX 165A are distinguishable
from one another in two ways. The 25 kHz version has "PULL 25K" nomenclature
below the Comm Frequency Select Knobs while the 8.33 version has "PULL
8.33K". In addition, the 25 kHz version has two digits to the right of the decimal in
the Comm frequency while the 8.33 kHz version has three digits to the right of
the decimal. The 8.33 kHz channel spacing is required for flight in certain
European (ICAO EUR Region) airspace.
FIGURE 1A
FIGURE 1B
KX 155A/KX 165A
29
