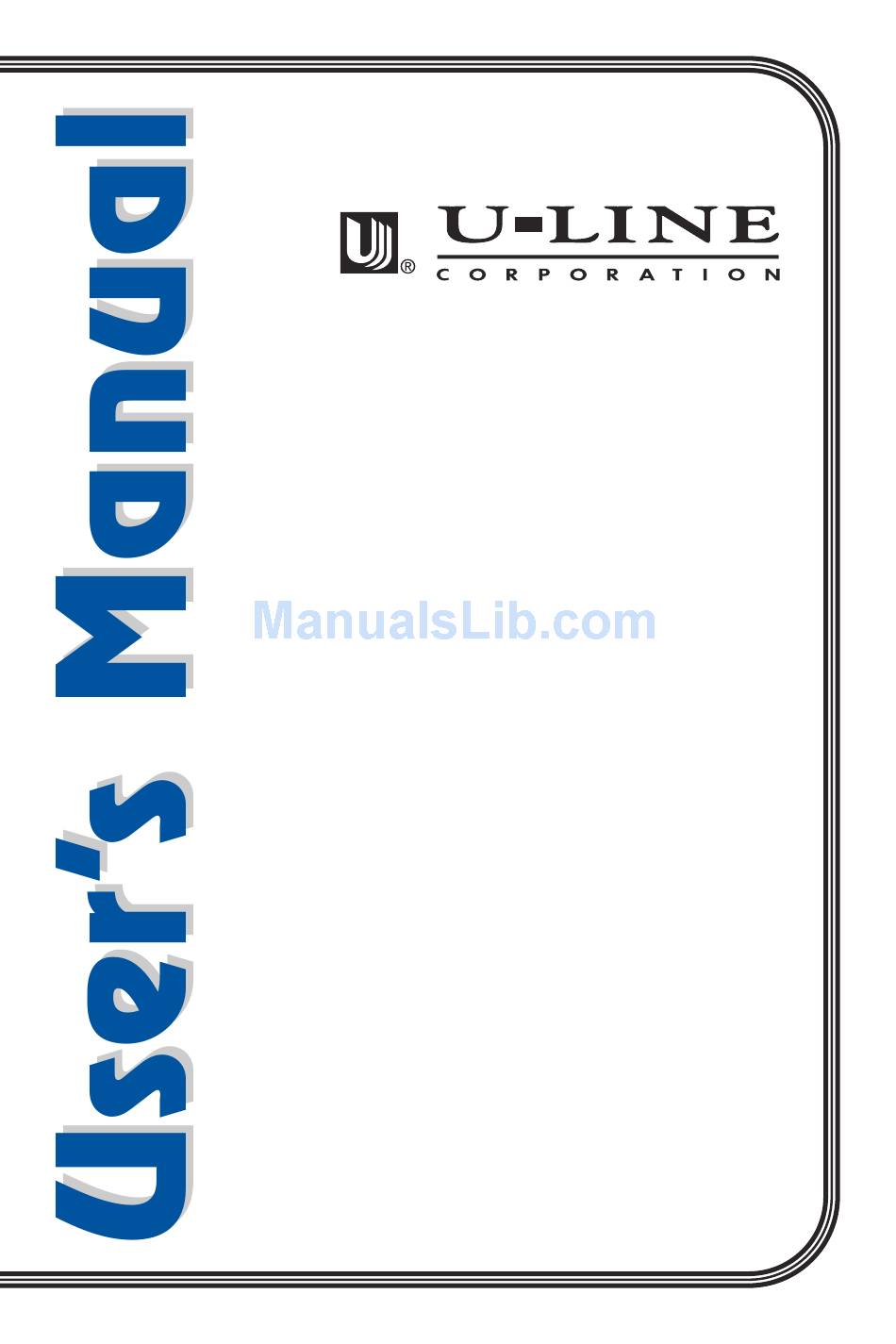

  • Page 1 ICE-MAKERS, COMBOS AND REFRIGERATORS...
  • Page 2 (consisting of the compressor, the condenser, the evaporator, the hot gas bypass valve, the dryer and the connecting tubing) in each U-Line product to be free from defects in materials and workmanship for a period of five years from the date of purchase. During the initial one-year warranty period for all U-Line products U-Line shall: (1) at U-Line’s...

  • Page 3: Introduction

    INTRODUCTION Congratulations on your purchase of U-Line ice making or refrigeration products. A pioneer in the field for more than 30 years, U-Line is the world’s number one manufacturer of built-in, under-counter ice making and specialty refrigeration products. U-Line dedicates 100% of its research and development to these products.

  • Page 4: Table Of Contents

    User’s Manual TABLE OF CONTENTS INTRODUCTION...1 SAFETY PRECAUTIONS ...3 INSTALLATION ...5 CONNECTING THE WATER SUPPLY ...7 LEVELING THE UNIT ...9 GRILLE INSTALLATION ...9 GLASS SHELF INSTALLATION...12 REVERSING THE DOOR ...13 REVERSING A STAINLESS STEEL DOOR...18 ALIGNING THE DOOR...18 CUSTOM DOOR PANEL INSERT INSTALLATION ...19 BUILT-IN INSTALLATION...21 INITIAL START-UP...23 NORMAL OPERATION ...24...

  • Page 5: Safety Precautions

    SAFETY PRECAUTIONS Do not attempt to install or operate your unit until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a Danger, Warning or Caution based on the risk type. DEFINITIONS This is the safety alert symbol.
  • Page 6 DO NOT use any type of electrical heater to defrost. • Use only genuine U-Line replacement parts. Imitation parts can reduce ice rate, cause water to overflow from ice maker mold, damage the unit, and may void the warranty.

  • Page 7: Installation

    SITE PREPARATION 1. Position the unit on a flat, level surface, capable of supporting the entire weight of the unit. Remember that the unit will be signifi- cantly heavier once it is fully loaded. 2. Connect the unit to a grounded and polarized 115 VAC, 60Hz, 15A circuit (normal household current).
  • Page 8 However, make certain that the tubing is not pinched or damaged during installation. • U-Line recommends the use of copper tubing for installation. 4. Position the unit to allow free air flow through the front grille (see Figure 2).

  • Page 9: Connecting The Water Supply

    CONNECTING THE WATER SUPPLY 1. Install the 1/4 inch copper water line from the main water source. On ice maker models BI-95 and BI-98, the water line through the hole in the rear of the unit to connect to the solenoid valve in the front (see Figure 3).
  • Page 10 User’s Manual 4. For recessed installations, allow extra water supply line length to provide slack for easy removal from the recessed area (see Figure 7). This will also safeguard against kinking the line. Figure 7 After completing the installation, turn on the water and recheck water connection for leaks.

  • Page 11: Leveling The Unit

    8. Allow at least 1-1/2 inches clearance behind the unit for electri- cal and water supply connections. LEVELING THE UNIT It is important that the unit, primarily the ice maker assembly, is level. All 75 and 15 Series units are equipped with adjustable feet for level- ing and height adjustment (see Figure 9).
  • Page 12 User’s Manual 4. Place the two hook-hinges (located on the rear bottom side of the grille) on the front lip of the unit base. Swing the grille up into posi- tion, aligning the grille and cabinet screw holes (see Figure 11). 5.
  • Page 13 95 AND 98 MODELS 1. With a standard blade screwdriver (or 1/4" nutdriver), remove the screw needed to attach the grille (see Figure 12). 2. Carefully remove the grille from inside the unit. Locate the screw hole at the top, middle recessed section of the grille.

  • Page 14: Glass Shelf Installation

    User’s Manual GLASS SHELF INSTALLATION (FOR MODELS WITH GLASS SHELVES) 1. Carefully remove the shelves from inside the unit and remove the packaging. 2. Slide the shelves onto desired ribs, making sure that the silver edge strip is toward the front of the unit and the decorative graph- ics are on the underside of the shelves.

  • Page 15: Reversing The Door

    REVERSING THE DOOR Depending upon the location of the unit, it may be desirable to change the side on which the door is mounted. On Combo Models 29A and 29FF (built-in installations only), changing the door mounting to the left side may interfere with ice bucket removal.
  • Page 16 User’s Manual Figure 17 Figure 18 6. Relocate plastic spacer/bushing on bottom of door to opposite side, and place door on bottom hinge pin (see Figure 20). Clean out bushing hole in door bottom with a screwdriver if needed. 7. Remove plastic hole plug from door handle and relocate on oppo- site side.
  • Page 17 8. Remove pivot screw from top hinge, invert screw and reinstall pivot screw in top hinge. See Figure 19. RIGHT SIDE DOOR SWING PLASTIC PLUG HOLE RIGHT SIDE HINGE 9. Remove three plastic screw plugs in hinge holes, top of cabinet, opposite side.
  • Page 18 User’s Manual 12. Adjust door to assure proper seal. Tighten upper hinge screws securely. 13. Replace three plastic plugs removed in step 8 into holes on top of unit. Replace screws in holes in bottom of unit, opposite side. 14. Reinspect door seal and alignment. Adjust if needed. 15.
  • Page 19 8. Install bottom hinge on cabi- net, opposite side, aligning flat edge of hinge with outer edge of unit. Partially tighten screws. See Figure 25. 9. Relocate plastic spacer/ bushing on bottom of door to opposite side, and place door on bottom hinge pin (see Figure 20).

  • Page 20: Reversing A Stainless Steel Door

    User’s Manual REVERSING A STAINLESS STEEL DOOR Stainless Steel models are field reversible for left or right hand opening. The door opening is easily reversed by moving the hinge hard- ware to the opposite side (see Figure 26) as follows: 1.

  • Page 21: Custom Door Panel Insert Installation

    CUSTOM DOOR PANEL INSERT A custom door panel insert can be installed in most U-Line units. The door will accept a flat or raised panel. The maximum panel thickness where inserted into the door reveal (channel) is 1/4” thick. For raised panels, the depth of the reveal is 1/4”...
  • Page 22 User’s Manual Install the insert as follows: Insert edges may be SHARP! Use care when installing. 1. Remove top hinge screw pin (large Phillips head, see Figure 28). Hold door to keep it from falling. 2. Remove door, being careful not to scratch top of door on hinge. 3.

  • Page 23: Built-In Installation

    11. Reinspect door seal and alignment. Adjust if needed. BUILT-IN INSTALLATION Your U-Line product has been designed for either free-standing or built- in installation. When built-in, your U-Line product does not require addi- tional air space for top, sides, or rear. However, the front grille must NOT be obstructed.
  • Page 24 User’s Manual NOTE To ease unit installation and removal, increase the Unit Dimension measure- ments. It is recommended that the cabinet rough opening dimensions be increased least 1/4" over the dimensions given for your unit. UL118 Figure 31 AT LEAST 9" REQUIRED IF UNIT IS AT LEAST 1"...

  • Page 25: Initial Start-Up

    INITIAL START-UP Once installation is complete, the unit is ready for initial start-up and operation. NOTE Models BI-95 and BI-98 have the ON-OFF switch behind the front grille. A small opening in the top of the grille is provided to access the switch (see Figure 34).

  • Page 26: Normal Operation

    User’s Manual NORMAL OPERATION On units with refrigerator sections, the unit has been designed to achieve a fresh food temperature of approximately 38°F (temperature may vary due to ambient temperature). On units with ice makers, when the ice bucket is full, the ice making mechanism will shut off.
  • Page 27 It is normal for cubes to appear cloudy. This is caused by air being trapped in the water due to fast freezing. It has nothing to do with the health, taste or chemical make-up of the water. It is the same air that is in every glass of water you drink.

  • Page 28: Marine Use

    User’s Manual Many U-Line models are designed to operate in a harsh marine environment. Special considerations include the following: • For best performance, keep the unit out of direct sunlight. • On Ice Maker models, turn the unit OFF and dispose of any ice cubes if the unit will not be used for 5 days or more.

  • Page 29: Adjusting Ice Cube Size

    Use only genuine U-Line replacement parts. U-Line ice maker parts are not the same as standard FSP Whirlpool parts. Using non U-Line parts can reduce ice rate, cause water to overflow from ice maker mold, damage the unit, and may void the warranty.

  • Page 30: Care And Cleaning

    User’s Manual CARE AND CLEANING Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. We suggest the following: • The interior may be cleaned with a mild detergent and warm water. • Avoid the use of solvent cleaning agents or abrasives on the interior. These cleansers may transmit taste to the ice cubes and food, or damage or discolor the interior.
  • Page 31 (see Figure 43). 2. Replace bulb with genuine U-Line replacement. 3. Replace the light housing cover by inserting the tab FIRST, sliding the cover toward the tab and pushing up the other end.

  • Page 32: Defrosting

    User’s Manual DO NOT use any type of electrical heating device, ice pick, knife, or other sharp instrument to defrost, as this could damage the inner lining or refrigeration system and void the warranty. Manual defrost models should be defrosted approximately every 8 weeks.

  • Page 33: Troubleshooting

    TROUBLESHOOTING BEFORE CALLING FOR SERVICE If the unit appears to be malfunctioning, read through NORMAL OPER- ATION first. If the problem persists, check the TROUBLESHOOTING GUIDE. Locate the problem in the guide and refer to the cause and its remedy before calling for service. The problem could be something very simple which can be solved without a service call.
  • Page 34 User’s Manual Problem Possible Cause The unit frosts Unit is manual defrost model Door gasket not sealing properly High ambient temperatures or humidity Water is leaking Water supply out the back connection leaking of the unit Ice cubes Door gasket not sticking together sealing properly Infrequent use of cubes...

  • Page 35: If Service Is Required

    IF SERVICE IS REQUIRED If the need for service arises, contact the dealer from whom the unit was purchased. State the Model Number and Serial Number and explain the problem. The Model and Serial Number plate is located inside unit at upper right hand corner. If you do not know the name of the selling dealer or local service com- pany, you can check online at www.U-LineService.com.
  • Page 36 User’s Manual...
  • Page 38 P .O. Box 245040 Milwaukee, WI 53224-9540 Phone 414.354.0300 FAX 414.354.7905 www.U-Line.com Printed in U.S.A. P/N 41923 (Rev. 08/03)
