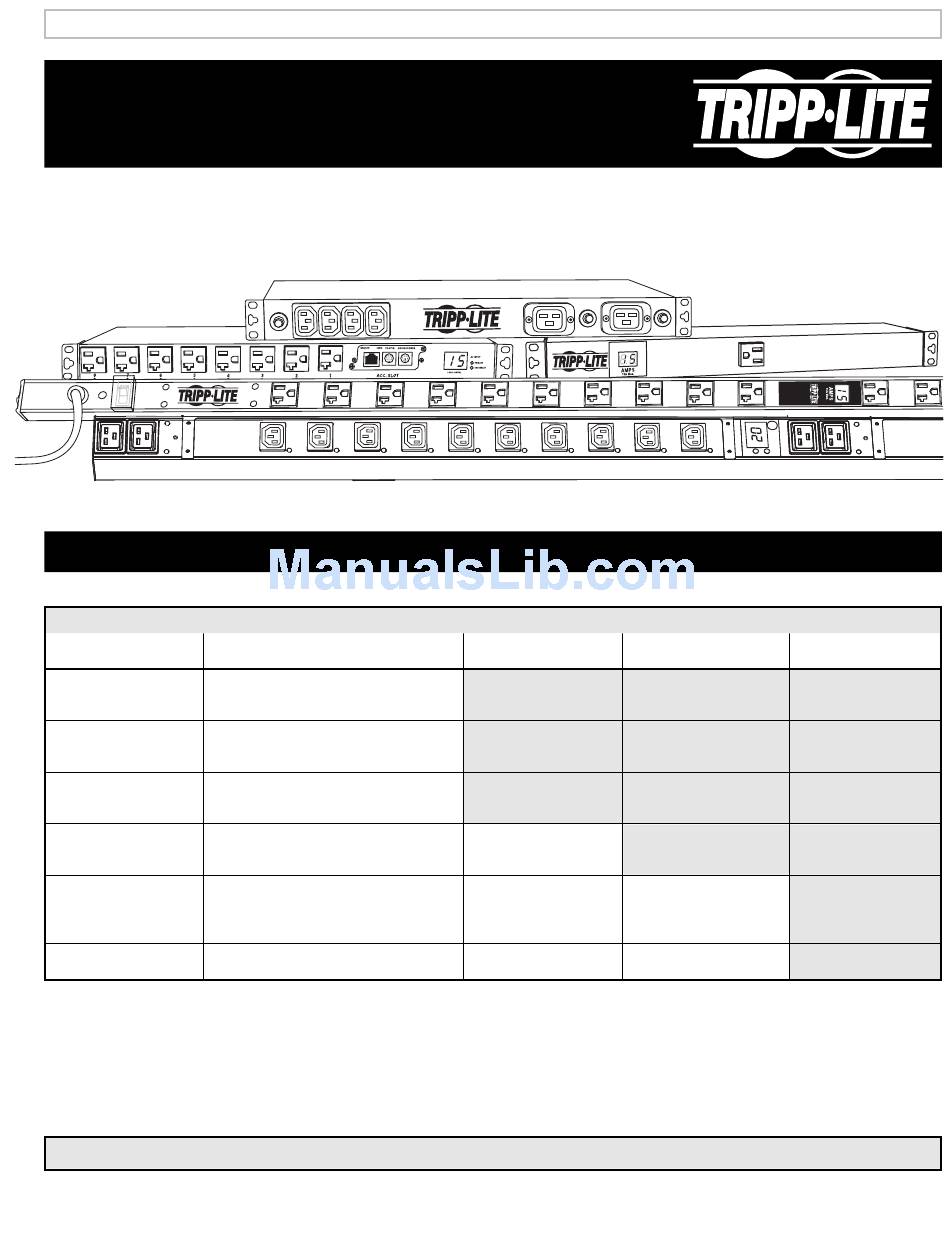

T E C H N I C A L
Tripp Lite Network-Grade
Power Distribution Units (PDUs)
Tripp Lite Network-Grade PDUs are highly reliable multiple-outlet strips that distribute power from a UPS system, generator or utility wall outlet to
multiple devices. Tripp Lite offers three separate types of rackmount PDUs (see selector guide, below) with features and benefits to match every
application—networking, server, telecom and more.
PDU Selector Guide (Features/Benefits)
Choose a PDU by identifying the ideal features and benefits for your application.
Feature
Benefit
Multiple Outlets
Increase the number of devices that
can be powered by a UPS system,
generator or utility source.
High-Current Plug and
Increase connection flexibility by
Low-Current Outlets*
converting a single high-amperage outlet
into multiple low-amperage outlets.
Long Input Power Cord Increases installation flexibility by allowing
devices to be located far from an input
power source.
Digital Load Meter
Avoid overloads and safely add loads
as total equipment power consumption
is displayed.
Remote Control of
Reduces frequency of costly service calls
Individual Outlets
by rebooting locked devices. Extends
(via SNMP, Web or
runtime of critical devices by turning off
Telnet)
nonessential loads during blackouts.
Remote monitoring and Prevents overloads that cause
condition reporting
equipment downtime.
* Select models.
Feature Focus (See page 8)
• PDUs with Redundant Input Cords and Automatic Transfer Switch (ATS)
• PDUs with Dual Input Cords and Dual Independent Power Circuits
See inside for an additional selector guide, application diagrams and complete specifications
Copyright © 2008 Tripp Lite. All rights reserved. The policy of Tripp Lite is one of continuous improvement. Specifications are subject to change without notice.
A P P L I C A T I O N
1111 W. 35th Street, Chicago, IL 60609 • (773) 869-1234 • www.tripplite.com
B U L L E T I N
Tripp Lite PDUs
Basic PDUs
Metered PDUs
See page 4
See page 5
#
9 5 - 2 9 2 4
Switched PDUs
See pages 6-7
Advertisement
Related Manuals for Tripp Lite 200803016 95-2924
Summary of Contents for Tripp Lite 200803016 95-2924
- Page 1 1111 W. 35th Street, Chicago, IL 60609 • (773) 869-1234 • www.tripplite.com Copyright © 2008 Tripp Lite. All rights reserved. The policy of Tripp Lite is one of continuous improvement. Specifications are subject to change without notice. B U L L E T I N...
- Page 2 All 3000VA (120V) L6-20R Select 5000VA L6-30R All 5000VA All International Versions All 2200-5000VA International Versions Tripp Lite World Headquarters 1111 W. 35th Street, Chicago, IL 60609 USA • (773) 869-1234 • www.tripplite.com Choose PDU Output Basic PDUs Model Outlet Outlet Model Number Qty.
- Page 3 Tripp Lite PDUs can be used in a variety of applications. The most popular applications are shown below. Contact Tripp Lite's technical support department at (773) 869-1234 for additional assistance with a specific application. Application #1: Adding More Outlets to a UPS System...
- Page 4 Long Input Power Cord Tripp Lite Basic PDUs reliably distribute AC power from a UPS system, generator or utility wall outlet to multiple devices. Basic PDUs offer high- quality plug/outlet connections and a switch-free design to prevent the PDU from being accidentally disconnected or shut down. Versatile all-metal cabinets with detachable mounting hardware accommodate a variety of mounting options: wallmount, under-counter and 19-inch rackmount mounting in 1U and/or zero-U formats*.
- Page 5 Long Input Power Cord Tripp Lite Metered PDUs reliably distribute AC power from a UPS system, generator or utility wall outlet to multiple devices. Each model features a digital load meter that helps you maximize the amount of devices that can be safely added to the PDU (without overloading it) by displaying the total power consumption of connected equipment.
- Page 6 Multiple Outlets Tripp Lite Switched PDUs reliably distribute AC power from a UPS system, generator or utility wall outlet to multiple devices. A built-in network interface allows users to remotely control individual outlets (and connected devices) via SNMP, Web or Telnet. This feature reduces the frequency of costly service calls by enabling remote reboot of locked devices.
- Page 7 FEATURES front panel rear panel (not shown) (not shown) (not shown) Tripp Lite World Headquarters 1111 W. 35th Street, Chicago, IL 60609 USA • (773) 869-1234 • www.tripplite.com Switched PDUs PDUMH15ATNET PDUMH30NET PDUMH20HVNET PDUMV15NET PDUMV30NET Network Interface for Remote Monitoring and Individual Outlet Control...
- Page 8 PDUs with Automatic Transfer Switching (ATS) Tripp Lite PDUs with Automatic Transfer Switching (ATS) reliably distribute AC power from a UPS system, generator or utility source to multiple devices. Each model includes dual AC input plugs and an internal automatic transfer switch between available power sources. These features safeguard the uptime of connected devices by automatically providing a backup source of AC power if one source fails or is taken off-line for maintenance.
