Model #: B090-A9F-X

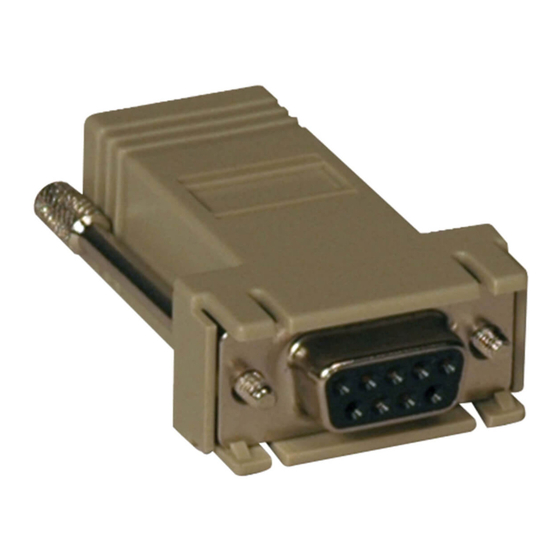

DB9F - RJ45 Modular Serial Adapter
Description
Use Tripp Lite B090-A9F-X to connect Servers to Tripp Lite B092-016, B096-016, and B096-048 Console Servers. Requires inexpensive Cat5/Cat6
patch cables between adapter and console server RJ45 ports.
System Requirements
Use with Tripp Lite Console Server models: B092-016, B096-016, and B096-048
Package Includes
1 x DB9F - RJ45 Modular Adapter
Features
DB9F - RJ45 Modular Serial Adapter
Slotted Thumbscrews for secure connections
Crossover Wiring for DB9 Serial Server Connections
Specifications
OVERVIEW
Model Type
PHYSICAL
Color
CONNECTIONS
Connector A
Highlights
Adapters
Beige
DB9 (FEMALE)
DB9F - RJ45 Modular Serial Adapter
Crossover Wiring for DB9 Serial Server Connections
Access your servers via DB9 serial port
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail:
saleshelp@tripplite.com
