Overview
2
3

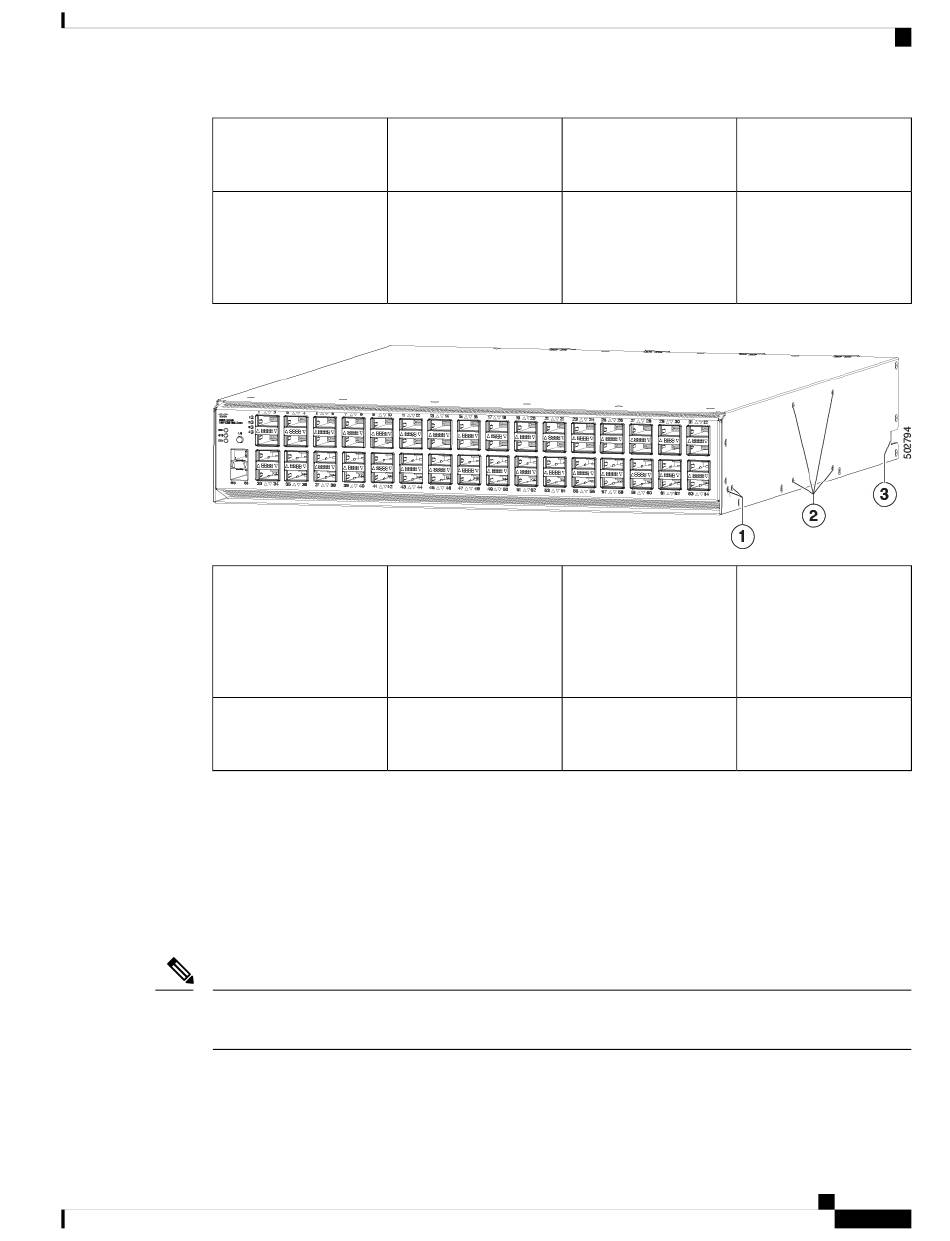

The following figure shows the side of the chassis.
1
2
Depending on whether you plan to position the ports in a hot or cold aisle, you can order the fan and power
supply modules with port-side intake or port-side exhaust airflow. For port-side intake airflow, the fan and
AC power supply modules have burgundy coloring. For port-side exhaust airflow, the fan and AC power
supplies have blue coloring.
The fan and power supply modules are field replaceable. You can replace one fan module or one power supply
module during operations so long as the other modules are installed and operating. If you have only one power
supply installed, you can install the replacement power supply in the open slot before removing the original
power supply.
Note All fan and power supply modules must have the same direction of airflow. Otherwise, the switch can overheat
and shut down.
Console port (1) 5
Management port 6
(1—RJ-45 copper port)
Screw holes for front 3
mounting brackets (4-post
rack installations)
Screw holes for
center-mount bracket
(2-post rack installations)
Cisco Nexus 9364C-GX ACI-Mode Switch Hardware Installation Guide
Overview
Fan modules (4) with slots
numbered from 1 (left) to
4 (right)
Power supply modules (1
or 2) (AC power supplies
shown) with slots
numbered 1 (top) and 2
(bottom)
Notch on both sides of the
chassis for locking the
power supply end of the
chassis to the bottom
support rails (4-post rack
installations).
