GE Wallighter 250 Instructions

g
GE
Lighting Solutions
READ THOROUGHLY BEFORE INSTALL-
WARNING
Risk of electric shock
• Turn power off before servicing
– see instructions
WARNING
Risk of fire
• Use supply wire specified on
nameplate
MOST DWELLINGS BUILT BEFORE 1985 HAVE
SUPPLY WIRE RATED 60°C. CONSULT A
QUALIFIED ELECTRICIAN BEFORE INSTALLING.
G E N E R A L
This luminaire is designed for outdoor lighting service,
and should not be used in areas of limited ventilation, or
in high ambient temperature enclosures. Best results will
be obtained if installed and maintained according to the
following recommendations.
This luminaire is designed for vertical-surface mount-
ing to illuminate underpasses or the ground around
buildings, or it can be mounted horizontally facing upward
to light signs or walls. It is for use only in non-hazardous
locations, where submersion by water is impossible, and
should not be mounted within easy reach of the general
public. A special vandal shield is available for vertical-
mounted units up to 250 watts.
U N P A C K I N G
This luminaire has been properly packed so that no part
should have been damaged during transit. Inspect to
confirm.
I N S T A L L A T I O N
CAUTION
Unit will fall if not installed properly
• Follow installation instructions
These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation
or maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser's purposes, the matter should be
referred to GE Lighting Solutions.
Wallighter 250/400 Luminaire
ING
To install, follow the steps below:
1. Remove the refractor/door assembly from carton.
2. Remove the reflector by loosening the center screw
and lifting up on reflector, thus exposing the polar-
ized socket connector.
3. Disconnect the polarized socket connector.
4. Place refractor/door assembly and reflector back in
the carton to prevent damage.
The unit is now ready for mounting and wiring.
FLAT SURFACE MOUNTING
Four knock outs – 3 mounting holes and 1 wiring
entrance hole in triangular array – are provided through
the rear wall. (See Fig. 1.) (See Fig. 2 for additional
dimensions.)
Note: Back of luminaire must be caulked with a
generic non-hardening sealer across the top and
down both sides.

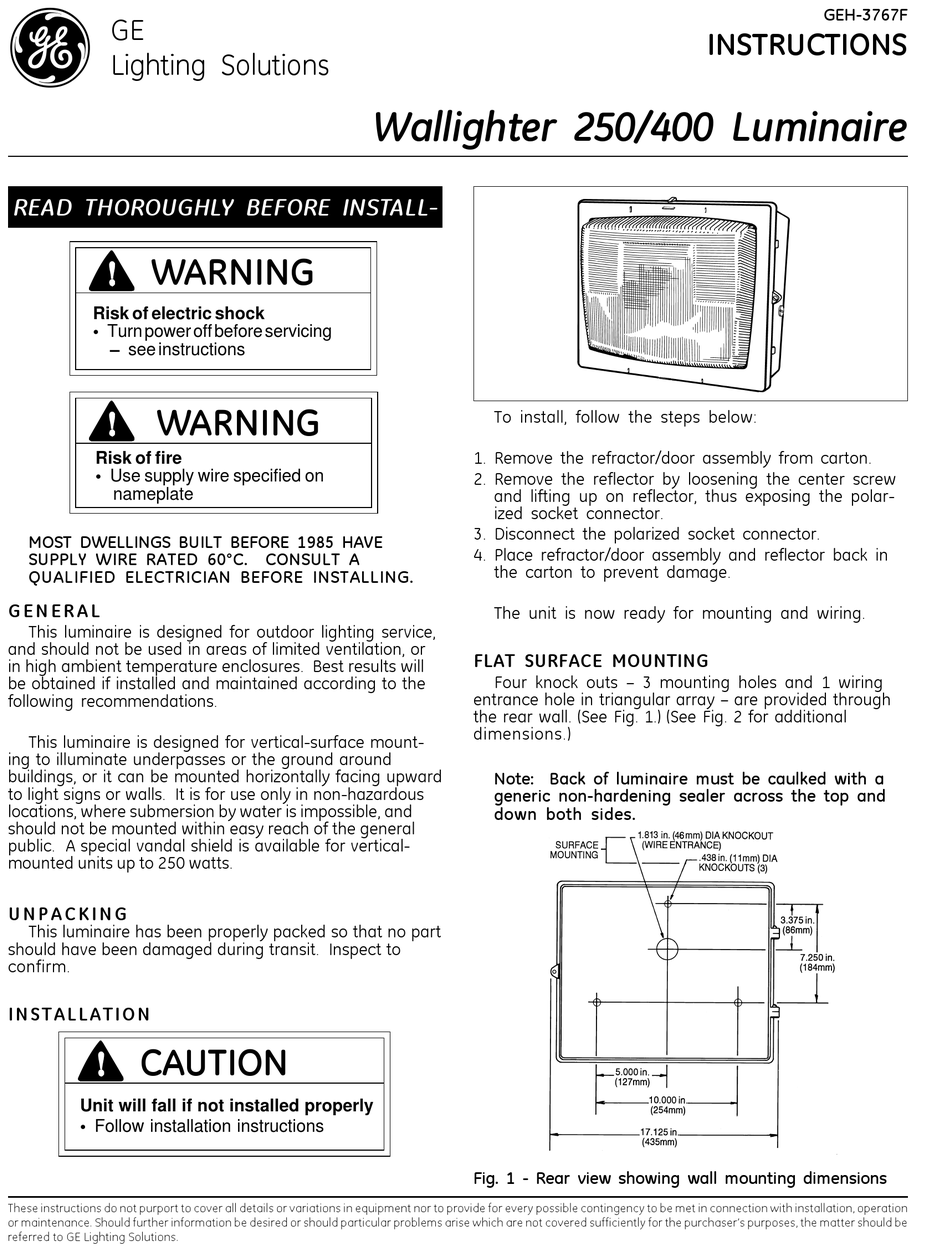

Fig. 1 - Rear view showing wall mounting dimensions
GEH-3767F
INSTRUCTIONS
