Summary of Contents for Philips DCP850/05

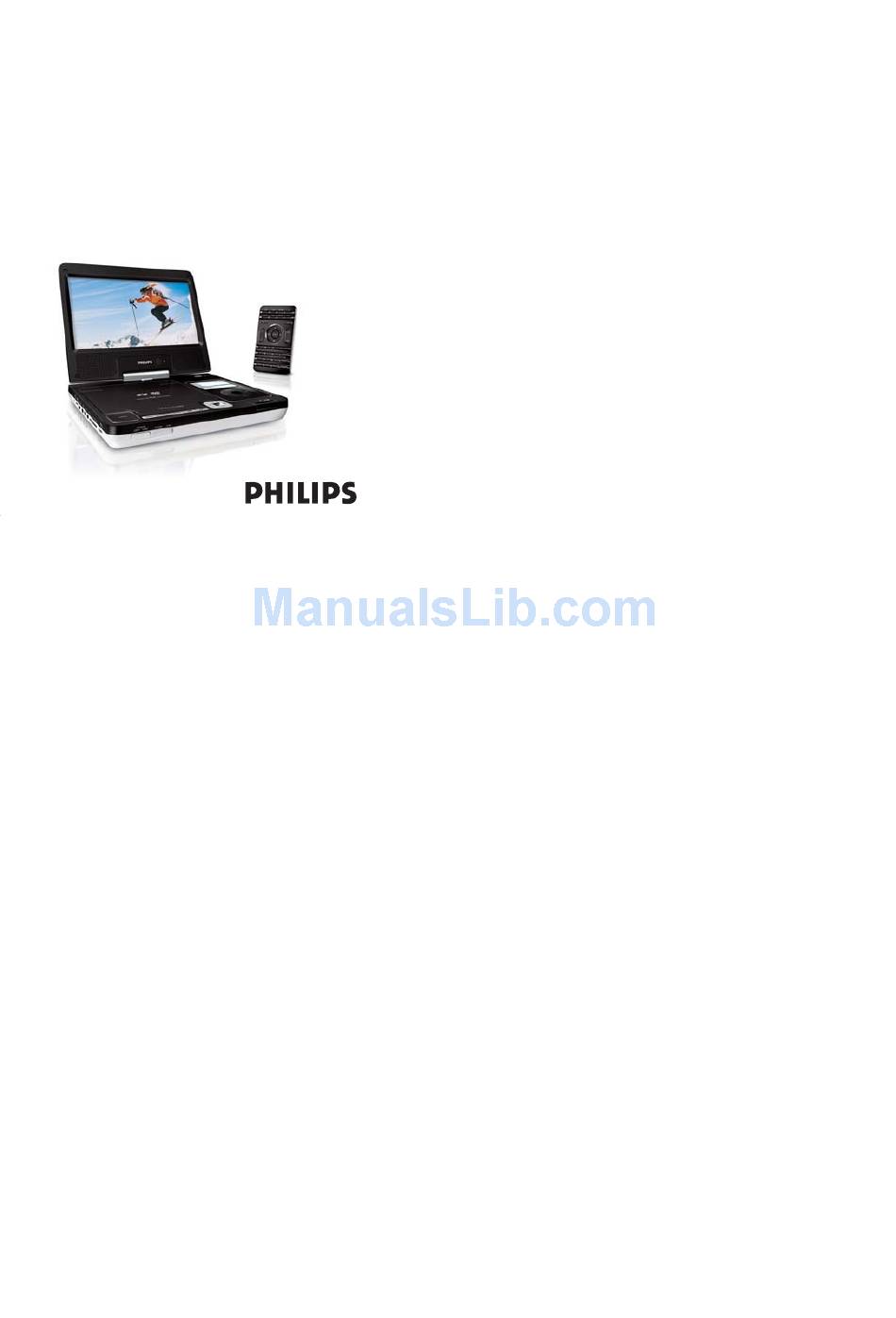

- Page 1 Docking Entertainment System DVD Portable with dock for iPod User manual Manuel d'utilisation Manual del usuario Gebruikershandleiding DCP750/850...
- Page 2 %^ & *...
- Page 3 iPod &...
-
Page 4: Functional Overview
English FUNCTIONAL OVERVIEW ( see figure 1) Main unit controls 1 OPEN ...Open the disc door to insert or remove disc. 2 MENU...Display the MENU page. 3 MONITOR ...Switch the aspect ratio between 16:9 or 4:3. 4 SOURCE..Select respective sources: DISC, iPod, SD/MMC or AV. 5 J( / §... - Page 5 FUNCTIONAL OVERVIEW ...Headphone jacks. % AV OUT..Audio/Video output jack. ^ AV IN...Audio/Video input jack. & SD/MMC CARD..Insert an SD/MMC card..Volume control. ( see figure 1) Right of player EJECT ...Lift up this handle to eject the iPod player with video. ( see figure 2) Remote controls 1 Source keys ...Select respective sources: DISC, iPod (iPod with video),...
-
Page 6: Remote Control
REMOTE CONTROL 9 SETUP ...Enter or exit the system menu. 0 3, 4, 1, 2 ...Navigate in a menu..(1 / 2) search backward/forward in a disc at different speeds. ! OK ...Confirm a selection. @ J( / §...Skip to the previous/next chapter, track or title. # Numeric Keypad (0-9)...Input numbers. -
Page 7: Your Portable Dvd Player
INTRODUCTION Your portable DVD player Your portable DVD player plays digital video discs conforming to the universal DVD Video standard. With it, you will be able to enjoy full-length movies with true cinema picture quality, and stereo or multichannel sound (depending on the disc and on your playback set-up). -
Page 8: About Built-In Rechargeable Battery
INTRODUCTION About Built-in Rechargeable Battery Precautions related to battery recharge Once the battery is fully discharged (the power indicator will flash as a prior warning), immediately recharge it (regardless of whether you plan to use the battery or not) in order to maximize the battery life. To charge the battery, please directly connect this DVD player to AC mains and the charge indicator will turn on. -
Page 9: About Divx
With Philips' strict quality control procedures used in our Portable DVD Players, our LCD displays are produced with zero tolerance for bright dots. Select Portable DVD Players come with Philips Zero Policy to guarantee optimal screen quality. Bright Dot Warranty service varies from region to region. -
Page 10: General Information
• Hearing safety: listen at a moderate volume. Using headphones at high volume can impair your hearing. • Important (for models with by-packed headphones): Philips guarantees compliance with the maximum sound power of its audio players as determined by relevant regulatory bodies only with the original model of provided headphones. - Page 11 GENERAL INFORMATION Hearing Safety Listen at a moderate volume: • Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss.
-
Page 12: Handling Discs
GENERAL INFORMATION Handling discs • Do not attach paper or tape to the disc. • Keep the disc away from direct sunlight or heat sources. • Store the disc in a disc case after playback. • To clean, wipe the disc outwards from the center with a soft, lint-free clean cloth. -
Page 13: Power Supply
PREPARATIONS Power supply Using the AC / DC adaptor Connect the supplied adapter to the set and the main power supply (as shown). ✔ To avoid damage to the player, switch off before plugging or unplugging the AC adaptor. Using the car adapter Connect the supplied car adapter to the set and the car cigarette lighter outlet. - Page 14 PREPARATIONS Remove the battery if the remote control is not to be used for a long time. Connections Connecting headphones Connect the headphones into the n1 or the n2 jack of your set. Connecting additional equipment • Turn off your set before connecting to any additional equipment.
-
Page 15: Sd/Mmc Card Slot
PREPARATIONS SD/MMC card slot You can play video/audio/picture files stored in an SD/MMC card by inserting it into the SD/MMC CARD slot. On the DVD player panel, press the SOURCE key repeatedly (or SD/MMC CARD on the remote) to select the SD/MMC source. ✔... - Page 16 PREPARATIONS Switch on your iPod player to set "TV OUT" to "ON" and select the "NTSC" mode if you want to play video or photo files in your iPod player. (See your iPod user’s manual for detailed operation.) Press the SOURCE key repeatedly (or iPod on the remote) for dock input.
-
Page 17: General Explanation
GENERAL EXPLANATION About this manual This manual gives the basic instructions for operating this DVD player. Some DVD discs however are produced in a way that requires specific operation or allows only limited operation during playback. In these cases the player may not respond to all operating commands. When this occurs, please refer to the instructions in the disc inlay. -
Page 18: Basic Functions
BASIC FUNCTIONS Switching on for OSD language setup English is the default language of your player’s on screen display. You may choose to use English, French or Spanish for your player’s on screen display. Country OSD Language Options America English, French, Spanish Slide the POWER switch to ON to switch on the player. -
Page 19: Playing A Dvd Disc
Playing DivX ® disc • Philips provide you the DivX ® VOD (Video on Demand) registration code that allows you to rent and purchase videos using the DivX ® VOD service. For more information, visit www.divx.com/vod. -
Page 20: Playing A Jpeg Discs
BASIC FUNCTIONS Playing a MP3 CD The following playback features are available for MP3 CDs. Please refer to the corresponding sections for more information. Volume control, skipping tracks, searching, repeat, shuffle, etc. Use the 3, 4 keys to highlight your selected music folder. Press OK to play. -
Page 21: Playing Files Stored In An Sd/Mmc Card
BASIC FUNCTIONS Playing files stored in an SD/MMC card After connecting an SD/MMC card to this player, you can play audio/video files stored in the card by selecting the desired file with 3 4 and OK. Playing files stored in your iPod player After connecting your iPod player as described in the "Connections"... -
Page 22: Moving To Another Title / Track / Chapter
GENERAL FEATURESS Moving to another title / track / chapter When a disc has more than one title or track, you can move to another title/track/chapter as follows: • Press § briefly during play to select the next title/ track / chapter. -
Page 23: General Features
GENERAL FEATURES Changing the audio output (for VCD/CD) Press AUDIO repeatedly for the following audio options. Mono left Mono right Stereo ✔ This key is used to select audio languages during DVD playback. ZOOM The Zoom function allows you to enlarge the video image and to pan through the enlarged image. -
Page 24: Volume Control
GENERAL FEATURES ✔ The repeat function is also available for JPEG, SD/MMC etc. The actions may vary for different media being played. SHUFFLE Press SHUFFLE on the remote to play all tracks (for CD), chapters (for DVD) or all tracks in the selected folder/whole disc (for MP3) randomly. - Page 25 GENERAL FEATURES MONITOR (on the main unit) Press MONITOR repeatedly to adjust the display mode (normal or full screen). DISPLAY Press DISPLAY on the remote repeatedly for the following display options: CD/VCD Title elapsed Single elapsed Title remained Single remained Chapter elapsed Total elapsed Chapter remained...
-
Page 26: Special Dvd Features
SPECIAL DVD FEATURES Checking the contents of DVD-Video discs: DISC MENU. For titles and chapters, selection menus may be included on the disc. The DVD’s menu feature allows you to make selections from these menus. Press the appropriate numerical key; or use the 3, 4, 1, 2 keys to highlight your selection, and press OK. - Page 27 SPECIAL DVD FEATURES Playing a title Press DISC MENU to enter the disc title menu. Use 1 2 3 4 or numeric keys (0-9) to select a play option. Press OK to confirm.
-
Page 28: Setup Operations
SETUP OPERATIONS To maximize your playback experience, use SETUP to fine tune your settings. Use the 3,4,1, 2 keys to highlight your selection, and press OK. 1 Press SETUP. A list of features is shown. 2 Use the 3 4 keys to highlight your selection. When the cursor highlights these settings, press OK to: General Setup Page select display and other options... -
Page 29: Video Setup Page
SETUP OPERATIONS Video Setup Page When the cursor highlights these settings, press OK to: Quality select video quality options DivX get DivX ID for VOD Press 1 to abort current settings or go back to previous menu level Password Setup Page When the cursor highlights these settings, press OK to: Password change existing password (3308 by default) -
Page 30: Troubleshooting
TROUBLESHOOTING If it appears that the DVD-Video player is faulty, first consult this checklist. It may be that something has been overlooked. WARNING Under no circumstances should you try to repair the set yourself as this will invalidate the guarantee. If a fault occurs, first check the points listed, before taking the set for repair. - Page 31 TROUBLESHOOTING Symptom Remedy Disc can’t be played – Ensure the disc label is upwards. – Clean the disc. – Check if the disc is defective by trying another disc. The player does not – Aim the remote control directly at the respond to the remote sensor on the front of the player.
-
Page 32: Technical Data
Video out Output level: 1Vp - p ± 20% Load impedance: PHILIPS reserves the right to make design and specification changes for product improvement without prior notice. Modifications not authorized by the manufacturer may void users authority to operate this device. - Page 33 Important notes for users in the UK Mains plug This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows: 1. Remove fuse cover and fuse. 2. Fix new fuse which should be a BS1362 5 Amp, A.S.T.A. or BSI approved type.
- Page 34 Meet Philips at the Internet http://www.philips.com CLASS 1 LASER PRODUCT DCP750/850 Printed in China WK701...
