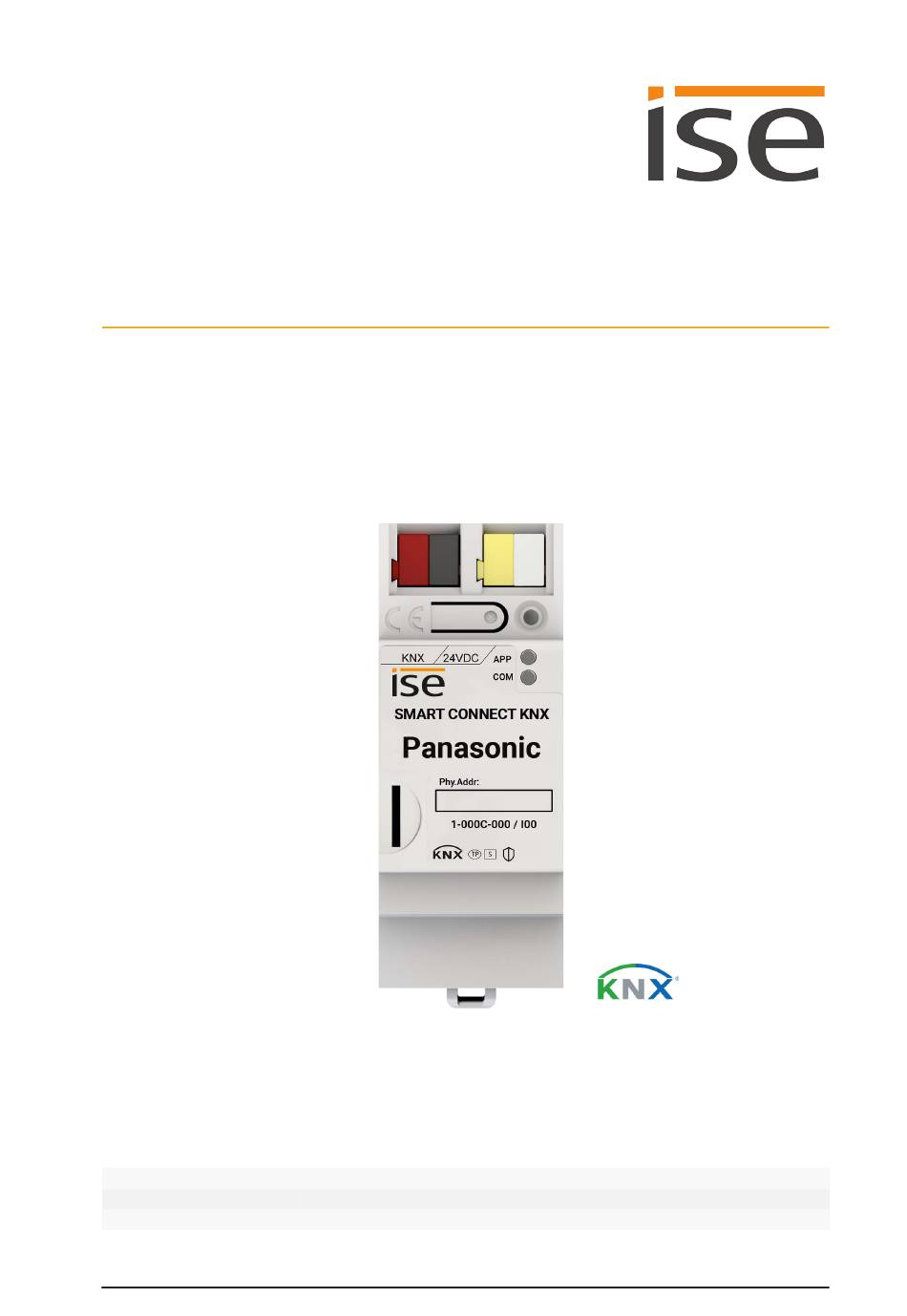

- Page 1 Product Manual ISE SMART CONNECT KNX Panasonic 1-000C-000 Documentation valid for: Product database entry: v1.1 Firmware: v1.0 Documentation date: 15.11.2019 © 2019 ise Individuelle Software und Elektronik GmbH...
- Page 2 Legal Information Legal Information ISE SMART CONNECT KNX Panasonic Product Manual Status: 15.11.2019 ise Individuelle Software und Elektronik GmbH Osterstr. 15 26122 Oldenburg, Deutschland © Copyright 2019 ise Individuelle Software und Elektronik GmbH All rights reserved. No part of this document may be edited, copied, disseminated or made public in any form (print, photocopy or any other method) without the prior written permission of ise Individuelle Soft- ware und Elektronik GmbH.
-
Page 3: Table Of Contents
Contents Contents About this Documentation ....................5 Target group......................... 5 Symbols and typographical conventions ................5 About ISE SMART CONNECT KNX Panasonic ..............6 Proper use ..........................6 System..........................6 Functions..........................7 2.3.1 Functional enhancements from updates ................9 2.3.2 KNX Secure Ready ....................... - Page 4 11.2 Contacting Support......................60 11.3 FAQs - Frequently asked questions .................. 60 Disassembly and Disposal ..................... 61 Glossary........................63 Licence Agreement ISE SMART CONNECT KNX Panasonic..........65 14.1 Definitions .......................... 65 14.2 Object of the agreement....................65 14.3 Software usage rights ....................... 65 14.4...
-
Page 5: About This Documentation
About this Documentation This documentation will accompany you through all phases of the product life cycle of ISE SMART CON- NECT KNX Panasonic. You will learn for example how to assemble, install, commission and configure the device. All descriptions in this documentation relating to configuration in the ETS refer to the variant "ETS Pro- fessional"... -
Page 6: About Ise Smart Connect Knx Panasonic
Via the ISE SMART CONNECT KNX Panasonic, up to four compatible Panasonic TV devices can be inte- grated into the KNX system. ISE SMART CONNECT KNX Panasonic is a device of the KNX system and complies with the KNX guide- lines. -
Page 7: Functions
Functions Below you will find the most important functions at a glance. Features Separate control of up to four Panasonic TV devices • Perhaps one resident wants to watch the morning news while another prefers music videos? Simply control the TV devices separately. - Page 8 About ISE SMART CONNECT KNX Panasonic Scenarios Below you will find possible scenarios into which you can integrate the ISE SMART CONNECT KNX Pana- sonic. Alternative devices such as logic modules may be required depending on the specific use case scenario.
-
Page 9: Functional Enhancements From Updates
TV. Convenient customisation. 2.3.1 Functional enhancements from updates Functional enhancements for ISE SMART CONNECT KNX Panasonic are available via a newer version of the firmware. Simply download the latest firmware and the relevant product manual from our website www.ise.de. -
Page 10: Important Notes
Store the device in its original packing. The original packing provides optimum protection during trans- port. Store the device in a temperature range of -25 °C to +70 °C. Cleaning and maintenance ISE SMART CONNECT KNX Panasonic is maintenance-free. If necessary, clean the device with a dry cloth. Important Damage to the device due to incorrect opening •... -
Page 11: Technical Data
Protection class: III (compliant with IEC 61140) Supported web browsers The latest versions of Mozilla Firefox, Microsoft Edge, Apple Safari and Google Chrome ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 11 / 69... -
Page 12: Device Design
“COM”: Communication KNX/TP 0-000X-000 / I01 (yellow) Holding device: Release lever for top-hat rail termi- Connection: microSD card slot (No function) Figure 1: Front ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 12 / 69... -
Page 13: Data On Device Sticker
Opening for securing the cover cap Attached power connection terminal Attached bus connection terminal Back of device Figure 3: Top of device ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 13 / 69... -
Page 14: Underside
Release lever for top-hat rail terminal RJ45 cable (not included in the scope of supply) con- nected to RJ45 socket. Figure 5: Device side ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 14 / 69... -
Page 15: Installation
Installation Scope of supply Figure 6: Scope of supply Objects supplied Explanation Device ISE SMART CONNECT KNX Panasonic Cover cap To protect connections from dangerous voltages. Bus connection terminal To connect the KNX/TP bus lines. Power connection terminal To connect the external power supply. -
Page 16: Checking The Installation Conditions
Device functional fault due to incorrect ambient temperature in the installation environment • Pay attention to the temperature of the installation environment: min. 0°C to max. 45°C • Do the not mount the ISE SMART CONNECT KNX Panasonic above heat-emitting devices. • Ensure that there is sufficient ventilation/cooling. -
Page 17: Mounting The Device
Installation Mounting the device ISE SMART CONNECT KNX Panasonic may only be assembled and installed by qualified electricians. Specialist knowledge of the installation regulations is a prerequisite. Warning Danger from incorrect use Incorrect use can result in damage to the device, fire or other dangers. - Page 18 Firmly press the power line into the power connection terminal as far as possible. Route the power supply line to the back. Figure 9: Connect the power supply ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH...
- Page 19 Press the cover cap together gently. Route the cover cap's fastening claws into the openings until the cover cap noticeably engages. Figure 11: Attaching the cover cap ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 19 / 69...
- Page 20 The network connections are on the underside of the device. Connect the IP network cable (RJ45 cable) to the device's network connection (RJ45 socket). Figure 12: Connect the IP network cable ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH...
-
Page 21: Device Website
Device website Device website You can access ISE SMART CONNECT KNX Panasonic via the “Device website” application”. The device website offers a range of functions, including: ► • Check device status see Troubleshooting, p. 55. ► • Configure network settings see Network settings via the device website, p. -
Page 22: Getting To Know The Interface Of The Device Website
Call up other pages or run functions. Page The <<Device status>> page is shown. Information Display of specific information. Status bar Change language. ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 22 / 69... - Page 23 Resetting to factory settings, p. 33 ► • Generating log files, p. 59 ► • Updating firmware, p. 35 Information: • Disclaimer • Licenses Table 3: Overview ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 23 / 69...
-
Page 24: Commissioning And Configuration
Table 4: Status indicators The "Programming" LED shows independently of the operating mode whether the device is in program- ming mode or not. ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 24 / 69... -
Page 25: Leds During Device Start-Up
The "APP" and "COM" LEDs have different meanings depending on the phase in the operating mode. After the power supply is switched on or after power returns, the device indicates its status using the following LED combinations: ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH... - Page 26 (yellow)...(off)...(yellow)...(off)... • Please contact support. Slow flashing (about 1 Hz) in an alternating pattern Table 7: Device status – Device starting up ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 26 / 69...
-
Page 27: Leds In Operation
• Check the bus connection. • Check whether the power supply is correctly connected. Table 9: "COM" LED in operation ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 27 / 69... -
Page 28: Configuration
Set the general parameters, see Configuring Parameters, p. 38. Link the group addresses to the communication objects. ISE SMART CONNECT KNX Panasonic is now ready for commissioning via <<Program ETS>> and for testing the functions. ISE SMART CONNECT KNX Panasonic 1-000C-000 ©... -
Page 29: Creating The Device In The Ets
In the <<Open product file>> window, open the product file and press the <<Open>> button to con- firm your selection. Follow the further instructions in the ETS. If necessary, call up the Online Help with the [F1] button. ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH... -
Page 30: Ip Settings
Besides the physical address in the KNX network, an IP address, the subnet mask and the address of the standard gateway in the IP data network must be assigned to ISE SMART CONNECT KNX Panasonic. You can enter the settings manually in the ETS or receive them automatically (obtain the data from a DHCP server, e.g. - Page 31 You can obtain the permitted IP address range and the subnet mask and standard gateway from the router configuration interface. Table 11: Settings for manual IP address entry or for receiving automatically ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH...
-
Page 32: Programming A Physical Address
ETS. On the device, enter the assigned physical address with a permanent marker in the field <<Phy.Addr.>>. Figure 19: Programming ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 32 / 69... -
Page 33: Network Settings Via The Device Website
Manual: Press the programming button on the device in a particular sequence. • Automated: You select the <<Factory reset>> function on the device website. ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 33 / 69... - Page 34 • COM LED (see figure 15, item 3) Release the programming button. The factory settings are being reset. You do not have to restart the device. ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH...
-
Page 35: Updating Firmware
The device does not have to be restarted. Updating firmware Functional enhancements for ISE SMART CONNECT KNX Panasonic are available via a newer version of the firmware. The current firmware and corresponding product manual are available on our website at www.ise.de So that you can use the new functions, it is necessary for the versions of the firmware being used and the product database entry are compatible. -
Page 36: Compatibility Between Product Database Entry And Firmware Version
In order to use all new functions, it may be necessary to update the application ► program, see Updating a product in the existing project, p. 30. ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 36 / 69... - Page 37 <<Application program>> tab. Select the <<Update>> button under the <<Update application program version>>. Select the newly added device and delete it again from your topology. ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 37 / 69...
-
Page 38: Configuring Parameters
TV device. Table 12: Parameters under <<General settings>> tab 9.1.1 Number of Panasonic TV devices Select the number of connected Panasonic TV devices. Up to four TV devices can be connected ► See figure 20, Parameters in the ETS. ISE SMART CONNECT KNX Panasonic 1-000C-000 ©... -
Page 39: Screen Texts
Pre-defined screen texts see Text selection, p. 53. All connected Panasonic TV devices can access the pre-defined texts. Save up to ten texts in the <<Screen texts>> section. You define which of the texts is to be used via communication objects 30 | 130 | 230 | 330. -
Page 40: Camera Links
You define which of the links is to be used via communication objects 18 | 118 | 218 | 318 ► see Link selection, p. 54. Figure 22: Camera links ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 40 / 69... -
Page 41: Add Panasonic Tv Devices
• The aforementioned steps may vary depending on TV model. Important In order to guarantee communication between the ISE SMART CONNECT KNX Panasonic and the TV device, switch the TV device on manually before initial commissioning. Configure the following settings under <<Menu/Network/TV Remote Settings>>: •... - Page 42 Configuring Parameters Figure 23: IP address under <<Settings>> tab Figure 24: Host name under <<Settings>> tab ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 42 / 69...
-
Page 43: Communication Objects
Communication Objects Communication Objects You can control up to four TV devices with the ISE SMART CONNECT KNX Panasonic. There is an iden- tical set of communication objects for each TV device. The functionally identical communication ob- jects of the TV devices each have an offset of 100. - Page 44 30 | 130 | 230 | 330. Permissible: 0 to 9. ExecuteCmd Control commands are not The ISE SMART CONNECT KNX received. Panasonic cannot be contacted. GetState The ISE SMART CONNECT The TV device is not contactable.
-
Page 45: Display
• 1: TV device is switched on. Data width 1 bit Data point type/data type 1.001/switch Flags (CRWTUI) CR-T-- Table 18: On/off status ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 45 / 69... - Page 46 Program channel as a number: 1|...|999 Data width 2 bytes Data point type/data type 7.001 Flags (CRWTUI) CR-T-- Table 20: Station status ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 46 / 69...
-
Page 47: Sources
0|...|16 or 255 Number of supported source Data width 1 byte Data point type/data type 5.010/meter pulse Flags (CRWTUI) C-W--- Table 22: Select source ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 47 / 69... - Page 48 TV mode Component1 Analogue TV HDMI1 DVB-T HDMI2 DVB-S HDMI3 Freesat HDMI4 DVB-C DisplayPort SAT_IP SD-USB Video1 Unknown Table 24: Supported sources ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 48 / 69...
-
Page 49: Sound And Volume
• 1: Sound is switched on. Data width 1 bit Data point type/data type 1.001/switch Flags (CRWTUI) CR-T-- Table 26: Loudspeaker status ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 49 / 69... - Page 50 Possible values • 1: Mute is on. Data width 1 bit Data point type/data type 1.001/switch Flags (CRWTUI) CR-T-- Table 28: Mute status ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 50 / 69...
- Page 51 Volume value as a number (1 to 100). Data width 1 byte Data point type/data type 5.001/percent Flags (CRWTUI) CR-T-- Table 30: Volume state ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 51 / 69...
- Page 52 • 0: Reduce volume. • 1: Increase volume. Data width 1 bit Data point type/data type 1.007/step Flags (CRWTUI) C-W--- Table 32: Stepwise volume up/down ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 52 / 69...
-
Page 53: Special Functions
Possible values Text to be output. Data width 14 bytes Data point type/data type 16.001 characters Flags (CRWTUI) C-W--- Table 34: Text display ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 53 / 69... - Page 54 The HbbTV feature on your TV device is used to display screen texts and cam- era links. The ISE SMART CONNECT KNX Panasonic switches to the last HbbTV-capable source used (DVB-T/S/C, SAT_IP). Communication objects cannot be used with the analogue TV source.
-
Page 55: Troubleshooting
• Enter the number of the desired link as the value of the communication object 32 | 132 | 232 | 332. ► See Select source, p. 47. Table 36: Image transmission ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 55 / 69... - Page 56 TvComm error code is present. If the status value is still not sent, switch the TV device off for ten seconds. Table 39: Status ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 56 / 69...
- Page 57 TV device not contactable Error code: TvIpConfig Cause: IP address or host name is not configured. Solution: Configure the IP address or host name for the TV device in the ETS <<Panasonic TV device <n> >> → <<IP address>> or <<Host name>>, ►...
- Page 58 TV device was not switched on manually for initial com- missioning. Solution: Switch on the TV device manually. The MAC address will be automatically transmitted. Table 43: Missing MAC address ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 58 / 69...
-
Page 59: Generating Log Files
Our support may ask you to configure the logging mode. Select <<System>> → <<Download log file>> in the menu bar. The log files are compiled and downloaded as a ZIP file. ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH S. 59 / 69... -
Page 60: Contacting Support
Troubleshooting 11.2 Contacting Support If you have a problem with your ISE SMART CONNECT KNX Panasonic and require support, contact us: • E-mail to support@ise.de • Call us on tel.: +49 441 680 06 12 • Fax us: +49 441 680 06 15 We will need the following data in order to help you: •... -
Page 61: Disassembly And Disposal
Gently press in the cover cap at the side (see figure 25, item 1). Pull off the cover cap upwards (see figure 25, item 2). Figure 25: Removing the cover cap ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH... - Page 62 You can dispose of your old device free of charge at designated collection facil- ities or, if necessary, you can hand it in to your specialist dealer. Contact your local authority for recycling details. ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH...
-
Page 63: Glossary
Short for "Online KNX Product Catalogue". The catalogue is a product database. The catalogue contains all KNX-certified devices. The device data is saved as a product database entry. ISE SMART CONNECT KNX Muster Bestellnummer eintragen © 2019 ise Individuelle Software und Elektronik GmbH... - Page 64 Here, switching on can also mean booting up. Website Information on the device's application can be found in this documentation under the search term "Device website". ISE SMART CONNECT KNX Muster Bestellnummer eintragen © 2019 ise Individuelle Software und Elektronik GmbH S. 64 / 69...
-
Page 65: Licence Agreement Ise Smart Connect Knx Panasonic
14.4.1 Copying, modification and transmission The licensee is not authorised to use, copy, modify or transfer the ISE SMART CONNECT KNX Panasonic software in whole or in part in any way other than as described herein. Excluded from this is one (1) copy produced by the licensee exclusively for archiving and backup purposes. -
Page 66: Reverse Engineering And Conversion Technologies
The firmware may only be installed and used on the hardware (ISE SMART CONNECT KNX Panasonic) approved by the licensor. 14.4.4 Transfer to a third party The ISE SMART CONNECT KNX Panasonic software must not be passed on or made accessible to third parties. 14.4.5 Renting out, leasing out and sub-licensing The licensee is not authorised to rent or lease the ISE SMART CONNECT KNX Panasonic software or grant sub-licenses to the program. -
Page 67: Warranty
The licensor shall not be liable for damages due to loss of profit, data loss or any other financial loss resulting as part of the use of the ISE SMART CONNECT KNX Panasonic software, even if the licensor is aware of the possibility of damage of that type. -
Page 68: Termination
The ISE SMART CONNECT KNX Panasonic product must be taken out of operation in such a case. Further use of the ISE SMART CONNECT KNX Panasonic without a license is precluded. The commissioning and visualisation software must be uninstalled and all copies must be destroyed or returned to the licensor. -
Page 69: Open Source Software
The source code for the Open Source software used in this product can be obtained by sending an e- mail to support@ise.de. This offer is valid for 3 years after the service for this product has been discontinued. ISE SMART CONNECT KNX Panasonic 1-000C-000 © 2019 ise Individuelle Software und Elektronik GmbH... - Page 70 ise Individuelle Software und Elektronik GmbH Osterstr. 15 26122 Oldenburg, Deutschland Phone: +49 441 680 06 11 Fax: +49 441 680 06 15 E-mail: vertrieb@ise.de www.ise.de...
