Eaton Crouse-Hinds Series Installation & Maintenance Information

Champ-Pak® CPMVL LED Wall Pack
Installation & maintenance information
APPLICATION
Champ-Pak® CPMVL are suitable for use in the following hazardous (classified)
locations as defined by the National Electrical Code (NEC®)/CEC.
Refer to the Wall Pack nameplate for specific classification information, maximum
ambient temperature suitability and corresponding operating temperature (T-code).
CPMVL:
NEC/CEC
• Class I, Division 2, Groups A, B, C, D
• Class II, Division 2 Groups F, G
• Marine and Wet Locations, Type 4X, IP66
UL standards
• UL 844, UL1598, UL1598A, UL8750, UL50E
!
To avoid electric shock,
Be certain electrical power is OFF before and during installation and maintenance.
Luminaire must be supplied by a wiring system with an equipment grounding
conductor.
To avoid burning hands,
Make sure lens and housing are cool when performing maintenance.
INSTALLATION - MOUNTING
1. Mark and drill desired location on mounting surface of the wall. Mounting
brackets will come pre-installed. Luminaire is provided with three ¾" NPT
conduit entries and two plugs shipped with the luminaire, but not installed
(Figure 1). Plug the conduit entries not being used. To prevent galling and to
ensure water tightness, lubricate conduit plugs with Eaton's Crouse-Hinds series
HTL lubricant before installing, and secure wrench-tight with at least five (5) full
threads engaged (42-52 ft.-lb. for 3/4" plugs).
2. Secure Wall Pack with mounting brackets to surface using 1/4" screws or lag
bolts.
Mounting bracket
Side conduit entry
Hex screws to fix
mounting brackets to
IF 1892 • 11/19
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARNING
Copyright
©
Champ LED Wall Packs' construction is designed for use indoors and outdoors in
marine and wet locations, where moisture, dirt, corrosion, vibration and rough usage
may be present.
CSA standard
• cUL Listed to CSA standard C22.2 No. 250.0, CSA C22.2, No. 250.13
• cUL Listed to CSA standard C22.2 No. 137 CSA 22.2 No. 25
Input voltage
• 120-277 VAC, 50/60 Hz
• 125, 250 VDC
• 347-480 VAC, 50/60 Hz
To avoid explosion,
Make sure the supply voltage is the same as the luminaire voltage. Do not install
where the marked operating temperatures exceed the ignition temperature of the
hazardous atmosphere.
Do not operate in ambient temperatures above those indicated on the luminaire
nameplate.
Contact Crouse-Hinds for instructions on replacement parts.
Use proper supply wiring as specified on the luminaire nameplate. All surfaces
must be clean.
Before opening, electrical power to the luminaire must be turned off. Do not open
when an explosive atmosphere is present. Keep tightly closed when in operation.
To reduce the risk of ignition due to electrostatic discharge, avoid contact with the
luminaire while explosive atmosphere is present. Clean only with damp cloth.

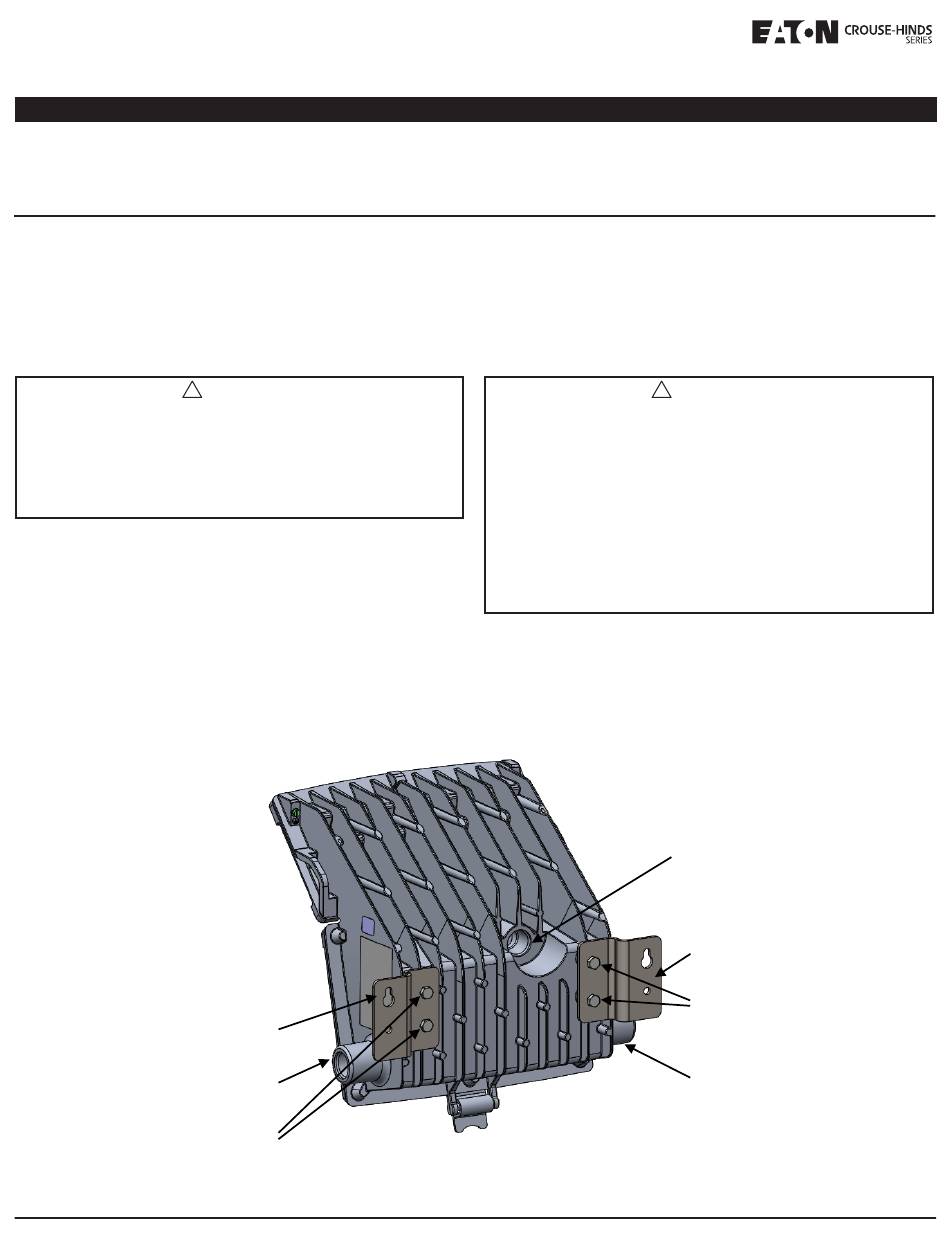

Figure 1
2019, Eaton's Crouse-Hinds Division
!
WARNING
Back conduit entry
Mounting bracket
Hex screws to fix
mounting brackets to
Side conduit entry
IF 1892
