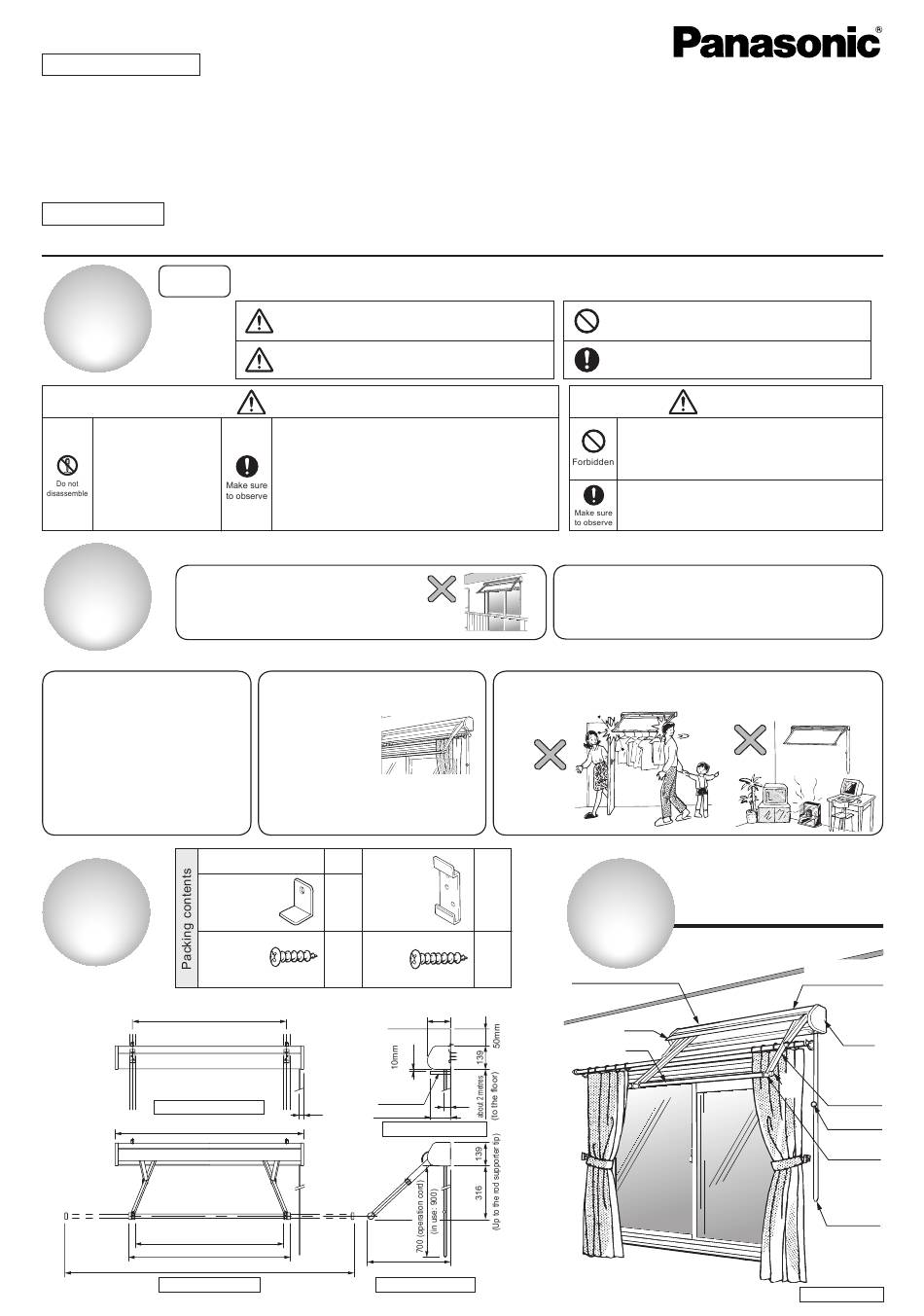

Panasonic CWFE14CM Installation Manual

To construction companies
■ This product is intended for indoor use in residential households.
■ Please refrain from using this product outdoors or in areas such as the bathroom where the product may come
into contact with water.
■ Please read this Owner's manual carefully and make sure you use this indoor Wall Mount Drying Rack
in a proper and safe manner.
■ We shall not be liable for any accidents or damage incurred by installing the product in any manner other than
as provided in these installation Instructions, or without using parts specified. Our warranty does not apply to
defects resulting from construction.
■ Make sure to give the Owner's Manual to the customer.
To Customers
■ Make sure you obtain and read the Owner's Manual carefully to ensure safe use of this product.
1.
Please follow
these instructions
Safety
Precautions
● Do not modify,
disassemble or repair
this product.
This may cause injury
or product failure.
2.
[Where to install is important]
Pre-
For indoor use only.
installation
Don't mount this product outdoors (including balcony)
Notes
or in the bathroom. It may cause functional loss or
damage.
Check the height of installation.
(Mount at easy to use height)
Downward stroke is about 300mm. About 500mm
away from the wall. (refer to dimensions drawing).
For example, if installed at 2 metres height above
the floor (to the back side of the rack), the rod
should be 1.7 metres above the floor.
In case of installing at lower height, the rod may
jump out causing injury or the laundry may touch
the floor.
3.
About this
product
* Product weight is
approximately 6kg.
■ D imensions
Mounting bracket pitch 900~1000
drawing
Front view (closed)
1708 (Maximum length when both ends are fully extended)
Plan view (in use)
Thank you for purchasing the Wall Mount Drying Rack.
The following instructions should be followed to prevent injury and damage.
■ Each of these explains what harm and damage may be incurred by incorrect use.
WARNING
Indicates a risk of death or serious injuries
Indicates a risk of minor injuries or property
CAUTION
damage.
WARNING
● Install the rack on an area that will support its weight.
Improper installation may cause injury due to falling.
● Use supplied screws. Use specialized anchors if
mounting on a concrete wall.
Not using the supplied screws may cause injuries due
to falling.
Consult with customers to decide where this product should be installed.
Install so the operation cord does
not touch curtains.
If If it touches the
curtains, curtains,
the cord is difficult
to pull.
To install above a curtain box...
Crosspieces for reinforcement are required as is
shown on "How to install: If a curtain rail/box is,
more than 120mm deep"(contained on back side).
Mounting
1pcs
Rack (including a rod)
bracket
Anti drop
2pcs
metal fitting
Anti drop
Mounting bracket
metal fitting
fixation
2pcs
fixation screw
screw
truss φ4×30
27
1115
878
956
(Up to the rod support tip)
Check the installation position carefully.
Do not install in
an entranceway.
4.
2pcs
6pcs
truss φ4×40
(Unit: mm)
137
△Ceiling
Curtain
Rail etc
40
120mm
Side view (closed)
492
Side view (in use)

Installation Manual

Wall Mount Drying Rack
Product number: CWFE14CM
■ This following symbols explain what you may and may not do (The following are examples of these symbols)
What you may not do.
You must do.
CAUTION
● Do not stand in front of the rack while pulling the operation cord.
The rod may pop out and cause injuries.
● Do not use other rods except the designated one.
A drop may cause injury or damage.
● Check the installation position carefully.
Do not install near heaters or any other item the product may
touch while in use. It may cause fire or injuries due to falling.
Please ventilate the room (e.g.: ventilation fan,
dehumidifier etc.), as laundry emits humidity.
Humidity may cause condensation, or damage to some clothes.
Do not install above a heater or
electric appliances.
Names of
each part
Anti-drop metal bracket
Mounting bracket
Cover
Rod
Anti-drop metal
bracket
Mounting bracket
Rack
Rod
Arm
cap
component
Operation
ball
Rod
supporter
Operation
cord
JH-55P
Version 2 1410
