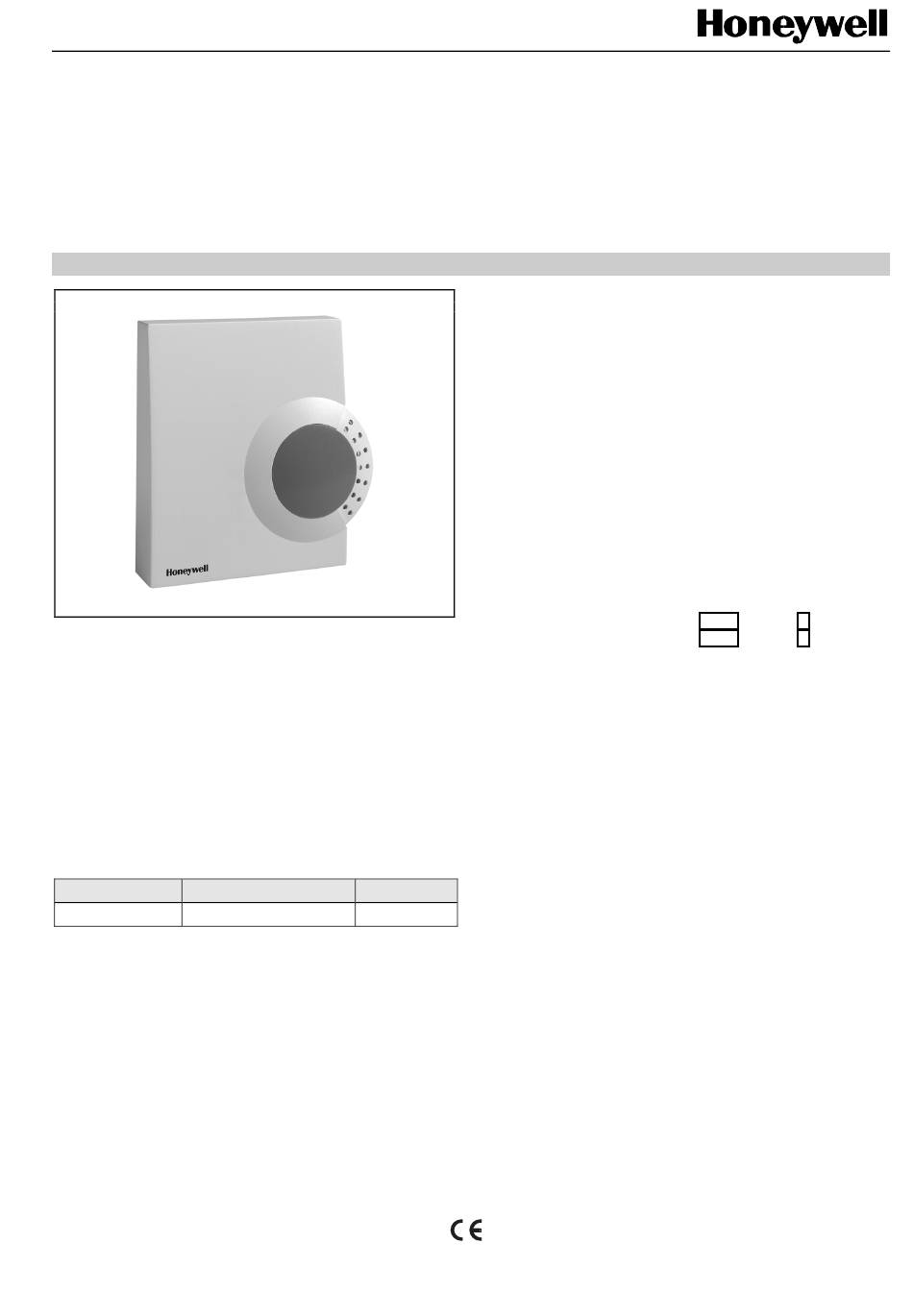

Honeywell C7110A Specification Data & Installation Instructions

GENERAL

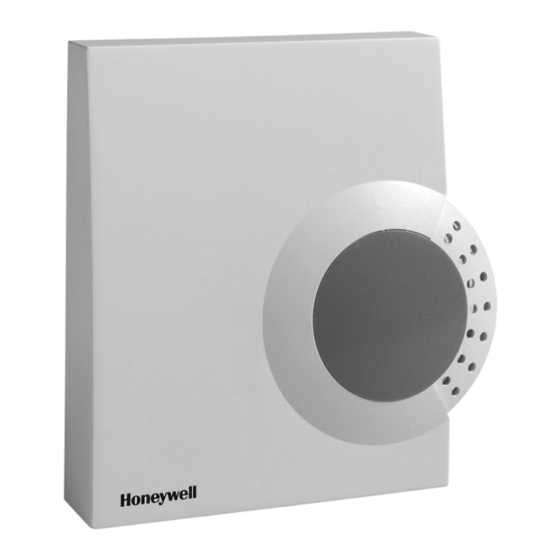

The C7110A Room Air Quality Sensor is suitable for
measuring air quality in rooms, offices, and production bays.
This mixed gas sensor can be used to control ventilation
plants. It detects unpleasant odors, tobacco smoke, and
vapors emitted by such materials as furniture, carpets, paint,
glue, etc. As proven in practice, this device detects those
substances typically present in air having a poor quality,
some of which may otherwise go undetected by room
occupants, themselves. This sensor has proven itself in
numerous applications over many years.
Models
Order Number
C7110A1005 Room Air Quality Sensor
Description Output
0...10Vdc
ROOM AIR QUALITY SENSOR
SPECIFICATION DATA & INSTALLATION INSTRUCTIONS
FEATURES
• Measurement of a variety of air quality factors
•
Output signal: 0...10 Vdc
•
Adjustable output offset
•
Easy installation and wiring connection
SPECIFICATION
Supply voltage
Power consumption
Output signal
Weight /Dimensions
Electrical connection
Air Quality Sensor
Sensitivity/Linearity
Dynamic behavior
Ambient Limits
Transport and
storage temperature
Humidity
Safety
Protection class
Protection standard
Flame retardant
FUNCTION
The electrical conductivity of a heated tin-dioxide semi-
conductor sensor varies in proportion to the number of mole-
cules of the reducing agents. This leads to a voltage at the
measuring element which is amplified to an output voltage of
0V to 10Vdc.
The following particles and gases can be detected: cigarette
smoke, hydrogen, carbon monoxide, ethanol, ammonia, etc.
In contrast to CO sensors, which selectively measure the
2
concentration of only one type of gas, a mixed gas sensor is a
broadband detector, i.e. the sensor signal does not indicate
the type of gas or its concentration in ppm (parts per million).
The complex and constantly changing composition of room
air makes it necessary to perform broadband air quality
measurement.
C7110A
15...24 Vdc / 24 Vac
< 1 W
0...10 Vdc (increases as air
quality worsens)
approx. 125 g / see page 3
Screw terminal block for
conductors up to 1.5 mm²
see Fig. 1 on page 2
see Fig. 6 on page 4
−10...+70 °C (+14...+158 °F
5...95%rh, non-condensing
II as per EN60730-1
IP30 as per EN60529
V0 as per UL94
Plastic ABS
EN0B-0295GE51 R0101
)
