GENERAL

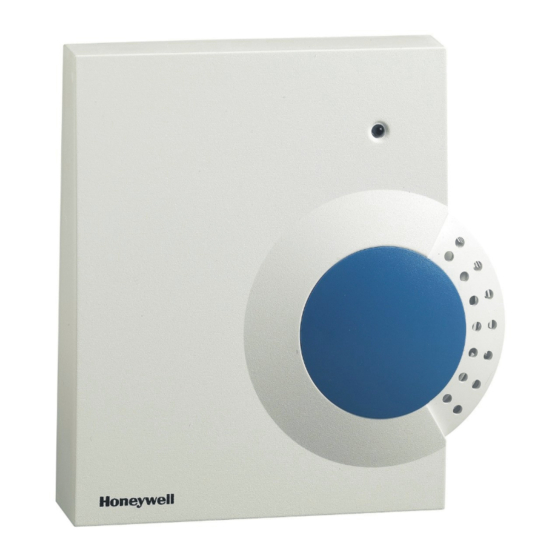

The C7110A1010 Room Air Quality Sensor is suitable for
measuring air quality in rooms, offices, and production bays.
This mixed gas sensor can be used to control ventilation
plants. It detects unpleasant odors, tobacco smoke, and
vapors emitted by such materials as furniture, carpets, paint,
glue, etc. As proven in practice, this device detects those
substances typically present in air having a poor quality,
some of which may otherwise go undetected by room
occupants, themselves. This sensor has proven itself in
numerous applications over many years.
NOTE: The mixed gas sensor does not measure or indicate
the concentration of individual gases, and thus
cannot be used for the monitoring or control of
specific substances.
Models
order no.
description
C7110A1010
Room Air Quality Sensor
® U.S. Registered Trademark
Copyright © 2009 Honeywell Inc. • All rights reserved
ROOM AIR QUALITY SENSOR
SPECIFICATION DATA & INSTALLATION INSTRUCTIONS
FEATURES
Measurement of a variety of air quality factors
Output signal: 0...10 Vdc, indicated by yellow status
LED on front cover
Trimming potentiometer to adjust output signal
Easy installation and wiring connection
SPECIFICATION
Supply voltage
Power consumption
Output signal
Min. impedance of load
Weight /Dimensions
Electrical connection
Air Quality Sensor
Sensitivity/Linearity
Dynamic behavior
Ambient Limits
Transport/storage temp.
Operating temperature
Humidity
Safety
Protection class
Protection standard
Flame retardant
output signal
0...10 Vdc
C7110A1010
15...30 Vdc / 24 Vac (+/-20%)
< 1 W
0...10 Vdc (increases as air
quality worsens); adjustable via
trimming potentiometer
5 kOhm (at output)
approx. 125 g / see page 3
Screw terminal block for
conductors up to 1.5 mm²
see Fig. 1 on page 2
see Fig. 6 on page 4
-30...60 C (-22...+140 F
0...+50 °C (+32...+122 °F)
5...95%rh, non-condensing
III as per EN60730-1
IP30 as per EN60529
Plastic ABS, V0 as per UL94
EN0B-0644GE51 R1109A
)
