NETGEAR MS510TX Installation Manual

Installation Guide

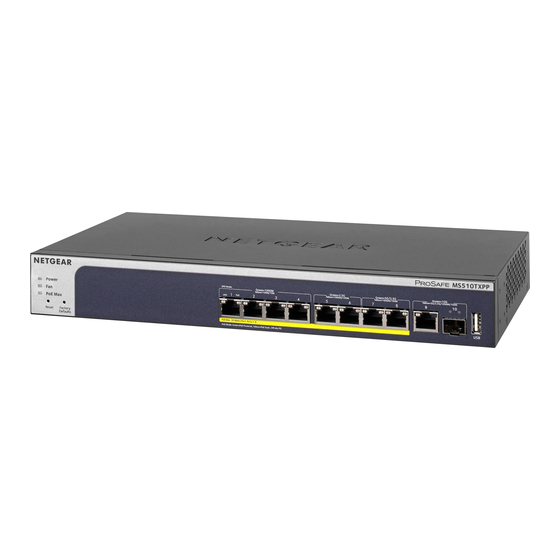

NETGEAR 8-Port Multi-Gigabit Smart Managed Pro
Switch with two 10G Ports, Model MS510TX
NETGEAR 8-Port Multi-Gigabit Smart Managed Pro
Switch with PoE+ and two 10G Ports, Model MS510TXPP

Package contents

• NETGEAR Smart Managed Pro Switch Model MS510TX or MS510TXPP
• AC power cord (localized to country of sale)
• Rubber footpads for tabletop installation
• 19-inch rack-mount kit for rack installation
• Installation guide
Note: For more information about installation, see the hardware installation
guide, which you can download from https://www.netgear.com/support/.
Configure The Switch with a static IP address
Note: If your network uses a DHCP server, this section does not apply. Go
directly to Connect the switch to a network.
If you are using static IP addresses in your network, configure the switch IP
address before you connect the switch to a network.
1. Configure a computer with a static IP address in the 192.168.0.x subnet.
2. Plug the switch into a power outlet and connect your computer to the switch
using an Ethernet cable.
3. Open a web browser and enter 192.168.0.239 in the address bar.
The default IP address of the switch is 192.168.0.239.
A login page displays.
4. Enter password for the password.
The System Information page displays.
5. Select System > Management > IP Configuration.
The IP Configuration page displays.
6. Select the Static IP Address radio button.
7. Enter the static IP address, subnet mask, and default gateway IP address that
you want to assign to the switch.
8. Click the Apply button.
Your settings are saved.
Connect the switch to a network
1. Connect devices to the RJ-45 network ports on the switch front panel. For
model MS510TXPP only, you can connect PoE and non-PoE devices.
For 5G and 10G connections, use Cat 6, Cat 6a, or Cat 7 Ethernet cables
terminated with RJ-45 connectors.
2. Connect an RJ-45 port or SFP+ port on the switch to a network that includes
a DHCP server.
Note: In a small office or home office network, connect the switch to the LAN
port of a router that, in turn, is connected to an Internet modem.
If you use an SFP+ port, you must insert an SFP+ transceiver module, which is
available from NETGEAR.
3. Power on the switch and wait two minutes.
Sample connections
Internet
MS510TXPP
10G non-PoE uplink
2.5G PoE link to WAC740
(PoE links for MS510TXPP only)
2.5G non-PoE link to
2.5G non-PoE
2.5G gaming computer
link to 2.5G
Check the PoE status (MS510TXPP Only)
Model MS510TXPP can provide PoE+ power on ports 1–8. The switch can supply
up to 30W PoE+ (IEEE 802.3at) to each port, with a maximum PoE power budget
of 180W across all active PoE+ ports.
The PoE Max LED indicates the status of the PoE budget on the switch:
• Off. Sufficient (more than 7W of) PoE power is available.
• Solid amber. Less than 7W of PoE power is available.
• Blinking amber. At least once during the previous two minutes, less than 7W
of PoE power was available.
Network router
Core
switch
5G non-PoE link to
two 2.5G servers
NAS
