Cobra 4625 User Manual

4625 - 4627 USER MANUAL - QUICK REFERENCE
5. - WARRANTY CONDITIONS
This product is guaranteed for 24 months from the date of purchase, validated by receipt or invoice. The warranty will be null and
void if the product shows signs of tampering, incorrect installation, damage caused by falling or transport, negligence and anything
else not imputable to manufacturing defects.
In the event of improper installation of the system, the manufacturer shall not be liable to compensate for damages:
- of any kind and direct or indirect;
- to things or to persons.
To benefi t from warranty coverage, contact your authorized dealer with adequate documentation showing the date of purchase.
The manufacturer shall not be liable for any faults or malfunctions in the anti-theft device and/or in the electrical system of the
vehicle due to incorrect installation and/or to failure to comply with the indicated technical specifi cations. The system must only be
considered as a deterrent agaist theft attempts.
6. - DECLARATION OF CONFORMITY
Declaration of Conformity
The manufacturer hereby declares, at its sole responsibility, that the product:
Description:
Model:
Type:
is in conformity with the essential requirements of the R&TTE Directive 1999/5/EC.
The product has been tested against the following standards and specifications:
EMC :
Health and Safety:
Radio Spectrum:
and declares that the:
TRANSMITTER Model 2781 and Model 7777
conform to the essential requirements of the Radio and Telecommunication Terminal Equipment
Directive 1999/5/EC in accordance to the following relevant standards and Directives:
Radio:
EMC:
Health & Safety:
The products are marked with the following CE marking and Notified Body number according to the
Directive 1999/5/EC:
2010-09-22
Dario Parisi
Products Homologation Engineer
Tel +39 0332 825111
4
Cobra Automotive Technologies
CAT-VA

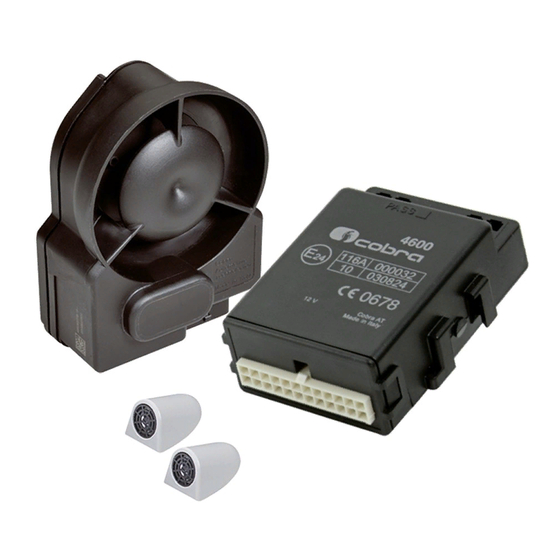

Wireless alarm system for automotive application
4600
4600 family with siren type 5365
ECER10
Relevant tests of ECER116 Regulation
EN50371
EN 300 220-1
EN 300 220-2
EN 300 220-1/2
EN 301 489-1/3
EN 60950
EN 50371
USER MANUAL - QUICK REFERENCE 4625 - 4627
4625 - 4627 USER MANUAL - QUICK REFERENCE
THE FULL USER MANUAL IS AVAILABLE ON-SITE WWW.COBRA AT.COM AT LINK "DOWNLOAD USER
MANUAL".
1. - ARMING AND DISARMING WITH THE VEHICLE ORIGINAL REMOTE CONTROL OR WITH THE COBRA REMOTE
CONTROL (optional)
To arm the system press the door locking pushbutton of the vehicle original remote control or the
"A" pushbutton of the Cobra remote control.
The arming status is confi rmed by:
• vehicle doors locking (only mod. 4627, with the Cobra remote only if the CDL connections have
been made);
• audible signals (if activated);
• fl ashes of the direction lights;
• LED of the emergency panel illuminated.
The protection features of the system become active after a 25 s arming period has elapsed (when the LED of the emergency
panel starts blinking).
To disarm the system press the door unlocking pushbutton of the vehicle original remote control
or the "B" pushbutton of the Cobra remote control.
The disarming status is confi rmed by:
• vehicle doors unlocking (only mod. 4627, with the Cobra remote only if the CDL connections
have been made);
• audible signals (if activated);
• fl ashes of the direction lights;
• LED of the emergency panel OFF.
Note: if also the Driver Card (optional) is provided it will be also possible to arm and disarm the system by pressing its pushbutton.
The system is delivered with a set of standard functionalities (active functions). The installer is able to activate some more
functionalities (programmable functions) with an impact on the security and comfort the system will offer. The following are the
lists of the two groups.
2. - ACTIVE FUNCTIONS
2.1 - Interior protection with ultrasonic volumetric sensor - The system protects the vehicle interior with a volumetric ultrasonic
sensor. Any attempt to get into the vehicle will be detected and the alarm will trigger.
2.2 - Perimetric protection with door open warning diagnostic - The alarm will trigger by opening any door, boot and bonnet.
Should you have left any door opened while arming, the system will signal it by 3 fl ashes of the direction lights and 3 audible signals
(5 audible signals if the arming/disarming audible signals function has been activated).
2.3 - Cable cutting protection (only for systems with back-up battery siren) - The alarm will trigger if the system is not power
supplied (cutting of cables - battery disconnection) signaling the sabotage.
2.4 - Engine starting inhibition - As soon as the system is armed the engine starting is not be possible anymore.
2.5 - Arming the system with the volumetric ultrasonic protection disabled - This function allows to arm the system leaving
temporarily disconnected the interior volumetric protection. The protection must be disabled any time you leave somebody or an
animal in the vehicle. Also if you want to leave any window opened please disable the protection to avoid false alarms. All other
protections remain active.
4625 - 4627 QUICK REFERENCE - USER MANUAL
Button A
B
A
Button B
B
A
1
