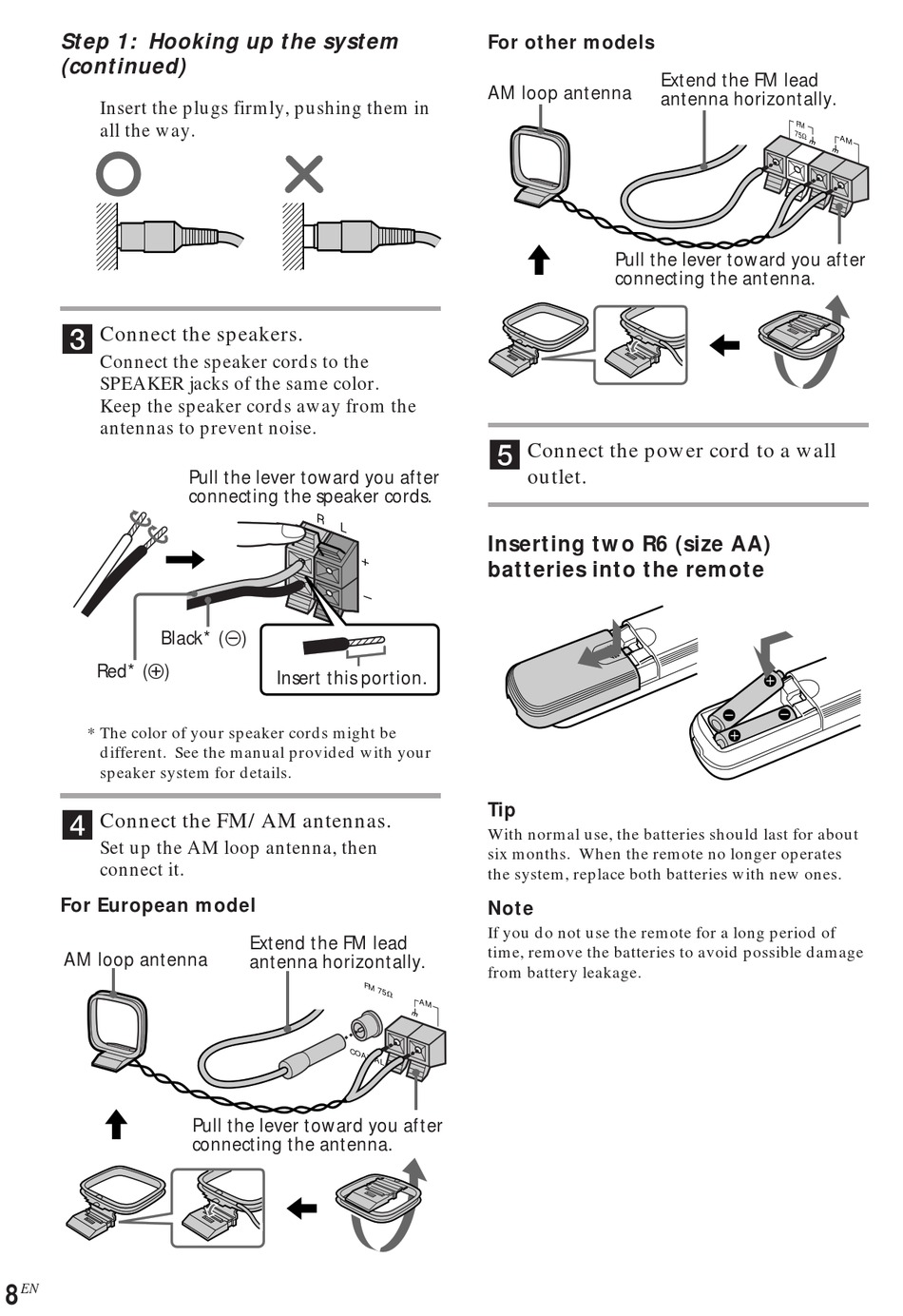

Step 1: Hooking up the system
(continued)
Insert the plugs firmly, pushing them in
all the way.
3
Connect the speakers.
Connect the speaker cords to the
SPEAKER jacks of the same color.
Keep the speaker cords away from the
antennas to prevent noise.
Black* (')
Red* (')
* The color of your speaker cords might be
different. See the manual provided with your
speaker system for details.
4
Connect the FM/AM antennas.
Set up the AM loop antenna, then
connect it.
For European model
AM loop antenna
EN
8
Pull the lever toward you after
connecting the speaker cords.
R
L
Insert this portion.
Extend the FM lead
antenna horizontally.
C O A
Pull the lever toward you after
connecting the antenna.
For other models
AM loop antenna
5
Connect the power cord to a wall
outlet.
Inserting two R6 (size AA)
+
batteries into the remote
–
Tip
With normal use, the batteries should last for about
six months. When the remote no longer operates
the system, replace both batteries with new ones.
Note
If you do not use the remote for a long period of
time, remove the batteries to avoid possible damage
from battery leakage.
F M
7 5
A M
X I A
L
Extend the FM lead
antenna horizontally.
Pull the lever toward you after
connecting the antenna.
]
} }
]
F M
7 5
A M
