Connecting optional AV
components (continued)
For MHC-EX66/EX660
Connect a TV/VCR to VIDEO1 or VIDEO2/
AUX on the amplifier.
To the audio output of a TV/VCR
To listen to the sound of TV/VCR
Turn FUNCTION until the VIDEO 1,
VIDEO 2 (DHC-MD77) or VIDEO 2/AUX
(other models) indicator lights up.
Connecting audio
components
Connecting a tape deck
Connect a tape deck to TAPE on the
amplifier.
Make sure to match the color of the plugs and
the jacks.
To the audio
input of a
tape deck
To listen to the sound of a tape
deck
Turn FUNCTION until the TAPE indicator
lights up.
EN
14
To the audio
output of a
tape deck

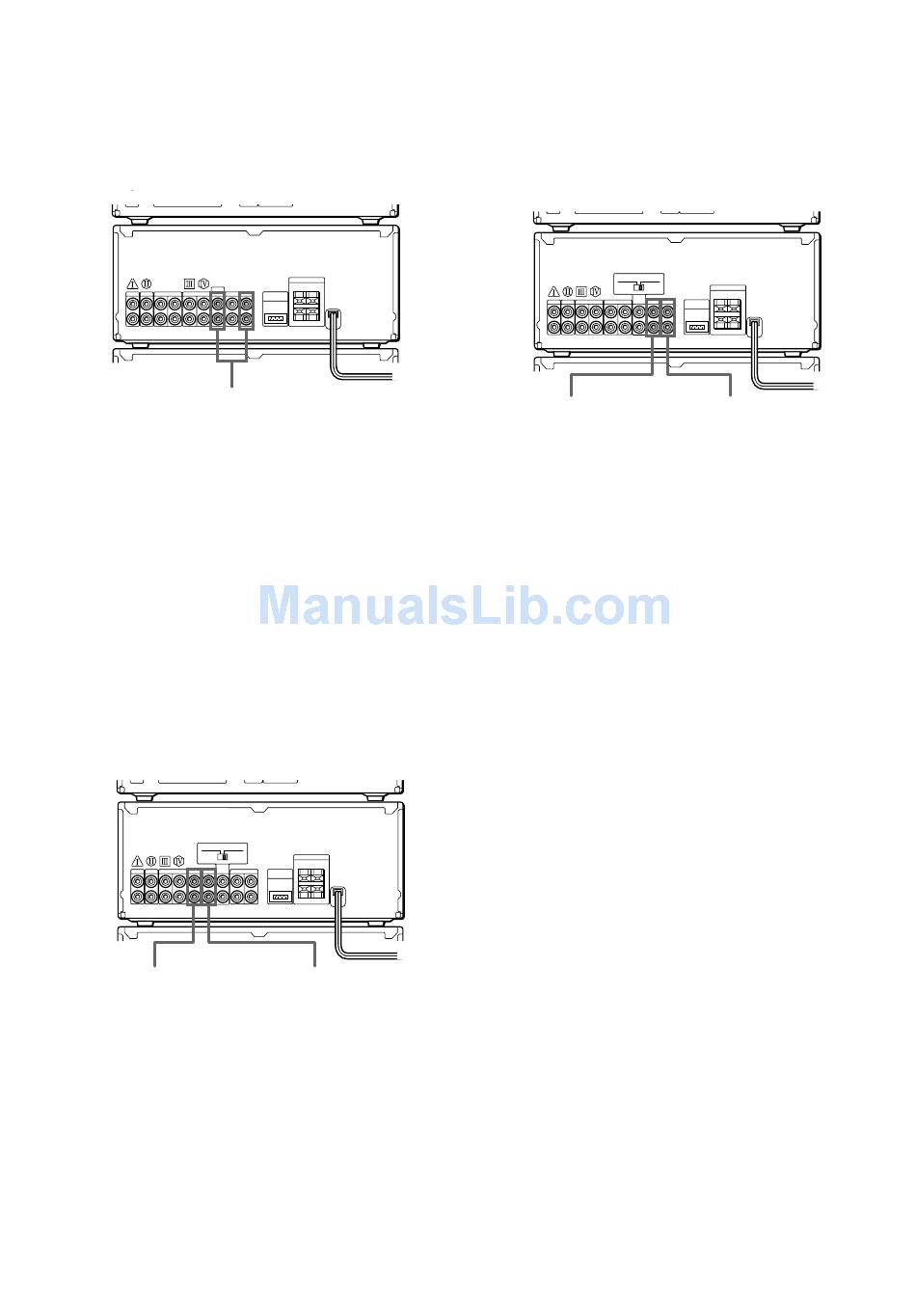

Connecting other analog
components
Connect an analog component to VIDEO1 on
the amplifier.
Make sure to match the color of the plugs and
the jacks.
To the audio
input of an
analog component
To listen to the sound of the
connected component
Turn FUNCTION until the VIDEO 1 indicator
lights up.
Connecting digital components
For DHC-MD77/EX77MD/EX770MD
You can make a digital recording onto the
system's own MD deck from the connected
digital component (e.g., a DAT deck, BS tuner
or another MD deck).
• Connect a digital component to VIDEO 2
DIGITAL IN on the MD deck using an
optical cable.
• Connect a digital component to VIDEO2
(DHC-MD77) or VIDEO2/AUX (DHC-
EX77MD/EX770MD) on the amplifier
using audio cords.
• Set MODE SELECTOR to DIGITAL REC.
To the audio
output of an
analog component
