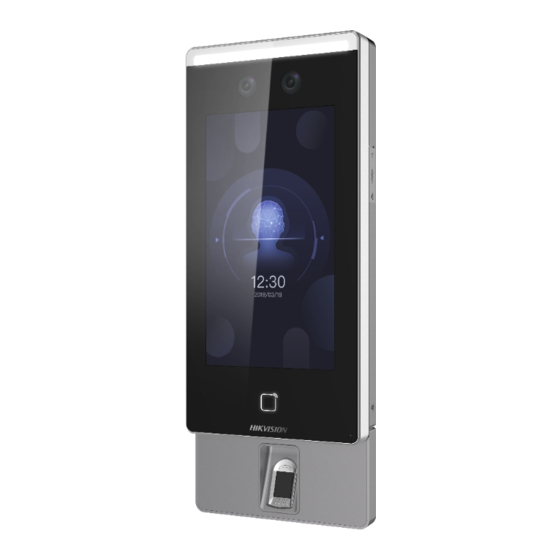

HIKVISION 607 Series User Manual

Face recognition terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

607 Series Face Recognition Terminal
User Manual

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION 607 Series

Summary of Contents for HIKVISION 607 Series

  • Page 1 607 Series Face Recognition Terminal User Manual...
  • Page 2 This Manual is subject to domestic and international copyright protection. Hangzhou Hikvision Digital Technology Co., Ltd. (“Hikvision”) reserves all rights to this manual. This manual cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 607 Series Face Recognition Terminal User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 607 Series Face Recognition Terminal User Manual 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
  • Page 6 607 Series Face Recognition Terminal User Manual  If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the device yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.) Cautions ...

  • Page 7: Table Of Contents

    607 Series Face Recognition Terminal User Manual Table of Contents Chapter 1 Overview ......................... 1 Introduction ......................... 1 Main Features ........................1 1.2.1 DS-K1T607 Series Features ....................1 1.2.2 DS-K1T607P Series Features ..................... 2 1.2.3 DS-K1T607T Series Features ..................... 2 Chapter 2 Appearance ......................
  • Page 8 607 Series Face Recognition Terminal User Manual 6.7.2 Authenticating via 1:N Matching ................... 40 6.7.3 Authenticating via 1:1 Matching and 1:N Matching ............40 Two-way Audio ........................40 6.8.1 Calling iVMS-4200 Client Software from Device ............41 6.8.2 Calling Master Station from Device ................41 6.8.3 Calling Device from iVMS-4200 Client Software ............
  • Page 9 607 Series Face Recognition Terminal User Manual 7.8.1 Access Control Parameters ................... 101 7.8.2 Card Reader Authentication ..................105 7.8.3 Multiple Authentication ....................106 7.8.4 Open Door with First Card ................... 109 7.8.5 Anti-Passing Back ......................110 Searching Access Control Event ..................111 7.9.1 Searching Local Access Control Event ................
  • Page 10 607 Series Face Recognition Terminal User Manual Appendix E Dimension ......................151...

  • Page 11: Chapter 1 Overview

    607 Series Face Recognition Terminal User Manual Chapter 1 Overview Introduction DS-K1T607 series face recognition terminal is a kind of access control device for face recognition, which is mainly applied in security access control systems, such as logistic centers, airports, university campuses, alarm centrals, dwellings and so on.

  • Page 12: Ds-K1T607P Series Features

    607 Series Face Recognition Terminal User Manual  NTP, manually time synchronization, and auto synchronization  Audio prompt  Watchdog design and tamper function 1.2.2 DS-K1T607P Series Features  7-inch LCD touch screen  2 MP wide-angle dual-lens  Adjusts supplement light brightness manually ...
  • Page 13 607 Series Face Recognition Terminal User Manual 1.2.3 DS-K1T607T Series Features  7-inch LCD touch screen  2 MP wide-angle dual-lens  Adjusts supplement light brightness manually  Face recognition in dark environment  Face recognition distance: 0.3 to 1.5 m ...

  • Page 14: Chapter 2 Appearance

    607 Series Face Recognition Terminal User Manual Chapter 2 Appearance Refer to the following contents for detailed information of the DS-K1T607 series face recognition terminal: Table 2-1 Description of DS-K1T607 Series Face Recognition Terminal Name Description Scan fingerprint. Fingerprint Note:...
  • Page 15 607 Series Face Recognition Terminal User Manual Supplement Light Supplement light for IR camera. (IR Light) Supplement Light Supplement light for IR camera. (IR Light) USB Interface Connect to USB flash drive. Network Interface Connect to Ethernet. Power Interface Connect to power supply.

  • Page 16: Chapter 3 Installation

    607 Series Face Recognition Terminal User Manual Chapter 3 Installation Installation Environment  If installing the device indoors, the device should be at least 2 meters away from the light, and at least 3 meters away from the window or the door.
  • Page 17 607 Series Face Recognition Terminal User Manual 4. Use another four supplied screws to secure the mounting plate on the wall. 5. Route the cable through the cable hole of the mounting plate, and connect to corresponding external devices’ cables.

  • Page 18: Installing Without Gang Box

    607 Series Face Recognition Terminal User Manual Make sure the two sheets on the each side of the mount pate have been in the holes at the back of the device. 8. Use two suppled screws (SC-M4 × 12TP10-SUS) to secure the device and the mounting plate.
  • Page 19 607 Series Face Recognition Terminal User Manual 2. Drill 6 holes on the wall or other surface according to Hole 1and Hole 2 in the mounting template. 3. Insert the screw sockets of the setscrews in the drilled holes. 4. Align the 6 holes to the holes on the mounting plate and secure them with 6 screws.
  • Page 20 607 Series Face Recognition Terminal User Manual 5. Route the cable through the cable hole of the mounting plate, and connect to corresponding external devices’ cables. Note: Apply Sililcone sealant among the cable wiring area to keep the raindrop from entering.
  • Page 21 607 Series Face Recognition Terminal User Manual Notes:  The installation height here is the recommended height. You can change it according to your actual needs.  For easy installation, drill holes on mounting surface according to the supplied mounting...

  • Page 22: Chapter 4 Terminal Connection

    607 Series Face Recognition Terminal User Manual Chapter 4 Terminal Connection You can connect the RS-485 terminal with the RS-485 card reader, connect the NC and COM terminals with the door lock, connect the SENSOR terminal with the door magnetic sensor,...
  • Page 23 607 Series Face Recognition Terminal User Manual You can also connect the terminal with the seucure door control unit. The wiring diagram is as follows: Note: The secure door control unit should connect to an external power supply seperately.

  • Page 24: Chapter 5 Activation

    607 Series Face Recognition Terminal User Manual Chapter 5 Activation Purpose: You are required to activate the terminal first before using it. Activation via device, activation via SADP, and activation via client software are supported. The default values of the control terminal are as follows.
  • Page 25 607 Series Face Recognition Terminal User Manual 3. Create a password in the password field, and confirm the password. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 26: Activating Via Client Software

    607 Series Face Recognition Terminal User Manual 6. Input the password and click Modify to save the IP address. Activating via Client Software Purpose: The client software is versatile video management software for multiple kinds of devices. Get the client software from the supplied disk or the official website, and install the software according to the prompts.
  • Page 27 607 Series Face Recognition Terminal User Manual 2. Click Device Management to enter the Device Management interface. 3. Check the device status from the device list, and select an inactive device. 4. Check the device status from the device list, and select an inactive device.
  • Page 28 607 Series Face Recognition Terminal User Manual 7. Click OK button to start activation. 8. Click the Modify Netinfor button to pop up the Network Parameter Modification interface. 9. Change the device IP address to the same network segment as your computer by modifying the IP address manually.

  • Page 29: Chapter 6 Basic Operation

    607 Series Face Recognition Terminal User Manual Chapter 6 Basic Operation Purpose: After logging in the device, you can manage users, set communication parameters, set access control parameters, set system parameters, manage data, manage log query, set time, import and output data, maintain data, and view device information.

  • Page 30: General Parameters Settings

    607 Series Face Recognition Terminal User Manual Notes:  The device will be locked for 30 minutes after 5 failed password attempts.  For details about setting the administrator authentication mode, see 6.4.1 Adding User. General Parameters Settings 6.3.1 Communication Settings...
  • Page 31 607 Series Face Recognition Terminal User Manual 2. Configure the network parameters, including IP Address, Subnet Mask, Gateway, and DHCP. Note: The device’s IP address and the computer IP address should be in the same network segment. 3. Tap √ to save the network parameters.
  • Page 32 607 Series Face Recognition Terminal User Manual Note: Numbers, upper case letters, lower case letters, and special characters are allowed in the Wi-Fi password. 5. Tap OK to save the settings and go back to the Wi-Fi tab. 6. Tap to save the Wi-Fi parameters and go back to the Home page.

  • Page 33: System Settings

    607 Series Face Recognition Terminal User Manual Steps: 1. On the Communication Settings page, tap Wiegand to enter the Wiegand tab. 2. Tap the slider to enable the Wiegand function. 3. Select the transmission direction. Transmission Direction:  Output: A face recognition terminal can connect an external access controller. And the two devices will transmit the card No.
  • Page 34 607 Series Face Recognition Terminal User Manual Parameter Description Community No. Set the device installed community No. Building No. Set the device installed building No. Unit No. Set the device installed Unit No. Voice Prompt to disable or enable the voice promt.
  • Page 35 607 Series Face Recognition Terminal User Manual Setting Face Parameters Purpose: You can set the face 1:N (security) level, 1:1 (security) level, live face detection, liveness security level, min. detection area (width), min. detection area (height), min. detection width (close to), margin (left), margin (top), margin (right), margin (bottom), pitch angle, yaw angle, pupillary distance, and ECO mode.
  • Page 36 607 Series Face Recognition Terminal User Manual Parameter Description 1:1 (Security) Level Set the matching threshold when authenticating via 1:1 matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate. By default, the value is 75.
  • Page 37 607 Series Face Recognition Terminal User Manual Parameter Description The actual distance percentage should be larger than the configured value when starting face authentication. Other percentages, distances, and angles should also meet their conditions. Margin (Right) The distance percentage from the face right side to the right margin in the recognition area.
  • Page 38 607 Series Face Recognition Terminal User Manual Setting Fingerprint Parameters Purpose: You can set the fingerprint security level in this section. Note: Only the device with the fingerprint scanning function supports the fingerprint related function. Security Level: You can select the fingerprint security level.

  • Page 39: Setting Time

    607 Series Face Recognition Terminal User Manual 6.3.3 Setting Time Purpose: You can set the device time and the DST in this section. Steps: 1. Tap Time (Time Settings) on the Home page to enter the Time Settings page. 2. Edit the time parameters.

  • Page 40: Adding User

    607 Series Face Recognition Terminal User Manual 6.4.1 Adding User Purpose: On the Add User page, you can add users, including the employee No., name, card No. You can also link the fingerprint, the face picture to the user, or set password, authentication mode, schedule template, administrator permission for the user.
  • Page 41 607 Series Face Recognition Terminal User Manual Notes:  Numbers, upper case letters, lower case letters, and special characters are allowed in the user name.  Up to 32 characters are allowed in the user name. 4. Tap the Card field and input the card No.

  • Page 42: Managing User

    607 Series Face Recognition Terminal User Manual Note: The maximum duration for adding a face picture is 15s. You can check the remaining time for adding a face picture on the left of the page. 8. Tap the Schedule Template field to enter the Schedule Template page. Select a schedule template and tap √...

  • Page 43: Setting Access Control Parameters

    607 Series Face Recognition Terminal User Manual 1. In the User Management page, tap the user that needs to be edited to enter the Edit User page. 2. Refer to the parameters’ instructions in Section 6.4.1 Adding User to edit the user information.

  • Page 44: Other Management

    607 Series Face Recognition Terminal User Manual Parameter Description Door Contact You can select Open (Remain Open) or Closed (Remain Closed) according to your actual needs. By default, it is Remain Closed. Anti-Passback When enabling the anti-passback function, you should set the anti-password path in the iVMS-4200 Client Software.

  • Page 45: Managing Log Query

    607 Series Face Recognition Terminal User Manual 2. Tap the button on the page to manage data. The available button descriptions are as follows: Parameter Description Delete All Events Delete all events stored in the device. Delete User Data Delete all user data in the device.

  • Page 46: Importing/Exporting Data

    607 Series Face Recognition Terminal User Manual If you select Custom, you can customize the start time and the end time for search. 5. Tap to start search. The result will be displayed in the page. 6.6.3 Importing/Exporting Data Purpose: On the Transfer page, you can export the attendance data, the user data, the user picture, the access control parameter, the captured picture, and the exception data to the USB flash drive.

  • Page 47: Viewing System Information

    607 Series Face Recognition Terminal User Manual  The system supports the USB flash drive with the storage of 1 G to 32 G. Make sure the free space of the USB flash drive is more than 512 M.  The exported user data is a BIN file, which cannot be edited.
  • Page 48 607 Series Face Recognition Terminal User Manual Viewing Device Information Purpose: You can view the device model, the serial No., the MAC address, the firmware version, the production date, and the open source code License. Tap Device to enter the Device page.

  • Page 49: Authenticating Identity

    607 Series Face Recognition Terminal User Manual Authenticating Identity Purpose: After setting network, system parameters and adding user, you can go back to the initial page for identity authentication. The system will authenticate person according to the configured authentication mode.

  • Page 50: Authenticating Via 1:N Matching

    607 Series Face Recognition Terminal User Manual completely, authenticate the face when the prompt “Continue to authenticate” pops up. If authentication succeeded, the prompt “Authenticated” will pop up. Notes:  For better face authentication, the user height should between 140 cm and 190 cm and the distance between the user and the device should be between 30 cm and 100 cm.

  • Page 51: Calling Ivms-4200 Client Software From Device

    607 Series Face Recognition Terminal User Manual 6.8.1 Calling iVMS-4200 Client Software from Device Steps: 1. Get the client software from the supplied disk or the official website, and install the software according to the prompts. 2. Run the client software and the control panel of the software pops up.

  • Page 52: Calling Device From Ivms-4200 Client Software

    607 Series Face Recognition Terminal User Manual Note: The device will call the master station in priority when tap 6.8.3 Calling Device from iVMS-4200 Client Software Steps: 1. Get the client software from the supplied disk or the official website, and install the software according to the prompts.

  • Page 53: Chapter 7 Client Operation

    607 Series Face Recognition Terminal User Manual Chapter 7 Client Operation You can set and operate the access control devices via the client software. This chapter will introduce the access control device related operations in the client software. For integrated operations, refer to User Manual of iVMS-4200 Client Software.

  • Page 54: System Configuration

    607 Series Face Recognition Terminal User Manual After running the client software, you can open the wizards (including video wizard, video wall wizard, security control panel wizard, access control and video intercom wizard, and attendance wizard), to guide you to add the device and do other settings and operations. For detailed configuration about the wizards, please refer to the Quick Start Guide of iVMS-4200.

  • Page 55: Adding Access Control Device

    607 Series Face Recognition Terminal User Manual Click to enter the Access Control module. Before you start: For the first time opening the Access Control module, the following dialog will pop up and you are required to select the scene according to the actual needs.
  • Page 56 607 Series Face Recognition Terminal User Manual Note: After adding the device, you should check the device arming status in Tool – Device Arming Control. If the device is not armed, you should arm it, or you will not receive the real-time events via the client software.
  • Page 57 607 Series Face Recognition Terminal User Manual case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
  • Page 58 607 Series Face Recognition Terminal User Manual Adding Online Device Purpose: The active online devices in the same local subnet with the client software will be displayed on the Online Device area. You can click the Refresh Every 60s button to refresh the information of the online devices.
  • Page 59 607 Series Face Recognition Terminal User Manual of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
  • Page 60 607 Series Face Recognition Terminal User Manual Adding Devices by IP or Domain Name Steps: 1. Click Add to open the device adding dialog box. 2. Select IP/Domain as the adding mode. 3. Input the required information. Nickname: Edit a name for the device as you want.
  • Page 61 607 Series Face Recognition Terminal User Manual Adding Devices by IP Segment Steps: 1. Click Add to open the device adding dialog box. 2. Select IP Segment as the adding mode. 3. Input the required information. Start IP: Input a start IP address.
  • Page 62 607 Series Face Recognition Terminal User Manual You can add the device which the IP address is between the start IP and end IP to the device list. Adding Devices by Hik-Connect Domain Purpose: You can add the devices connected via Hik-Connect by inputting the Hik-Connect account and password.
  • Page 63 607 Series Face Recognition Terminal User Manual Hik-Connect Account: Input the Hik-Connect account. Hik-Connect Password: Input the Hik-Connect password. 5. Optionally, check the Export to Group checkbox to create a group by the device name. You can import all the channels of the device to the corresponding group by default.
  • Page 64 607 Series Face Recognition Terminal User Manual 5. Click Get Device List to show the devices added to Hik-Connect account. 6. Check the checkbox(es) to select the device as desired. 7. Input the user name and password for the devices to be added.
  • Page 65 607 Series Face Recognition Terminal User Manual 3. Input the required information. Nickname: Edit a name for the device as you want. Account: Input the account name registered on EHome protocol. 4. Optionally, check the Export to Group checkbox to create a group by the device name.
  • Page 66 607 Series Face Recognition Terminal User Manual 3. Input the required information. Nickname: Edit a name for the device as you want. Server Address: Input the IP address of the PC that installs the IP Server. Device ID: Input the device ID registered on the IP Server.
  • Page 67 607 Series Face Recognition Terminal User Manual 3. Input the required information. Nickname: Edit a name for the device as you want. Server Address: www.hik-online.com. Device Domain Name: Input the device domain name registered on HiDDNS server. User Name: Input the device user name. By default, the user name is admin.
  • Page 68 607 Series Face Recognition Terminal User Manual 1. Click Add to open the device adding dialog box. 2. Select Batch Import as the adding mode. 3. Click Export Template and save the pre-defined template (CSV file) on your PC. 4. Open the exported template file and input the required information of the devices to be added on the corresponding column.

  • Page 69: Viewing Device Status

    607 Series Face Recognition Terminal User Manual case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

  • Page 70: Editing Basic Information

    607 Series Face Recognition Terminal User Manual Note: The interface may different from the picture displayed above. Refer to the actual interface when adopting this function.  Door Status: The status of the connected door.  Host Status: The status of the host, including Storage Battery Power Voltage, Device Power Supply Status, Multi-door Interlocking Status, Anti-passing Back Status, and Host Anti-Tamper Status.

  • Page 71: Network Settings

    607 Series Face Recognition Terminal User Manual 4. Edit the device information, including the adding mode, the device name, the device IP address, port No., user name, and the password. 7.3.4 Network Settings Purpose: After adding the access control device, you can set the uploading mode, and set the network center and wireless communication center.
  • Page 72 607 Series Face Recognition Terminal User Manual and the backup channel, or select Close to disable the main channel or the backup channel. Note: The main channel and the backup channel cannot enable N1 or G1 at the same time.

  • Page 73: Capture Settings

    607 Series Face Recognition Terminal User Manual 2. Select the APN name as CMNET or UNINET. 3. Input the SIM Card No. 4. Select the center group in the dropdown list. 5. Input the IP address and port No. 6. Select the protocol type as EHome. By default, the port No. for EHome is 7660.

  • Page 74: Settings

    607 Series Face Recognition Terminal User Manual 2. Set the picture size and quality. 3. Set the linked capture times once triggered. 4. Click Save to save the settings. Manual Capture Steps: 1. Select the Manual Capture tab. 2. Select the resolution of the captured pictures from the dropdown list.

  • Page 75: Wiegand Settings

    607 Series Face Recognition Terminal User Manual 2. Select the serial No. of the port from the dropdown list to set the RS-485 parameters. 3. Set the baud rate, data bit, the stop bit, parity, flow control, communication mode, working mode, and the connection mode in the dropdown list.

  • Page 76: Setting Multiple Nics

    607 Series Face Recognition Terminal User Manual 7.3.8 Setting Multiple NICs Purpose: You can set the parameters of NIC, NIC type, IPv4 address, Subnet Mask, Default Gateway, MAC, MTU, and device port. Note: The function should be supported by the device.

  • Page 77: Remote Configuration

    607 Series Face Recognition Terminal User Manual Parameter Description mode (1:N), and ECO mode (1:1). ECO Mode (1:1) Set the matching threshold when authenticating via ECO mode 1:1 matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate.
  • Page 78 607 Series Face Recognition Terminal User Manual Editing Device Name In the Remote Configuration interface, click System -> General to configure the device name and overwrite record files parameter. Click Save to save the settings. Editing Time Steps: 1. In the Remote Configuration interface, click System -> Time to configure the time zone.
  • Page 79 607 Series Face Recognition Terminal User Manual Setting System Maintenance Purpose: You can reboot the device remotely, restore the device to default settings, import configuration file, upgrade the device, etc. Steps: 1. In the Remote Configuration interface, click System -> System Maintenance.
  • Page 80 607 Series Face Recognition Terminal User Manual 2) Click to select the upgrade file. 3) Click Upgrade to start upgrading. Note: Do not power off during the upgrading. Configuring RS-485 Parameters Purpose: You can set the RS-485 parameters including the baud rate, data bit, stop bit, parity type, communication mode, work mode, and connection mode.
  • Page 81 607 Series Face Recognition Terminal User Manual Managing User Steps: 1. In the Remote Configuration interface, click System -> User. 2. Click Add to add the user (Do not support by the elevator controller.). Or select a user in the user list and click Edit to edit the user. You are able to edit the user password, the IP address, the MAC address and the user permission.
  • Page 82 607 Series Face Recognition Terminal User Manual Encrytion Mode: High security level during the useer inframtion verification when logging in. 3. (Optional) Check Enable SSH. 4. Click Save to save the settings. Configuring Network Parameters Click Network -> General. You can configure the NIC type, the IPv4 address, the subnet mask (IPv4), the default gateway (IPv4), MAC address, MTU, and the device port.
  • Page 83 607 Series Face Recognition Terminal User Manual Note: N1 refers to wired network and G1 refers to GPRS. Click Settings on the right of the channel field to set the detailed information. Click Save to save the settings. Configuring Network Center You can set the notify surveillance center, center’s IP address, the port No., the Protocol (EHome),...
  • Page 84 607 Series Face Recognition Terminal User Manual 2. Check Enable to enable the Wi-Fi function. 3. Input the hot spot name. Or you can click Select… to select a network. 4. Input the Wi-Fi password. 5. (Optional) Click Refresh to refresh the network status.
  • Page 85 607 Series Face Recognition Terminal User Manual Configuring Relay Parameters Steps: 1. Click Alarm -> Relay. You can view the relay parameters. 2. Click the to pop up the Relay Parameters Settings window. 3. Set the relay name and the output delay.
  • Page 86 607 Series Face Recognition Terminal User Manual Parameter Description ECO Mode (1:1) Set the matching threshold when authenticating via ECO mode 1:1 matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate.
  • Page 87 607 Series Face Recognition Terminal User Manual Parameter Description (Height) long, the parameter represents the minimum percentage of the facial height in the total height of the recognition area. The actual percentage should be larger than the configured value when face picture authentication.
  • Page 88 607 Series Face Recognition Terminal User Manual 2. Select a supplement light No. from the drop-down list. Note: Light 1 refers to white light and Light 2 refers to IR light. 3. Select a supplement light mode from the drop-down list.

  • Page 89: Organization Management

    607 Series Face Recognition Terminal User Manual 2. Set the device input volume or output volume. 3. Click Save to save the parameters. Operating Relay 1. Click Operation -> Relay. You can view the relay status. 2. Check the relay checkbox 3.

  • Page 90: Modifying And Deleting Organization

    607 Series Face Recognition Terminal User Manual Click Add button to pop up the adding organization interface. 2. Input the Organization Name as desired. 3. Click OK to save the adding. 4. You can add multiple levels of organizations according to the actual needs.
  • Page 91 607 Series Face Recognition Terminal User Manual 2. The Person No. will be generated automatically and is not editable. 3. Input the basic information including person name, gender, phone No., birthday details, and email address. 4. Click Upload Picture to select the person picture from the local PC to upload it to the client.
  • Page 92 607 Series Face Recognition Terminal User Manual Note: If you select Analog Indoor Station in the Linked Device, the Door Station field will display and you are required to select the door station to communicate with the analog indoor station.
  • Page 93 607 Series Face Recognition Terminal User Manual 2. Click Add to pop up the Add Card dialog. 3. Click Card to enter the Card tab. 4. Select the card type according to actual needs.  Normal Card  Card for Disabled Person: The door will remain open for the configured time period for the card holder.
  • Page 94 607 Series Face Recognition Terminal User Manual  Visitor Card: The card is assigned for visitors. For the Visitor Card, you can set the Max. Swipe Times. Note: The Max. Swipe Times should be between 0 and 255. When setting as 0, it means the card swiping is unlimited.
  • Page 95 607 Series Face Recognition Terminal User Manual 1) Select an added card and click QR Code to generate the card QR code. 2) In the QR code pop-up window, click Download to save the QR code to the local PC.
  • Page 96 607 Series Face Recognition Terminal User Manual 1) Click Set External Device to enter the Set External Device page. 2) (Optional) Select the issuing card mode again. 3) Set a card enrollment station. 4) If you select “Fingerprint + Card No.” as the issuing mode, set the fingerprint recorder model.
  • Page 97 607 Series Face Recognition Terminal User Manual 14. Click OK to save the settings. Adding Person (Face Picture) You can collect the face picture in two ways: Local Collection and Remote Collection.  Local Upload: Upload local the face pictures from the local PC.
  • Page 98 607 Series Face Recognition Terminal User Manual Adding Person (Fingerprint) Steps: 1. In the Add Person interface, click Fingerprint tab. 2. Select Local Collection as desired. 3. Before inputting the fingerprint, you should connect the fingerprint machine to the PC and set its parameters first.
  • Page 99 607 Series Face Recognition Terminal User Manual 6. (Optional) You can also click Remote Collection to collect fingerprint from the device. Note: The function should be supported by the device. 7. (Optional) You can select the registered fingerprint and click Delete to delete it.
  • Page 100 607 Series Face Recognition Terminal User Manual 4. Select the Excel file with the person information. 5. Click OK to start importing. Note: If the person No. already exists in the client software’s database, it will replace the person information automatically after importing.

  • Page 101: Managing Person

    607 Series Face Recognition Terminal User Manual 3. The added access control device will be displayed. 4. Click to select the device and then click OK to start getting the person information from the device. You can also double click the device name to start getting the person information.

  • Page 102: Issuing Card In Batch

    607 Series Face Recognition Terminal User Manual 2. Select the organization to move the person to. 3. Click OK to save the settings. Searching Person You can input the keyword of card No. or person name in the search field, and click Search to search the person.

  • Page 103: Schedule And Template

    607 Series Face Recognition Terminal User Manual 6. In the Person(s) with No Card Issued list on the left, select the person to issue card. Note: You can click on the Person Name, Gender, and Department column to sort the persons according to actual needs.

  • Page 104: Week Schedule

    607 Series Face Recognition Terminal User Manual You can manage the schedule of access control permission including Week Schedule, Holiday Schedule, and Template. For permission settings, please refer to Chapter 7.7 Permission Configuration. 7.6.1 Week Schedule Click Week Schedule tab to enter the Week Schedule Management interface.

  • Page 105: Holiday Group

    607 Series Face Recognition Terminal User Manual period of time, the configured permission is activated. Note: Up to 8 time periods can be set for each day in the schedule. 5. When the cursor turns to , you can move the selected time bar you just edited. You can also edit the displayed time point to set the accurate time period.

  • Page 106: Template

    607 Series Face Recognition Terminal User Manual information. 4. Click Add Holiday icon on the right to add a holiday period to the holiday list and configure the duration of the holiday. Note: Up to 16 holidays can be added to one holiday group.
  • Page 107 607 Series Face Recognition Terminal User Manual There are two pre-defined templates by default: Whole Week Template and Blank Template, which cannot be deleted and edited.  Whole Week Template: The card swiping is valid on each day of the week and it has no holiday group schedule.

  • Page 108: Permission Configuration

    607 Series Face Recognition Terminal User Manual 5. Select holiday groups to apply to the schedule. Note: Up to 4 holiday groups can be added. Click to select a holiday group in the list and click Add to add it to the template. You can also click Add Holiday Group to add a new one.

  • Page 109: Adding Permission

    607 Series Face Recognition Terminal User Manual 7.7.1 Adding Permission Purpose: You can assign permission for persons to enter/exist the access control points (doors) in this section. Notes:  You can add up to 4 permissions to one access control point of one device.

  • Page 110: Applying Permission

    607 Series Face Recognition Terminal User Manual (Optional) You can select the door or door station in the selected list and click < to cancel the selection. 6. Click OK button to complete the permission adding. The selected person will have the permission to enter/exit the selected door/door station with their linked card(s) or fingerprints.

  • Page 111: Advanced Functions

    607 Series Face Recognition Terminal User Manual Or you can click Apply Later to apply the changes later in the Permission interface.  The permission changes include changes of schedule and template, permission settings, person’s permission settings, and related person settings (including card No., fingerprint, face picture, linkage between card No.
  • Page 112 607 Series Face Recognition Terminal User Manual 1. In the controller list on the left, click to expand the access control device, select the door (access control point) and you can edit the information of the selected door on the right.
  • Page 113 607 Series Face Recognition Terminal User Manual 2. You can edit the following parameters:  Nickname: Edit the card reader name as desired.  Enable Card Reader: Select Yes to enable the card reader.  OK LED Polarity: Select the OK LED Polarity of the card reader mainboard.
  • Page 114 607 Series Face Recognition Terminal User Manual  Enable Tampering Detection: Enable the anti-tamper detection for the card reader.  Detect When Card Reader is Offline for: When the access control device cannot connect with the card reader for longer than the set time, the card reader will turn offline automatically.

  • Page 115: Card Reader Authentication

    607 Series Face Recognition Terminal User Manual 7.8.2 Card Reader Authentication Purpose: You can set the passing rules for the card reader of the access control device. Steps: 1. Click Card Reader Authentication tab and select a card reader on the left.

  • Page 116: Multiple Authentication

    607 Series Face Recognition Terminal User Manual (Optional) You can click Delete button to delete the selected time period or click Clear button to delete all the configured time periods. 6. (Optional) Click Copy to button to copy the settings to other card readers.
  • Page 117 607 Series Face Recognition Terminal User Manual 3. In the Set Card Group panel on the right, click Add button to pop up the following dialog: 1) In the Card Group Name field, input the name for the group as desired.
  • Page 118 607 Series Face Recognition Terminal User Manual 1) Select the template of the authentication group from the dropdown list. For details about setting the template, refer to Chapter 7.6 Schedule and Template. 2) Select the authentication type of the authentication group from the dropdown list.

  • Page 119: Open Door With First Card

    607 Series Face Recognition Terminal User Manual  For the authentication group which certificate type is Local Authentication, up to 8 card groups can be added to the authentication group.  For the authentication group which certificate type is Local Authentication and Super Password or Local Authentication and Remotely Open Door, up to 7 card groups can be added to the authentication group.

  • Page 120: Anti-Passing Back

    607 Series Face Recognition Terminal User Manual 1) Select the cards to add as first card for the door Note: Set the card permission and apply the permission setting to the access control device first. For details, refer to Chapter 7.7 Permission Configuration.

  • Page 121: Searching Access Control Event

    607 Series Face Recognition Terminal User Manual 3. In the First Card Reader field, select the card reader as the beginning of the path. 4. In the list, click the text filed of Card Reader Afterward and select the linked card readers.

  • Page 122: Searching Local Access Control Event

    607 Series Face Recognition Terminal User Manual 7.9.1 Searching Local Access Control Event Steps: 1. Select the Event Source as Local Event. 2. Input the search condition according to actual needs. 3. Click Search. The results will be listed below.

  • Page 123: Access Control Event Configuration

    607 Series Face Recognition Terminal User Manual 3. (Optional) You can check With Alarm Picture checkbox to search the events with alarm pictures. 4. Click Search. The results will be listed below. 5. You can click Export to export the search result to the local PC in *.csv file.

  • Page 124: Event Card Linkage

    607 Series Face Recognition Terminal User Manual Table 1. 1 Linkage Actions for Access Control Event Linkage Actions Descriptions The client software gives an audible warning when alarm is Audible Warning triggered. You can select the alarm sound for audible warning.
  • Page 125 607 Series Face Recognition Terminal User Manual Select the access control device from the list on the left. Click Add button to add a new linkage. You can select the event source as Event Linkage or Card Linkage. Event Linkage For the event linkage, the alarm event can be divided into four types: device event, alarm input, door event, and card reader event.

  • Page 126: Door Status Management

    607 Series Face Recognition Terminal User Manual The door status of open, close, remain open, and remain closed will be triggered. Notes:  The door status of open, close, remain open, Access Control Access Control Point and remain close cannot be triggered at the Point same time.

  • Page 127: Access Control Group Management

    607 Series Face Recognition Terminal User Manual Access Control Group Management 7.11.1 Purpose: Before controlling the door status and setting the status duration, you are required to organize it into group for convenient management. Perform the following steps to create the group for the access control device: Steps: 1.

  • Page 128: Anti-Control The Access Control Point (Door)

    607 Series Face Recognition Terminal User Manual  For the Video Access Control Terminal, you can add the cameras as encoding channel to the group. 2) Select the names of the access control points in the list. 3) Select a group from the group list.

  • Page 129: Status Duration Configuration

    607 Series Face Recognition Terminal User Manual Steps: 1. Select an access control group on the left. For managing the access control group, refer to Chapter 7.11.1 Access Control Group Management. 2. The access control points of the selected access control group will be displayed on the right.
  • Page 130 607 Series Face Recognition Terminal User Manual closed. In the Door Status module, click button to enter the Status Duration interface. Status Duration Steps: 1. Click to select a door from the access control device list on the left. 2. On the Door Status Configuration panel on the right, draw a schedule for the selected door.

  • Page 131: Real-Time Card Swiping Record

    607 Series Face Recognition Terminal User Manual When the cursor turns to , you can lengthen or shorten the selected time bar. 3. Optionally, you can select the schedule time bar and click Copy to Whole Week to copy the time bar settings to the other days in the week.
  • Page 132 607 Series Face Recognition Terminal User Manual Click Access Control Alarm tab to enter the following interface. Steps: 1. All access control alarms will display in the list in real time. You can view the alarm type, alarm time, location, etc.

  • Page 133: Live View

    607 Series Face Recognition Terminal User Manual 7.12 Live View For the surveillance task, you can view the live video of the added device. And some basic operations are supported, including picture capturing, manual recording, etc. Before you start: A camera group is required to be defined for live view.
  • Page 134 607 Series Face Recognition Terminal User Manual  During the manual recording, an indicator appears in the upper-right corner of the display window.  The saving path of video files can be set on the System Configuration interface. For details, refer to User Manual of iVMS-4200 Client Software.

  • Page 135: Other Functions In Live View

    607 Series Face Recognition Terminal User Manual The following buttons are available on the local playback page: CIF/4CIF Display the video in cif/4cif resolution. Full Screen Display the local playback page in full screen mode. Close Close the local playback page of the video files.

  • Page 136: Controlling Door During Live View

    607 Series Face Recognition Terminal User Manual status, synchronization, etc. Two-way Audio Two-way audio function enables the voice talk of the camera. You can get not only the live video but also the real-time audio from the camera. If the device has multiple two-way audio channels, you can select the channel to start two-way audio.

  • Page 137: Arming Control

    607 Series Face Recognition Terminal User Manual Remain closed. 7. Click to open or close the door. Or click to set the door status as remain open or remain closed. Note: One camera can be linked to only one access control point; Different cameras can be linked to the same access control point.

  • Page 138: Shift Schedule Management

    607 Series Face Recognition Terminal User Manual 7.14.1 Shift Schedule Management Open Time and Attendance module and click Shift Schedule Management to enter the Shift Schedule Management interface. Shift Settings Purpose: You can add time period and shift for the shift schedule.
  • Page 139 607 Series Face Recognition Terminal User Manual 3. Set the related parameters. Name: Set the name for time period. Start-Work / End-Work Time: Set the start-work time and end-work time. Attend at Least: Set the minimum attendance time. Check-in / Check-out Required: Check the checkboxes and set the valid period for check-in or check-out.
  • Page 140 607 Series Face Recognition Terminal User Manual 3. Set the name for shift. 4. Select the shift period from the drop-down list. 5. Configure the shift period with the added time period. 1) Select the time period. 2) Click the time bar to apply the time period for the select day.
  • Page 141 607 Series Face Recognition Terminal User Manual 3. Check Time and Attendance checkbox. All persons in the department expect those excluded from attendance will apply the attendance schedule. 4. Select the shift from the drop-down list. 5. Set the start date and end date.
  • Page 142 607 Series Face Recognition Terminal User Manual  Person Schedule Steps: 1. Open the Shift Schedule Management interface and select the department on the left panel. 2. Select the person(s) on the right panel. 3. Click Person Schedule to pop up Person Schedule dialog.
  • Page 143 607 Series Face Recognition Terminal User Manual 5. Configure the shift date with the added time period. 1) Select the time period. 2) Click the time bar to apply the time period for the select date. You can click the time period on the bar and click to delete the period.

  • Page 144: Attendance Handling

    607 Series Face Recognition Terminal User Manual You can check the attendance rules as desired and click OK to save the settings. 3) Click to set the effective date. 4) Click Save to save the settings. 5. (Optional) Click Temporary Schedule tab.
  • Page 145 607 Series Face Recognition Terminal User Manual Check-in/out Correction Purpose: You can add, edit, delete, search the check-in/out correction and generate the related report. You can also export the check-in/out correction details to local PC.  Add Check-in/out Correction Steps: 1.
  • Page 146 607 Series Face Recognition Terminal User Manual The added check-in/out correction will display on the Attendance Handling interface. (Optional) Select the check-in/out correction and click Modify to edit the correction. (Optional) Select the check-in/out correction and click Delete to delete the correction.
  • Page 147 607 Series Face Recognition Terminal User Manual 3. Select the leave and business trip type from the Type drop-down list. You can configure the leave type in Advanced Settings. For details, refer to Leave Type Settings. 4. Click to set the specified time as time range.

  • Page 148: Advanced Settings

    607 Series Face Recognition Terminal User Manual 7.14.3 Advanced Settings Purpose: You can configure the basic settings, attendance rule, attendance check point, holiday settings and leave type for attendance. Open Time and Attendance module and click Advanced Settings to enter the Advanced Settings interface.
  • Page 149 607 Series Face Recognition Terminal User Manual 2. Set the attendance or absence settings. If employee does not check in when starting work, you can mark as Absent or Late and set the late time. If employee does not check out when ending work, you can mark as Absent or Early Leave and set the early leave duration.
  • Page 150 607 Series Face Recognition Terminal User Manual 3. Set the related information. Check Point Name: Input a name for check point. Card Reader: Select the card reader from the drop-down list. Check Point Function: Select the function for check point.
  • Page 151 607 Series Face Recognition Terminal User Manual 3. Set the related parameters. Holiday Name: Input the name for the holiday. Start Date / End Date: Click to specify the holiday date. 4. Click Add to add the holiday. The added holiday will display on the list.

  • Page 152: Attendance Statistics

    607 Series Face Recognition Terminal User Manual Click to delete the major leave type. 3. Add the minor leave type. 1) Select the major leave type. The minor leave type belonging to this major leave type will display on the right panel.
  • Page 153 607 Series Face Recognition Terminal User Manual 3. Set the search conditions, including department, employee name and attendance date. (Optional) You can click Reset to reset all the configured search conditions. 4. Click Search to start searching and the matched results will list on this page.
  • Page 154 607 Series Face Recognition Terminal User Manual 2. Set the search conditions, including department, employee name, attendance date and status. (Optional) You can click Reset to reset all the configured search conditions. 3. Click Search to start searching and the matched results will list on this page.
  • Page 155 607 Series Face Recognition Terminal User Manual Monthly Report as the report type. 2. Click Person field to select the person. 3. Click to specify a month. 4. Click Report to start generating the matched total overtime monthly report.  Generating Overtime Details Monthly Report Select Overtime Details Monthly Report as the report type.

  • Page 156: Appendix A Tips For Scanning Fingerprint

    607 Series Face Recognition Terminal User Manual Appendix A Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.

  • Page 157: Appendix B Tips When Collecting/Comparing Face Picture

    607 Series Face Recognition Terminal User Manual Appendix B Tips When Collecting/Comparing Face Picture Positions (Recommended Distance:0.5 m) The position when collecting or comparing face picture is as below: Expression  Keep your expression naturally when collecting or comparing face pictures, just like the...

  • Page 158: Posture

    607 Series Face Recognition Terminal User Manual  Do not wear hat, sunglasses, or other accessories that can affect the facial recognition function.  Do not make your hair cover your eyes, ears, etc. and heavy makeup is not allowed.

  • Page 159: Appendix C Tips For Installation Environment

    607 Series Face Recognition Terminal User Manual Appendix C Tips for Installation Environment 1. Light Source Illumination Reference Value Candel: 10Lux Bulb: 100~850Lux Sunlight: More than 1200Lux 2. If the light source is 0.5 m away from the device, the illumination should be no less than 100 Lux.

  • Page 160: Appendix D Relationship Between Wake-Up Distance And Environment

    607 Series Face Recognition Terminal User Manual Appendix D Relationship Between Wake-up Distance and Environment Environment Short Medium Long Dusk Normal White 1.06 m 1.67 m 3.62 m (Low Wall Illumination) Acrylic Wall in 0.85/0.73 m 1.30/1.21 m 4.16 m...
  • Page 161 607 Series Face Recognition Terminal User Manual Appendix E Dimension DS-K1T607 Series (With Fingerprint Module) Dimension...
  • Page 162 607 Series Face Recognition Terminal User Manual DS-K1T607 (Without Fingerprint Module) Dimension 010000001090417...
  • Page 163 607 Series Face Recognition Terminal User Manual UD12808B-A...
