Page 1

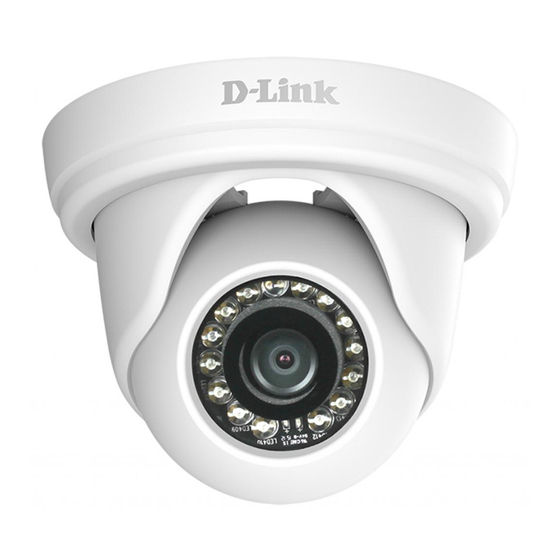

Version 2.00 | 12/05/2018 User Manual Vigilance Full HD H.265 Outdoor PoE Mini Dome Camera DCS-4802E...
Page 2
Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change.
Section 1: Product Overview Product Overview Package Contents DCS-4802E Vigilance Full HD H.265 Outdoor PoE Mini Dome Camera Cable Waterproofing Connector Rubber Power Connector Plug Mounting Kit CD-ROM with User Manual and software Quick Installation Guide If any of the above items are missing, please contact your reseller.
The DCS-4802E has an IP66 certified weatherproof housing designed for both indoor and outdoor applications. The built-in removable IR-cut filter and IR LEDs give the DCS-4802E the capability to view up to 20M at night. The DCS-4802E also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.
Advanced Event Management The DCS-4802E can be set up to send e-mail notifications with snapshots when an event occurs, such as when motion is detected. Events can be triggered from several sources, such as motion detection and time based events.
Press and hold for 10 seconds to reset camera back to the factory default settings Power Connector Connects to an optional 12 V, 1.5 A power adapter (not included) RJ-45 connector for Ethernet which can also be used to power the camera using Ethernet Jack Power over Ethernet (PoE) D-Link DCS-4802E User Manual...
Section 2: Installation Installation Connecting the Camera You can power the DCS-4802E two different ways: through PoE or through a power adapter. Powering the camera through PoE (Class 2): Connect an Ethernet cable to the LAN(PoE) port on the camera. Connect the other end of the cable to your PoE switch or PoE injector.
Step 2 Use the screws provided to mount the camera to the wall. If you are running the camera cables out the side of the camera, guide the camera cables through the cable channel on the base. D-Link DCS-4802E User Manual...
Page 10
Section 2: Installation Step 3 Attach the camera base cover by lining up the cable channel on it with the mark on the camera base, then turn the camera base cover clockwise until it clicks. D-Link DCS-4802E User Manual...
Remove the cover from the camera. Pass the camera connectors through the back or bottom cable channel on the DCS-37-1. Use the provided screws to mount the camera to the DCS-37-1 using the set of mounting holes marked B. D-Link DCS-4802E User Manual...
Page 12
Adjust the angle of the camera as desired, then put the cover back on the camera and rotate it clockwise to lock it in place. Step 5 If you are passing the camera cables through the wall, place the rubber stopper into the bottom cable channel to seal it. D-Link DCS-4802E User Manual...
Remove the cover from the camera. Pass the camera connectors through the back or side cable channel on the DCS- 37-2. Use the provided screws to mount the camera to the DCS-37-2 using the set of mounting holes marked B. D-Link DCS-4802E User Manual...
Page 14
Adjust the angle of the camera as desired, then put the cover back on the camera and rotate it clockwise to lock it in place. Step 5 If you are passing the camera cables through the wall, place the rubber stopper into the side cable channel to seal it. D-Link DCS-4802E User Manual...
B. Step 4 Adjust the angle of the camera as desired, then put the cover back on the camera and rotate it clockwise to lock it in place. Step 5 Attach the camera cover. D-Link DCS-4802E User Manual...
Step 1 Place the washer around the base of the Ethernet connector as shown. Step 2 Thread bare Ethernet cable through the waterproof connector as shown, then crimp an RJ-45 plug onto the cable. D-Link DCS-4802E User Manual...
Page 17
Screw the back part of the waterproof connector clockwise until there is a tight seal around the Ethernet cable. If you are using PoE to power your camera, use the included rubber power connector plug to the power connector. D-Link DCS-4802E User Manual...
Page 18
Section 2: Installation If you are using a power adapter (not included) to power your camera, wind waterproof tape around the connection in an overlapping manner to cover it. D-Link DCS-4802E User Manual...
D: represents the drive letter of your CD-ROM drive) and press Enter. Step 2 Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu (Start > D-Link > Setup Wizard SE). D-Link DCS-4802E User Manual...
Page 20
Admin ID is admin with the password left blank. Click the checkboxes if you wish to change the admin ID and password for the camera, and enter the new ID and password you wish to use. Click Next to continue. D-Link DCS-4802E User Manual...
Page 21
Select Static IP if you want to manually enter the IP settings for the camera. Click Next to continue. Step 6 Take a moment to confirm your settings and click Restart. D-Link DCS-4802E User Manual...
After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web configuration utility is designed to allow you to easily access and configure your DCS-4802E. At the end of the wizard, click Link, or enter the IP address of your camera into a web browser, such as Firefox.
Page 23
After entering a password, click Save. Under Password, enter the same password configured during setup and click Login to continue. Step 4 This section displays your camera’s live video. You can select your video profile and view or operate the camera. D-Link DCS-4802E User Manual...
Set a Storage Select a storage folder to save snapshots and video clips to. Folder Click this and use the slider to zoom in and out of your camera's Zoom In/Out video. D-Link DCS-4802E User Manual...
Page 25
This will flash red when motion is detected. Record Status This will turn red when the camera is recording. Help Click this to open a window that describes the Live Video controls. Logout Click this to log out of the web interface. D-Link DCS-4802E User Manual...
Click on this button to start the Network Setup Wizard. Refer to Setup Wizard: "Network Setup Wizard" on page 27. Motion Click on this button to start the Motion Detection Setup Wizard. Detection Refer to "Motion Detection Setup Wizard" on page 29. Setup Wizard: D-Link DCS-4802E User Manual...
Enter the correct configuration information and click Next to continue. • If you are using PPPoE, select PPPoE and enter your user name and password. Click Next to continue. D-Link DCS-4802E User Manual...
Page 28
Set the correct time to ensure that all events will be triggered as scheduled. Click Next to continue. Step 5: Confirm the settings are correct and click Apply to save them. The settings will be saved to the DCS-4802E and the camera will restart. D-Link DCS-4802E User Manual...
Click Next to continue. Step 2 This step allows you to enable motion detection based on a customized schedule. Specify the day and hours. You may also choose to always record whenever motion is detected. Click Next to continue. D-Link DCS-4802E User Manual...
Page 30
Click Next to continue. Step 4 You have completed the Motion Detection Wizard. Please verify your settings and click Apply to save them. Please wait a few moments while the camera saves your settings and restarts. D-Link DCS-4802E User Manual...
Primary DNS: Enter the primary domain name server for translating domain names to IP addresses. Secondary Enter the secondary domain name server for translating domain DNS: names to IP addresses. D-Link DCS-4802E User Manual...
Page 32
User Name / Enter the username and password for your PPPoE account. Re-enter Password: your password in the Confirm Password field. You may obtain this information from your ISP. PPPoE Status: This shows your current PPPoE connection status. D-Link DCS-4802E User Manual...
Page 33
Use this section to configure the HTTP and HTTPS access settings for your camera. After making any changes, click the Save button to save your changes. HTTP HTTP Port: The default port number is 80. The default name is video#.mjepg, where # is the number of the Access Name for Stream stream. 1~2: D-Link DCS-4802E User Manual...
Page 34
Create a certificate request and install Status: Displays the status of the certificate. Note: The certificate cannot be removed while the HTTPS is still enabled. To remove the certificate, you must first uncheck HTTPS secure connection. D-Link DCS-4802E User Manual...
Page 35
Multicast Multicast for The DCS-4802E allows you to multicast each of the available streams Stream 1/2: via a group address and specify the TTL value for each stream. Enter the port and TTL settings you wish to use if you do not want to use the defaults.
Page 36
Use this section to enable Bonjour, which allows your camera to be accessed more easily on your network. After making any changes, click the Save button to save your changes. Bonjour: Enable this to enable Bonjour support. Bonjour Enter a name to identify this camera on Bonjour. Name: D-Link DCS-4802E User Manual...
LED: You may specify whether or not to illuminate the status LED on the camera. For security reasons, this setting is set to Off by default. D-Link DCS-4802E User Manual...
Page 38
You can also create 3 different custom exposure modes. Max Gain will limit the brightness of the exposure. This setting controls the amount of noise reduction that will be Denoise: applied to the picture. D-Link DCS-4802E User Manual...
Page 39
Specify a value to determine how much WDR adjustment to apply to the image, or select None. 3D Filter: This reduces the amount of image noise when viewing a low-light environment. Reset Default: Click this button to reset the image to factory default settings. D-Link DCS-4802E User Manual...
Page 40
Enables the IR light. Sync With The IR light will turn on when the ICR filter is disabled (night mode). ICR: The IR light will turn on or off according to the schedule that you Schedule: specify below. D-Link DCS-4802E User Manual...
Page 41
Privacy Mask cursor over the camera image to draw maximum 3 rectangular areas Setting: which will be blocked/excluded from recordings and snapshots. Click the Save button to save your changes. Restore All: Clear all privacy mask areas. D-Link DCS-4802E User Manual...
Page 42
Maximum You can set the maximum frame rate. A higher frame rate provides Frame Rate: smoother motion for videos and requires more bandwidth. Lower frame rates will result in stuttering motion and require less bandwidth. D-Link DCS-4802E User Manual...
Page 43
You can set the bit rate to use for this video profile. Rate: Fixed Quality: Select the image quality level for the camera to try to maintain. Higher quality levels will result in increased bit rates and use more bandwidth. D-Link DCS-4802E User Manual...
Event Management The DCS-4802E has a comprehensive event management system that lets you configure the camera to perform certain actions when an event occurs. For example, when motion is detected, you can have snapshots sent to an e-mail address. You can also configure the camera to take regular video recordings according to a schedule you define.
Page 45
2. To delete the selected item from the server, media, event, or recording drop-down menus, click the Delete button next to it. 3. Click on the name of an item to edit it. D-Link DCS-4802E User Manual...
Page 46
If you want to use an FTP server for your server, select this and enter the settings for your target FTP server. Network If you want to use a network storage device for your server, select Storage: this and enter its settings here. D-Link DCS-4802E User Manual...
Page 47
4, a total of 9 images are generated after a trigger is activated. 1 pic. 2 pic. 3 pic. 4 pic. 5 pic. 6 pic. 7 pic. 8 pic. 9 pic. The moment the trigger is activated. D-Link DCS-4802E User Manual...
Page 48
This is the prefix that will be added to the filename of saved video File Name clips. Prefix: Select this option to set the media type to system logs. This will System log: save the event to the camera system log, but will not record any snapshots or video. D-Link DCS-4802E User Manual...
Page 49
"Motion Detection" on page 52. Periodic: Selecting this will trigger the event in specified intervals. The trigger interval unit is in minutes. System Boot: Selecting this will trigger an event when the system boots up. D-Link DCS-4802E User Manual...
Page 50
Select the actions you want the camera to take when the event happens. Select the Server to use, then choose the Media you want to save to it. Please note that you need to set up your Server and Media entries first. D-Link DCS-4802E User Manual...
Page 51
If this is selected, files will be based on the maximum length you Each File for specify. Recording: File Name The prefix name will be added to the beginning of the file name of Prefix: the recording file(s). D-Link DCS-4802E User Manual...
Page 52
Low percentages can be useful when monitoring an area such as a large room, and high percentages can be useful when you are only monitoring a specific part of the camera's view, such as a doorway. D-Link DCS-4802E User Manual...
UPnP capable network. Forwarding: Forwarding If UPnP Port Forwarding is enabled, you can set which port to use Port: for forwarding. Forwarding If UPnP Port Forwarding is enabled, this will show the UPnP Port Status: Forwarding status. D-Link DCS-4802E User Manual...
Page 54
Timeout: You can set up how often the camera notifies the DDNS service of its current global IP address by entering a whole number in hours. Status: This shows the current status of your DDNS updates. D-Link DCS-4802E User Manual...
Page 55
Enter the authentication password used for your read/write SNMP Password: server. Encryption Enter the encryption password used for your read/write SNMP Password: server. Read Only Enter a name for the read-only community of your read-only SNMP Security Name: server. D-Link DCS-4802E User Manual...
Page 56
Enter the type of authentication used by your read-only SNMP Type: server. Authentication Enter the authentication password used for your read-only SNMP Password: server. Encryption Enter the encryption password used for your read-only SNMP server. Password: D-Link DCS-4802E User Manual...
Page 57
QoS, the router's settings will override the QoS settings of the camera. To use QoS, enable it and set the priority for your Live Video, Live Audio, Event/Alarm, and Management camera traffic. D-Link DCS-4802E User Manual...
Page 58
Section 3: Configuration Access List Here you can define which IP addresses are allowed to view your DCS-4802E. You can set up to 7 IP address ranges for both the allow and deny lists. Allow List: The section lets you define what IP addresses have access rights to the camera.
You may save your current camera configuration as a file on your Hard Drive: computer. Load From Local Hard Locate a pre-saved configuration by clicking Browse and then Drive: restore the pre-defined settings to your camera by clicking Load Configuration. D-Link DCS-4802E User Manual...
Page 60
Section 3: Configuration Factory Reset Here you can reset the camera configuration back to the factory defaults. Restore You may reset your camera and restore the factory settings by to Factory clicking Restore Factory Defaults. Default: D-Link DCS-4802E User Manual...
Page 61
This will restart your camera. Device: If you want your camera to reboot on a regular schedule, enable Schedule this option, then select the days and time you want the camera to Reboot: reboot on and click the Save button. D-Link DCS-4802E User Manual...
Page 62
Section 3: Configuration Firmware Update Here you can update the camera's firmware. The current version of the firmware is shown next to the D-Link logo at the top of the page. File Path: To update the firmware, select a firmware file to use from your hard drive by clicking Browse..., then click the Upload button.
Section 3: Configuration Camera Options Camera Info This page displays detailed information about your camera, the services running on your camera, and active video streams. D-Link DCS-4802E User Manual...
Enter the offset that should be used when Daylight Saving is being used. Start Time: Set the date and time that Daylight Saving should start. End Time: Set the date and time that Daylight Saving should end. D-Link DCS-4802E User Manual...
Page 65
This section lets you set your camera's date and time automatically by using an NTP server. NTP Server: Enable this option to set your camera's time using an NTP server, then select an NTP server to use from the drop-down box. D-Link DCS-4802E User Manual...
Page 66
Set Date Enable this option to manually set the time and date. and Time Manually: This will synchronize the time information with your PC. Copy Your PC's Time: D-Link DCS-4802E User Manual...
Section 3: Configuration Administration Settings Admin Password Here, you may modify the administrator’s password for your camera. Set a new password for the administrator’s account. Password / Retype Password: D-Link DCS-4802E User Manual...
Page 68
Here, you may add user accounts for accessing the camera. User accounts are allowed to access the Live Video page, but cannot access any of the camera's configuration pages. User Name: Enter a user name for the user you wish to create. Enter a password for the user you wish to create. Password / Retype Password: D-Link DCS-4802E User Manual...
Page 69
If you want to change a user's password, select a user from the drop- down box, enter the new password, then click the Modify button. If you want to remove a user from the user list, select a user from the drop-down box, then click the Delete button. D-Link DCS-4802E User Manual...
Section 3: Configuration Camera Log This page displays the log information of your camera. You may download the information by clicking Download. You may also click Clear to delete the saved log information. D-Link DCS-4802E User Manual...
NTP client (D-Link) CoS DNS client QoS/DSCP DDNS client (D-Link) SNMP SMTP client Bonjour FTP client Security Administrator and user group protection HTTP and RTSP authentication Password authentication D-Link DCS-4802E User Manual...
Page 72
Power Consumption 3.68 watts ± 5% (PoE Class 2) Temperature Operating: -30 to 50 °C (-22 to 122 °F) Storage: -20° to 70° C (-4° to 158° F) Humidity Operating: 20% to 80% non-condensing Storage: 5% to 95% non-condensing Certifications CE LVD ICES D-Link DCS-4802E User Manual...
Page 73
Appendix A: Technical Specifications Dimensions Ø113 mm D-Link DCS-4802E User Manual...
