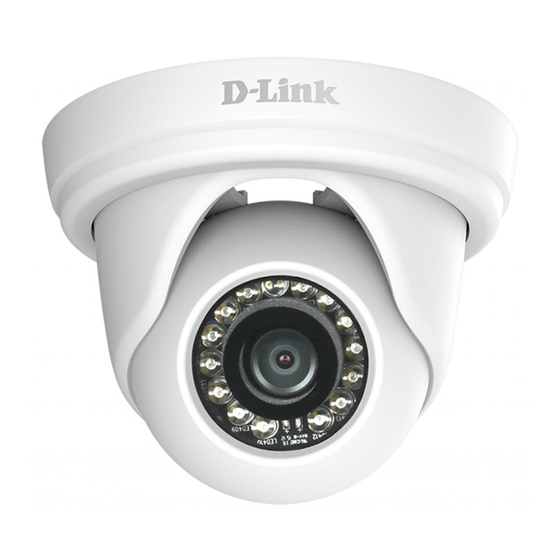

Vigilance full hd outdoor poe mini dome camera
Hide thumbs
Also See for DCS-4802E:
- Quick installation manual (13 pages) ,
- User manual (98 pages) ,
- User manual (73 pages)
Related Manuals for D-Link DCS-4802E
Summary of Contents for D-Link DCS-4802E
- Page 1 Version 1.00 | 08/19/2015 User Manual Vigilance Full HD Outdoor PoE Mini Dome Camera DCS-4802E...
- Page 2 Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change.
-
Page 3: Table Of Contents
Live Video ................19 Help..................55 Technical Specifications ..........56 Setup ..................21 Regulatory Information ..........59 Setup Wizard ..............21 Network Setup ..............26 Dynamic DNS ..............29 Image Setup ..............30 Video ...................32 Preset ...................34 Motion Detection ............36 Time and Date ..............37 Event Setup ...............38 D-Link DCS-4802E User Manual... -
Page 4: Product Overview
Section 1: Product Overview Product Overview Package Contents DCS-4802E Vigilance Full HD Outdoor PoE Mini Dome Camera Cable Waterproofing Connector Rubber Power Connector Plug Mounting Kit CD-ROM with User Manual and software Quick Installation Guide If any of the above items are missing, please contact your reseller. -
Page 5: Introduction
The DCS-4802E has an IP66 certified weatherproof housing designed for both indoor and outdoor applications. The built-in removable IR-cut filter and IR LEDs give the DCS-4802E the capability to view up to 20M at night. The DCS-4802E also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling. -
Page 6: Features
Advanced Event Management The DCS-4802E can be set up to send e-mail notifications with snapshots when an event occurs, such as when motion is detected. Events can be triggered from several sources, such as motion detection and time based events. -
Page 7: Hardware Overview
Press and hold for 10 seconds to reset camera back to the factory default settings Power Connector Connects to an optional 12 V, 1.5 A power adapter (not included) RJ-45 connector for Ethernet which can also be used to power the camera using Ethernet Jack Power over Ethernet (PoE) D-Link DCS-4802E User Manual... -
Page 8: Connecting The Camera
Section 2: Installation Installation Connecting the Camera You can power the DCS-4802E two different ways: through PoE or through a power adapter. Powering the camera through PoE (Class 2): Connect an Ethernet cable to the LAN(PoE) port on the camera. Connect the other end of the cable to your PoE switch or PoE injector. -
Page 9: Mounting The Camera
Step 2 Use the screws provided to mount the camera to the wall. If you are running the camera cables out the side of the camera, guide the camera cables through the cable channel on the base. D-Link DCS-4802E User Manual... - Page 10 Section 2: Installation Step 3 Attach the camera base cover by lining up the cable channel on it with the mark on the camera base, then turn the camera base cover clockwise until it clicks. D-Link DCS-4802E User Manual...
-
Page 11: Waterproofing Your Installation
Step 1 Place the washer around the base of the Ethernet connector as shown. Step 2 Thread bare Ethernet cable through the waterproof connector as shown, then crimp an RJ-45 plug onto the cable. D-Link DCS-4802E User Manual... - Page 12 Screw the back part of the waterproof connector clockwise until there is a tight seal around the Ethernet cable. If you are using PoE to power your camera, use the included rubber power connector plug to the power connector. D-Link DCS-4802E User Manual...
- Page 13 Section 2: Installation If you are using a power adapter (not included) to power your camera, wind waterproof tape around the connection in an overlapping manner to cover it. D-Link DCS-4802E User Manual...
-
Page 14: Software Installation
D: represents the drive letter of your CD-ROM drive) and press Enter. Step 2 Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu (Start > D-Link > Setup Wizard SE). D-Link DCS-4802E User Manual... - Page 15 Admin ID is admin with the password left blank. Click the checkboxes if you wish to change the admin ID and password for the camera, and enter the new ID and password you wish to use. Click Next to continue. D-Link DCS-4802E User Manual...
- Page 16 Select Static IP if you want to manually enter the IP settings for the camera. Click Next to continue. Step 6 Take a moment to confirm your settings and click Restart. D-Link DCS-4802E User Manual...
-
Page 17: Configuration
After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web configuration utility is designed to allow you to easily access and configure your DCS-4802E. At the end of the wizard, click Link, or enter the IP address of your camera into a web browser, such as Firefox. - Page 18 Enter admin as the default username and leave the password blank. Click OK to continue. Step 4 This section displays your camera’s live video. You can select your video profile and view or operate the camera. D-Link DCS-4802E User Manual...
-
Page 19: Live Video
Auto Pan Starts the automatic panning function. The ROI will pan from back and forth within the FOV. Stop Stops the camera ePTZ motion. Preset Path Starts the camera's motion along the predefined path. D-Link DCS-4802E User Manual... -
Page 20: Video
Video Profile 2 Set a Storage Folder Full screen mode Take a Snapshot Go To: If any presets have been defined, you can select them here to move the (Preset List) camera to the selected preset. D-Link DCS-4802E User Manual...
