Grizzly G0871 Instructions

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
Model G0871 Roller Stand allows you to quickly
and easily mount your Model G0869 Benchtop
Table Saw onto a stable, yet portable work sur-
face. To mount Model G0869 to this stand, follow
the instructions below.
Note: This Roller Stand is designed only for use
with the Model G0869 Benchtop Table Saw or as
a replacement for the stand that comes with Model
G0870 Portable Table Saw. Do not attempt to use
Model G0871 as a stand for any other machine.
Inventory (Figure
Description
A. Roller Stand (Not Shown) ........................... 1
B. Left & Right Handles (Not Shown) .......1 Ea.
C. Carriage Bolts M8-1.25 x 40 ....................... 4
D. Button Head Cap Screws M8-1.25 x 16 ..... 2
E. Hex Wrench 5mm ....................................... 1
F. Flat Wrench 10mm/13mm .......................... 1
G. Wheels ....................................................... 2
H. Lock Nuts M8-1.25 ................................... 10
I. Button Head Cap Screws M8-1.25 x 40 ..... 4
J. Flat Washers 8mm ..................................... 6
C
I
H

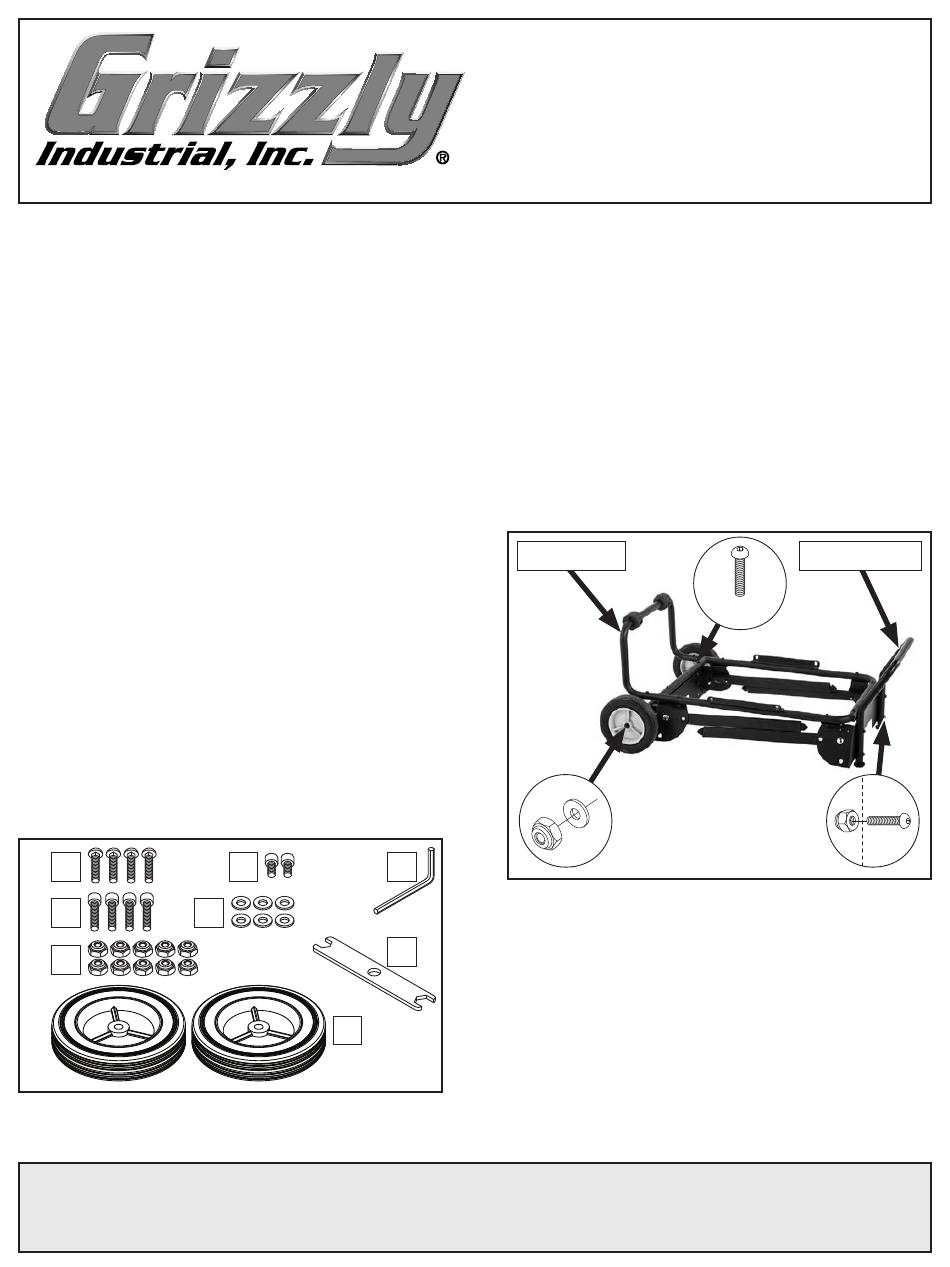

Figure 1. Model G0871 inventory.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
)
1
D
J
G
COPYRIGHT © FEBRUARY, 2019 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 01/19) #WK20229 PRINTED IN TAIWAN
ROLLER STAND FOR G0869
BENCHTOP TABLE SAW
Assembly
1.
Attach each wheel to axle with (1) 8mm
flat washer and (1) M8-1.25 lock nut (see
Figure 2).
2.
Attach left handle to stand body with (2)
M8-1.25 x 16 button head cap screws (see
Figure 2).
3.
Attach right handle to stand body with (4)
M8-1.25 x 40 button head cap screws and
(4) M8-1.25 lock nuts (see Figure 2).
Left Handle
Qty
E
Figure 2. Model G0871 assembly.
F
MODEL G0871
INSTRUCTIONS
x 2
Right Handle
x 4
