Panasonic GT series Connection Manual

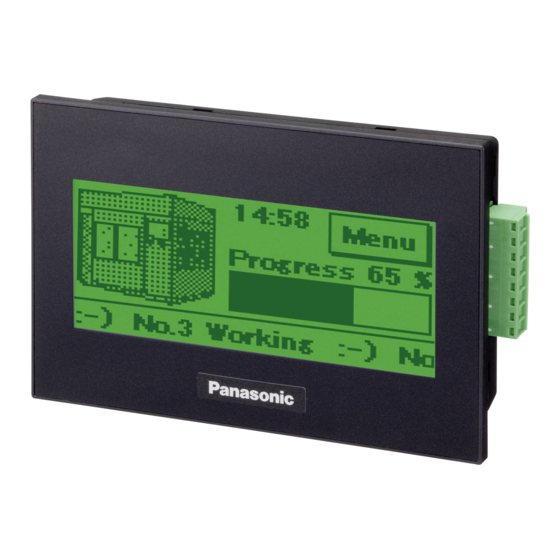

Programmable display. fp7 connection.
Hide thumbs
Also See for GT series:
- Manual (136 pages) ,
- User manual (206 pages) ,
- User manual (181 pages)
Related Manuals for Panasonic GT series
Summary of Contents for Panasonic GT series
- Page 1 PROGRAMMABLE DISPLAY GT series FP7 Connection Manual WUME-GTCONFP7-02 2013.11 panasonic.net/id/pidsx/global...
-
Page 3: Table Of Contents
1. Introduction ........................... 2 1.1 GT Models and Versions Connectable to FP7 ..............2 1.2 Restrictions ........................2 2. Wirings between GT series and FP7 ..................3 2.1 RS232C Connection ......................3 2.2 RS-422 Connection ......................5 2.3 RS-485 Connection ......................7 3. -
Page 4: Introduction
1.1 GT Models and Versions Connectable to FP7 For using GT series connecting to FP7, the versions of GT series and tool software GTWIN applicable to FP7 are required. For information on the applicable versions, refer to the table below. -
Page 5: Wirings Between Gt Series And Fp7
2. Wirings between GT series and FP7 2.1 RS232C Connection Wiring between FP7 COM0 port and GT series (24V/RS232C type) Wiring between FP7 COM0 port and GT series (5V/RS232C type) Wiring between FP7 communication cassette AFP7CCS1 (RS232C 1-ch insulated type) and GT... - Page 6 Wiring between FP7 communication cassette AFP7CCS2 (RS232C 2-ch insulated type) and GT series (RS232C type) Set the on-board switch of AFP7CCS2 to "3Wire".
-
Page 7: Rs-422 Connection
2.2 RS-422 Connection Wiring between FP7 communication cassette AFP7CCM1 (RS-422/RS-485 1-ch insulated type) and GT series (RS-422/RS-485 type) (RS-422 connection) Wiring between FP7 communication cassette AFP7CCM2 (RS-422/RS-485 2-ch insulated type) and GT series (RS-422/RS-485 type) (RS-422 connection) - Page 8 Settings on FP7 Set the on-board switches of each cassette to "RS-422". For RS-422 connection, set the termination resistance switches of each cassette to "ON".
-
Page 9: Rs-485 Connection
2.3 RS-485 Connection Wiring between FP7 communication cassette AFP7CCM1 (RS-422/RS-485 1-ch insulated type) and GT series (RS-422/RS-485 type) (RS-422 connection) 1:1 connection PLC multiple connection GT link function... - Page 10 Wiring between FP7 communication cassette AFP7CCM2 (RS-422/RS-485 2-ch insulated type) and GT series (RS-422/RS-485 type) (RS-485 connection) 1:1 connection Note) As for the PLC multiple and GT link function connections, refer to the connection diagrams in the previous page.
- Page 11 Settings on FP7 Set the on-board switches of each cassette to "RS-485". For RS-485 connection, set the termination resistance switches of each cassette to "ON".
-
Page 12: Settings Of Gt Series (Gtwin)
Select "Panasonic FP7 series" for PLC Model on the GTWIN screen for creating a new file. When selecting a GT model that is not supported for FP7, "Panasonic FP7 series" cannot be selected for PLC Model. Use a GT model supported for FP7. -
Page 13: Communication Parameters Of Gt Series
3.2 Communication Parameters of GT Series For connecting GT series and FP7, the communication parameters of GT series and FP7 should be set with GTWIN. Select "FIle" - "Configuration" - "GT Configuration" from the menu of GTWIN, and set the parameters in the "Communication Parameters"... -
Page 14: Clock Setting
3.3 Clock Setting The reference format of PLC internal clock for "Panasonic FP7 series" is different from that for traditional "Panasonic FP series". GT supports the both formats. Select either FP7 or FP format. Select from "Clock" - "Format" and "Transfer" - "Format" in "Setup 1" of GT Configuration. The FP7 clock data is stored in SD50 to 56. -
Page 15: Settings For Fp7
4. Settings for FP7 For connecting GT series and FP7, the communication parameters of FP7 should be set with FPWIN GR7. Execute "Option" - "FP7 Configuration" menu in FPWIN GR7, and set the parameters in the "Built- in SCU" page. -
Page 16: Fp7 Devices
5. FP7 Devices The following FP7 devices can be used from GT series. Type Symbol No. range Output Local Slot Input memory 0 - 511F Output memory 0 - 511F Internal relay 0 - 2047F Link relay 0 - 1023F... - Page 17 Output Output is not possible from GT to the devices marked as "No" in "Output" in the above table. The setting items related to output cannot be set on GTWIN. Local devices The devices marked as "Yes" in "Local" in the above table can be used as local devices. For using them as local devices, specify the program block numbers.
-
Page 18: Device Setting Using Gtwin
6. Device Setting using GTWIN The following window is displayed when setting devices on GTWIN. ① ② ③ ④ ⑤ ⑥ ⑦ Setting item Description Select the unit number when using the PLC multiple connection function. This item is displayed only when the PLC multiple connection ①... - Page 19 The device input can be directly input not from the above-mentioned screen. When inputting the device directly, input as below. For global device without slot number specification, input [Device type (symbol)] + [Device No.]. Example) For input memory 511F X511F For local device, input [PB] + [Program block No.] + [_] + [Device type (symbol)] + [Device No.].
- Page 20 Record of changes Manual No. Date Desceiption of changes WUME-GTCONFP7-01 Mar.2013 First Edition WUME-GTCONFP7-02 Nov.2013 Second Edition...
- Page 22 ■ Overseas Sales Division (Head Office): 2431-1 Ushiyama-cho, Kasugai-shi, Aichi, 486-0901, Japan ■ Telephone: +81-568-33-7861 ■ Facsimile: +81-568-33-8591 panasonic.net/id/pidsx/global About our sale network, please visit our website. © Panasonic Industrial Devices SUNX Co., Ltd. 2013 November, 2013 PRINTED IN JAPAN WUME-GTCONFP7-02...
