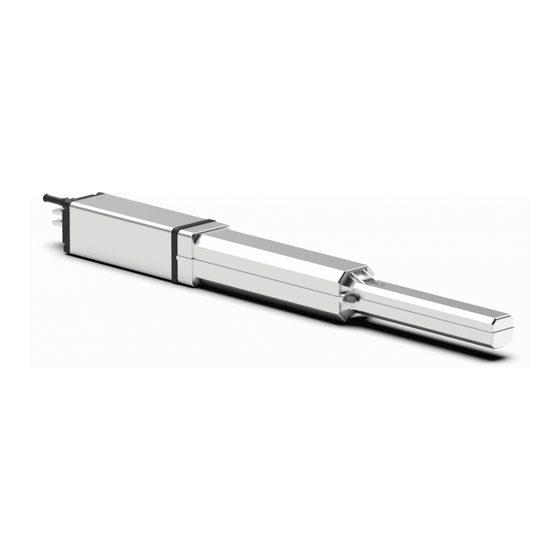

Oil-hydraulic operator for double swinging gates
Hide thumbs
Also See for Hindi 880 SPRINT:
- Instruction manual (13 pages) ,
- Installation manual (12 pages) ,
- Instruction manual (8 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for fadini Hindi 880 SPRINT
Summary of Contents for fadini Hindi 880 SPRINT

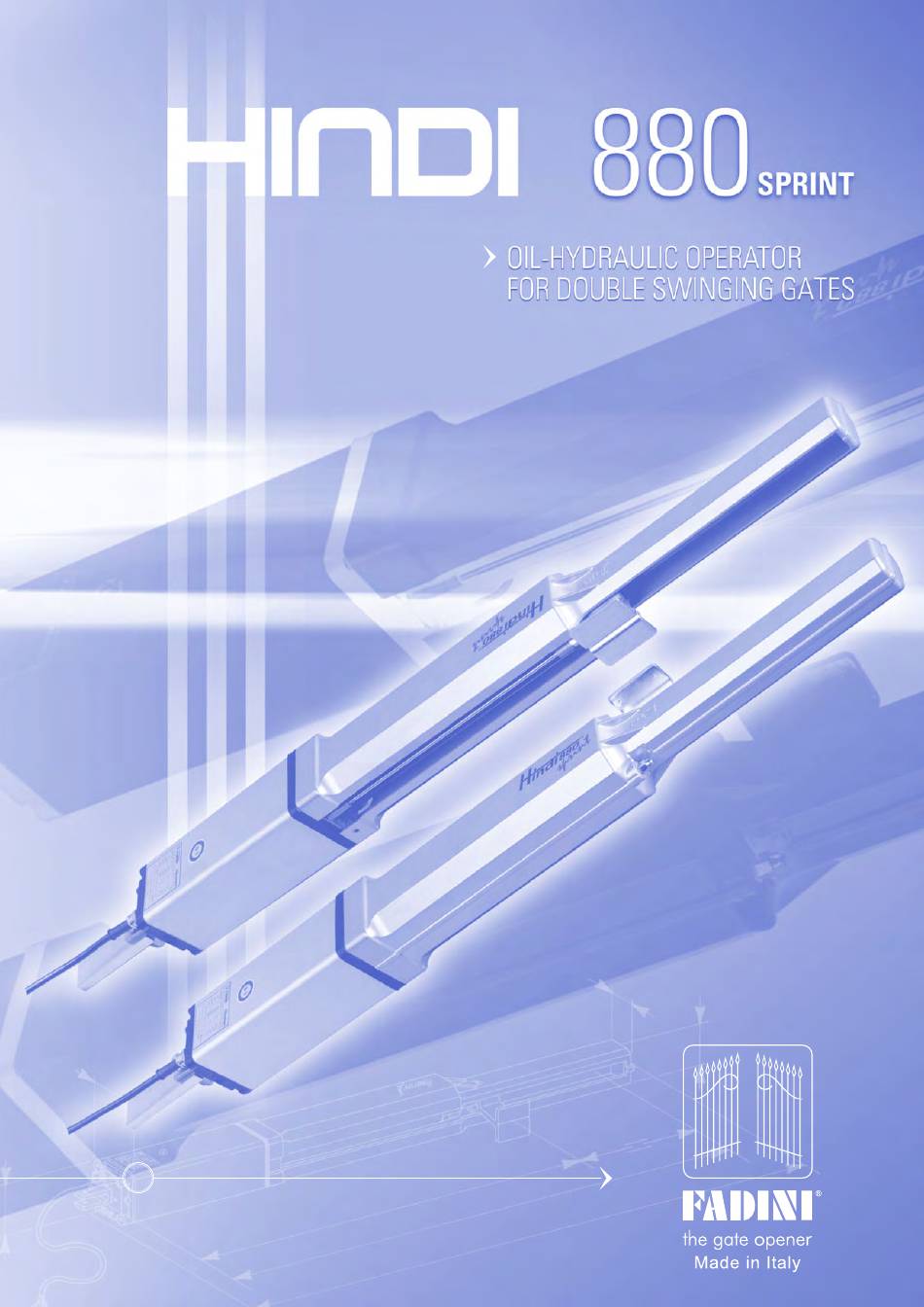

- Page 1 INSTALLATION MANUAL IN CONFORMITY TO EN 12453, EN 12445 SAFETY STANDARDS...
- Page 2 :;@6; SPRINT OIL-HYDRAULIC OPERATOR FOR SWINGING GATES - RECOMMENDED GATE WIDTH 1.80 m PER LEAF FRONT FIXING PISTON SHAFT GROMMET NUT TO FIX THE COVER PISTON HEAD OIL A15 BY AGIP PROTECTION COVER RIGHT HAND drwg. No. 1366 (PROTECTION COVER LEFT HAND drwg.
- Page 3 Before installing HINDI 880 SPRINT check if the structure of the gate is adequate to take the operator and be electrically operated. A well built and smooth gate without any friction is essential to a perfectly working system. If necessary, reinforce the gate and make...
- Page 4 HINDI 880 SPRINT is designed to be fixed to the gate post by means of specially designed plates. It is essential to keep to the fixing measurements illustrated below from hinge centre to centre line of rear fixing bolt. Do not fix the front bracket until satisfied that the operator is aligned.
- Page 5 Fixing dimensions of the rear fixing plate as quoted in the below drawing. (Pic. 5). CLOSED GATE GATE POST “A” GATE STOP IN CLOSE POSITION “B” 90° IT IS IMPORTANT that the gate is open 90° and that the distances A and B are strictly as in the drawing.
- Page 6 MANUAL FIRST RUN TEST. METHOD A OR B A qualified technician is recommended. (The manufacturer declines any responsability for this operation). A) The following will explain how to carry out the first manual test to make sure the operator is working properly. You need a 2 wire cable fitted with an electric plug and a 12 µF capacitor.
- Page 7 For safety reasons (anti-crush) it must be possible to stop the gates by hand pressure, which is ensured by the pressure safety valves. Once set so that an adequate amount of thrust power is achieved, they will retain their status in a stable way for very long time, thanks to their accurate engineering design.
- Page 8 N.W.: CARRY OUT A RISK ANALYSIS IN COMPLIANCE WITH EN 12445 AND EN 12453 NORMS AND FIT ANY SAFETY DEVICE WHERE REQUIRED. With HINDI 880 SPRINT non locking type, in case of power failure release the electric lock and push open by hand with constant smooth force.
- Page 9 ONE PULSE OPENS ONE GATE LEAF ONLY NOTE WELL: THIS PANEL IS TESTED TO OPERATE GATES ONLY THROUGH FADINI ACCESSORIES. NO WARRANTY IS ACKNOWLEDGED BY THE MANUFACTURER IN CASE THAT PULSE TWICE CONSECUTIVELY OTHER ACCESSORIES ARE USED OR NON CONFORMING...
- Page 10 CLOCKWISE CLOCKWISE How to release the gates that are fitted with HINDI 880 SPRINT locking in open and close gate positions, ie. two-way bidirectional locking device. Remove M6 nut and the cover. Release the valve anti-clockwise by two turns with the supplied key.
- Page 11 Absorbed current ................1.2 A Working temperature ............–25°C +80°C Absorbed power................250 W Time of one out stroke..............18 s Capacitor...................12.5 µF Type of hydraulic oil........A 15 FADINI by AGIP Motor rotation speed............1˙350 r.p.m. Stroke ..................240 mm Intermittent service................S 3 Piston diametre.................45 mm Piston shaft diametre...............16 mm...
-
Page 12: Checking And Maintenance
AUTOMATIC GATE MANUFACTURERS The manufacturers reserve the right to change the products without any previous notice Via Mantova, 177/A - 37053 Cerea (Verona) Italy - Tel. +39 0442 330422 r.a. - Fax +39 0442 331054 - e-mail: info@fadini.net - www.fadini.net...
