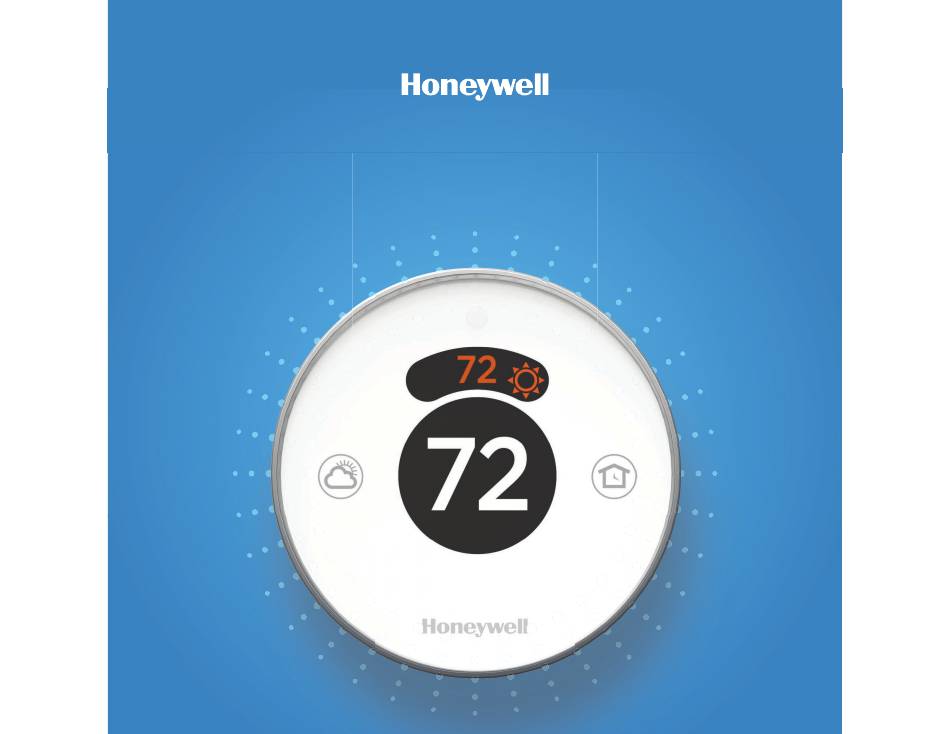

- Page 1 ™ Lyric Round Wi-Fi Thermostat Getting Started...
- Page 2 How to use your Lyric thermostat Turn to set your desired temperature Turn on/off Turn on/off Cooling Heating Weather Home/Away View 6 and Set to Home/Away 12 hour forecasts...
- Page 3 Set away View weather forecast Set desired temperature Interested in more Lyric products? Visit lyric.honeywell.com to learn about all available products connected by the Lyric app. App is regularly enhanced and may change.
- Page 4 Get the most from Lyric Location Based Temperature Control Lyric thermostat uses your smartphone’s location to know when you’re away, and saves you energy. Through geofence technology, it senses your return and helps make you comfortable upon arrival. You can also manually override your current setting when you’ll be out for a few hours by using the Away button on the thermostat or in the app.
-
Page 5: Regulatory Information
IC REGULATIONS RSS-GEN authority to operate the equipment. This device complies with Industry Canada’s license-exempt RSSs. For help, contact: lyric.honeywell.com EMAIL MyLyric@honeywell.com PHONE 1-800-633-3991 SOCIAL Twitter: @Honeywell_Home, Facebook: Honeywell Home... - Page 6 Wi-Fi Alliance®. lyric.honeywell.com ® U.S. Registered Trademark ® Marque de commerce déposée aux é.-U. ® Marca Registrada en los E.U.A © 2017 Honeywell International Inc. Imprimé aux états-Unis Impreso en EE. UU. 33-00082EFS-03 Rev. 06-17 Printed in U.S.A.
- Page 7 Lyric Round™ Wi-Fi Thermostat Quick Start Guide...
- Page 8 Compatible with most other heating, cooling and heat pump systems Optional: 24 VAC power (“C” wire) Lyric’s implementation of Apple HomeKit requires 24 VAC power (“C” wire) For help, contact: lyric.honeywell.com EMAIL MyLyric@honeywell.com PHONE 1-800-633-3991 SOCIAL Twitter: @Honeywell_Home, Facebook: Honeywell Home...
- Page 9 Included in your box: Thermostat Wall plate Screws Anchors Optional wall cover...
-
Page 10: Tools You Will Need
Tools you will need: Phillips screwdriver Home Wi-Fi password Small flat head screwdriver Ballpoint pen Honeywell Lyric app To configure your system and connect to your smartphone Needle-nose pliers* Wire stripper* Drill and drill bit (7/32")* Smartphone To photograph your existing wiring... -
Page 11: Before You Begin
BEFORE YOU BEGIN Download the Honeywell Lyric app on your smartphone. This document is not a stand-alone guide. It is best used as a reference with the app. -
Page 12: Turn Power Off
Turn power OFF To protect yourself and your equipment, Turn off the power at the breaker box or switch that controls your heating/cooling system. Switch Breaker box Check that your system is off Change the temperature on your old thermostat. If you don’t hear the system turn on within 5 minutes, the power is off. - Page 13 Is your thermostat 120V or higher? If you answered yes to either of these questions, you have a line voltage system and the Lyric thermostat will not work. Wire nuts If you are unsure visit Thick black wires lyric.honeywell.com/support...
- Page 14 Take a picture of the old wiring Be sure to include the letters next to the terminals where the wires are inserted. This will be a helpful reference when wiring your Lyric thermostat. Remove any jumpers A jumper connects one terminal to another terminal.
- Page 15 Lyric thermostat. Terminal Color of wire Terminal Color of wire If the wires are in terminals that are not listed, you will need additional wiring support. Visit lyric.honeywell.com/support/installation to find out if the Lyric thermostat will work for you.
- Page 16 Disconnect the wires and remove old wall plate Use a screwdriver or a ballpoint pen to release wires from terminals. Wrap the wires around your ballpoint pen to prevent them from falling back into the wall. Insert the recommended wall anchors It is recommended that you use the provided anchors when mounting your thermostat.
- Page 17 Check for any paint gaps or screw holes left by the old thermostat If you choose to use the optional wall cover to hide these blemishes, snap the wall plate to the optional wall cover before screwing to the wall. Bundle and insert wires through the clear rubber holder Guide the wires through the clear rubber...
- Page 18 Review your answer from Step 7 Set the R-switch up or down based on your answer from Step 7. R-Switch If you checked Set the R-Switch Insert Wire(s) into Terminal(s) R wire R (only) Rc wire (only) R & RC RH wire (only) R wire...
- Page 19 Firmly connect remaining wires from Step 8 Push each remaining wire into its corresponding terminal (one wire per terminal) until it is firmly in place. If you misplace a wire, use a ballpoint pen to push down on the terminals and release the wire. Gently tug on wires to verify they are secure.
- Page 20 Firmly snap the thermostat into place The thermostat will glow and display the Lyric screen for up to three minutes while it starts up. Turn your power ON Turn on the power at the breaker box or switch that controls your heating/ cooling system.
- Page 21 Your Lyric thermostat is not yet configured to control your heating/cooling system. To complete your setup, download and log in to the Honeywell Lyric app. Android Search Google Play for Honeywell Lyric. Create an account and log in to configure and connect.
- Page 22 How to use your Lyric thermostat Turn to set your desired temperature Turn on/off Turn on/off Cooling Heating Weather Home/Away View 6 and Set to Home/Away 12 hour forecasts...
- Page 23 Set away View weather forecast Set desired temperature Interested in more Lyric products? Visit lyric.honeywell.com to learn about all available products connected by the Lyric app. App is regularly enhanced and may change.
- Page 24 Get the most from Lyric Location Based Temperature Control Lyric thermostat uses your smartphone’s location to know when you’re away, and saves you energy. Through geofence technology, it senses your return and helps make you comfortable upon arrival. You can also manually override your current setting when you’ll be out for a few hours by using the Away button on the thermostat or in the app.
- Page 25 Notes...
- Page 26 Lyric Round™ Wi-Fi Thermostat Automation and Control Solutions Wi-Fi® is a registered trademark of Wi-Fi Alliance® Honeywell International Inc. 1985 Douglas Drive North Golden Valley, MN 55422 lyric.honeywell.com ® U.S. Registered Trademark © 2015 Honeywell International Inc. Rev. 11-15 Printed in U.S.A.
- Page 27 Installing your Lyric Round Wi-Fi Thermostat - Second Generation with Apple HomeKit These instructions are designed to help guide you through installing the second generation Lyric Round™ Wi-Fi Thermostat for intended use with Apple® HomeKit™. Integration with Apple HomeKit requires four steps to ensure compatibility and operation.
- Page 28 Step 2: Update the iOS software on your smartphone or tablet to the latest version. Download the latest Lyric app. Step 3: Review iOS settings & iCloud. You must have Keychain access enabled for HomeKit to work. A. On your iOS smartphone or tablet, go to Settings > iCloud.
- Page 29 Why am I getting an iCloud settings error? If you’ve received an Unexpected Error, you may need to update your iCloud settings. The Lyric device is having trouble connecting with Apple ® HomeKit™. To fix, update the iOS software on your smartphone or tablet to the latest version. The Lyric app is compatible with iOS 8.0 +.
-
Page 30: Warranty Policy
WARRANTY POLICY Honeywell warrants the products in this catalog (except those parts designated on Honeywell's price lists as not covered by this warranty) to be free from defects due to workmanship or materials, under normal use and service, for the following warranty periods.
