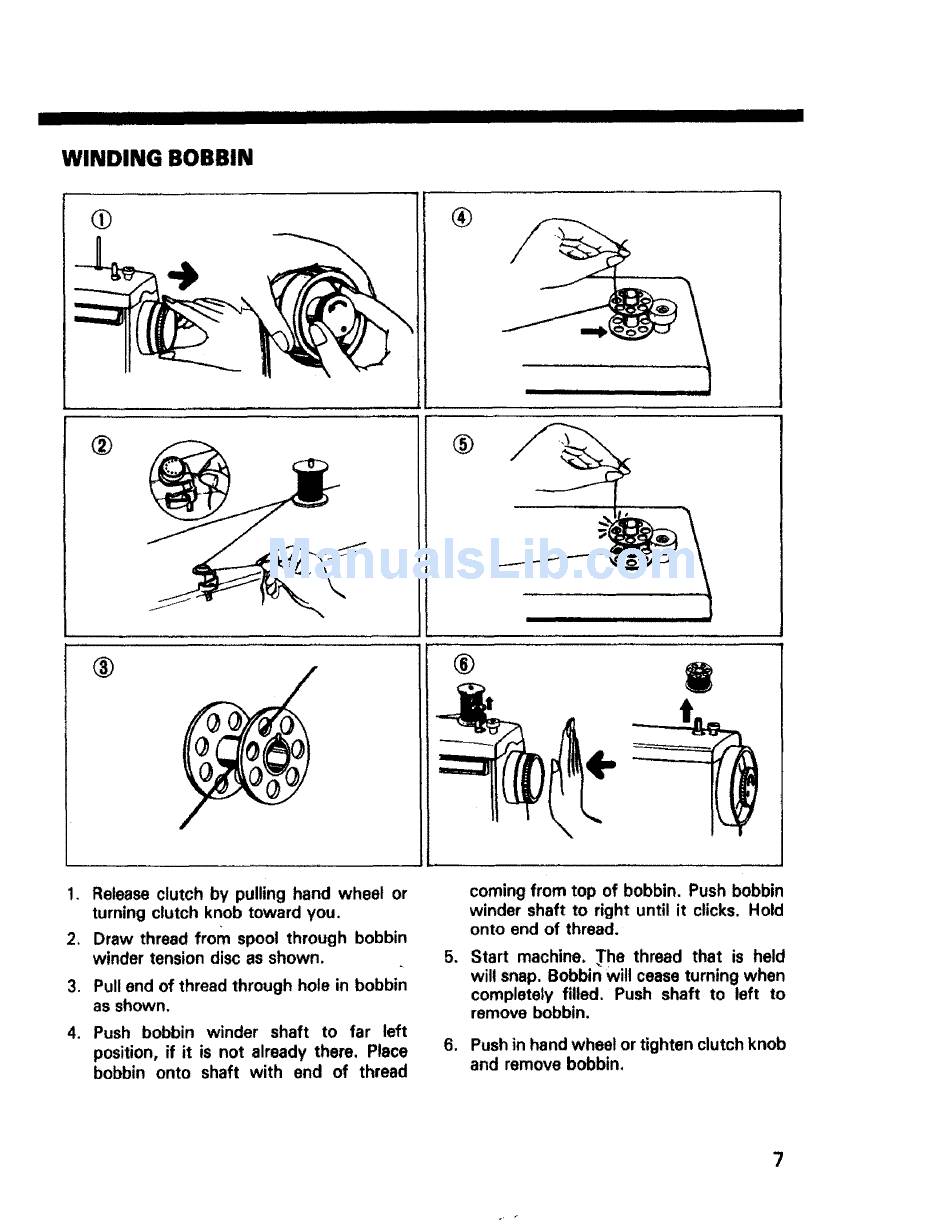

WINDING
BOBBIN
O
®
®
i
I i
t
®
®
!.
Release clutch by pulling hand wheel
or
turning clutch knob toward you.
2.
Draw thread from spool through
bobbin
winder tension disc as shown.
3.
Pull end of thread through hole in bobbin
as shown.
4.
Push bobbin
winder
shaft
to
far
left
position,
if it is not already
them.
Place
bobbin
onto
shaft
with
end
of thread
5.
,
coming from top of bobbin.
Push bobbin
winder shaft to right until it clicks. Hold
onto end of thread.
Start
machine.
The thread
that
is held
will snap. Bobbin will cease turning when
completely
filled.
Push
shaft
to left to
remove bobbin.
Push in hand wheel or tighten clutch knob
and remove bobbin.
7
