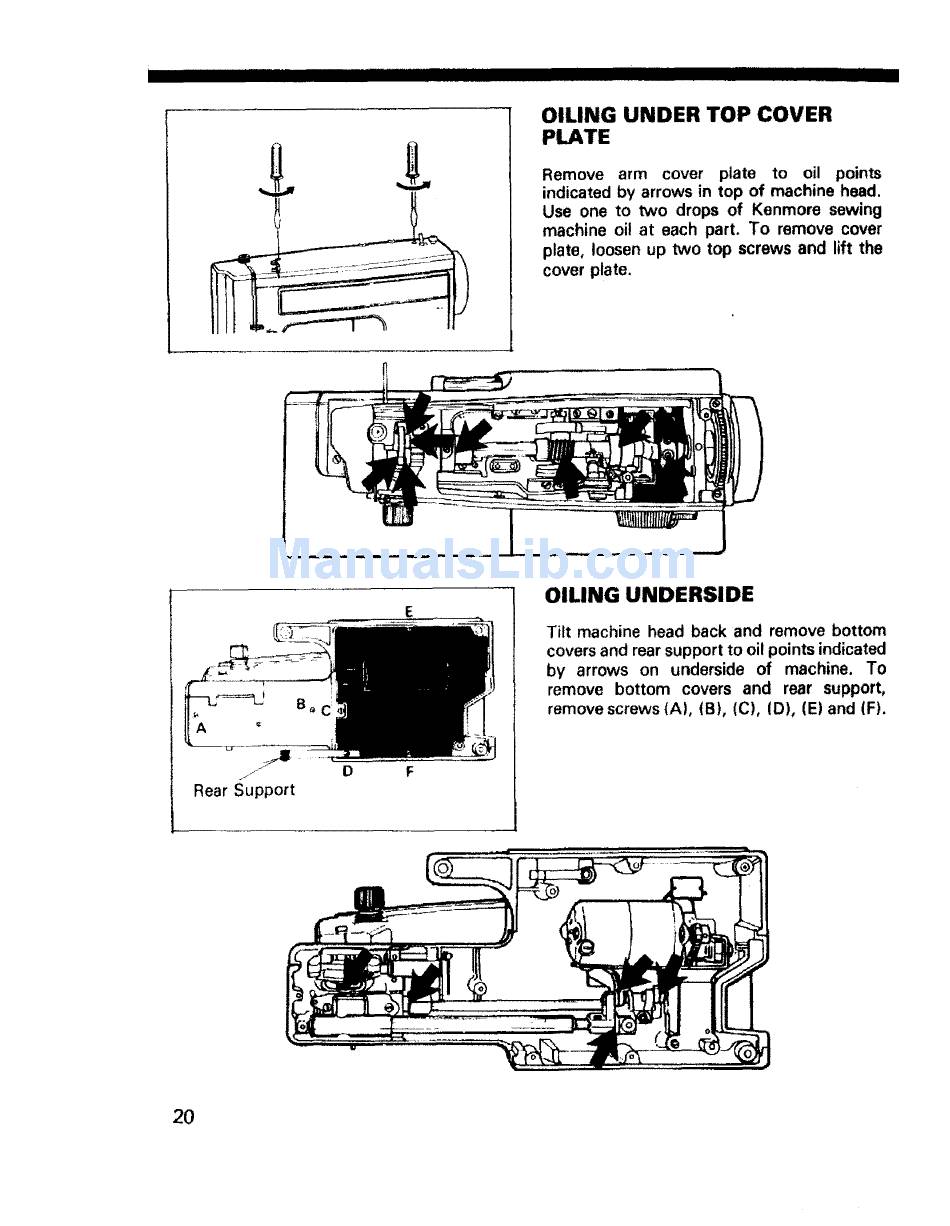

OILING UNDER TOP COVER
PLATE
Remove
arm
cover
plate
to
oil
points
indicated by arrows in top of machine head.
Use one to two drops of Kenmore
sewing
machine
oil at each part, To remove cover
plate, loosen up two top screws and lift the
cover plate.
J
D
Rear Support
OiUNG
UNDERSIDE
Tilt machine
head back and remove bottom
covers and rear support to oil points indicated
by arrows
on underside
of
machine.
To
remove
bottom
covers
and
rear support,
remove screws (A), (B), (C), (D), (E)and
(F).
