Sanyo PDG-DXL2000 Network Manual

Sanyo projector user manual
Hide thumbs Also See for PDG-DXL2000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Owner's Manual
Owner's Manual
Network Set-up and Operation
Wired Setting
Projector Set-up and Operation

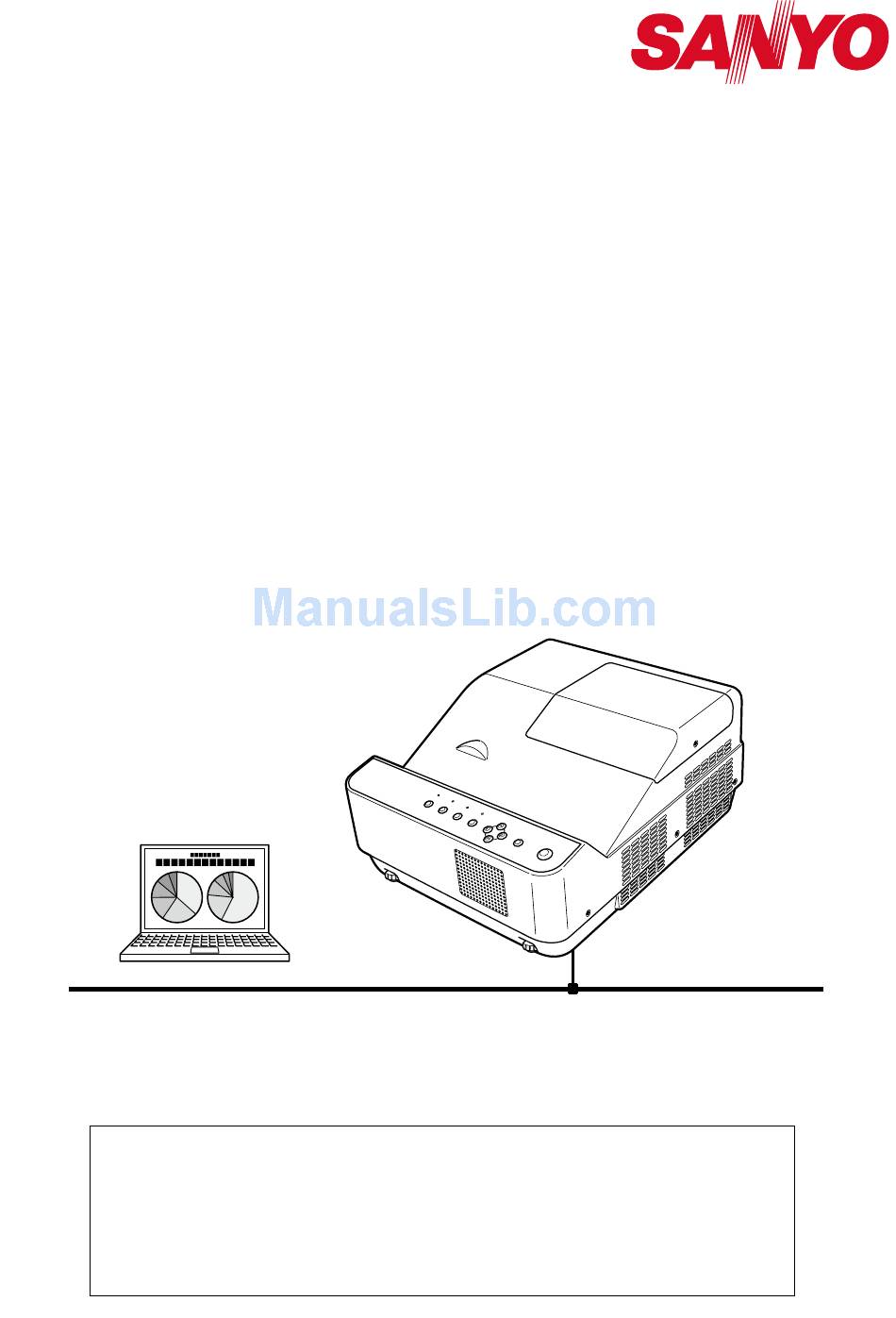

This is the manual for the Network function.
Read this manual thoroughly to operate the Network function.
First, read the owner's manual of the projector to understand the basic
operation of the projector and the safety instructions.
The safety instructions in the owner's manuals should be followed strictly.

Advertisement

Table of Contents
loading

Related Manuals for Sanyo PDG-DXL2000

Summary of Contents for Sanyo PDG-DXL2000

  • Page 1 This is the manual for the Network function. Read this manual thoroughly to operate the Network function. First, read the owner's manual of the projector to understand the basic operation of the projector and the safety instructions. The safety instructions in the owner's manuals should be followed strictly.

  • Page 2: Compliance

    If such changes or modifications should be made, you could be required to stop operation of the equipment. Model Numbers Trade Name Responsible party Address Telephone No. : PDG-DXL2000 : Sanyo : SANYO NORTH AMERICA CORPORATION : 21605 Plummer Street, Chatsworth, California 91311 : (818)998-7322...

  • Page 3: Safety Instructions

    Safety instructions CAUTION IN USING THE PROJECTOR VIA NETWORKS ● When you find a problem with the projector, remove the power cable immediately and inspect the unit. Using the projector with failure may cause fire or other accidents. ● If you remotely use the projector via networks, carry out a safety check regularly and take particular care to its environment. Incorrect installation may cause fire or other accidents. CAUTION IN USING NETWORK FUNCTION ● We assume no responsibility for the loss or damage of data, or damage of the...

  • Page 4: Table Of Contents

    Network factory default ... 15 Wired LAN factory default settings ... 16 Chapter 3 Basic Setting and Operation ..17 Login the setting page of the projector ... 18 [1] Enter the IP address... 18 [2] Login ... 18 [3] Display of main setting page ... 19 How to use the setting page ...20...

  • Page 5: Chapter 1 Preparation

    Chapter 1 Preparation Describes features and operating environment of this projector.

  • Page 6: Features

    T h e p r o j e c to r s e n d s m e s - sages to the registered e-mail addresses when a lamp abnor- mality or power failure occurs with the projector. This mes- sage describes how to solve the cause of the problems. You can take efficient action for quick recovery.

  • Page 7: Required Operating Environment For Computers

    Internet Explorer version 6.0, 7.0 or 8.0 Netscape Navigator version 7.1 or 9.0 Safari 3.1 Web Browser* * Used to control and set up the projector. The layout of pages in - Microsoft Outlook - Netscape Mail Recommended Internet * Required the internet e-mail application software to receive an...
  • Page 8 Chapter 1 Preparation Cabling Between the Projector and a Hub or computer Use an appropriate cable when connecting the projector and a hub or computer. Connection Projector - Hub Projector - Computer *1 There may be other limitations depending on your network environment or LAN specification.

  • Page 9: Flow Of Installation

    Flow of installation To use the projector via the networks, follow the setup procedures below. STEP 1 Connect the LAN and set the configuration. Decide depending on the LAN environment. ➔ “2. Setup Procedures” (pp.11–16). Detailed LAN configurations need to be done with a browser later.
  • Page 10 Chapter 1 Preparation...

  • Page 11: Chapter 2 Setup Procedures

    Chapter 2 Setup Procedures Describes how to configure the network.

  • Page 12: Connecting To The Lan Line

    * Please use a shielded LAN cable. Network configuration Set the Wired LAN network through the projector menu. Detailed network settings will be made with browser. Refer to “3. Basic setting and operation” (p.17-30). First, complete the settings described in this chapter before performing steps in “3. Basic setting and opera- tion.”...
  • Page 13 DHCP .. S ets DHCP function On or Off. When you setup the network setting manually, select "Off". When it is set On, IP address, Subnet, Gateway and DNS are automatically set according to your network environment * IP address ...Sets IP address of the projector Subnet ...Sets Subnet mask. Normally sets 255.255.255.0 Gateway* ...Sets IP address of the default gateway (Router)

  • Page 14: Network Pin Code

    Network PIN code The Network PIN code is to restrict the access to the projector through the network. After setting the Network PIN code, you need to enter it to operate the projector via the networks. 1. Select "Network PIN code" in the Network menu, and press SELECT button.

  • Page 15: Network Factory Default

    Network factory default Network factory default 1. Select “Network factory default” in the Network menu and press SELECT button. 2. A confirmation box appears and select "Yes" and then press SELECT button. 3. Another confirmation box appears and select "Yes" and then press SELECT button. 4.

  • Page 16: Wired Lan Factory Default Settings

    Chapter 2 Setup Procedures Wired LAN factory default settings Parameter DHCP IP ADDRESS SUBNET MASK GATEWAY ADDRESS DNS ADDRESS SELECTED LAN LAN 1 LAN 2 169.254.100.100 192.168.100.100 255.255.0.0 255.255.255.0 255.255.255.255 255.255.255.255 255.255.255.255 255.255.255.255 LAN 3 192.168.100.100 255.255.255.0 255.255.255.255 255.255.255.255...

  • Page 17: Chapter 3 Basic Setting And Operation

    Chapter 3 Basic Setting and Operation Describes basic operations and settings for controlling the projec- tor by using the web browser. It is required that computer and projector is connected to the network and the network address is properly configured.

  • Page 18: Login The Setting Page Of The Projector

    * The entering User Name must be "user" and it can not be changed. [Note] When accessing the projector for the first time or the Network PIN code "0000" is set, the auto-login will be performed and the following main setting page is displayed.

  • Page 19: Display Of Main Setting Page

    Main setting page in the display Main menu For selection of control and setting items of the projector. Login the setting page of the projector Setting page Displays the control and setting items according to the selected menu.

  • Page 20: How To Use The Setting Page

    Chapter 3 Basic Setting and Operation How to use the setting page To control and set up the projector, use the setting menus on the web browser. The basic operation and procedures commonly used on this manual are described below.
  • Page 21 How to use the setting page Radio button setting Select an item by selecting a radio button. Check box setting Select items by ticking on check boxes.

  • Page 22: Initial Setting

    Chapter 3 Basic Setting and Operation Initial setting After installing the projector, perform the following basic initial setting. Click Initial Setting on the main menu to display the initial setting page. Item Description Language ... Switches display language on the setting page. (Japanese, English) Model name ...

  • Page 23: Network Pin Code Setting

    The default Network PIN code [0000] means no Network PIN code is set. When you connect the projector to the network, it is recommended to set a new Network PIN ✐ code. Only a four-digit number is valid for the Network PIN code.

  • Page 24: Network Configuration

    *2 Set [0.0.0.0] if you do not use the function E-Mail alert. *3 If you use the DNS server, register the host name registered to the DNS server as a projector name. You can access with this projector name from any computers in your network. If you do not use the DNS server, access with the assigned IP address to the projector.

  • Page 25: E-Mail Setting

    SMTP server port ... Enter Port number of the SMTP server. (from 1 to 65535) Administrator address ...Enter e-mail address of administrator. Add address ... Enter e-mail address of the user to send mail when the projector has an abnormality. SMTP Authentication setting Auth ...
  • Page 26 ✐ If the projector sends an alert message due to the abnormality on the projector but the SMTP server is down in some other reason, the message will not be sent. In this case, the message "Unable to connect to server."...
  • Page 27 ✐ "When PJ lamp is off" signifies the lamp goes out without user operation. "When PJ is turned into Standby in proper user operation" signifies that the projector is turned on by using the web browser and then it is turned into standby with ON/STANDBY button on the top control or the remote control.

  • Page 28: Examples: Type And Contents Of Alert Mail

    ✐ The projector lamp was turned off, because the projector power circuit failed. Unplug the AC power cord and plug it, and then turn on the projector once again to verify operation. If the problem still persists, unplug the AC power cord and ask servicing to a qualified service personnel with the error information.

  • Page 29: Snmp Setting

    "Community". There are two access modes in a community, Refer (read only) and Set (read- write). This projector allows to use Refer (read only) only. The SNMP message informs the pro- jector status called "Trap" to an administrator. Click SNMP Setting on the main menu and set up each item.
  • Page 30 ✐ "When PJ lamp is off" signifies the lamp goes out without user operation. "When PJ is turned into Standby in proper user operation" signifies that the projector is turned on by using the web browser and then it is turned into standby with ON/STANDBY button on the top control or the remote control.

  • Page 31: Chapter 4 Controlling The Projector

    Chapter 4 Controlling the Projector Describes controlling and setting of the projector by using the web browser.

  • Page 32: Power Control And Status Check

    Power control and status check Click Power & Status on the main menu. The control page will be dis- played. By clicking ON or Standby button on the page, the power of the projector can be con- trolled. Item Description PJ status Power ...
  • Page 33 If you set this function as "Network", the network part of the projector is con- stantly provided with power even if the projector is turned off. If you set this as Eco, then the network part will be turned off when you turn off the projector.

  • Page 34: Control

    ✐ Please see the owner's manual of the projector to have the further information of each control item. Input This function is to select the input mode and source mode of the projector. Click Set but- ton after selecting the input and source mode. Item Description Input ...

  • Page 35: System

    System This function is to select the system of signal input to the projector. The available system mode are listed on the pull-down menu but- ton according to the input signal. Select a system and then click Set button. * When the input signal is any of Video, S-video, Scart, Component or HDMI, it only dis- plays the current system of signal input but no suggested system.

  • Page 36: Sound

    Chapter 4 Controlling the Projector Sound This function is to adjust the sound of the projector. The values in the text box represent the current control value or status. Item Description Volume ... Adjusts the sound volume from the speaker. (0 ~ 63)

  • Page 37: Image Adjustment

    Image adjustment This function is to adjust the projected picture image and save the image mode. To store the adjusted value, click Store button, and to load the adjusted value, click Load button. Item Description Contrast ... Adjusts picture con- trast (0~ 63) Brightness ...

  • Page 38: Pc Adjustment

    Chapter 4 Controlling the Projector PC adjustment Click PC Adj. on the main menu. This function is to adjust the signal from the computer connected to the projector to obtain the proper picture image on the screen. Item Description Current mode ... Displays a current mode like VGA, SVGA, XGA. SXGA, UXGA, WXGA, etc. or Mode1 - Mode10 which are the customized mode created by using the "Mode Store"...

  • Page 39: Setting Up The Projector

    Setting up the projector Click Setting on the main menu. This function is to set up the projector. Select the sub menu [Screen setting] or [Setting] and then set up each set- ting. Screen setting This function is to adjust the screen mode of the projector.

  • Page 40: Setting 1

    {1(=default), 2(=inverted)} 3D-->2D ... Sets the 2D mode when viewing 3D contents without 3D glasses. (ON, OFF) 3D phase ... Adjusts the 3D sync output signal from the projector to external emitter system. (0-31) Zoom ... Sets reset or store the adjustment value with ZOOM+/– buttons on the projector.

  • Page 41: Setting 2

    Direct on ... Sets the power-on mode when the AC cord is connected to the outlet. (ON. OFF) Lamp control ... Selects lamp control mode. (Normal, Eco) Key lock ... Sets the prohibition of controls either Projector or Remote control. (OFF, Projector keys, Remote control) Fan control Sets the fan control speed.

  • Page 42: Information

    Chapter 4 Controlling the Projector Information This page is to display the basic information of the projector status. Click Information on the main menu. Information Items Description Input ...Displays selected input and source. System ...Displays selected signal system. Signal ...Input signal status (Yes, No) Screen ...Displays screen mode.
  • Page 43 Indication of the lamp status Icon display/background Status Lamp on (Normal) White/Blue Lamp on (Lamp is being used over a specified use time, replace lamp White/Red immediately) Lamp off (Normal) Gray/Blue Lamp off (Lamp is being used over a specified use time, replace lamp Gray/Red immediately) Lamp failure (Lamp failure, check lamp condition)
  • Page 44 Chapter 4 Controlling the Projector...

  • Page 45: Chapter 5 Appendix

    Chapter  Appendix Connection examples Use of telnet Web browser setting Q & A...

  • Page 46: Examples Of Connection

    IP Address : 192.168.0.5 Subnet Mask : 255.255.255.0 Default Gateway : ✐ When the projector is connected to the computer directly without hub, the STP crossover cable should be used. * STP crossover cable Computer Name: PC10 IP Address : 192.168.0.10 Subnet Mask : 255.255.255.0...
  • Page 47 The gateway (Router) installed in the network Connecting the projector (PJ01) to the control computer (PC05) via the gateway. Entrance hall Projector Name: PJ01 IP Address : 192.168.200.15 Subnet Mask : 255.255.255.0 Default Gateway : 192.168.200.1 : 192.168.201.1 Network Group: 192.168.200.x...

  • Page 48: Use Of Telnet

    Use of telnet You can control the projector by using the telnet application Normally, the telnet application is available on your computer. * The telnet 10000 port is used to control the projector. Control (For example, in case of using the telnet application of Windows XP Professional.)
  • Page 49 * The password "1234" is used for the example. 4. Type the commands, refer to below table, to control the projector and then press "Enter" key for termination. For example, type "C00" which is a command to turn on the projec- tor, and press "Enter"...

  • Page 50: Web Browser Setting

    There are some control items used with the JavaScript function in the setting pages. If the web browser is set not to use this JavaScript function, it may not control the projector properly. In this case, the warning message "Make sure JavaScript is ON." will be displayed on the top of the page.

  • Page 51: Examples: Os/Browsers

    Web browser setting Examples: OS/Browsers Windows XP Professional Internet Explorer v.6.0 ActiveScript setting Select Internet Options from Tools menu on the web browser and then select Security tab and click Customize Level… button. On the security setting window, scroll down and find the Scripting item, make sure that "Enable"...

  • Page 52: Proxy Setting

    For further instruction please consult your network administrator. - Not using proxy server Uncheck the item Use a proxy server. If you connect the projector to the computer directly with STP crossover cable, this must be unchecked. To designate proxy settings that will not use the...
  • Page 53 Properly set up your web browser's the proxy server set- tings according to the local area network environment to which the projector is connected. - Using proxy server When you use an external internet connection from the local area network, select the item...
  • Page 54 Uncheck the items Web Proxy (HTTP) and Secure Web Proxy (HTTPS) of Select a proxy server to configure. If you connect the projector to the computer directly with STP crossover cable, they must be unchecked. To designate proxy settings that will not use the...

  • Page 55: Q&A

    Can I access the projector installed on the company’s local area network from a remote location? There are some ways to access to the projector in the LAN, but you must consult your network administrator for security reason. ☛ Use of modem (Connect to the company’s network from your home or some other places by...
  • Page 56 Possible. This projector supports the DHCP/BOOTP server. To use this projector in this network environment, set it up so that the DHCP/BOOTP server does not assign the IP address configured to this projector for another device on the network. Please consult your network administrator (+ pp.13, 24).
  • Page 57 Why can't I change the controls in the setting page with web browser? Please make sure the projector is turned on. If it is in the standby mode, the setting is not effective to the projector. To control the projector with a web browser, the projector must be in the powered-on condition.
  • Page 58 Possible. Please refer to the item "Use of telnet" (+ p.48 - 49). What is the MAC address assigned to the projector? The MAC address is displayed in "Network information" menu of the projector (+ p.14) and in "Information" menu through the web browser (+ p.42).
  • Page 59 Can I update the firmware of the projector. It is possible to update the firmware through the network. It is required to have a special tool for the updating. For further information please consult your local deal- er. The version number of the firmware is indicated on the lower part of the "Initial setting"...
  • Page 60 NETWORK OWNER'S MANUAL SO-KV8AC SANYO Electric Co., Ltd.
