FEDERAL COMMUNICATIONS
COMMISSION STATEMENTS:
The user shall not make any
changes or modifications to the
equipment unless authorized by the
Installation Instructions or User's
Manual. Unauthorized changes or
modifications could void the user's
authority to operate the equipment.
FCC / IC Statement: This device
complies with Part 15 of the FCC
Rules, and RSS 210 of IC.
Operation is subject to the
following two conditions: (1) This
device may not cause harmful
interference (2) This device must
accept any interference received,
including interference that may
cause undesired operation.
LATCH
ALIGN
MAGNET
WITH MARKS
A
+
1/2"
BATTERY
MAX.
REED
SWITCH
(LOOP 2)
TAMPER
SWITCH
LOOP 1
A
TERMINALS
LOCKING
TAB
BREAKOUT
RELEASE
FOR SURFACE
WINDOW
WIRING
ASSEMBLED IN MEXICO
© 2008 Honeywell International Inc.
All Rights Reserved
ÊN6527-5SŠ
11/08
N6527-5
5816WMBR

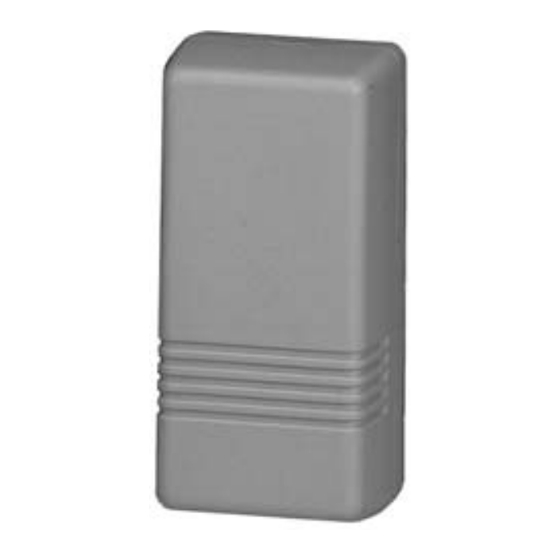

Wireless Door/Window
5800 wireless technology
File: N6527-5_Blueline_5816WMBR_instruct_exterior.eps
Transmitter
w/ Magnet
C
US
Listed
BP547
343P
Field proven
5816WMBR Exterior of box
N6527-5
