Lay crown molding with its broad back
•
(hidden) surface down on the turn base
with its CEILING CONTACT EDGE
against the guide fence on the saw.
The finished piece to be used will
•
always be on the LEFT side of the blade
after the cut has been made.
In the case of right bevel cut
Molding
position in
52/38° type
Fig. A
(1)
For inside
corner
(2)
Right 33.9° Right 30°
(3)
For outside
corner
(4)
006363
Molding
Molding edge against
position in
guide fence
Fig. A
Wall contact edge should be
(1)
against guide fence.
For inside
corner
(2)
Ceiling contact edge should
be against guide fence.
For
(3)
outside
corner
Wall contact edge should be
(4)
against guide fence.
006364
Example:
In the case of cutting 52/38° type crown
molding for position (1) in Fig. A:
Tilt and secure bevel angle setting to
•
33.9° RIGHT.
Adjust and secure miter angle setting to
•
31.6° RIGHT.
Lay crown molding with its broad back
•
(hidden) surface down on the turn base
with its WALL CONTACT EDGE against
the guide fence on the saw.
The finished piece to be used will
•
always be on the RIGHT side of the
blade after the cut has been made.

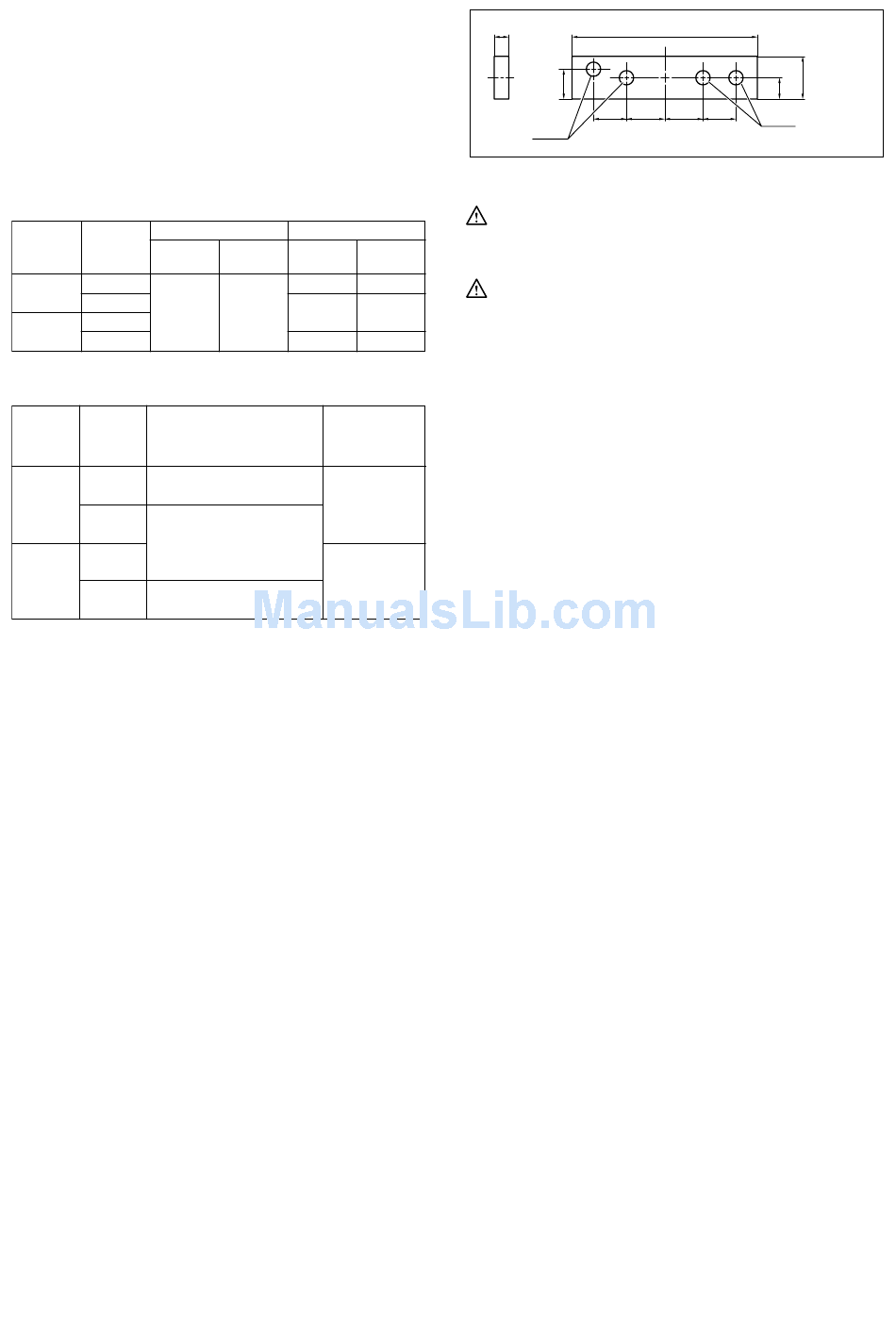

7. Wood facing
Use of wood facing helps to assure splinter-free
cuts in workpieces. Attach a wood facing to the
guide fence using the holes in the guide fence.
See the figure concerning the dimensions for a
suggested wood facing.
Table (A)
Bevel angle Miter angle
45° type 52/38° type
Right 31.6°
Left 31.6°
Right 31.6°
Table (B)
Finished piece
Finished piece
will be on the
Right side of
blade.
Finished piece
will be on the
Left side of
blade.
Over 15mm (5/8")
35mm
(1-3/8")
1
1. Holes
015253
CAUTION:
Use the straight wood of even thickness as the
•
wood facing.
45° type
Right 35.3°
WARNING:
Use screws to attach the wood facing to the
Left 35.3°
•
guide fence. The screws should be installed
Right 35.3°
so that the screw heads are below the surface
of the wood facing so that they will not
interfere with the positioning of the material
being cut. Misalignment of the material being cut
can case unexpected movement during the cutting
operation which may result in a loss of control and
serious personal injury.
NOTICE:
When the wood facing is attached, do not turn the
•
turn base with the handle lowered. The blade
and/or the wood facing will be damaged.
8. Cutting repetitive lengths
Fig.38
When cutting several pieces of stock to the same
length, ranging from 220 mm to 385 mm, use of the
set plate (optional accessory) will facilitate more
efficient operation. Install the set plate on the
holder (optional accessory) as shown in the figure.
Align the cutting line on your workpiece with either
the left or right side of the groove in the kerf board,
and while holding the workpiece from moving,
move the set plate flush against the end of the
workpiece. Then secure the set plate with the
screw. When the set plate is not used, loosen the
screw and turn the set plate out of the way.
NOTE:
Use
•
accessory) allows cutting repetitive lengths up to
2,200 mm approximately.
9. Groove cutting
Fig.39
A dado type cut can be made by proceeding as
follows:
Adjust the lower limit position of the blade using
the adjusting screw and the stopper arm to limit the
cutting depth of the blade. Refer to "Stopper arm"
section described on previously.
17
Over 420mm (16-1/2")
92mm 85mm
100mm 70mm
(3-5/8") (3-15/16") (2-3/4")
(3-3/8")
of the holder-rod
50mm-60mm
(2"-2-3/8")
27mm (1-1/16")
1
assembly (optional
