P/N 800-07007-A 04/11

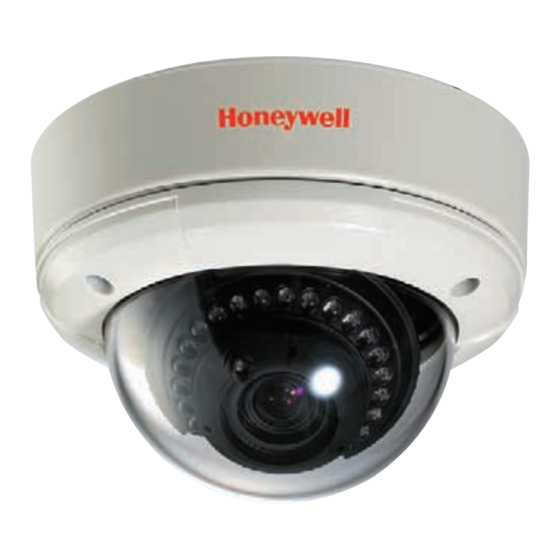

IR DOME CAMERA
Need Help?
Call 1.800.796.CCTV for sales, service and customer support.
www.honeywellvideo.com
WEEE (Waste Electrical and Electronic Equipment).
Correct disposal of this product (applicable in the European Union and
other European countries with separate collection systems).
This product should be disposed of, at the end of its useful life, as per
applicable local laws, regulations, and procedures.
2
3. FEATURES
Adaptive IR Technology
"Adaptive IR" technology dramatically eliminates the white out effect and saturation on close objects,
producing a clear and recognizable image regardless of viewing condition or location of objects.
1/3" High Sensitivity CCD
<HD70P(PX)>
<HD73P(PX)>
Min Illumination (F2.0, 50 IRE, AGC Max)
Min Illumination (F1.4, 50 IRE, AGC Max)
- 0.3 LUX (Color, B/W)
- 0.3 LUX (Color)
- 0 LUX (IR LED ON)
- 0 LUX (IR LED ON)
User-friendly menus
- Ultra High Resolution (600 TVL)
- SBLC (Super Back Light Compensation)
- DNR (Digital Noise Reduction)
- Privacy zone selectable
- Mirror (Horizontal)
- Flickerless On/Off
Breather vent
8
5. INSTALLATION
Ceiling
Stick the guide pattern on the wall or ceiling and mark
1
the mounting holes.
Drill four holes according to the guide pattern, then insert
Guide Pattern
2
anchors into the drilled holes.
Rubber
Draw out power/video wires and make the connections.
3
Attach the camera base to the ceiling or wall using
4
the supplied four screws.
Dome Base
Aim and focus by turning and moving the 3-axis camera
5
bracket by hand.
Mounting Screw
Align the dome cover over the base.
6
Dome Cover
Secure the dome cover to the base using the supplied
7
L-wrench.
L-Wrench
10
MAIN MENU - GENERAL
Use the joystick to navigate through the menus.
Press MENU button to access the SETUP menu.
e
b
f
Select each sub-menu by using the
, , , button.
Press the MENU(SET) button to select.
c
d
MENU
LENS
ESC
WHITE BAL
ATW
a
AGC
ON
DAY/NIGHT
IRED
IMAGE ADJ
a
DOWN : Move down /
b
UP : Move up
GENERAL
c
LEFT : Move left
INITIAL
ON
d
RIGHT : Move right
EXIT
e
MENU(SET):
Press the joystick in its straight position.
f
Sevice Monitor Connecter :
If the OSD MENU is changed then INITIAL will be OFF
Use service monitor connector to set camera
(EXCEPT : LENS)
angle & focus when installing.
16
(HD73P(PX))
LENS DC
LENS DC
Select DC and press the MENU button to have
DC LEVEL
LENS DC activated .
FLK
OFF
SHUTTER
1/60(50)
EXIT - MENU
1. DC LEVEL (Adjusts brightness of the image.)
- Select DC LEVEL using the UP or DOWN button. You can adjust between 0 to 20 level using
the LEFT or RIGHT button.
2. FLK (FLICKERLESS)
- Select FLK using the UP or DOWN button. You can select between ON / OFF using the LEFT or
RIGHT button.
> OFF : You will be allowed to adjust the shutter speed.
3. SHUTTER (Adjusts the shutter speed of the lens.)
- IR LED Mode : 1/60(1/50)
- COLOR, B/W Mode :
Select SHUTTER using the UP or DOWN button. You can adjust from 1/60(1/50), 1/120(1/100),
1/250, 1/500, 1/700, 1/1K, 1/1600, 1/2500, 1/5K, 1/7K, 1/10K, 1/30K, 1/60K, 1/120K(sec) level
using the LEFT or RIGHT button.
18
1) AREA : To specify MOTION DETECTION area
- Select AREA using the UP or DOWN button. You can select from
1
2
area 1 to 4 position using the LEFT or RIGHT button.
3
4
2) DISPLAY : To display MOTION DETECTED area on the video
- Select DISPLAY using the UP or DOWN button. You can select
1
between ON/OFF using the LEFT or RIGHT button.
(1) ON : display the MOTION DETECTED area on the screen
(2) OFF : disable
3) SENSITIVITY : To set up the motion sensitivity
- Select SENSITIVITY using the UP or DOWN button. You can adjust the motion sensitivity of
a movement from 1 to 24 using the LEFT or RIGHT button.
(1) 1 : most sensitive (highest)
(2) 24 : least sensitive (lowest)
24
NTSC(PAL)
6. PRIVACY
- Select PRIVACY using the UP or DOWN button and
PRIVACY
press the MENU button to active the PRIVACY option.
AREA
1
DISPLAY
OFF
COLOR
WHITE
TOP
15 (16)
BOTTOM
31 (38)
1) AREA : To specify the PRIVACY area
LEFT
44 (44)
RIGHT
104
- Select AREA using the UP or DOWN button. You can
INITIAL
ON
select area from 1 to 4 position using the LEFT or RIGHT
RETURN
button.
2) DISPLAY : To display the Privacy Zone area
1
2
- Select DISPLAY using the UP or DOWN button. You can
select between ON/OFF using the LEFT or RIGHT button.
3
4
(1) ON : display the Privacy Zone area
(2) OFF : disable
3) COLOR : To change the color of the privacy zone
- Select COLOR using the UP or DOWN button. You can
adjust from WHITE, YELLOW, GREEN, BLUE, RED, BLACK,
or GRAY using the LEFT or RIGHT button.
26
9. SPECIFICATION
MODEL
HIGH RESOLUTION
Signal System
NTSC
PAL
Image Sensor
1/3" High Sensitivity CCD
768(H)x494(V)
752(H)x582(V)
Effective Pixels
Video Output
Composite : 1.0V p-p, 75 Ohms
Sync. System
Internal Sync
S/N Ratio
50 dB Min. (SHARPNESS, AGC off)
Horizontal Resolution
600 TV Lines
HD70P/PX
0.3 Lux (Color, B/W) / 0 Lux (IR LED ON)
Min Illumination
HD73P/PX
0.3 Lux (Color) / 0 Lux (IR LED ON)
ESC
1/ 60 ~ 1/ 120,000
PAL - 1/ 50 ~1/ 120,000
1/ 60(1/50), 1/120(1/100), 1/ 250, 1/ 500, 1/ 700, 1/ 1K,
Manual Shutter
1/ 1.6K, 1/ 2.5K, 1/ 5K, 1/ 7K, 1/ 10K, 1/ 30K, 1/ 60K, 1/ 120K
DNR
OFF, LOW, MIDDLE, HIGH
White Balance
ATW, MANUAL, PUSH
32
10. TROUBLESHOOTING
If you have trouble operating your camera, refer to the following guidelines. If the guidelines do
not help you to solve the problem, contact an authorized technician.
Nothing appears on the screen
Check that the power cord and the video cable between the camera and monitor are properly connected.
Check that you have properly connected the VIDEO cable to the camera VIDEO output jack.
The image on the screen is dim
If the lens is obstructed (for example, with dirt), clean the lens with a soft, clean cloth.
Set the monitor to proper condition.
If the camera is exposed to too strong light, change the camera position.
Adjust the lens' focus properly.
The image on the screen is dark
Adjust the contrast feature of the monitor.
If you loop through an intermediate device, set the termination (75 Ohms / Hi-Z) properly.
34
Operation Manual
IR DOME CAMERA
HD70(73)P/PX
series
800-07007-A 04/11
READ AND KEEP THIS OPERATION MANUAL
General Product Safety
Directive GPSD 2001/95/EC, conforming to the requirements of standards EN 55022 for emissions,
EN 50130-4 for immunity, and EN 60950 for Electrical Equipment safety.
3
4. SUPPLIED ACCESSORIES
Service Monitor Cable
Owner's Manual
Owner's Manual
Guide Pattern
L-Wrench
Mounting Screw
DC Plug Cable
9
6. NAME AND FUNCTIONS
Fixed Lens Type
HD70P(PX) shown
3
Camera Layout
1
1
Tilt rotation : Adjusting the vertical angle.
2
2
Pan rotation : Adjusting the horizontal angle.
3
Horizontal rotation : Adjusting the horizontal
position of the screen.
11
LENS
MENU
Press the MENU button to access the SETUP menu.
LENS
ESC
ATW
WHITE BAL
AGC
ON
DAY/NIGHT
IRED
IMAGE ADJ
GENERAL
INITIAL
ON
EXIT
LENS ESC
(HD73P(PX))
- Select LENS using the UP or DOWN button. You can change
between ESC and DC using the LEFT or RIGHT button.
Select ESC and press MENU button to display LENS ESC.
1. BRIGHTNESS
LENS ESC
- Select BRIGHTNESS using the UP or DOWN button.
You can adjust between 0 to 5 using the LEFT or RIGHT button.
BRIGHTNESS
EXIT - MENU
17
WHITE BAL (White Balance)
Select WHITE BAL using the UP or DOWN button. You can select from ATW, MANUAL,
PUSH using the LEFT or RIGHT button.
1. ATW : Color temperature is automatically adjusted for light sources in the 2,000ºK to 10,000ºK range
2. MANUAL : To adjust the white balance manually
- Select MANUAL using the UP or DOWN button and press the MENU button to activate WB MANUAL
option.
WB MANUAL
RED
BLUE
EXIT - MENU
1. RED : To adjust density of RED (0 to160)
2. BLUE : To adjust density of BLUE ( 0 to 160)
3. PUSH : Push Lock mode fixes the white balance based on current lighting. For best results,
place a white surface (such as a piece of paper) in front of the camera during adjustment.
19
4) TOP / BOTTOM / LEFT / RIGHT : Users can specify MOTION DETECTED area.
- Select TOP, BOTTOM, LEFT, or RIGHT using the UP or DOWN button. You can adjust the AREA
using the LEFT or RIGHT button.
(NTSC/PAL)
(1) TOP : extend or reduce the upper area of the MOTION DETECTED area (8 to 126 / 10 to 146)
(2) BOTTOM : extend or reduce the bottom area of the MOTION DETECTED area (8 to126 / 11 to 149)
(3) LEFT : extend or reduce the left side of the MOTION DETECTED area (4 to 191 / 8 to191)
(4) RIGHT : extend or reduce the right side of the MOTION DETECTED area (4 to 191 / 9 to 192)
TOP
reduce
RIGHT
extend
LEFT
1
RIGHT
1
BOTTOM
5) INITIAL : To reset the MOTION DETECT mode.
- Select INITIAL using the UP or DOWN button. You can reset the MOTION DETECT mode using
the MENU button.
6) RETURN :To return to IMAGE ADJ MENU
- Select RETURN using the UP or DOWN button. You can return to IMAGE ADJ MENU using
25
the MENU button.
4) TOP / BOTTOM / LEFT / RIGHT : Users can specify a PRIVACY ZONE area
- Select TOP, BOTTOM, LEFT, or RIGHT using the UP or DOWN button. You can adjust the privacy
zone using the LEFT or RIGHT button.
(NTSC/PAL)
(1) TOP : extend or reduce the upper area of the PRIVACY area (4 to 63 / 6 to 74)
(2) BOTTOM : extend or reduce the bottom area of the PRIVACY area (5 to 64 / 7 to 75)
(3) LEFT : extend or reduce the left side of the PRIVACY area (18 to 205 / 22 to 206)
(4) RIGHT : extend or reduce the right side of the PRIVACY area (19 to 206 / 23 to 207)
reduce
RIGHT
extend
TOP
1
LEFT
1
RIGHT
BOTTOM
5) INITIAL : To reset to factory default only on the PRIVACY mode.
- Select INITIAL using the UP or DOWN button. You can reset the PRIVACY mode using the MENU
button.
6) RETURN :To return to IMAGE ADJ MENU
- Select RETURN using the UP or DOWN button. You can return to IMAGE ADJ MENU using the MENU
button.
27
SBLC
OFF, LOW, MIDDLE, HIGH
AGC
ON, OFF
Day / Night
IRED, COLOR, B/W
Burst
ON, OFF
Motion Detection
ON, OFF (4 Programmable Zone)
Privacy
ON, OFF (4 Programmable Zone)
Mirror
ON (HORIZONTAL), OFF
Sharpness
1 ~ 20
OSD Language
English
Applicable Lens
DC lris / Manual Lens
Supply Voltage
12V DC (±10%)
Power Consumption
400 mA / 4.8 W (Max)
Operating Temperature/ Humidity
+14°F to +122°F (-10°C to +50°C) / 30% to 80% RH
Storage Temperature/ Humidity
-4°F to +140°F (-20°C to +60°C) / 20% to 90% RH
33
MEMO
Design and speci cations are subject to change without notice.
35
USER INFORMATION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION ! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert
the user to the presence of un-insulated "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence
of important operating instructions in the literature accompanying the appliance.
4
1. SAFETY INSTRUCTIONS
Read Instructions
Read all of the safety and operating instructions
before using the product.
Retain Instructions
Save these instructions for later use.
Cleaning
Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
Power source
This product should be operated only from
a 12V DC power source as indicated on the
marking label.
6
Vari-focal Lens Type
HD73P(PX) shown
Camera Layout
4
5
1
1
Tilt rotation : Adjusting the vertical angle.
2
3
Pan rotation : Adjusting the horizontal angle.
3
Horizontal rotation : Adjusting the horizontal
2
position of the screen.
4
Focus handle : Focus (Far or Near)
5
Zoom handle : Zoom (Tele or Wide)
12
8. OPERATING CAMERA
ESC
BRIGHTNESS
0~5
DC LEVEL
0~5
1/60(1/50),1/120(1/100),1/250,1/500,1/700,1/1K,1/1600,1/2500
LENS
DC
SHUTTER
1/5K,1/7K,1/10K,1/30K,1/60K,1/120K
IR MODE:1/60(1/50)
ATW
RED
0~160
MANUAL
WHITE BAL
BLUE
0~160
PUSH
ON
LEVEL
0~20 (IR MODE:FIXED)
AGC
OFF
MODE
WIDE, SMART
IRED
LOW, MIDDLE, HIGH
CHANGE LEVEL
DAY / NIGHT
COLOR
B/W
BURST
ON/OFF
OFF, LOW, MIDDLE, HIGH
SBLC
DNR
OFF, LOW, MIDDLE, HIGH
SHARPNESS
LEVEL
0~20
MIRROR
OFF, ON
1~4
AREA
DISPLAY
OFF, ON
SENSITIVITY
1~24
IMAGE ADJ
TOP
8~126 / 10~146
MOTION
BOTTOM
8~126 / 11~149
(NTSC/PAL)
LEFT
4~191 / 8~191
RIGHT
4~191 / 9~192
INITIAL
OFF
, ON
RETURN
14
AGC (Automatic Gain Control )
Select AGC using the UP or DOWN button. You can select between OFF, ON using the
LEFT or RIGHT button.
AGC is fixed at a certain level in IR LED mode.
AGC level is selectable in COLOR, B/W mode.
1. ON : Select ON using the LEFT or RIGHT button and press the MENU button to activate
the AGC option.
AGC
LEVEL
EXIT - MENU
1. LEVEL : You can adjust between 0 to 20 using the LEFT or RIGHT button.
2. OFF : Disable the AGC
20
IMAGE ADJ (Image Adjust)
Select IMAGE ADJ using the UP or DOWN button and press the MENU button to activate
the IMAGE ADJ mode.
IMAGE ADJ
SBLC
OFF
DNR
LOW
SHARPNESS
MIRROR
OFF
MOTION
PRIVACY
COLOR GAIN
INITIAL
ON
RETURN
1. SBLC (Super Back Light Compensation) : To lighten a darker part of the image
- Select SBLC using the UP or DOWN button. You can select between OFF, LOW, MIDDLE,
HIGH using the LEFT or RIGHT button.
- SBLC turns to OFF automatically at night.
2. DNR (Digital Noise Reduction) : To reduce the image noise especially during low ambient
lighting conditions.
- Select DNR using the UP or DOWN button. You can adjust between OFF, LOW, MIDDLE, HIGH
using the LEFT or RIGHT button.
22
7. COLOR GAIN
- Select COLOR GAIN using the UP or DOWN button and
COLOR GAIN
then press the MENU button to activate the COLOR MODE
R-Y
option.
B-Y
8. INITIAL
To reset to factory default only on the IMAGE ADJ mode.
EXIT - MENU
- Select INITIAL using the UP or DOWN button and reset the
IMAGE ADJ mode using the MENU button.
1. R-Y : To adjust density of RED (0 to 20)
2. B-Y : To adjust density of BLUE (0 to 20)
9. RETURN
To return to MAIN MENU
- Select RETURN using the UP or DOWN button and return
to MENU using the MENU button.
28
2. LANGUAGE - English LANGUAGE.
3. VERSION - Displays the firmware version.
4. INITIAL : To reset to factory default only on the GENERAL mode.
- Select INITIAL using the UP or DOWN button.
You can reset to factory default for GENERAL mode using the MENU button.
5. RETURN : To return to MENU
- Select RETURN using the UP or DOWN button. You can return to the MENU using the MENU button.
30
CONTENTS
Thank you for purchasing this COLOR VIDEO CAMERA.
Before using this camera, please read this operation manual carefully
to obtain the best result and keep this manual for future reference.
1. SAFETY INSTRUCTIONS
6
2. PRECAUTIONS
7
3. FEATURES
8
4. SUPPLIED ACCESSORIES
9
5. INSTALLATION
10
6. NAME AND FUNCTIONS
11
7. CONNECTIONS
13
8. OPERATING CAMERA
14
9. SPECIFICATION
32
10. TROUBLESHOOTING
34
5
2. PRECAUTIONS
Do not install the camera in extreme temperature conditions.
Operate the camera under conditions where temperatures are within
R X [ ¶ m G › – G R X Y Y ¶ m G O T X W ¶ j G › – G R \ W ¶ j P U G
l• š œ ™ Œ G › • Œ ™ Œ G • š G Œ • – œ Ž • G • Œ
• › • " ˆ › • – • G • • G • • Ž • G › Œ " — Œ ™ ˆ › œ ™ Œ G Œ • • • ™ – • " Œ • › š U
Do not disassemble the camera.
{ • Œ ™ Œ G ˆ ™ Œ G • – G œ š Œ ™ G ™ Œ — ˆ • ™ ˆ ‰ " Œ G — ˆ ™ › š G • • š • ‹ Œ U
Do not drop the camera or subject them to physical shocks.
p › G Š ˆ • G Š ˆ œ š Œ G " ˆ " • œ • Š › • – • š G › – G – Š Š œ ™ U
Never keep the camera face to strong light directly.
p › G Š ˆ • G ‹ ˆ " ˆ Ž Œ G j
j k U
When this camera is installed near wireless communication devices
NOTE
that emit strong electromagnetic field, irregularity such as noise
on the monitor may appear.
7
7. CONNECTIONS
1. Connecting to Monitor and Power
- Connect the video-out jack to the video-in jack of monitor.
- Connect the power adapter to the power input connecter.
- Use 12V DC power source.
- Use the power rated at least 400 mA (12V DC)
NO
Function
Terminal Color
Remark
Video Output
Yellow
1.0 Vp.p
#1
Power Input
Red
12V DC (±10%), Max 4.8 W / 400 mA
#2
Video Output
GND
13
AREA
1~4
DISPLAY
OFF, ON
COLOR
WHITE, YELLOW, GREEN, BLUE, RED, BLACK, GRAY
TOP
4~63 / 6~74
PRIVACY
BOTTOM
5~64 / 7~75
(NTSC/PAL)
LEFT
18~205 / 22~206
19~206 / 23~207
RIGHT
IMAGE ADJ
INITIAL
OFF
, ON
RETURN
R-Y
0~20
COLOR GAIN
B-Y
0~20
INITIAL
OFF
, ON
RETURN
OFF
CAM TITLE
ON
UP/DN, LE/RI
LANGUAGE
ENG
GENERAL
VERSION
INITIAL
OFF
, ON
RETURN
INITIAL
OFF
, ON
RETURN
15
DAY / NIGHT
Select DAY / NIGHT using the UP or DOWN button.
COLOR BURST
You can select between IRED, COLOR, B/W
using the LEFT or RIGHT button.
BURST
ON
1. COLOR : for color mode only (DAY mode)
EXIT - MENU
2. B/W : for BLACK and WHITE mode only (NIGHT mode)
- Select B/W using the LEFT or RIGHT button and press
It is possible to select ON/OFF using
the LEFT or RIGHT button.
the MENU button to activate COLOR BURST option.
3. IRED : IR LED control mode
IR LED
WIDE : LED control based on full screen exposure.
Some areas may be over exposed.
MODE
WIDE
SMART : LED output is limited to optimized scene exposure.
CHANGE LEVEL
MIDDLE
EXIT_MENU
21
3. SHARPNESS : To adjust SHARPNESS of the image.
- Select SHARPNESS using the UP or DOWN button.
SHARPNESS
- Select
and press the MENU button to activate
LEVEL
SHARPNESS option.
- You can adjust the sharpness from 0 to 20 using the
LEFT or RIGHT button.
EXIT - MENU
4. MIRROR
- Select MIRROR using the UP or DOWN button.
NTSC(PAL)
You can select from ON/OFF using the LEFT or
RIGHT button.
MOTION
AREA
1
(1) ON : Horizontal image flip.
DISPLAY
OFF
(2) OFF : default
SENSITIVITY
5
TOP
19 (27)
5. MOTION (Motion Detect)
Display only (No output signal)
BOTTOM
62 (75)
LEFT
13 (25)
- Select MOTION using the UP or DOWN button and
RIGHT
89 (95)
press MENU button to activate the MOTION DETECT
INITIAL
ON
RETURN
option.
23
GENERAL
GENERAL
Select GENERAL using the UP or DOWN button and
CAM TITLE
OFF
press the MENU button to activate the GENERAL mode.
LANGUAGE
ENG
VERSION
INITIAL
ON
RETURN
1. CAM TITLE
CAM TITLE
- Select CAM TITLE using the UP or DOWN button.
You can adjust ON/OFF using the LEFT or RIGHT button.
(1) ON : To display the camera title on the screen
UP/DN
-
CHAR SELECT
(2) OFF : disable
LE/RI
-
POSITION
EXIT - MENU
- Select ON and Press MENU button to display CAM TITLE.
(1) UP/DN : To select character using the UP or DOWN button (0 to 9,A to Z)
(2) LE/RI : To select position using the LEFT or RIGHT button.
29
: To reset to factory default.
INITIAL
- Select INITIAL using the UP or DOWN button and reset to factory default using the MENU button.
EXIT
: To exit the OSD setup menu.
- Select EXIT using the UP or DOWN button and close the OSD setup menu by pressing the MENU
button.
31
Advertisement
