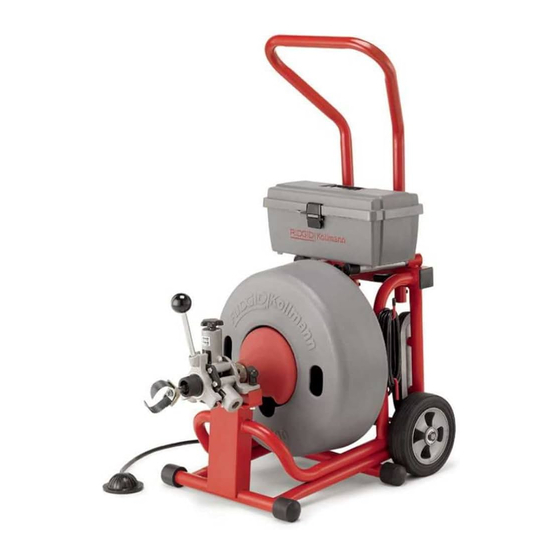

RIDGID K6200 Parts List

RIDGID K6200 Parts List

Ridgid drum machine parts list
Hide thumbs Also See for K6200:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Drum Machine
Main Components
2
4
3†
5
Printed in U.S.A.
1
2
4
3†
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref.
Catalog
No.
No.
Description
1
95802
Drum Assembly
2
60622
Mounting Knob (2)
3†
95832
Locator Ring (2)
4
60672
Mounting Knob Assembly (2)
5
95812
AUTOFEED
† Apply Loctite to Locator Ring.
Ridge Tool Company/Elyria, Ohio, U.S.A.
7/08
®
Assembly
K-6200
999-998-082.10

Advertisement

loading

Related Manuals for RIDGID K6200

Summary of Contents for RIDGID K6200

  • Page 1 Drum Machine Main Components 3† 3† Printed in U.S.A. NOTE: Order parts by Catalog Number only. DO NOT order by Reference Number. Ref. Catalog Description 95802 Drum Assembly 60622 Mounting Knob (2) 3† 95832 Locator Ring (2) 60672 Mounting Knob Assembly (2) 95812 AUTOFEED ®...

  • Page 2: Drum Machine

    K-6200 Standard Drum Components NOTE: Order parts by Catalog Number only. DO NOT order by Reference Number. Ref. Catalog Description — 95802 Drum Assembly 44122 Pigtail 64042 Retaining Clip 95692 Bearing Block 89810 Grease Fitting (2) 95697 Retaining Ring 95687 Inner Drum 95682 Guide Tube...
  • Page 3 Drum Machine AUTOFEED ® NOTE: Order parts by Catalog Number only. DO NOT order by Reference Number. Ref. Catalog Description — 95812 AUTOFEED 60682 Feed Knob 60692 Top Roller Housing 60762 Advance/Retrieve Label 89810 Grease Fitting (4) 93475 Ball Holder 93375 Spring 60622...
  • Page 4 K-6200 Frame NOTE: Order parts by Catalog Number only. DO NOT order by Reference Number. Ref. Catalog Description 95657 Handle 37962 Rubber Tip (2) 44215 Washer, Flat (2) 95867 Pipe Leg (2) 66027 Square Plug (2) 68937 Self-Tap Screw (2) 60607 Stairclimber (2) 60020...

  • Page 5: Electrical Components

    Drum Machine Electrical Components NOTE: Order parts by Catalog Number only. DO NOT order by Reference Number. Ref. Catalog Description 27107 Screw, Socket Head 95622 Motor Gearbox Assembly 32992 Air Switch 68937 Screw, Self-Tapping (5) 92627 Motor Cover 60767 Warning Decal 23687 Forward-Off-Reverse Decal 23507...
  • Page 6 K-6200 Motor/Gearbox Components NOTE: Order parts by Catalog Number only. DO NOT order by Reference Number. Ref. Catalog — 95622 90255 95922 95927 58502 95932 44760 95937 Ref. Catalog Description Motor/Gearbox Assembly 95942 95947 Screw 95952 Gearcase, Front 95957 95962 Wave Washer 95967 Gear Assembly, 1st Intermediate...

  • Page 7: Motor Components

    Drum Machine Motor Components Wiring Diagram White Black Green Clutch Tightening Specification 1. Hand tighten clutch nut. 2. Tighten nut 140 degrees past hand tight. Air Switch Keyway Black F/O/R Switch 140° Ridge Tool Company/Elyria, Ohio, U.S.A. K-6200 NOTE: Order parts by Catalog Number only. DO NOT order by Reference Number.
  • Page 8 Drum Machine K-6200 Ridge Tool Company/Elyria, Ohio, U.S.A.
