3B SCIENTIFIC PHYSICS 100 Instruction Manual

3B SCIENTIFIC
Digital Course Microscope Model 100, LED with built-in Camera
115 V, 50/60 Hz: 1005403 / 230 V, 50/60 Hz: 1005404
Instruction Manual
07/13 ALF
1. Description, technical data
The digital course microscope with built-in cam-
era allows two-dimensional viewing of objects
(thin sections of plant or animal specimen) in
40x to 400x magnification. It also allows photo-
graphic or video-recording documentation of
images.
The microscope 1005403 is for operation with a
mains voltage of 115 V (±10%), and the
1005404 unit is for operation with 230 V (±10%).
As well as real-time video playback, single im-
ages, sequences and video recording, the
Photolib software provides a wide range of func-
tions for the presentation, processing and
evaluation of images.
The installation CD contains a detailed descrip-
tion of the software in English, and additional
advice and assistance is available in the help
®
PHYSICS
files of the software.
Stand: All-metal stand, arm firmly connected
with base, pinion knobs attached on both sides
of the stand for coarse and fine focusing
Tube: Monocular inclined 45°, head rotation
360°
Eyepiece: Widefield eyepiece WF 10x 18 mm
with pointer
Objectives: Revolver with 3 DIN achromatic
objectives 4x / 0.10, 10x / 0.25, 40x / 0.65 (with
specimen protection)
Magnification: 40x, 100x, 400x
Object stage: 110 x 120 mm
clips
Illumination: Adjustable LED lighting incorpo-
rated into the base with a focussing lens in the
lighting shaft, power supplied by rechargeable
battery, 115 V or 230 V, 50/60 Hz charger
1

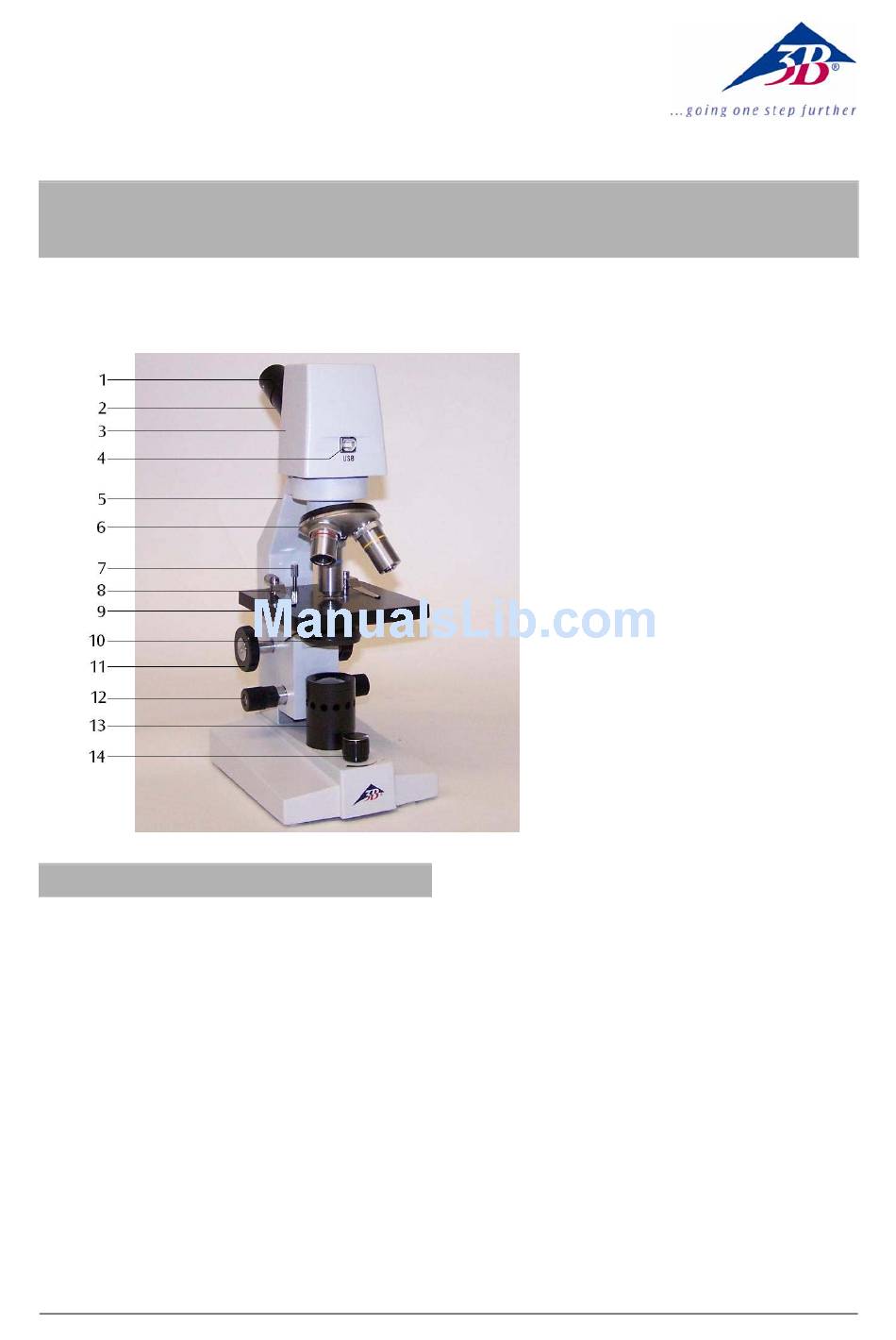

1 Eyepiece
2 Tube
3 Camera
4 USB connection
5 Stand
6 Revolver with objectives
7 Lock screw for object stage
8 Specimen clips
9 Object stage
10 Condenser with iris dia-
phragm and filter holder
11 Adjustment knob for coarse
focusing
12 Adjustment knob for fine
focusing
13 Lamp housing
14 Switch with illumination
control
2
with 2 specimen
