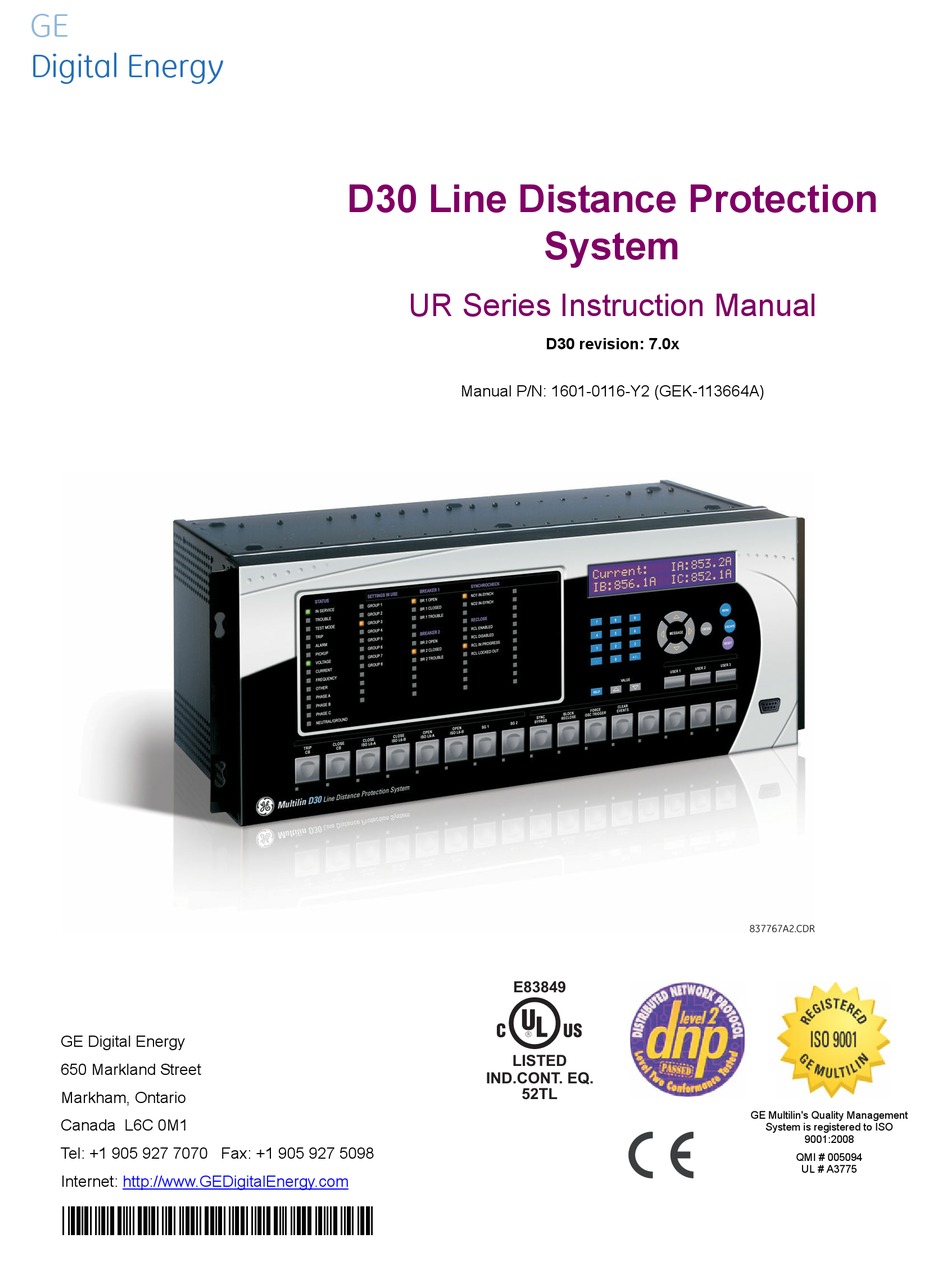

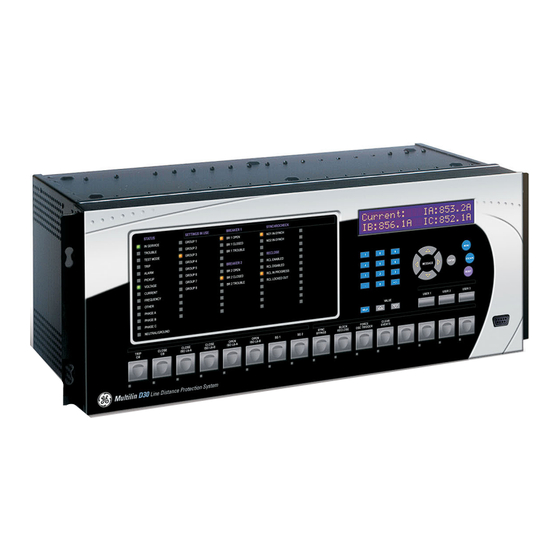

Page 1 GE Digital Energy LISTED 650 Markland Street IND.CONT. EQ. 52TL Markham, Ontario GE Multilin's Quality Management Canada L6C 0M1 System is registered to ISO 9001:2008 Tel: +1 905 927 7070 Fax: +1 905 927 5098 QMI # 005094 UL # A3775 Internet: http://www.GEDigitalEnergy.com...
Page 2 The contents of this manual are the property of GE Multilin Inc. This documentation is furnished on license and may not be reproduced in whole or in part without the permission of GE Multilin. The content of this manual is for informational use only and is subject to change without notice.
Page 3: Table Of Contents
3.2 WIRING 3.2.1 TYPICAL WIRING....................3-9 3.2.2 DIELECTRIC STRENGTH ................3-10 3.2.3 CONTROL POWER ..................3-10 3.2.4 CT/VT MODULES .................... 3-11 3.2.5 PROCESS BUS MODULES ................3-12 3.2.6 CONTACT INPUTS AND OUTPUTS ............... 3-13 GE Multilin D30 Line Distance Protection System...
Page 4 5.2.11 CONTROL PUSHBUTTONS ................5-57 5.2.12 USER-PROGRAMMABLE PUSHBUTTONS............5-59 5.2.13 FLEX STATE PARAMETERS ................5-64 5.2.14 USER-DEFINABLE DISPLAYS ................5-65 5.2.15 DIRECT INPUTS/OUTPUTS ................5-67 5.2.16 TELEPROTECTION ..................5-75 5.2.17 INSTALLATION ....................5-75 5.3 REMOTE RESOURCES 5.3.1 REMOTE RESOURCES CONFIGURATION............5-77 D30 Line Distance Protection System GE Multilin...
Page 5 5.9.1 DCMA INPUTS ....................5-233 5.9.2 RTD INPUTS....................5-234 5.9.3 DCMA OUTPUTS ..................5-236 5.10 TESTING 5.10.1 TEST MODE ....................5-239 5.10.2 FORCE CONTACT INPUTS ................5-240 5.10.3 FORCE CONTACT OUTPUTS ..............5-241 GE Multilin D30 Line Distance Protection System...
Page 6 RELAY SELF-TESTS ..................7-5 8. SECURITY 8.1 USER ACCOUNTS 8.1.1 OVERVIEW ......................8-1 8.1.2 ENABLING THE SECURITY MANAGEMENT SYSTEM........8-1 8.1.3 ADDING A NEW USER ..................8-1 8.1.4 MODIFYING USER PRIVILEGES ..............8-2 8.2 CYBERSENTRY 8.2.1 OVERVIEW ......................8-4 D30 Line Distance Protection System GE Multilin...
Page 7 READ ACTUAL VALUES OR SETTINGS (FUNCTION CODE 03/04H) ...B-3 B.2.3 EXECUTE OPERATION (FUNCTION CODE 05H) ...........B-4 B.2.4 STORE SINGLE SETTING (FUNCTION CODE 06H) ........B-4 B.2.5 STORE MULTIPLE SETTINGS (FUNCTION CODE 10H) ........B-5 B.2.6 EXCEPTION RESPONSES ................B-5 GE Multilin D30 Line Distance Protection System...
Page 8 C.7 LOGICAL NODES C.7.1 LOGICAL NODES TABLE ................C-26 D. IEC 60870-5-104 D.1 IEC 60870-5-104 PROTOCOL COMMUNICATIONS D.1.1 INTEROPERABILITY ..................D-1 D.1.2 POINT LIST ....................... D-9 E. DNP COMMUNICATIONS E.1 DEVICE PROFILE DOCUMENT viii D30 Line Distance Protection System GE Multilin...
Page 9 ANALOG INPUTS ....................E-11 F. MISCELLANEOUS F.1 CHANGE NOTES F.1.1 REVISION HISTORY ..................F-1 F.1.2 CHANGES TO THE MANUAL ................F-2 F.2 ABBREVIATIONS F.2.1 STANDARD ABBREVIATIONS ............... F-13 F.3 WARRANTY F.3.1 GE MULTILIN WARRANTY ................F-17 GE Multilin D30 Line Distance Protection System...
Page 10 TABLE OF CONTENTS D30 Line Distance Protection System GE Multilin...
Page 11: Getting Started
For product information, instruction manual updates, and the latest software updates, visit the GE Digital Energy website at http://www.gedigitalenergy.com. If there is any noticeable physical damage, or any of the contents listed are missing, please contact GE Digital Energy immediately.
Page 12: Ur Overview
This new generation of equipment is easily incorporated into automation systems, at both the station and enterprise levels. The GE Multilin Uni- versal Relay (UR) series meets these goals.
Page 13: Hardware Architecture
(dual) ring configuration. This feature is optimized for speed and intended for pilot- aided schemes, distributed logic applications, or the extension of the input/output capabilities of a single relay chassis. GE Multilin D30 Line Distance Protection System...
Page 14: Software Architecture
5. An explanation of the use of inputs from CTs and VTs is in the Introduction to AC sources section in chapter 5. A description of how digital signals are used and routed within the relay is contained in the Introduction to FlexLogic section in chapter 5. D30 Line Distance Protection System GE Multilin...
Page 15: Enervista Ur Setup Software
PCTEL 2304WT V.92 MDC internal modem 1.3.2 INSTALLATION After ensuring the minimum requirements for using EnerVista UR Setup are met (previous section), install the EnerVista UR Setup from the GE EnerVista CD. Or download the UR EnerVista software from http://www.gedigitalenergy.com/multilin and install it.
Page 16: Configuring The D30 For Software Access
EnerVista UR Setup software. The D30 can also be accessed locally with a laptop computer through the front panel RS232 port or the rear Ethernet port using the Quick Connect feature. • To configure the D30 for remote access via the rear RS485 port, see the Configuring Serial Communications section. D30 Line Distance Protection System GE Multilin...
Page 17 A GE Multilin F485 converter (or compatible RS232-to-RS485 converter) is required. Refer to the F485 instruction manual for details. Verify that the latest version of the EnerVista UR Setup software is installed (available from the GE EnerVista CD or online from http://www.gedigitalenergy.com/multilin). See the Software Installation section if not already installed.
Page 18 UR device must be on the same subnet. Verify that the latest version of the EnerVista UR Setup software is installed (available from the GE EnerVista CD or online from http://www.gedigitalenergy.com/multilin). See the Software Installation section for installation details.
Page 19: Using The Quick Connect Feature
Before starting, verify that the serial cable is properly connected from the computer to the front panel RS232 port with a straight-through 9-pin to 9-pin RS232 cable. Verify that the latest version of the EnerVista UR Setup software is installed (available from the GE EnerVista CD or online from http://www.gedigitalenergy.com/multilin). See the Software Installation section if not already installed.
Page 20 Now, assign the computer an IP address compatible with the relay’s IP address. From the Windows desktop, right-click the My Network Places icon and select Properties to open the network con- nections window. Right-click the Local Area Connection icon and select Properties. 1-10 D30 Line Distance Protection System GE Multilin...
Page 21 Minimum = 0ms, Maximum = 0ms, Average = 0 ms Note that the values for vary depending on local network configuration. time If the following sequence of messages appears when entering the command: C:\WINNT>ping 1.1.1.1 GE Multilin D30 Line Distance Protection System 1-11...
Page 22 Default Gateway ..: C:\WINNT> It can be necessary to restart the computer for the change in IP address to take effect (Windows 98 or NT). 1-12 D30 Line Distance Protection System GE Multilin...
Page 23 From the Windows desktop, right-click the My Network Places icon and select Properties to open the network con- nections window. Right-click the Local Area Connection icon and select the Properties item. Select the Internet Protocol (TCP/IP) item from the list provided and click the Properties button. GE Multilin D30 Line Distance Protection System 1-13...
Page 24 The EnerVista UR Setup software then proceeds to configure all settings and order code options in the Device Setup menu. This feature allows the user to identify and interrogate all UR-series devices at a loca- tion. 1-14 D30 Line Distance Protection System GE Multilin...
Page 25: Connecting To The D30 Relay
View the last recorded oscillography record • View the status of all D30 inputs and outputs • View all of the D30 metering values • View the D30 protection summary • Generate a service report GE Multilin D30 Line Distance Protection System 1-15...
Page 26: Ur Hardware
Figure 1–7: RELAY COMMUNICATION OPTIONS To communicate through the D30 rear RS485 port from a computer RS232 port, the GE Multilin RS232/RS485 converter box is required. This device (catalog number F485) connects to the computer using a straight-through serial cable. A shielded twisted-pair (20, 22, or 24 AWG) connects the F485 converter to the D30 rear communications port.
Page 27: Using The Relay
To put the relay in the “Programmed” state, press either of the VALUE keys once and then press ENTER. The face- plate Trouble LED turns off and the In Service LED turns on. GE Multilin D30 Line Distance Protection System...
Page 28: Relay Passwords
See the Changing Settings section in Chapter 4 for complete instructions on setting security-level passwords. 1.5.6 FLEXLOGIC™ CUSTOMIZATION NOTE FlexLogic equation editing is required for setting user-defined logic for customizing the relay operations. See the FlexLogic section in Chapter 5. 1-18 D30 Line Distance Protection System GE Multilin...
Page 29: Commissioning
Unscheduled maintenance, such as a disturbance causing system interruption: View the event recorder and oscillography or fault report for correct operation of inputs, outputs, and elements. If it is concluded that the relay or one of its modules is of concern, contact GE Multilin for service. GE Multilin...
Page 30 1.5 USING THE RELAY 1 GETTING STARTED 1-20 D30 Line Distance Protection System GE Multilin...
Page 31: Product Description
Neutral Instantaneous Overcurrent Phase Directional Overcurrent Phase Instantaneous Overcurrent 67_2 Negative Sequence Directional Overcurrent 50_2 Negative Sequence Instantaneous Overcurrent Power Swing Blocking Ground Time Overcurrent Out-of-Step Tripping Neutral Time Overcurrent Automatic Recloser Phase Time Overcurrent GE Multilin D30 Line Distance Protection System...
Page 32: Ordering
Each of these modules can be supplied in a number of configurations specified at the time of ordering. The information required to completely specify the relay is provided in the following tables (see chapter 3 for full details of relay modules). Order codes are subject to change without notice. See the GE Multilin ordering page at http://www.gedigitalenergy.com/multilin/order.htm for the latest ordering options.
Page 33 Channel 1 - RS422; Channel 2 - 1300 nm, single-mode, LASER Channel 1 - G.703; Channel 2 - 1300 nm, single-mode LASER G.703, 1 Channel G.703, 2 Channels RS422, 1 Channel RS422, 2 Channels GE Multilin D30 Line Distance Protection System...
Page 34 Channel 1 - RS422; Channel 2 - 1300 nm, single-mode, LASER Channel 1 - G.703; Channel 2 - 1300 nm, single-mode LASER G.703, 1 Channel G.703, 2 Channels RS422, 1 Channel RS422, 2 Channels D30 Line Distance Protection System GE Multilin...
Page 35 Channel 1 - RS422; Channel 2 - 1300 nm, single-mode, LASER Channel 1 - G.703; Channel 2 - 1300 nm, single-mode LASER G.703, 1 Channel G.703, 2 Channels RS422, 1 Channel RS422, 2 Channels GE Multilin D30 Line Distance Protection System...
Page 36: Replacement Modules
Not all replacement modules may be applicable to the D30 relay. Only the modules specified in the order codes are available as replacement modules. NOTE Replacement module codes are subject to change without notice. See the GE Multilin ordering page at http://www.gedigitalenergy.com/multilin/order.htm for the latest D30 ordering options.
Page 37 4 dcmA inputs, 4 dcmA outputs (only one 5A module is allowed) 8 RTD inputs INPUTS/OUTPUTS 4 RTD inputs, 4 dcmA outputs (only one 5D module is allowed) 4 dcmA inputs, 4 RTD inputs 8 dcmA inputs GE Multilin D30 Line Distance Protection System...
Page 38 4 dcmA inputs, 4 dcmA outputs (only one 5A module is allowed) 8 RTD inputs INPUTS/OUTPUTS 4 RTD inputs, 4 dcmA outputs (only one 5D module is allowed) 4 dcmA inputs, 4 RTD inputs 8 dcmA inputs D30 Line Distance Protection System GE Multilin...
Page 39: Specifications
5 to 25 cycles in steps of 1 VT location: all delta-wye and wye-delta transformers CT location: all delta-wye and wye-delta transformers Voltage supervision pickup (series compensation applications): 0 to 5.000 pu in steps of 0.001 GE Multilin D30 Line Distance Protection System...
Page 40 97 to 98% Inverse; IEC (and BS) A/B/C and Short Memory duration: 5 to 25 cycles in steps of 1 Inverse; GE IAC Inverse, Short/Very/ Voltage supervision pickup (series compensation applications): Extremely Inverse; I t; FlexCurves™ 0 to 5.000 pu in steps of 0.001 (programmable);...
Page 41 –90 to 90° in steps of 1 Inverse; IEC (and BS) A/B/C and Short Limit angle: 40 to 90° in steps of 1, independent for Inverse; GE IAC Inverse, Short/Very/ forward and reverse Extremely Inverse; I t; FlexCurves™ Angle accuracy: ±2°...
Page 42 ±0.5% of reading from 10 to 208 V Dead source function: None, LV1 & DV2, DV1 & LV2, DV1 or Curve shapes: GE IAV Inverse, Definite Time DV2, DV1 xor DV2, DV1 & DV2 Curve multiplier: Time Dial = 0 to 600.00 in steps of 0.01...
Page 43: User Programmable Elements
Number: 16 (individually programmed) chronize to a 3-bit control input or synch/ Output: stored in non-volatile memory restore mode Execution sequence: as input prior to protection, control, and FlexLogic GE Multilin D30 Line Distance Protection System 2-13...
Page 44: Monitoring
1 min./hr at 420 V to neutral 1 sec. at 100 times rated continuous 4xInom; URs equipped with 24 CT inputs have a maximum operating temp. of 50°C Short circuit rating: 150000 RMS symmetrical amperes, 250 2-14 D30 Line Distance Protection System GE Multilin...
Page 45: Power Supply
100 000 A RMS symmetrical Minimum AC voltage: 88 V at 25 to 100 Hz 10 000 A Maximum AC voltage: 265 V at 25 to 100 Hz Voltage loss hold-up: 200 ms duration at nominal GE Multilin D30 Line Distance Protection System 2-15...
Page 46: Outputs
REMOTE OUTPUTS (IEC 61850 GSSE/GOOSE) 125 V 0.3 A Standard output points: 32 250 V 0.2 A User output points: Operate time: < 8 ms DIRECT OUTPUTS Contact material: silver alloy Output points: 2-16 D30 Line Distance Protection System GE Multilin...
Page 47: Communications
Maximum input –14 dBm power Typical distance 2 km Duplex full/half Redundancy ETHERNET (10/100 MB TWISTED PAIR) Modes: 10 MB, 10/100 MB (auto-detect) Connector: RJ45 SNTP clock synchronization error: <10 ms (typical) GE Multilin D30 Line Distance Protection System 2-17...
Page 48: Inter-Relay Communications
Pollution degree: impaired at temperatures less than – Overvoltage category: 20°C Ingress protection: IP20 front, IP10 back HUMIDITY Humidity: operating up to 95% (non-condensing) at 55°C (as per IEC60068-2-30 variant 1, 6 days). 2-18 D30 Line Distance Protection System GE Multilin...
Page 49: Type Tests
Safety UL508 e83849 NKCR Safety UL C22.2-14 e83849 NKCR7 Safety UL1053 e83849 NKCR 2.2.12 PRODUCTION TESTS THERMAL Products go through an environmental test based upon an Accepted Quality Level (AQL) sampling process. GE Multilin D30 Line Distance Protection System 2-19...
Page 50: Approvals
To avoid deterioration of electrolytic capacitors, power up units that are stored in a de-energized state once per year, for one hour continuously. 2-20 D30 Line Distance Protection System GE Multilin...
Page 51: Hardware
11.016” [279,81 mm] 9.687” [246,05 mm] 17.56” [446,02 mm] 7.460” [189,48 mm] 6.995” 6.960” [177,67 mm] [176,78 mm] 19.040” [483,62 mm] 842807A1.CDR Figure 3–1: D30 HORIZONTAL DIMENSIONS (ENHANCED PANEL) GE Multilin D30 Line Distance Protection System...
Page 52 The case dimensions are shown below, along with panel cutout details for panel mounting. When planning the location of your panel cutout, ensure that provision is made for the faceplate to swing open without interference to or from adjacent equipment. D30 Line Distance Protection System GE Multilin...
Page 53 RS232 communications port. The relay is secured to the panel with the use of four screws supplied with the relay. 11.015” 7.482” 1.329” 13.560” 15.000” 14.025” 4.000” 9.780” 843809A1.CDR Figure 3–4: D30 VERTICAL DIMENSIONS (ENHANCED PANEL) GE Multilin D30 Line Distance Protection System...
Page 54 Figure 3–5: D30 VERTICAL MOUNTING AND DIMENSIONS (STANDARD PANEL) For details on side mounting D30 devices with the enhanced front panel, refer to the following documents available online from the GE Multilin website. • GEK-113180: UR-series UR-V side-mounting front panel assembly instructions.
Page 55 3 HARDWARE 3.1 DESCRIPTION Figure 3–6: D30 VERTICAL SIDE MOUNTING INSTALLATION (STANDARD PANEL) GE Multilin D30 Line Distance Protection System...
Page 56: Module Withdrawal And Insertion
The enhanced faceplate can be opened to the left, once the thumb screw has been removed, as shown below. This allows for easy accessibility of the modules for withdrawal. The new wide-angle hinge assembly in the enhanced front panel opens completely and allows easy access to all modules in the D30. D30 Line Distance Protection System GE Multilin...
Page 57 The new CT/VT modules can only be used with new CPUs; similarly, old CT/VT modules can only be used with old CPUs. In the event that there is a mismatch between the CPU and CT/VT module, the relay does not function and error displays. NOTE DSP ERROR HARDWARE MISMATCH GE Multilin D30 Line Distance Protection System...
Page 58: Rear Terminal Layout
(nearest to CPU module) which is indicated by an arrow marker on the terminal block. See the following figure for an example of rear terminal assignments. Figure 3–11: EXAMPLE OF MODULES IN F AND H SLOTS D30 Line Distance Protection System GE Multilin...
Page 59: Wiring
3 HARDWARE 3.2 WIRING 3.2WIRING 3.2.1 TYPICAL WIRING Figure 3–12: TYPICAL WIRING DIAGRAM GE Multilin D30 Line Distance Protection System...
Page 60: Dielectric Strength
An LED on the front of the control power module shows the status of the power supply: LED INDICATION POWER SUPPLY CONTINUOUS ON ON / OFF CYCLING Failure Failure 3-10 D30 Line Distance Protection System GE Multilin...
Page 61: Ct/Vt Modules
CT connections for both ABC and ACB phase rotations are identical as shown in the Typical wiring diagram. The exact placement of a zero-sequence core balance CT to detect ground fault current is shown below. Twisted-pair cabling on the zero-sequence CT is recommended. GE Multilin D30 Line Distance Protection System 3-11...
Page 62: Process Bus Modules
3.2.5 PROCESS BUS MODULES The D30 can be ordered with a process bus interface module. This module is designed to interface with the GE Multilin HardFiber system, allowing bidirectional IEC 61850 fiber optic communications with up to eight HardFiber merging units, known as Bricks.
Page 63: Contact Inputs And Outputs
) which can be used in protection, control, and alarm logic. The typical application of CONT OP # VOFF CONT OP # ION the voltage monitor is breaker trip circuit integrity monitoring; a typical application of the current monitor is seal-in of the control command. GE Multilin D30 Line Distance Protection System 3-13...
Page 64 ~6a, ~6c 2 Inputs Form-A ~7a, ~7c 2 Inputs Fast Form-C ~7a, ~7c 2 Inputs ~7a, ~7c 2 Inputs ~8a, ~8c 2 Inputs Fast Form-C ~8a, ~8c 2 Inputs ~8a, ~8c 2 Inputs 3-14 D30 Line Distance Protection System GE Multilin...
Page 65 ~5a, ~5c 2 Inputs 2 Outputs Solid-State Solid-State ~6a, ~6c 2 Inputs 2 Outputs Not Used Not Used ~7a, ~7c 2 Inputs 2 Outputs Solid-State Solid-State ~8a, ~8c 2 Inputs Not Used GE Multilin D30 Line Distance Protection System 3-15...
Page 66 3.2 WIRING 3 HARDWARE Figure 3–17: CONTACT INPUT AND OUTPUT MODULE WIRING (1 of 2) 3-16 D30 Line Distance Protection System GE Multilin...
Page 67 CONTACT IN COMMON SURGE 842763A2.CDR Figure 3–18: CONTACT INPUT AND OUTPUT MODULE WIRING (2 of 2) For proper functionality, observe correct polarity for all contact input and solid state output connec- tions. GE Multilin D30 Line Distance Protection System 3-17...
Page 68 There is no provision in the relay to detect a DC ground fault on 48 V DC control power external output. We recom- mend using an external DC supply. NOTE 3-18 D30 Line Distance Protection System GE Multilin...
Page 69 CONTACT INPUT 2 AUTO-BURNISH = ON 842751A1.CDR Figure 3–21: AUTO-BURNISH DIP SWITCHES The auto-burnish circuitry has an internal fuse for safety purposes. During regular maintenance, check the auto- burnish functionality using an oscilloscope. NOTE GE Multilin D30 Line Distance Protection System 3-19...
Page 70: Transducer Inputs/Outputs
(5A, 5C, 5D, 5E, and 5F) and channel arrangements that can be ordered for the relay. Wherever a tilde “~” symbol appears, substitute with the slot position of the module. NOTE Figure 3–22: TRANSDUCER INPUT/OUTPUT MODULE WIRING 3-20 D30 Line Distance Protection System GE Multilin...
Page 71: Rs232 Faceplate Port
RS485 data transmission and reception are accomplished over a single twisted pair with transmit and receive data alternat- ing over the same two wires. Through the use of the port, continuous monitoring and control from a remote computer, SCADA system, or PLC is possible. GE Multilin D30 Line Distance Protection System 3-21...
Page 72 To ensure maximum reliability, all equipment should have similar transient protection devices installed. Terminate both ends of the RS485 circuit with an impedance as shown below. Figure 3–25: RS485 SERIAL CONNECTION 3-22 D30 Line Distance Protection System GE Multilin...
Page 73 62.5 µm for 100 Mbps. For optical power budgeting, splices are required every 1 km for the transmitter/receiver pair. When splicing optical fibers, the diameter and numerical aperture of each fiber must be the same. GE Multilin D30 Line Distance Protection System...
Page 74: Irig-B
Figure 3–26: IRIG-B CONNECTION Using an amplitude modulated receiver causes errors up to 1 ms in event time-stamping. NOTE 3-24 D30 Line Distance Protection System GE Multilin...
Page 75: Direct Input/Output Communications
1 to channel 2 on UR2, the setting should be “Enabled” on UR2. This DIRECT I/O CHANNEL CROSSOVER forces UR2 to forward messages received on Rx1 out Tx2, and messages received on Rx2 out Tx1. GE Multilin D30 Line Distance Protection System 3-25...
Page 76 Channel 1: RS422, channel: 820 nm, multi-mode, LED Channel 1: RS422, channel 2: 1300 nm, multi-mode, LED Channel 1: RS422, channel 2: 1300 nm, single-mode, ELED Channel 1: RS422, channel 2: 1300 nm, single-mode, laser 3-26 D30 Line Distance Protection System GE Multilin...
Page 77: Fiber: Led And Eled Transmitters
The following figure shows the configuration for the 72, 73, 7D, and 7K fiber-laser module. Figure 3–31: LASER FIBER MODULES When using a laser Interface, attenuators can be necessary to ensure that you do not exceed the maximum optical input power to the receiver. GE Multilin D30 Line Distance Protection System 3-27...
Page 78: Interface
Remove the top cover by sliding it towards the rear and then lift it upwards. Set the timing selection switches (channel 1, channel 2) to the desired timing modes. Replace the top cover and the cover screw. 3-28 D30 Line Distance Protection System GE Multilin...
Page 79 For connection to a higher order system (UR- to-multiplexer, factory defaults), set to octet timing (S1 = ON) and set timing mode to loop timing (S5 = OFF and S6 = OFF). GE Multilin D30 Line Distance Protection System 3-29...
Page 80 G.703 line side of the interface while the other lies on the differential Manchester side of the interface. DMR = Differential Manchester Receiver DMX = Differential Manchester Transmitter G7X = G.703 Transmitter G7R = G.703 Receiver 842775A1.CDR Figure 3–36: G.703 DUAL LOOPBACK MODE 3-30 D30 Line Distance Protection System GE Multilin...
Page 81: Rs422 Interface
UR–RS422 channels is synchronized via the send timing leads on data module 1 as shown below. If the terminal timing feature is not available or this type of connection is not desired, the G.703 interface is a viable option that does not impose timing restrictions. GE Multilin D30 Line Distance Protection System 3-31...
Page 82 Figure 3–40: CLOCK AND DATA TRANSITIONS d) RECEIVE TIMING The RS422 interface utilizes NRZI-MARK modulation code and; therefore, does not rely on an Rx clock to recapture data. NRZI-MARK is an edge-type, invertible, self-clocking code. 3-32 D30 Line Distance Protection System GE Multilin...
Page 83: Rs422 And Fiber Interface
G.703 and fiber interfaces. When using a laser Interface, attenuators can be necessary to ensure that you do not exceed the maximum optical input power to the receiver. Figure 3–42: G.703 AND FIBER INTERFACE CONNECTION GE Multilin D30 Line Distance Protection System 3-33...
Page 84: Ieee C37.94 Interface
For the internal timing mode, the system clock is generated internally. Therefore, the timing switch selection should be internal timing for relay 1 and loop timed for relay 2. There must be only one timing source configured. 3-34 D30 Line Distance Protection System GE Multilin...
Page 85 Once the clips have cleared the raised edge of the chassis, engage the clips simultaneously. When the clips have locked into position, the module is fully inserted. Figure 3–43: IEEE C37.94 TIMING SELECTION SWITCH SETTING GE Multilin D30 Line Distance Protection System 3-35...
Page 86 Solid yellow — FPGA is receiving a "yellow bit" and remains yellow for each "yellow bit" • Solid red — FPGA is not receiving a valid packet or the packet received is invalid 3-36 D30 Line Distance Protection System GE Multilin...
Page 87: C37.94Sm Interface
For the internal timing mode, the system clock is generated internally. Therefore, the timing switch selection should be internal timing for relay 1 and loop timed for relay 2. There must be only one timing source configured. GE Multilin D30 Line Distance Protection System...
Page 88 Once the clips have cleared the raised edge of the chassis, engage the clips simultaneously. When the clips have locked into position, the module is fully inserted. Figure 3–45: C37.94SM TIMING SELECTION SWITCH SETTING 3-38 D30 Line Distance Protection System GE Multilin...
Page 89 Solid yellow — FPGA is receiving a "yellow bit" and remains yellow for each "yellow bit" • Solid red — FPGA is not receiving a valid packet or the packet received is invalid GE Multilin D30 Line Distance Protection System 3-39...
Page 90 3.3 DIRECT INPUT/OUTPUT COMMUNICATIONS 3 HARDWARE 3-40 D30 Line Distance Protection System GE Multilin...
Page 91: Human Interfaces
Factory default values are supplied and can be restored after any changes. The following communications settings are not transferred to the D30 with settings files. Modbus Slave Address Modbus IP Port Number RS485 COM2 Baud Rate RS485 COM2 Parity COM2 Minimum Response Time GE Multilin D30 Line Distance Protection System...
Page 92 The firmware of a D30 device can be upgraded, locally or remotely, via the EnerVista UR Setup software. The correspond- ing instructions are provided by the EnerVista UR Setup Help file under the topic “Upgrading Firmware”. D30 Line Distance Protection System GE Multilin...
Page 93: Enervista Ur Setup Main Window
Device data view windows, with common tool bar Settings file data view windows, with common tool bar Workspace area with data view tabs Status bar 10. Quick action hot links 842786A2.CDR Figure 4–1: ENERVISTA UR SETUP SOFTWARE MAIN WINDOW GE Multilin D30 Line Distance Protection System...
Page 94: Extended Enervista Ur Setup Features
Select the Template Mode > Edit Template option to place the device in template editing mode. Enter the template password then click OK. Open the relevant settings windows that contain settings to be specified as viewable. D30 Line Distance Protection System GE Multilin...
Page 95 The following procedure describes how to add password protection to a settings file template. Select a settings file from the offline window on the left of the EnerVista UR Setup main screen. Selecting the Template Mode > Password Protect Template option. GE Multilin D30 Line Distance Protection System...
Page 96 Template Mode > View In Template Mode command. The template specifies that only the Pickup Curve Phase time overcurrent settings window without template applied. settings be available. 842858A1.CDR Figure 4–4: APPLYING TEMPLATES VIA THE VIEW IN TEMPLATE MODE COMMAND D30 Line Distance Protection System GE Multilin...
Page 97 Select an installed device or settings file from the tree menu on the left of the EnerVista UR Setup main screen. Select the Template Mode > Remove Settings Template option. Enter the template password and click OK to continue. GE Multilin D30 Line Distance Protection System...
Page 98: Securing And Locking Flexlogic™ Equations
Click on Save to save and apply changes to the settings template. Select the Template Mode > View In Template Mode option to view the template. Apply a password to the template then click OK to secure the FlexLogic equation. D30 Line Distance Protection System GE Multilin...
Page 99 FlexLogic entries in a settings file have been secured, use the following procedure to lock the settings file to a specific serial number. Select the settings file in the offline window. Right-click on the file and select the Edit Settings File Properties item. GE Multilin D30 Line Distance Protection System...
Page 100: Settings File Traceability
D30 device. Any partial settings transfers by way of drag and drop do not add the traceability information to the settings file. Figure 4–11: SETTINGS FILE TRACEABILITY MECHANISM With respect to the above diagram, the traceability feature is used as follows. 4-10 D30 Line Distance Protection System GE Multilin...
Page 101 Figure 4–12: DEVICE DEFINITION SHOWING TRACEABILITY DATA This information is also available in printed settings file reports as shown in the example below. Traceability data in settings report 842862A1.CDR Figure 4–13: SETTINGS FILE REPORT SHOWING TRACEABILITY DATA GE Multilin D30 Line Distance Protection System 4-11...
Page 102 If the user converts an existing settings file to another revision, then any existing traceability information is removed from the settings file. • If the user duplicates an existing settings file, then any traceability information is transferred to the duplicate settings file. 4-12 D30 Line Distance Protection System GE Multilin...
Page 103: Faceplate Interface
LED panel 2 LED panel 3 Display Front panel RS232 port Small user-programmable User-programmable Keypad (control) pushbuttons 1 to 7 pushbuttons 1 to 12 827801A7.CDR Figure 4–16: UR-SERIES STANDARD HORIZONTAL FACEPLATE PANELS GE Multilin D30 Line Distance Protection System 4-13...
Page 104: Led Indicators
The status indicators in the first column are described below. • IN SERVICE: This LED indicates that control power is applied, all monitored inputs, outputs, and internal systems are OK, and that the device has been programmed. 4-14 D30 Line Distance Protection System GE Multilin...
Page 105 IN SERVICE VOLTAGE TROUBLE CURRENT RESET TEST MODE FREQUENCY TRIP OTHER USER 1 ALARM PHASE A PICKUP USER 2 PHASE B PHASE C NEUTRAL/GROUND USER 3 842781A1.CDR Figure 4–19: LED PANEL 1 GE Multilin D30 Line Distance Protection System 4-15...
Page 106 LEDs on these panels. USER-PROGRAMMABLE LEDS USER-PROGRAMMABLE LEDS 842782A1.CDR Figure 4–20: LED PANELS 2 AND 3 (INDEX TEMPLATE) DEFAULT LABELS FOR LED PANEL 2: The default labels are intended to represent: 4-16 D30 Line Distance Protection System GE Multilin...
Page 107: Custom Labeling Of Leds
EnerVista UR Setup software is installed and operational • The D30 settings have been saved to a settings file • The D30 front panel label cutout sheet (GE Multilin part number 1006-0047) has been downloaded from http:// www.gedigitalenergy.com/products/support/ur/URLEDenhanced.doc and printed •...
Page 108 Remove the D30 label insert tool from the package and bend the tabs as described in the following procedures. These tabs are used for removal of the default and custom LED labels. It is important that the tool be used EXACTLY as shown below, with the printed side containing the GE part number facing the user.
Page 109 Use the knife to lift the LED label and slide the label tool underneath. Make sure the bent tabs are pointing away from the relay. Slide the label tool under the LED label until the tabs snap out as shown below. This attaches the label tool to the LED label. GE Multilin D30 Line Distance Protection System 4-19...
Page 110 Use the knife to lift the pushbutton label and slide the tail of the label tool underneath, as shown below. Make sure the bent tab is pointing away from the relay. 4-20 D30 Line Distance Protection System GE Multilin...
Page 111 Slide the label tool under the user-programmable pushbutton label until the tabs snap out as shown below. This attaches the label tool to the user-programmable pushbutton label. Remove the tool and attached user-programmable pushbutton label as shown below. GE Multilin D30 Line Distance Protection System 4-21...
Page 112 The panel templates provide relative LED locations and located example text (x) edit boxes. The following procedure demonstrates how to install/uninstall the custom panel labeling. Remove the clear Lexan Front Cover (GE Multilin part number: 1501-0014). Push in...
Page 113: Display
Microsoft Word 97 or later software for editing the template • 1 each of: 8.5" x 11" white paper, exacto knife, ruler, custom display module (GE Multilin Part Number: 1516-0069), and a custom module cover (GE Multilin Part Number: 1502-0015) The following procedure describes how to customize the D30 display module: Open the LED panel customization template with Microsoft Word.
Page 114: Menus
Each press of the MENU key advances through the following main heading pages: • Actual values • Settings • Commands • Targets • User displays (when enabled) 4-24 D30 Line Distance Protection System GE Multilin...
Page 115 Properties. TIME: 1.0 s  To view the remaining settings associated with the Display Properties subheader, DEFAULT MESSAGE repeatedly press the MESSAGE DOWN key. The last message appears as shown. INTENSITY: 25% GE Multilin D30 Line Distance Protection System 4-25...
Page 116: Changing Settings
ENTERING ALPHANUMERIC TEXT Text settings have data values which are fixed in length, but user-defined in character. They can be upper case letters, lower case letters, numerals, and a selection of special characters. 4-26 D30 Line Distance Protection System GE Multilin...
Page 117: Settings
When the "NEW SETTING HAS BEEN STORED" message appears, the relay is in "Programmed" state and the In Service LED turns on. e) ENTERING INITIAL PASSWORDS The D30 supports password entry from a local or remote connection. GE Multilin D30 Line Distance Protection System 4-27...
Page 118 FlexLogic operand is set to “On” and the D30 does not allow settings or command LOCAL ACCESS DENIED level access via the faceplate interface for the next five minutes, or in the event that an incorrect Command Or Setting 4-28 D30 Line Distance Protection System GE Multilin...
Page 119 D30 does not allow Settings or Command access via the any external communications interface for the next ten minutes. FlexLogic operand is set to “Off” after the expiration of the ten-minute timeout. REMOTE ACCESS DENIED GE Multilin D30 Line Distance Protection System 4-29...
Page 120 4.3 FACEPLATE INTERFACE 4 HUMAN INTERFACES 4-30 D30 Line Distance Protection System GE Multilin...
Page 121: Overview
  SETTINGS  AC INPUTS See page 5-78.  SYSTEM SETUP   POWER SYSTEM See page 5-79.   SIGNAL SOURCES See page 5-80.   BREAKERS See page 5-83.  GE Multilin D30 Line Distance Protection System...
Page 122  MONITORING See page 5-206.  ELEMENTS  SETTINGS  CONTACT INPUTS See page 5-216.  INPUTS / OUTPUTS   VIRTUAL INPUTS See page 5-218.   CONTACT OUTPUTS See page 5-219.  D30 Line Distance Protection System GE Multilin...
Page 123  SETTINGS TEST MODE See page 5-239.  TESTING FUNCTION: Disabled TEST MODE FORCING: See page 5-239.  FORCE CONTACT See page 5-240.  INPUTS  FORCE CONTACT See page 5-241.  OUTPUTS GE Multilin D30 Line Distance Protection System...
Page 124: Introduction To Elements
RESET DELAY setting: This setting is used to set a time-delay-on-dropout, or off-delay, for the duration between the Operate output state and the return to logic 0 after the input transits outside the defined pickup range. D30 Line Distance Protection System GE Multilin...
Page 125: Introduction To Ac Sources
The same considerations apply to transformer winding 2. The protection elements require access to the net current for transformer protection, but some elements may need access to the individual currents from CT1 and CT2. GE Multilin D30 Line Distance Protection System...
Page 126 CT/VT MODULE 1 CT/VT MODULE 2 CT/VT MODULE 3 < bank 1 > < bank 3 > < bank 5 > < bank 2 > < bank 4 > < bank 6 > D30 Line Distance Protection System GE Multilin...
Page 127 CTs on each of two breakers is required to measure the winding current flow. GE Multilin D30 Line Distance Protection System...
Page 128: Product Setup
(via the setting and command level access timeout settings). The remote setting and command ses- sions are initiated by the user through the EnerVista UR Setup software and are disabled either by the user or by timeout. D30 Line Distance Protection System GE Multilin...
Page 129 ENCRYPTED PASSWORD If the setting and command passwords are identical, then this one password allows access to both commands and settings. NOTE If a remote connection is established, local passcodes are not visible. NOTE GE Multilin D30 Line Distance Protection System...
Page 130  SUPERVISION  TIMEOUTS Range: 2 to 5 in steps of 1 INVALID ATTEMPTS MESSAGE BEFORE LOCKOUT: 3 Range: 5 to 60 minutes in steps of 1 PASSWORD LOCKOUT MESSAGE DURATION: 5 min 5-10 D30 Line Distance Protection System GE Multilin...
Page 131 If setting access is not authorized for local operation (front panel or RS232 interface) and the user attempts to obtain setting access, then the message is displayed on the front panel. UNAUTHORIZED ACCESS GE Multilin D30 Line Distance Protection System 5-11...
Page 132: Cybersentry Security
Log in as outlined (Administrator or Supervisor, then Observer). Users After making any required changes, log off using the Commands > Relay Maintenance > Security menu. logged in through the front panel log out by logging in as None. 5-12 D30 Line Distance Protection System GE Multilin...
Page 133 Whenever a new role is logged in, the user is prompted with a display to enter a password. 20 alphanumeric characters are acceptable as passwords.The UR device supports five roles. All roles have their corresponding passwords. The Observer role is the only role that does not require a password. GE Multilin D30 Line Distance Protection System 5-13...
Page 134 PRODUCT SETUP SECURITY SESSION SETTINGS Range: 0 to 99  SESSION SESSION LOCKOUT:  SETTINGS Range: 0 to 9999 minutes SESSION LOCKOUT MESSAGE PERIOD: 3 min The following session settings are available. 5-14 D30 Line Distance Protection System GE Multilin...
Page 135 Range: Enable, Disable FACTORY SERVICE: MESSAGE MODE: Disable  SELF TESTS See below MESSAGE  Range: Enable, Disable SUPERVISOR ROLE: MESSAGE Disable Range: 1 to 9999 minutes SERIAL INACTIVITY MESSAGE TIMEOUT: 3 GE Multilin D30 Line Distance Protection System 5-15...
Page 136 Example: If this setting is "Yes" and an attempt is made to change settings or upgrade the firmware, the UR device denies the setting changes and denies upgrading the firmware. If this setting is "No", the UR device accepts setting changes and firmware upgrade. This role is disabled by default. 5-16 D30 Line Distance Protection System GE Multilin...
Page 137 Settings Lock: If this setting is Enabled then an unauthorized write attempt to a setting for a given role activates this self test.      PATH: SETTINGS PRODUCT SETUP SECURITY SUPERVISORY SELF TESTS FAILED AUTHENTICATE Range: Enabled, Disabled  FAILED FAILED AUTHENTICATE  AUTHENTICATE FUNCTION: Enabled GE Multilin D30 Line Distance Protection System 5-17...
Page 138: Display Properties
The D30 applies a cut-off value to the magnitudes and angles of the measured voltages. If the magnitude is below the cut-off level, it is substituted with zero. This operation applies to phase and auxiliary voltages, and symmetrical 5-18 D30 Line Distance Protection System GE Multilin...
Page 139: Clear Relay Records
CLEAR EVENT RECORDS: MESSAGE Range: FlexLogic operand CLEAR OSCILLOGRAPHY? MESSAGE Range: FlexLogic operand CLEAR ARC AMPS 1: MESSAGE Range: FlexLogic operand CLEAR ARC AMPS 2: MESSAGE Range: FlexLogic operand RESET UNAUTH ACCESS: MESSAGE GE Multilin D30 Line Distance Protection System 5-19...
Page 140: Communications
See page 5–29. MESSAGE   WEB SERVER See page 5–42. MESSAGE  HTTP PROTOCOL  TFTP PROTOCOL See page 5–42. MESSAGE   IEC 60870-5-104 See page 5–43. MESSAGE  PROTOCOL 5-20 D30 Line Distance Protection System GE Multilin...
Page 141 Example 3 — Incorrect IP1/Mask1: 10.1.1.2/255.0.0.0 IP2/Mask2: 10.2.1.2/255.0.0.0 IP3/Mask3: 10.3.1.2/255.0.0.0 This example is incorrect because the mask of 255.0.0.0 used for the three IP addresses belongs to the same network of 10.x.x.x. GE Multilin D30 Line Distance Protection System 5-21...
Page 142 SCADA is provided through LAN2 and LAN3, to which P2 and respectively P3 are connected and configured to work in redundant mode. In this configuration, P3 uses the IP and MAC address of P2. Figure 5–5: MULTIPLE LANS, WITH REDUNDANCY 5-22 D30 Line Distance Protection System GE Multilin...
Page 143 Range: Standard IPV4 address format PRT2 SUBNET IP MASK: MESSAGE 0.0.0.0 Range: Standard IPV4 address format PRT2 GWY IP ADDRESS: MESSAGE 0.0.0.0 Range: No, Yes PRT2 REDUNDANCY: MESSAGE Range: Enabled, Disabled PRT2 GOOSE ENABLED: MESSAGE Enabled GE Multilin D30 Line Distance Protection System 5-23...
Page 144 A value of 0 closes the port. When the Modbus port is set to 0, communicate with the relay using the front panel or serial port. When a 0 value is involved in a change, the changes to the MODBUS TCP PORT NUMBER setting take effect when the D30 is restarted. NOTE 5-24 D30 Line Distance Protection System GE Multilin...
Page 145 DEADBAND: 30000 Range: 0 to 100000000 in steps of 1 DNP OTHER DEFAULT MESSAGE DEADBAND: 30000 Range: 1 to 10080 min. in steps of 1 DNP TIME SYNC IIN MESSAGE PERIOD: 1440 min GE Multilin D30 Line Distance Protection System 5-25...
Page 146 NOTE settings can force the D30 to respond to a maximum of five specific DNP masters. The DNP NETWORK CLIENT ADDRESS settings in this sub-menu are shown below. 5-26 D30 Line Distance Protection System GE Multilin...
Page 147 DNP implementations use a mapping of one DNP binary output to two physical or virtual control points to support the concept of trip/close (for circuit breakers) or raise/lower (for tap changers) using a single control point. That is, the DNP GE Multilin D30 Line Distance Protection System...
Page 148 Up to 256 analog input points can be configured for the DNP or IEC 60870-5-104 protocols. The analog point list is config- ured by assigning an appropriate FlexAnalog parameter to each point. Refer to Appendix A: FlexAnalog Parameters for the full range of assignable parameters. 5-28 D30 Line Distance Protection System GE Multilin...
Page 149 The GSSE/GOOSE configuration main menu is divided into two areas: transmission and reception.     PATH: SETTINGS PRODUCT SETUP COMMUNICATIONS IEC 61850 PROTOCOL GSSE/GOOSE CONFIGURATION  GSSE / GOOSE  TRANSMISSION  CONFIGURATION   RECEPTION MESSAGE  GE Multilin D30 Line Distance Protection System 5-29...
Page 150 IEC 61850 GSSE application ID name string sent as part of each GSSE message. This GSSE ID string identifies the GSSE message to the receiving device. In D30 releases previous to 5.0x, this name string was repre- sented by the setting. RELAY NAME 5-30 D30 Line Distance Protection System GE Multilin...
Page 151 ID for each GOOSE sending device. This value can be left at its default if the feature is not required. Both the GOOSE VLAN settings are required by IEC 61850. PRIORITY GOOSE ETYPE APPID GE Multilin D30 Line Distance Protection System 5-31...
Page 152 The aggressive scheme is only supported in fast type 1A GOOSE messages (GOOSEOut 1 and GOOSEOut 2). For slow GOOSE messages (GOOSEOut 3 to GOOSEOut 8) the aggressive scheme is the same as the medium scheme. 5-32 D30 Line Distance Protection System GE Multilin...
Page 153 Configure the transmission dataset. Configure the GOOSE service settings. Configure the data. The general steps required for reception configuration are: Configure the reception dataset. Configure the GOOSE service settings. Configure the data. GE Multilin D30 Line Distance Protection System 5-33...
Page 154 Configure the GOOSE service settings by making the following changes in the  INPUTS/OUTPUTS REMOTE DEVICES  settings menu: REMOTE DEVICE 1 – to match the GOOSE ID string for the transmitting device. Enter “GOOSEOut_1”. REMOTE DEVICE 1 ID 5-34 D30 Line Distance Protection System GE Multilin...
Page 155 The status value for GGIO1.ST.Ind1.stVal is determined by the FlexLogic operand assigned to GGIO1 indication 1. Changes to this operand will result in the transmission of GOOSE messages con- taining the defined dataset. GE Multilin D30 Line Distance Protection System 5-35...
Page 156 Range: up to 80 alphanumeric characters LOCATION: Location MESSAGE Range: 0 to 65535 in steps of 1 IEC/MMS TCP PORT MESSAGE NUMBER: Range: Disabled, Enabled INCLUDE NON-IEC MESSAGE DATA: Enabled Range: Disabled, Enabled SERVER SCANNING: MESSAGE Disabled 5-36 D30 Line Distance Protection System GE Multilin...
Page 157 “cVal” values from the associated “instmag” and “instcVal” values. The “mag” and “cVal” values are used for the IEC 61850 buffered and unbuffered reports. These settings correspond to the associated “db” data items in the CF functional con- GE Multilin D30 Line Distance Protection System...
Page 158 The GGIO2 control configuration settings are used to set the control model for each input. The available choices are “0” (status only), “1” (direct control), and “2” (SBO with normal security). The GGIO2 control points are used to control the D30 virtual inputs. 5-38 D30 Line Distance Protection System GE Multilin...
Page 159 ANALOG IN 1 MAX numbers. Because of the large range of these settings, not all values can be stored. Some values may be rounded to the closest possible floating point number. NOTE GE Multilin D30 Line Distance Protection System 5-39...
Page 160 LLN0 if a user needs some (but not all) data from already existing GGIO1, GGIO4, and MMXU4 points and their quantity is not greater than 64 minus the number items in this dataset. 5-40 D30 Line Distance Protection System GE Multilin...
Page 161 XCBR operating counter status attribute (OpCnt) increments with every operation. Frequent breaker operation may result in very large OpCnt values over time. This setting allows the OpCnt to be reset to “0” for XCBR1. GE Multilin D30 Line Distance Protection System...
Page 162  NUMBER: Range: 0 to 65535 in steps of 1 TFTP DATA UDP PORT 1 MESSAGE NUMBER: Range: 0 to 65535 in steps of 1 TFTP DATA UDP PORT 2 MESSAGE NUMBER: 5-42 D30 Line Distance Protection System GE Multilin...
Page 163 The IEC 60870-5-104 and DNP protocols cannot be used simultaneously. When the IEC 60870-5-104 FUNCTION setting is set to “Enabled”, the DNP protocol does not operate. When this setting is changed, it takes effect when power to the relay is cycled (off-to-on). NOTE GE Multilin D30 Line Distance Protection System 5-43...
Page 164: Real Time Clock
SET DATE AND TIME The REAL TIME CLOCK EVENTS setting allows changes to the date and/or time to be captured in the event record. The event records the RTC time before the adjustment. 5-44 D30 Line Distance Protection System GE Multilin...
Page 165 If the grandmaster fails, the next “best” clock available in the domain assumes the grandmaster role. Should a clock on starting up discover it is “better” that the present grandmaster, it assumes the grandmaster role and the previous grandmaster reverts to slave. GE Multilin D30 Line Distance Protection System 5-45...
Page 166 More com- monly, there is a single domain using the default domain number zero. • This setting applies to all of the relay’s PTP capable ports. 5-46 D30 Line Distance Protection System GE Multilin...
Page 167 NTP server. It may take up to two minutes for the D30 to signal an SNTP self-test error if the server is offline. The UR-series relays do not support the broadcast, multicast or anycast SNTP functionality. GE Multilin D30 Line Distance Protection System...
Page 168 DAYLIGHT SAVINGS TIME (DST) Note that when IRIG-B time synchronization is active, the local time in the IRIG-B signal contains any daylight savings time offset and so the DST settings are ignored. 5-48 D30 Line Distance Protection System GE Multilin...
Page 169: Fault Reports
Elements operated at the time of triggering. • Events: 9 before trigger and 7 after trigger (only available via the relay webpage). • Fault duration times for each breaker (created by the breaker arcing current feature). GE Multilin D30 Line Distance Protection System 5-49...
Page 170 It should be kept in mind that grounding points in vicinity of the installation impact the system zero-sequence impedance (grounded loads, reactors, zig-zag transformers, shunt capacitor banks, etc.). 5-50 D30 Line Distance Protection System GE Multilin...
Page 171: Oscillography
64 samples per cycle; that is, it has no effect on the fundamental calculations of the device. When changes are made to the oscillography settings, all existing oscillography records will be CLEARED. NOTE GE Multilin D30 Line Distance Protection System 5-51...
Page 172 IB signal on terminal 2 of the CT/VT module in slot F. If there are no CT/VT modules and analog input modules, no analog traces will appear in the file; only the digital traces will appear. 5-52 D30 Line Distance Protection System GE Multilin...
Page 173: User-Programmable Leds
The test responds to the position and rising edges of the control input defined by the set- LED TEST CONTROL ting. The control pulses must last at least 250 ms to take effect. The following diagram explains how the test is executed. GE Multilin D30 Line Distance Protection System 5-53...
Page 174 2. Once stage 2 has started, the pushbutton can be released. When stage 2 is completed, stage 3 will automatically start. The test may be aborted at any time by pressing the pushbutton. 5-54 D30 Line Distance Protection System GE Multilin...
Page 175 AR ENABLED LED 10 operand BREAKER 1 CLOSED LED 22 operand AR DISABLED LED 11 operand BREAKER 1 TROUBLE LED 23 operand AR RIP LED 12 operand LED 24 operand AR LO GE Multilin D30 Line Distance Protection System 5-55...
Page 176: User-Programmable Self Tests
ANY SELF-TEST mode, minor alarms continue to function along with other major and minor alarms. Refer to the Relay self-tests section in chapter 7 for additional information on major and minor self-test alarms. 5-56 D30 Line Distance Protection System GE Multilin...
Page 177: Control Pushbuttons
An event is logged in the event record (as per user setting) when a control pushbutton is pressed. No event is logged when the pushbutton is released. The faceplate keys (including control keys) cannot be operated simultaneously – a given key must be released before the next one can be pressed. GE Multilin D30 Line Distance Protection System 5-57...
Page 178 SYSTEM SETUP/ BREAKERS/BREAKER 1/ BREAKER 1 PUSHBUTTON CONTROL Enabled=1 TIMER FLEXLOGIC OPERAND SYSTEM SETUP/ BREAKERS/BREAKER 2/ CONTROL PUSHBTN 1 ON 100 msec BREAKER 2 PUSHBUTTON CONTROL 842010A2.CDR Enabled=1 Figure 5–10: CONTROL PUSHBUTTON LOGIC 5-58 D30 Line Distance Protection System GE Multilin...
Page 179: User-Programmable Pushbuttons
FlexLogic equations, protection elements, and control elements. Typical applications include breaker control, autorecloser blocking, and setting groups changes. The user-programmable pushbuttons are under the control level of password protection. The user-configurable pushbuttons for the enhanced faceplate are shown below. GE Multilin D30 Line Distance Protection System 5-59...
Page 180 The pulse duration of the remote set, remote reset, or local pushbutton must be at least 50 ms to operate the push- button. This allows the user-programmable pushbuttons to properly operate during power cycling events and vari- ous system disturbances that may cause transient assertion of the operating signals. NOTE 5-60 D30 Line Distance Protection System GE Multilin...
Page 181 PUSHBTN 1 RESET • PUSHBTN 1 LOCAL: This setting assigns the FlexLogic operand serving to inhibit pushbutton operation from the front panel pushbuttons. This locking functionality is not applicable to pushbutton autoreset. GE Multilin D30 Line Distance Protection System 5-61...
Page 182 “Normal” if the setting is “High Priority” or “Normal”. PUSHBTN 1 MESSAGE • PUSHBUTTON 1 EVENTS: If this setting is enabled, each pushbutton state change will be logged as an event into event recorder. 5-62 D30 Line Distance Protection System GE Multilin...
Page 183 Off = 0 SETTING SETTING Autoreset Delay Autoreset Function = Enabled = Disabled SETTING Drop-Out Timer TIMER FLEXLOGIC OPERAND 200 ms PUSHBUTTON 1 ON 842021A3.CDR Figure 5–13: USER-PROGRAMMABLE PUSHBUTTON LOGIC (Sheet 1 of 2) GE Multilin D30 Line Distance Protection System 5-63...
Page 184: Flex State Parameters
PATH: SETTINGS PRODUCT SETUP FLEX STATE PARAMETERS Range: FlexLogic operand  FLEX STATE PARAMETER  PARAMETERS Range: FlexLogic operand PARAMETER MESSAGE Range: FlexLogic operand PARAMETER MESSAGE  Range: FlexLogic operand PARAMETER 256: MESSAGE 5-64 D30 Line Distance Protection System GE Multilin...
Page 185: User-Definable Displays
INVOKE AND SCROLL play, not at the first user-defined display. The pulses must last for at least 250 ms to take effect. INVOKE AND SCROLL GE Multilin D30 Line Distance Protection System 5-65...
Page 186 While viewing a user display, press the ENTER key and then select the ‘Yes” option to remove the display from the user display list. Use the MENU key again to exit the user displays menu. 5-66 D30 Line Distance Protection System GE Multilin...
Page 187: Direct Inputs/Outputs
See page 5–73. MESSAGE   CRC ALARM CH2 See page 5–73. MESSAGE   UNRETURNED See page 5–74. MESSAGE  MESSAGES ALARM CH1  UNRETURNED See page 5–74. MESSAGE  MESSAGES ALARM CH2 GE Multilin D30 Line Distance Protection System 5-67...
Page 188 Delivery time for direct input and output messages is approximately 0.2 of a power system cycle at 128 kbps and 0.4 of a power system cycle at 64 kbps, per each ‘bridge’. 5-68 D30 Line Distance Protection System GE Multilin...
Page 189 The following application examples illustrate the basic concepts for direct input and output configuration. Please refer to the Inputs and outputs section in this chapter for information on configuring FlexLogic operands (flags, bits) to be exchanged. GE Multilin D30 Line Distance Protection System...
Page 190 UR IED 1 BLOCK UR IED 4 UR IED 2 UR IED 3 842712A1.CDR Figure 5–16: SAMPLE INTERLOCKING BUSBAR PROTECTION SCHEME For increased reliability, a dual-ring configuration (shown below) is recommended for this application. 5-70 D30 Line Distance Protection System GE Multilin...
Page 191 The complete application requires addressing a number of issues such as failure of both the communications rings, failure or out-of-service conditions of one of the relays, etc. Self-monitoring flags of the direct inputs and outputs feature would be primarily used to address these concerns. GE Multilin D30 Line Distance Protection System 5-71...
Page 192 Inputs and outputs section. A blocking pilot-aided scheme should be implemented with more security and, ideally, faster message delivery time. This could be accomplished using a dual-ring configuration as shown below. 5-72 D30 Line Distance Protection System GE Multilin...
Page 193 FlexLogic operand is set. When the total message counter reaches the user-defined maximum specified by the set- CRC ALARM CH1 MESSAGE COUNT ting, both the counters reset and the monitoring process is restarted. GE Multilin D30 Line Distance Protection System 5-73...
Page 194 The unreturned messages alarm function is available on a per-channel basis and is active only in the ring configuration. The total number of unreturned input and output messages is available as the   ACTUAL VALUES STATUS DIRECT  actual value. INPUTS UNRETURNED MSG COUNT CH1 5-74 D30 Line Distance Protection System GE Multilin...
Page 195: Teleprotection
TERMINAL 1 ID NUMBER 5.2.17 INSTALLATION   PATH: SETTINGS PRODUCT SETUP INSTALLATION Range: Not Programmed, Programmed  INSTALLATION RELAY SETTINGS:  Not Programmed Range: up to 20 alphanumeric characters RELAY NAME: MESSAGE Relay-1 GE Multilin D30 Line Distance Protection System 5-75...
Page 196 "Programmed" state. UNIT NOT PROGRAMMED setting allows the user to uniquely identify a relay. This name will appear on generated reports. RELAY NAME 5-76 D30 Line Distance Protection System GE Multilin...
Page 197: Remote Resources Configuration
Configure shared inputs and outputs as required for the application's functionality. Shared inputs and outputs are dis- tinct binary channels that provide high-speed protection quality signaling between relays through a Brick. For additional information on how to configure a relay with a process bus module, see GE publication number GEK-113658: HardFiber Process Bus System Instruction Manual.
Page 198: System Setup
1 pu will operate on 1000 A primary. The same rule applies for current sums from CTs with different secondary taps (5 A and 1 A). 5-78 D30 Line Distance Protection System GE Multilin...
Page 199: Power System
ABC or ACB. CT and VT inputs on the relay, labeled as A, B, and C, must be con- nected to system phases A, B, and C for correct operation. GE Multilin D30 Line Distance Protection System...
Page 200: Signal Sources
CT and VT input. For CT inputs, this is the nominal primary and secondary current. For VTs, this is the connection type, ratio and nominal secondary voltage. Once the inputs have been specified, the configuration for each source is entered, including specifying which CTs will be summed together. 5-80 D30 Line Distance Protection System GE Multilin...
Page 201 This configuration could be used on a two-winding transformer, with one winding connected into a breaker-and-a-half sys- tem. The following figure shows the arrangement of sources used to provide the functions required in this application, and the CT/VT inputs that are used to provide the data. GE Multilin D30 Line Distance Protection System 5-81...
Page 202 Figure 5–23: EXAMPLE USE OF SOURCES Y LV D HV SRC 1 SRC 2 SRC 3 Phase CT F1+F5 None Ground CT None None Phase VT None None Aux VT None None 5-82 D30 Line Distance Protection System GE Multilin...
Page 203: Breakers
Range: 0.000 to 65.535 s in steps of 0.001 MANUAL CLOSE RECAL1 MESSAGE TIME: 0.000 s Range: FlexLogic operand BREAKER 1 OUT OF SV: MESSAGE Range: Disabled, Enabled BREAKER 1 EVENTS: MESSAGE Disabled GE Multilin D30 Line Distance Protection System 5-83...
Page 204 MANUAL CLOSE RECAL1 TIME: This setting specifies the interval required to maintain setting changes in effect after an operator has initiated a manual close command to operate a circuit breaker. • BREAKER 1 OUT OF SV: Selects an operand indicating that breaker 1 is out-of-service. 5-84 D30 Line Distance Protection System GE Multilin...
Page 205 5.4 SYSTEM SETUP Figure 5–24: DUAL BREAKER CONTROL SCHEME LOGIC (Sheet 1 of 2) IEC 61850 functionality is permitted when the D30 is in “Programmed” mode and not in the local control mode. NOTE GE Multilin D30 Line Distance Protection System 5-85...
Page 206 5.4 SYSTEM SETUP 5 SETTINGS Figure 5–25: DUAL BREAKER CONTROL SCHEME LOGIC (Sheet 2 of 2) 5-86 D30 Line Distance Protection System GE Multilin...
Page 207: Disconnect Switches
1. • SWITCH 1 MODE: This setting selects “3-Pole” mode, where all disconnect switch poles are operated simultaneously, or “1-Pole” mode where all disconnect switch poles are operated either independently or simultaneously. GE Multilin D30 Line Distance Protection System 5-87...
Page 208 This allows for non-simultaneous operation of the poles. IEC 61850 functionality is permitted when the D30 is in “Programmed” mode and not in the local control mode. NOTE 5-88 D30 Line Distance Protection System GE Multilin...
Page 209 5 SETTINGS 5.4 SYSTEM SETUP Figure 5–26: DISCONNECT SWITCH SCHEME LOGIC GE Multilin D30 Line Distance Protection System 5-89...
Page 210: Flexcurves
1.03 pu. It is recommended to set the two times to a similar value; otherwise, the linear approximation may result in NOTE undesired behavior for the operating quantity that is close to 1.00 pu. 5-90 D30 Line Distance Protection System GE Multilin...
Page 211 The multiplier and adder settings only affect the curve portion of the characteristic and not the MRT and HCT set- tings. The HCT settings override the MRT settings for multiples of pickup greater than the HCT ratio. NOTE GE Multilin D30 Line Distance Protection System 5-91...
Page 212 EnerVista UR Setup software generates an error message and discards the proposed changes. NOTE e) STANDARD RECLOSER CURVES The standard recloser curves available for the D30 are displayed in the following graphs. 5-92 D30 Line Distance Protection System GE Multilin...
Page 213 842723A1.CDR Figure 5–30: RECLOSER CURVES GE101 TO GE106 GE142 GE138 GE120 GE113 0.05 7 8 9 10 12 CURRENT (multiple of pickup) 842725A1.CDR Figure 5–31: RECLOSER CURVES GE113, GE120, GE138 AND GE142 GE Multilin D30 Line Distance Protection System 5-93...
Page 214 Figure 5–32: RECLOSER CURVES GE134, GE137, GE140, GE151 AND GE201 GE152 GE141 GE131 GE200 7 8 9 10 12 CURRENT (multiple of pickup) 842728A1.CDR Figure 5–33: RECLOSER CURVES GE131, GE141, GE152, AND GE200 5-94 D30 Line Distance Protection System GE Multilin...
Page 215 Figure 5–34: RECLOSER CURVES GE133, GE161, GE162, GE163, GE164 AND GE165 GE132 GE139 GE136 GE116 0.05 GE117 GE118 0.02 0.01 7 8 9 10 12 CURRENT (multiple of pickup) 842726A1.CDR Figure 5–35: RECLOSER CURVES GE116, GE117, GE118, GE132, GE136, AND GE139 GE Multilin D30 Line Distance Protection System 5-95...
Page 216 Figure 5–36: RECLOSER CURVES GE107, GE111, GE112, GE114, GE115, GE121, AND GE122 GE202 GE135 GE119 7 8 9 10 12 CURRENT (multiple of pickup) 842727A1.CDR Figure 5–37: RECLOSER CURVES GE119, GE135, AND GE202 5-96 D30 Line Distance Protection System GE Multilin...
Page 217: Flexlogic
Traditionally, protective relay logic has been relatively limited. Any unusual applications involving interlocks, blocking, or supervisory functions had to be hard-wired using contact inputs and outputs. FlexLogic minimizes the requirement for aux- iliary components and wiring while making more complex schemes possible. GE Multilin D30 Line Distance Protection System 5-97...
Page 218 The virtual input is presently in the ON state. Virtual Output Virt Op 1 On The virtual output is presently in the set state (i.e. evaluation of the equation which produces this virtual output results in a "1"). 5-98 D30 Line Distance Protection System GE Multilin...
Page 219 Same set of operands as shown for AUX UV1 ELEMENT: BKR ARC 1 OP Breaker arcing current 1 has operated Breaker arcing BKR ARC 2 OP Breaker arcing current 2 has operated GE Multilin D30 Line Distance Protection System 5-99...
Page 220 GROUND IOC1 OP Ground instantaneous overcurrent 1 has operated instantaneous GROUND IOC1 DPO Ground instantaneous overcurrent 1 has dropped out overcurrent GROUND IOC2 Same set of operands as shown for GROUND IOC 1 5-100 D30 Line Distance Protection System GE Multilin...
Page 221 Phase B directional 1 block overcurrent PH DIR1 BLK C Phase C directional 1 block PH DIR1 BLK Phase directional 1 block PH DIR2 Same set of operands as shown for PH DIR1 GE Multilin D30 Line Distance Protection System 5-101...
Page 222 Phase B of phase undervoltage 1 has dropped out PHASE UV1 DPO C Phase C of phase undervoltage 1 has dropped out PHASE UV2 Same set of operands as shown for PHASE UV1 5-102 D30 Line Distance Protection System GE Multilin...
Page 223 SRC1 VT NEU WIRE OPEN Source 1 VT neutral wire open detected. SRC2 VT FUSE FAIL to Same set of operands as shown for SRC1 VT FUSE FAIL SRC VT FUSE FAIL GE Multilin D30 Line Distance Protection System 5-103...
Page 224 (will not appear unless ordered)   INPUTS/OUTPUTS: Cont Op 1 (will not appear unless ordered) Contact outputs, Cont Op 2 (will not appear unless ordered)   current (from detector on form-A output only) 5-104 D30 Line Distance Protection System GE Multilin...
Page 225 Asserted when remote command access is disabled. ACCESS REM CMND ON Asserted when remote command access is enabled. UNAUTHORIZED ACCESS Asserted when a password entry fails while accessing a password protected level of the D30. GE Multilin D30 Line Distance Protection System 5-105...
Page 226 ID of any of these operands, the assigned name will appear in the relay list of operands. The default names are shown in the FlexLogic operands table above. The characteristics of the logic gates are tabulated below, and the operators available in FlexLogic are listed in the Flex- Logic operators table. 5-106 D30 Line Distance Protection System GE Multilin...
Page 227: Flexlogic™ Rules
A timer operator (for example, "TIMER 1") or virtual output assignment (for example, " = Virt Op 1") may only be used once. If this rule is broken, a syntax error will be declared. GE Multilin D30 Line Distance Protection System...
Page 228: Flexlogic™ Evaluation
(i.e. Virtual Output 3). The final output must also be assigned to a virtual output as virtual output 4, which will be programmed in the contact output section to oper- ate relay H1 (that is, contact output H1). 5-108 D30 Line Distance Protection System GE Multilin...
Page 229 Until accustomed to using FlexLogic, it is suggested that a worksheet with a series of cells marked with the arbitrary parameter numbers be prepared, as shown below. GE Multilin D30 Line Distance Protection System...
Page 230 99: The final output of the equation is virtual output 4 which is parameter “= Virt Op 4". 98: The operator preceding the output is timer 2, which is operand “TIMER 2". Note that the settings required for the timer are established in the timer programming section. 5-110 D30 Line Distance Protection System GE Multilin...
Page 231 It is now possible to check that the selection of parameters will produce the required logic by converting the set of parame- ters into a logic diagram. The result of this process is shown below, which is compared to the logic for virtual output 4 dia- gram as a check. GE Multilin D30 Line Distance Protection System 5-111...
Page 232 In the expression above, the virtual output 4 input to the four-input OR is listed before it is created. This is typical of a form of feedback, in this case, used to create a seal-in effect with the latch, and is correct. 5-112 D30 Line Distance Protection System GE Multilin...
Page 233: Flexlogic™ Equation Editor
TIMER 1 PICKUP DELAY: Sets the time delay to pickup. If a pickup delay is not required, set this function to "0". • TIMER 1 DROPOUT DELAY: Sets the time delay to dropout. If a dropout delay is not required, set this function to "0". GE Multilin D30 Line Distance Protection System 5-113...
Page 234: Flexelements
The element can be programmed to respond either to a signal level or to a rate-of-change (delta) over a pre-defined period of time. The output operand is asserted when the operating signal is higher than a threshold or lower than a threshold as per user's choice. 5-114 D30 Line Distance Protection System GE Multilin...
Page 235 The FLEXELEMENT 1 DIRECTION following figure explains the application of the FLEXELEMENT 1 DIRECTION FLEXELEMENT 1 PICKUP FLEXELEMENT 1 HYS- settings. TERESIS GE Multilin D30 Line Distance Protection System 5-115...
Page 236 DIRECTION = Under; FLEXELEMENT INPUT MODE = Signed; FlexElement 1 OpSig FLEXELEMENT 1 PKP FLEXELEMENT DIRECTION = Under; FLEXELEMENT INPUT MODE = Absolute; FlexElement 1 OpSig 842706A2.CDR Figure 5–48: FLEXELEMENT INPUT MODE SETTING 5-116 D30 Line Distance Protection System GE Multilin...
Page 237 “Delta”. FLEXELEMENT 1 COMP MODE This setting specifies the pickup delay of the element. The setting FLEXELEMENT 1 PKP DELAY FLEXELEMENT 1 RST DELAY specifies the reset delay of the element. GE Multilin D30 Line Distance Protection System 5-117...
Page 238: Non-Volatile Latches
Off=0 LATCH 1 ON Dominant LATCH 1 OFF Previous Previous SETTING State State LATCH 1 SET: Off=0 RESET 842005A1.CDR Figure 5–49: NON-VOLATILE LATCH OPERATION TABLE (N = 1 to 16) AND LOGIC 5-118 D30 Line Distance Protection System GE Multilin...
Page 239: Grouped Elements
Each of the six setting group menus is identical. Setting group 1 (the default active group) automatically becomes active if no other group is active (see the Control elements section for additional details). GE Multilin D30 Line Distance Protection System...
Page 240 2 or excessive phase current within eight power cycles after the autorecloser issues a close command results in the FlexLogic™ operand. For security, the overcurrent trip is supervised LINE PICKUP RCL TRIP 5-120 D30 Line Distance Protection System GE Multilin...
Page 241 1 extension functionality if external autoreclosure is employed. Another zone 1 extension approach is to permanently apply an overreaching zone, and reduce the reach when reclosing. This philosophy can be programmed via the autore- close scheme. Figure 5–50: LINE PICKUP SCHEME LOGIC GE Multilin D30 Line Distance Protection System 5-121...
Page 242: Distance
Keeping the memory in effect for too long may eventually lead to incorrect operation of the distance functions. 5-122 D30 Line Distance Protection System GE Multilin...
Page 243 2.00 ohms Range: 30 to 90° in steps of 1 PHS DIST Z1 MESSAGE RCA: 85° Range: 0.02 to 500.00 ohms in steps of 0.01 PHS DIST Z1 REV MESSAGE REACH: 2.00 ohms GE Multilin D30 Line Distance Protection System 5-123...
Page 244 Although all zones can be used as either instantaneous elements (pickup [ ] and dropout [ ] FlexLogic™ operands) or time-delayed elements (operate [ ] FlexLogic™ operands), only zone 1 is intended for the instantaneous under-reach- ing tripping mode. 5-124 D30 Line Distance Protection System GE Multilin...
Page 245 COMP LIMIT DIR COMP LIMIT DIR COMP LIMIT DIR RCA 837720A1.CDR Figure 5–52: DIRECTIONAL MHO DISTANCE CHARACTERISTIC COMP LIMIT REV REACH 837802A1.CDR Figure 5–53: NON-DIRECTIONAL MHO DISTANCE CHARACTERISTIC GE Multilin D30 Line Distance Protection System 5-125...
Page 246 Figure 5–54: DIRECTIONAL QUADRILATERAL PHASE DISTANCE CHARACTERISTIC COMP LIMIT COMP LIMIT LFT BLD RCA RGT BLD RCA -LFT BLD RGT BLD REV REACH COMP LIMIT COMP LIMIT 837803A1.CDR Figure 5–55: NON-DIRECTIONAL QUADRILATERAL PHASE DISTANCE CHARACTERISTIC 5-126 D30 Line Distance Protection System GE Multilin...
Page 247 DIR COMP LIMIT = 60 RGT BLD RCA = 90 RGT BLD RCA = 80 LFT BLD RCA = 90 LFT BLD RCA = 80 837723A1.CDR Figure 5–57: QUADRILATERAL DISTANCE CHARACTERISTIC SAMPLE SHAPES GE Multilin D30 Line Distance Protection System 5-127...
Page 248 The setting is an angle of reach impedance as shown in the distance characteristic figures shown earlier. This setting is independent from , the characteristic angle of an PHS DIST Z1 DIR RCA extra directional supervising function. 5-128 D30 Line Distance Protection System GE Multilin...
Page 249 PHS DIST Z1 BLK: This setting enables the user to select a FlexLogic™ operand to block a given distance element. VT fuse fail detection is one of the applications for this setting. GE Multilin D30 Line Distance Protection System 5-129...
Page 250 A - B > 3 PICKUP PH DIST Z1 SUPN IBC B - C > 3 PICKUP PH DIST Z1 SUPN ICA 837028A2.CDR C - A > 3 PICKUP Figure 5–60: PHASE DISTANCE SCHEME LOGIC 5-130 D30 Line Distance Protection System GE Multilin...
Page 251 Range: 60 to 90° in steps of 1 GND DIST Z1 QUAD MESSAGE LFT BLD RCA: 85° Range: 0.050 to 30.000 pu in steps of 0.001 GND DIST Z1 MESSAGE SUPV: 0.200 pu GE Multilin D30 Line Distance Protection System 5-131...
Page 252 The directional and non-directional quadrilateral ground distance characteristics are shown below. The directional and non-directional mho ground distance characteristics are the same as those shown for the phase distance element in the previous sub-section. 5-132 D30 Line Distance Protection System GE Multilin...
Page 253 DISTANCE SOURCE zero-sequence impedance between the lines and the positive-sequence impedance of the protected line. It is impera- tive to set this setting to zero if the compensation is not to be performed. GE Multilin D30 Line Distance Protection System 5-133...
Page 254 This setting applies only to the GND DIST Z1 QUAD RGT BLD RCA quadrilateral characteristic and should be set with consideration to the maximum load current and required resistive coverage. 5-134 D30 Line Distance Protection System GE Multilin...
Page 255 20 msec FLEXLOGIC OPERAND GND DIST Z1 PKP B GND DIST Z1 OP 20 msec GND DIST Z1 PKP C 20 msec 837030A1.CDR Figure 5–63: GROUND DISTANCE Z1 TO Z3 OP SCHEME GE Multilin D30 Line Distance Protection System 5-135...
Page 256 = I_0 TIMER GND DIST Z2 DIR SUPN pickup FLEXLOGIC OPERAND OPEN POLE OP reset Co-ordinating time: pickup = 1.0 cycle, reset = 1.0 cycle 837009A7.CDR Figure 5–65: GROUND DIRECTIONAL SUPERVISION SCHEME LOGIC 5-136 D30 Line Distance Protection System GE Multilin...
Page 257: Power Swing Detect
Range: 0.10 to 500.00 ohms in steps of 0.01 POWER SWING MIDDLE MESSAGE LFT BLD: 100.00  Range: 0.10 to 500.00 ohms in steps of 0.01 POWER SWING INNER MESSAGE RGT BLD: 100.00  GE Multilin D30 Line Distance Protection System 5-137...
Page 258 Two-step operation: If the two-step mode is selected, the sequence is identical, but it is the outer and inner character- istics that are used to time the power swing locus. The out-of-step tripping feature operates as follows for three-step and two-step power swing detection modes: 5-138 D30 Line Distance Protection System GE Multilin...
Page 259 “Mho”, the element applies the right and left blinders as well. If the blinders are not required, their settings should be set high enough to effectively disable the blinders. Figure 5–66: POWER SWING DETECT MHO OPERATING CHARACTERISTICS GE Multilin D30 Line Distance Protection System 5-139...
Page 260 FlexLogic operands are auxiliary operands that could be used to facilitate TMR3 PKP POWER SWING TMR4 PKP testing and special applications. • FlexLogic operand shall be used to block selected protection elements such as distance POWER SWING BLOCK functions. 5-140 D30 Line Distance Protection System GE Multilin...
Page 261 POWER SWING QUAD REV REACH MID: This setting specifies the reverse reach of the middle quadrilateral charac- teristic. The angle of this reach impedance is specified by the setting. The setting is not used if POWER SWING FWD RCA the shape setting is “Mho”. GE Multilin D30 Line Distance Protection System 5-141...
Page 262 The delayed trip occurs when the impedance leaves the outer charac- teristic. This time delay is provided for extra security and should be set considering the fastest expected power swing. 5-142 D30 Line Distance Protection System GE Multilin...
Page 263 K_0, K_2 - three times the average change over last power cycle 842008A1.CDR K_1 - four times the average change over last power cycle Figure 5–70: POWER SWING DETECT SCHEME LOGIC (2 of 3) GE Multilin D30 Line Distance Protection System 5-143...
Page 264 L1 AND L4 LATCHES ARE SET DOMINANT L2, L3 AND L5 LATCHES ARE RESET DOMINANT Off=0 FLEXLOGIC OPERAND POWER SWING OUTGOING 827841A4.CDR Figure 5–71: POWER SWING DETECT SCHEME LOGIC (3 of 3) 5-144 D30 Line Distance Protection System GE Multilin...
Page 265: Load Encroachment
The element operates if the positive-sequence voltage is above a settable level and asserts its output signal that can be used to block selected protection elements such as distance or phase overcurrent. The following figure shows an effect of the load encroachment characteristics used to block the quadrilateral distance element. GE Multilin D30 Line Distance Protection System 5-145...
Page 266 LOAD ENCHR DPO Load Encroachment LOAD ENCROACHMENT LOAD ENCROACHMENT LOAD ENCHR OP Characteristic SOURCE: MIN VOLT: Pos Seq Voltage (V_1) V_1 > Pickup Pos Seq Current (I_1) 827847A2.CDR Figure 5–74: LOAD ENCROACHMENT SCHEME LOGIC 5-146 D30 Line Distance Protection System GE Multilin...
Page 267: Phase Current
 DIRECTIONAL 2 b) INVERSE TIME OVERCURRENT CURVE CHARACTERISTICS The inverse time overcurrent curves used by the time overcurrent elements are the IEEE, IEC, GE Type IAC, and I t stan- dard curve shapes. This allows for simplified coordination with downstream devices.
Page 268 4.827 38.634 22.819 14.593 11.675 10.130 9.153 8.470 7.960 7.562 7.241 51.512 30.426 19.458 15.567 13.507 12.204 11.294 10.614 10.083 9.654 10.0 64.390 38.032 24.322 19.458 16.883 15.255 14.117 13.267 12.604 12.068 5-148 D30 Line Distance Protection System GE Multilin...
Page 269 1.835 1.067 0.668 0.526 0.451 0.404 0.371 0.346 0.327 0.311 0.80 2.446 1.423 0.890 0.702 0.602 0.538 0.494 0.461 0.435 0.415 1.00 3.058 1.778 1.113 0.877 0.752 0.673 0.618 0.576 0.544 0.518 GE Multilin D30 Line Distance Protection System 5-149...
Page 270 = characteristic constant, and T = reset time in seconds (assuming energy capacity is 100% RESET is “Timed”) RESET Table 5–16: GE TYPE IAC INVERSE TIME CURVE CONSTANTS IAC CURVE SHAPE IAC Extreme Inverse 0.0040 0.6379 0.6200 1.7872 0.2461...
Page 271 = Reset Time in seconds (assuming energy capacity is 100% and RESET: Timed) RESET RECLOSER CURVES: The D30 uses the FlexCurve feature to facilitate programming of 41 recloser curves. Please refer to the FlexCurve section in this chapter for additional details. GE Multilin D30 Line Distance Protection System 5-151...
Page 272 ‘Mvr’ times the setting. If the voltage restraint feature PHASE TOC1 PICKUP is disabled, the pickup level always remains at the setting value. 5-152 D30 Line Distance Protection System GE Multilin...
Page 273 PHASE TOC1 C DPO Multiplier-Phase C PHASE TOC1 C OP SETTING PHASE TOC1 PKP PHASE TOC1 VOLT RESTRAINT: PHASE TOC1 OP Enabled PHASE TOC1 DPO 827072A4.CDR Figure 5–76: PHASE TIME OVERCURRENT 1 SCHEME LOGIC GE Multilin D30 Line Distance Protection System 5-153...
Page 274 PHASE IOC1 PKP SETTING PHASE IOC1 OP PHASE IOC1 BLOCK-B: PHASE IOC1 DPO Off = 0 SETTING 827033A6.VSD PHASE IOC1 BLOCK-C: Off = 0 Figure 5–77: PHASE INSTANTANEOUS OVERCURRENT 1 SCHEME LOGIC 5-154 D30 Line Distance Protection System GE Multilin...
Page 275 CTs and the line-line voltage from the VTs, based on the 90° or quadrature connection. If there is a requirement to supervise overcurrent elements for flows in opposite directions, such as can happen through a bus-tie breaker, two phase directional elements should be programmed with opposite element characteristic angle (ECA) settings. GE Multilin D30 Line Distance Protection System 5-155...
Page 276 10 ms must be added to all the instantaneous protection elements under the supervi- sion of the phase directional element. If current reversal is of a concern, a longer delay – in the order of 20 ms – may be needed. 5-156 D30 Line Distance Protection System GE Multilin...
Page 277: Neutral Current
 NEUTRAL IOC1 See page 5–159. MESSAGE   NEUTRAL IOC2 See page 5–159. MESSAGE   NEUTRAL See page 5–160. MESSAGE  DIRECTIONAL 1  NEUTRAL See page 5–160. MESSAGE  DIRECTIONAL 2 GE Multilin D30 Line Distance Protection System 5-157...
Page 278 NEUTRAL TOC1 PKP RESET: NEUTRAL TOC1 IN ≥ PICKUP NEUTRAL TOC1 DPO SOURCE: NEUTRAL TOC1 OP SETTING NEUTRAL TOC1 BLOCK: Off = 0 827034A3.VSD Figure 5–80: NEUTRAL TIME OVERCURRENT 1 SCHEME LOGIC 5-158 D30 Line Distance Protection System GE Multilin...
Page 279 RESET DELAY : SETTING NEUTRAL IOC1 DPO NEUTRAL IOC1 OP 3( _0 - K _1 ) PICKUP NEUTRAL IOC1 BLOCK: Off=0 SETTING NEUTRAL IOC1 SOURCE: 827035A4.CDR Figure 5–81: NEUTRAL IOC1 SCHEME LOGIC GE Multilin D30 Line Distance Protection System 5-159...
Page 280     (EQ 5.16) – The positive-sequence restraint allows for more sensitive settings by counterbalancing spurious zero-sequence currents resulting from: • System unbalances under heavy load conditions. 5-160 D30 Line Distance Protection System GE Multilin...
Page 281 1.5 of a power system cycle. The element is designed to emu- late an electromechanical directional device. Larger operating and polarizing signals will result in faster directional discrimi- nation bringing more security to the element operation. GE Multilin D30 Line Distance Protection System 5-161...
Page 282 The low-side system impedance should be assumed minimal when checking for this condition. A similar sit- uation arises for a wye/delta/wye transformer, where current in one transformer winding neutral may reverse when faults on both sides of the transformer are considered. 5-162 D30 Line Distance Protection System GE Multilin...
Page 283 NEUTRAL DIR OC1 REV PICKUP: This setting defines the pickup level for the overcurrent unit of the element in the reverse direction. When selecting this setting it must be kept in mind that the design uses a positive-sequence restraint technique for the “Calculated 3I0” mode of operation. GE Multilin D30 Line Distance Protection System 5-163...
Page 284: Ground Current
MESSAGE  The D30 contains protection elements for ground time overcurrent (ANSI device 51G) and ground instantaneous overcur- rent (ANSI device 50G). Two ground time overcurrent and ground instantaneous overcurrent elementsare available. 5-164 D30 Line Distance Protection System GE Multilin...
Page 285 GROUND TOC 1 SETTING GROUND TOC1 PKP RESET: GROUND TOC1 GROUND TOC1 DPO IG ≥ PICKUP SOURCE: GROUND TOC1 OP SETTING GROUND TOC1 BLOCK: Off = 0 827036A3.VSD Figure 5–84: GROUND TOC1 SCHEME LOGIC GE Multilin D30 Line Distance Protection System 5-165...
Page 286 Enabled = 1 SETTING DELAY: GROUND IOC1 GROUND IOC1 RESET SETTING PICKUP: DELAY: GROUND IOC1 SOURCE: IG ≥ PICKUP SETTING GROUND IOC1 BLOCK: 827037A4.VSD Off = 0 Figure 5–85: GROUND IOC1 SCHEME LOGIC 5-166 D30 Line Distance Protection System GE Multilin...
Page 287: Negative Sequence Current
The D30 relay provides two (2) negative-sequence time overcurrent elements, two (2) negative-sequence instantaneous overcurrent elements, and two (2) negative-sequence directional overcurrent elements. For additional information on the negative sequence time overcurrent curves, refer to the Inverse Time Overcurrent Curves section earlier. GE Multilin D30 Line Distance Protection System 5-167...
Page 288 < NEG SEQ PICKUP NEG SEQ TOC1 DPO NEG SEQ TOC1 BLOCK: NEG SEQ TOC1 OP Off=0 SETTING NEG SEQ TOC1 SOURCE: Neg Seq 827057A4.CDR Figure 5–86: NEGATIVE SEQUENCE TOC1 SCHEME LOGIC 5-168 D30 Line Distance Protection System GE Multilin...
Page 289 SETTING NEG SEQ IOC1 DPO NEG SEQ IOC1 OP _2 - K _1 PICKUP NEG SEQ IOC1 BLOCK: Off=0 SETTING NEG SEQ IOC1 SOURCE: 827058A5.CDR Figure 5–87: NEGATIVE SEQUENCE IOC1 SCHEME LOGIC GE Multilin D30 Line Distance Protection System 5-169...
Page 290 The positive-sequence restraint allows for more sensitive settings by counterbalancing spurious negative-sequence and zero-sequence currents resulting from: • System unbalances under heavy load conditions. • Transformation errors of current transformers (CTs). • Fault inception and switch-off transients. 5-170 D30 Line Distance Protection System GE Multilin...
Page 291 = 80° (forward limit angle = ± the angular limit with the ECA for operation) REV LA = 80° (reverse limit angle = ± the angular limit with the ECA for operation) GE Multilin D30 Line Distance Protection System 5-171...
Page 292 The element characteristic angle in the reverse direction is the angle set for the forward direction shifted by 180°. • NEG SEQ DIR OC1 FWD LIMIT ANGLE: This setting defines a symmetrical (in both directions from the ECA) limit angle for the forward direction. 5-172 D30 Line Distance Protection System GE Multilin...
Page 293 When NEG SEQ DIR OC1 TYPE selecting this setting it must be kept in mind that the design uses a positive-sequence restraint technique. Figure 5–89: NEGATIVE SEQUENCE DIRECTIONAL OC1 SCHEME LOGIC GE Multilin D30 Line Distance Protection System 5-173...
Page 294: Voltage Elements
The time delay is adjustable from 0 to 600.00 seconds in steps of 0.01. The undervoltage elements can also be programmed to have an inverse time delay char- acteristic. 5-174 D30 Line Distance Protection System GE Multilin...
Page 295 V = secondary voltage applied to the relay = pickup level pickup % of voltage pickup 842788A1.CDR Figure 5–90: INVERSE TIME UNDERVOLTAGE CURVES At 0% of pickup, the operating time equals the UNDERVOLTAGE DELAY setting. NOTE GE Multilin D30 Line Distance Protection System 5-175...
Page 296 FLEXLOGIC OPERAND SETTING PHASE UV1 PKP PHASE UV1 MODE: FLEXLOGIC OPERAND Phase to Ground Phase to Phase PHASE UV1 OP FLEXLOGIC OPERAND PHASE UV1 DPO 827039AB.CDR Figure 5–91: PHASE UNDERVOLTAGE1 SCHEME LOGIC 5-176 D30 Line Distance Protection System GE Multilin...
Page 297 FLEXLOGIC OPERAND PHASE OV1 PKP 827066A7.CDR Figure 5–92: PHASE OVERVOLTAGE SCHEME LOGIC   If the source VT is wye-connected, then the phase overvoltage pickup condition is Pickup for V and V NOTE GE Multilin D30 Line Distance Protection System 5-177...
Page 298 “Definite time”. The source assigned to this element must be configured for a phase VT. NEUTRAL OV1 CURVE VT errors and normal voltage unbalance must be considered when setting this element. This function requires the VTs to be wye-connected. Figure 5–93: NEUTRAL OVERVOLTAGE1 SCHEME LOGIC 5-178 D30 Line Distance Protection System GE Multilin...
Page 299 NEG SEQ OV1 DPO NEG SEQ OV1 OP SETTING ≥ V_2 or 3 × V_2 PKP NEG SEQ OV1 SIGNAL SOURCE: Wye VT Delta VT 3 × V_2 827839A3.CDR Figure 5–94: NEGATIVE-SEQUENCE OVERVOLTAGE SCHEME LOGIC GE Multilin D30 Line Distance Protection System 5-179...
Page 300 AUX UV1 PKP AUX UV1 DPO SETTING SETTING AUX UV1 OP AUX UV1 MINIMUM AUX UV1 SIGNAL VOLTAGE: SOURCE: < AUX VOLT Vx Vx Minimum 827849A2.CDR Figure 5–95: AUXILIARY UNDERVOLTAGE SCHEME LOGIC 5-180 D30 Line Distance Protection System GE Multilin...
Page 301 Off=0 DELAY : FLEXLOGIC OPERANDS < Vx Pickup AUX OV1 OP SETTING AUX OV1 DPO AUX OV1 SIGNAL AUX OV1 PKP SOURCE: AUXILIARY VOLT (Vx) 827836A2.CDR Figure 5–96: AUXILIARY OVERVOLTAGE SCHEME LOGIC GE Multilin D30 Line Distance Protection System 5-181...
Page 302: Control Elements
If more than one operate-type operand is required, it may be assigned directly from the trip bus menu. 5-182 D30 Line Distance Protection System GE Multilin...
Page 303 TRIP BUS 1 PKP = Enabled TRIP BUS 1 BLOCK = Off SETTINGS TRIP BUS 1 LATCHING = Enabled TRIP BUS 1 RESET = Off FLEXLOGIC OPERAND RESET OP 842023A1.CDR Figure 5–98: TRIP BUS LOGIC GE Multilin D30 Line Distance Protection System 5-183...
Page 304: Setting Groups
The assigned operand is used to control the “On” state of a particular settings group. VIRTUAL OUTPUT 1 5-184 D30 Line Distance Protection System GE Multilin...
Page 305: Selector Switch
SELECTOR 1 3BIT ACK: MESSAGE Range: Restore, Synchronize, Sync/Restore SELECTOR 1 POWER-UP MESSAGE MODE: Restore Range: Self-reset, Latched, Disabled SELECTOR 1 TARGETS: MESSAGE Self-reset Range: Disabled, Enabled SELECTOR 1 EVENTS: MESSAGE Disabled GE Multilin D30 Line Distance Protection System 5-185...
Page 306 SELECTOR 1 3BIT A0, A1, and A2: These settings specify a three-bit control input of the selector. The three-bit con- trol word pre-selects the position using the following encoding convention: POSITION rest 5-186 D30 Line Distance Protection System GE Multilin...
Page 307 The selector position pre-selected via the stepping up control input has not been confirmed before the time out. SELECTOR 1 BIT ALARM The selector position pre-selected via the three-bit control input has not been confirmed before the time out. GE Multilin D30 Line Distance Protection System 5-187...
Page 308 3BIT A2 POS 1 POS 2 POS 3 POS 4 POS 5 POS 6 POS 7 BIT 0 BIT 1 BIT 2 STP ALARM BIT ALARM ALARM 842737A1.CDR Figure 5–100: TIME-OUT MODE 5-188 D30 Line Distance Protection System GE Multilin...
Page 309 Make the following changes to selector switch element in the    SETTINGS CONTROL ELEMENTS SELECTOR SWITCH menu to assign control to user programmable pushbutton 1 and contact inputs 1 through 3: SELECTOR SWITCH 1 GE Multilin D30 Line Distance Protection System 5-189...
Page 310 SELECTOR 1 BIT ALARM 3-bit position out SELECTOR 1 ALARM SELECTOR 1 PWR ALARM SELECTOR 1 BIT 0 SELECTOR 1 BIT 1 SELECTOR 1 BIT 2 842012A2.CDR Figure 5–102: SELECTOR SWITCH LOGIC 5-190 D30 Line Distance Protection System GE Multilin...
Page 311: Synchrocheck
F. This time can be calculated by: ------------------------------- - (EQ 5.20) 360 ----------------- -  F 2   where: = phase angle difference in degrees; F = frequency difference in Hz. GE Multilin D30 Line Distance Protection System 5-191...
Page 312 COMBINATION SOURCE Y SOURCE Z Phase VTs and Phase VTs and Phase Phase Auxiliary VT Auxiliary VT Phase VTs and Phase VT Phase Phase Auxiliary VT Phase VT Phase VT Phase Phase 5-192 D30 Line Distance Protection System GE Multilin...
Page 313 The relay will use the phase channel of a three-phase set of voltages if pro- grammed as part of that source. The relay will use the auxiliary voltage channel only if that channel is programmed as part of the Source and a three-phase set is not. GE Multilin D30 Line Distance Protection System 5-193...
Page 314 5.7 CONTROL ELEMENTS 5 SETTINGS Figure 5–103: SYNCHROCHECK SCHEME LOGIC 5-194 D30 Line Distance Protection System GE Multilin...
Page 315: Autoreclose
4.000 s Range: FlexLogic™ operand AR1 ADD DELAY 1: MESSAGE Range: 0.00 to 655.35 s in steps of 0.01 AR1 DELAY 1: MESSAGE 0.000 s Range: FlexLogic™ operand AR1 ADD DELAY 2: MESSAGE GE Multilin D30 Line Distance Protection System 5-195...
Page 316 Scheme lockout blocks all phases of the reclosing cycle, preventing automatic reclosure, if any of the following occurs: • The maximum shot number was reached. • A ‘Block’ input is in effect (for instance; Breaker Failure, bus differential protection operated, etc.). 5-196 D30 Line Distance Protection System GE Multilin...
Page 317 ‘reclose-in-progress’ state. If all condi- tions allowing a breaker closure are not satisfied when this time expires, the scheme goes to “Lockout”. This timer must be set to a delay less than the reset timer. NOTE GE Multilin D30 Line Distance Protection System 5-197...
Page 318 5.7 CONTROL ELEMENTS 5 SETTINGS To sheet 2 Figure 5–104: AUTORECLOSURE SCHEME LOGIC (Sheet 1 of 2) 5-198 D30 Line Distance Protection System GE Multilin...
Page 319 5 SETTINGS 5.7 CONTROL ELEMENTS Figure 5–105: AUTORECLOSURE SCHEME LOGIC (Sheet 2 of 2) GE Multilin D30 Line Distance Protection System 5-199...
Page 320 5.7 CONTROL ELEMENTS 5 SETTINGS Figure 5–106: SINGLE SHOT AUTORECLOSING SEQUENCE - PERMANENT FAULT 5-200 D30 Line Distance Protection System GE Multilin...
Page 321: Digital Elements
Some versions of the digital input modules include an active voltage monitor circuit connected across form-A contacts. The voltage monitor circuit limits the trickle current through the output circuit (see technical specifications for form-A). GE Multilin D30 Line Distance Protection System...
Page 322 The settings to use digital element 1 to monitor the breaker trip circuit are indicated below (EnerVista UR Setup example shown): The PICKUP DELAY setting should be greater than the operating time of the breaker to avoid nuisance alarms. NOTE 5-202 D30 Line Distance Protection System GE Multilin...
Page 323 “Off”. In this case, the settings are as follows (EnerVista UR Setup example shown). Figure 5–109: TRIP CIRCUIT EXAMPLE 2 The wiring connection for two examples above is applicable to both form-A contacts with voltage monitoring and solid-state contact with voltage monitoring. NOTE GE Multilin D30 Line Distance Protection System 5-203...
Page 324: Digital Counters
–2,147,483,648 counts, the counter will rollover to +2,147,483,647. • COUNTER 1 BLOCK: Selects the FlexLogic operand for blocking the counting operation. All counter operands are blocked. 5-204 D30 Line Distance Protection System GE Multilin...
Page 325 COUNTER 1 FROZEN: Off = 0 STORE DATE & TIME Date & Time SETTING COUNT1 FREEZE/RESET: Off = 0 827065A1.VSD SETTING COUNT1 FREEZE/COUNT: Off = 0 Figure 5–110: DIGITAL COUNTER SCHEME LOGIC GE Multilin D30 Line Distance Protection System 5-205...
Page 326: Monitoring Elements
When the threshold is exceeded in any phase, the relay can set an output operand to “1”. The accumulated value for each phase can be displayed as an actual value. 5-206 D30 Line Distance Protection System GE Multilin...
Page 327 BKR 1 ARC AMP LIMIT: Selects the threshold value above which the output operand is set. Breaker Contacts Initiate Extinguished Part Total Area = Breaker Arcing Current (kA·cycle) Programmable 100 ms Start Delay Start Stop Integration Integration Figure 5–111: ARCING CURRENT MEASUREMENT GE Multilin D30 Line Distance Protection System 5-207...
Page 328 BKR 1 ARCING AMP C Φ 827071A3.CDR BKR 1 OPERATING TIME A Φ BKR 1 OPERATING TIME B Φ BKR 1 OPERATING TIME C Φ BKR 1 OPERATING TIME Figure 5–112: BREAKER ARCING CURRENT SCHEME LOGIC 5-208 D30 Line Distance Protection System GE Multilin...
Page 329 An additional condition is introduced to inhibit a fuse failure declaration when the monitored circuit is de-energized; positive- sequence voltage and current are both below threshold levels. The function setting enables and disables the fuse failure feature for each source. GE Multilin D30 Line Distance Protection System 5-209...
Page 330 20 c cles Enabled = 1 SOURCE FLEX-A ALOG 3V_0(3rd Harmonic) SRC1 3V0 3rd Harmonic Note 3V_0 is the sample summation 827093AN.CDR of Va, Vb, and Vc. Figure 5–113: VT FUSE FAIL SCHEME LOGIC 5-210 D30 Line Distance Protection System GE Multilin...
Page 331 • BROKEN CONDUCTOR 1 PKP DELAY: This setting specifies the pickup time delay for this function to operate after assertion of the broken conductor pickup FlexLogic operand. GE Multilin D30 Line Distance Protection System 5-211...
Page 332 5 cycles is less than 10% of the base current. If this current is greater or equal than 10% than the base current, then the hot curve characteristic is applied. 5-212 D30 Line Distance Protection System GE Multilin...
Page 333    ---------------------------- -  (EQ 5.23)     – In the above equation, • τ = thermal protection trip time constant. • is a minimum reset time setting GE Multilin D30 Line Distance Protection System 5-213...
Page 334 IEC255-8 cold curve or hot curve equations. op(In) • is the reset time calculated at index n as per the reset time equation. rst(In) • is the measured overload RMS current at index n. 5-214 D30 Line Distance Protection System GE Multilin...
Page 335 30 minutes Busbar 60 minutes 20 minutes Underground cable 20 to 60 minutes 60 minutes The logic for the thermal overload protection element is shown below. Figure 5–116: THERMAL OVERLOAD PROTECTION SCHEME LOGIC GE Multilin D30 Line Distance Protection System 5-215...
Page 336: Inputs And Outputs
The update is performed at the beginning of the protection pass so all protection and control functions, as well as FlexLogic equations, are fed with the updated states of the contact inputs. 5-216 D30 Line Distance Protection System GE Multilin...
Page 337 Event Records menu, make the following settings changes: "Breaker Closed (52b)" CONTACT INPUT H5A ID: "Enabled" CONTACT INPUT H5A EVENTS: Note that the 52b contact is closed when the breaker is open and open when the breaker is closed. GE Multilin D30 Line Distance Protection System 5-217...
Page 338: Virtual Inputs
“Virtual Input 1 to OFF = 0” VIRTUAL INPUT 1 ID: SETTING (Flexlogic Operand) Virt Ip 1 VIRTUAL INPUT 1 TYPE: Latched Self - Reset 827080A2.CDR Figure 5–118: VIRTUAL INPUTS SCHEME LOGIC 5-218 D30 Line Distance Protection System GE Multilin...
Page 339: Contact Outputs
L-Cont Op 1 Range: FlexLogic operand OUTPUT H1a OPERATE: MESSAGE Range: FlexLogic operand OUTPUT H1a RESET: MESSAGE Range: Operate-dominant, Reset-dominant OUTPUT H1a TYPE: MESSAGE Operate-dominant Range: Disabled, Enabled OUTPUT H1a EVENTS: MESSAGE Disabled GE Multilin D30 Line Distance Protection System 5-219...
Page 340 Application Example 3: A make before break functionality must be added to the preceding example. An overlap of 20 ms is required to implement this functionality as described below: 5-220 D30 Line Distance Protection System GE Multilin...
Page 341: Virtual Outputs
Logic equations. Any change of state of a virtual output can be logged as an event if programmed to do so. For example, if Virtual Output 1 is the trip signal from FlexLogic and the trip relay is used to signal events, the settings would be programmed as follows: GE Multilin D30 Line Distance Protection System 5-221...
Page 342: Remote Devices
PRODUCT SETUP COMMUNICATIONS IEC 61850 PROTOCOL GSSE/GOOSE    setting. CONFIGURATION TRANSMISSION GSSE GSSE ID In D30 releases previous to 5.0x, these name strings were represented by the setting. RELAY NAME 5-222 D30 Line Distance Protection System GE Multilin...
Page 343: Remote Inputs
0. When communication resumes, the input becomes fully operational. For additional information on GSSE/GOOOSE messaging, refer to the Remote Devices section in this chapter. NOTE GE Multilin D30 Line Distance Protection System 5-223...
Page 344: Remote Double-Point Status Inputs
The above operand setting represents a specific DNA function (as shown in the following table) to be transmitted. Table 5–24: IEC 61850 DNA ASSIGNMENTS IEC 61850 DEFINITION FLEXLOGIC OPERAND Test IEC 61850 TEST MODE ConfRev IEC 61850 CONF REV 5-224 D30 Line Distance Protection System GE Multilin...
Page 345: Resetting
MESSAGE DEVICE ID: 1 Range: 1 to 32 DIRECT INPUT MESSAGE BIT NUMBER: Range: On, Off, Latest/On, Latest/Off DIRECT INPUT MESSAGE DEFAULT STATE: Off Range: Enabled, Disabled DIRECT INPUT MESSAGE EVENTS: Disabled GE Multilin D30 Line Distance Protection System 5-225...
Page 346 12 are used, as an example): UR IED 1: = “2” UR IED 2: = “Cont Ip 1 On” DIRECT INPUT 5 DEVICE ID DIRECT OUT 12 OPERAND = “12” DIRECT INPUT 5 BIT NUMBER 5-226 D30 Line Distance Protection System GE Multilin...
Page 347 . Upon losing communications or a device, the scheme is inclined to block (if any default state is set to “On”), or to trip the bus on any overcurrent condition (all default states set to “Off”). GE Multilin D30 Line Distance Protection System...
Page 348 " " (forward a message from 1 to 3) DIRECT OUT 3 OPERAND: DIRECT INPUT 5 " " (forward a message from 3 to 1) DIRECT OUT 4 OPERAND: DIRECT INPUT 6 5-228 D30 Line Distance Protection System GE Multilin...
Page 349: Teleprotection Inputs And Outputs
Setting the setting to “On” defaults the input to logic 1 when the channel fails. A value of “Off” TELEPROT INPUT ~~ DEFAULT defaults the input to logic 0 when the channel fails. GE Multilin D30 Line Distance Protection System 5-229...
Page 350 (same for 1-2...1-16) SETTING with redundant channel) FLEXLOGIC OPERAND TELEPROT OUTPUT 2-1: (same for 2-2...2-16) Fail TELEPRO INPUT 2-1 On Off (Flexlogic Operand) (same for 1-2...1-16) 842750A2.CDR Figure 5–124: TELEPROTECTION INPUT/OUTPUT PROCESSING 5-230 D30 Line Distance Protection System GE Multilin...
Page 351: Iec 61850 Goose Analogs
= maximum primary RMS value of all the sources related to the +IN and –IN inputs BASE (Max Delta Volts) The GOOSE analog input FlexAnalog values are available for use in other D30 functions that use FlexAnalog values. GE Multilin D30 Line Distance Protection System 5-231...
Page 352: Iec 61850 Goose Integers
“Default Value”, then the value of the GOOSE uinteger input is defined by the setting. UINTEGER 1 DEFAULT The GOOSE integer input FlexInteger values are available for use in other D30 functions that use FlexInteger values. 5-232 D30 Line Distance Protection System GE Multilin...
Page 353: Transducer Inputs And Outputs
–20 to +180 MW; in this case the value would be “–20” and the DCMA INPUT H1 MIN VALUE DCMA INPUT H1 MAX value “180”. Intermediate values between the min and max values are scaled linearly. VALUE GE Multilin D30 Line Distance Protection System 5-233...
Page 354: Rtd Inputs
1.5 pu. FlexElement operands are available to FlexLogic for further interlocking or to operate an output contact directly. Refer to the following table for reference temperature values for each RTD type. 5-234 D30 Line Distance Protection System GE Multilin...
Page 355 168.47 280.77 233.97 16.00 172.46 291.96 243.30 16.39 175.84 303.46 252.88 16.78 179.51 315.31 262.76 17.17 183.17 327.54 272.94 17.56 186.82 340.14 283.45 17.95 190.45 353.14 294.28 18.34 194.08 366.53 305.44 18.73 GE Multilin D30 Line Distance Protection System 5-235...
Page 356: Dcma Outputs
– MAX VAL MIN VAL MAX VAL < 0.1 pu. The resulting characteristic is illustrated in the following figure. DRIVING SIGNAL MIN VAL MAX VAL 842739A1.CDR Figure 5–125: DCMA OUTPUT CHARACTERISTIC 5-236 D30 Line Distance Protection System GE Multilin...
Page 357 The CT ratio is 5000:5 and the maximum load current is 4200 A. The current should be monitored from 0 A upwards, allow- ing for 50% overload. The phase current with the 50% overload margin is: GE Multilin D30 Line Distance Protection System 5-237...
Page 358 1.27 kV – • ±0.5% of reading For example, under nominal conditions, the positive-sequence reads 230.94 kV and the worst-case error is 0.005 x 230.94 kV + 1.27 kV = 2.42 kV. 5-238 D30 Line Distance Protection System GE Multilin...
Page 359: Testing
The test mode state is indicated on the relay faceplate by a combination of the Test Mode LED indicator, the In-Service LED indicator, and by the critical fail relay, as shown in the following table. GE Multilin D30 Line Distance Protection System...
Page 360: Force Contact Inputs
Mode LED will be on, indicating that the relay is in test mode. The state of each contact input may be programmed as “Dis- abled”, “Open”, or “Closed”. All contact input operations return to normal when all settings for this feature are disabled. 5-240 D30 Line Distance Protection System GE Multilin...
Page 361: Force Contact Outputs
PUSHBUTTON 1 FUNCTION input 1 to initiate the Test mode, make the following changes in the menu:   SETTINGS TESTING TEST MODE “Enabled” and “ ” TEST MODE FUNCTION: TEST MODE INITIATE: GE Multilin D30 Line Distance Protection System 5-241...
Page 362 5.10 TESTING 5 SETTINGS 5-242 D30 Line Distance Protection System GE Multilin...
Page 363: Actual Values
 GOOSE UINTEGERS  TELEPROT CH TESTS See page 6-9.   COMM STATUS See page 6-10.  REMAINING CONNECT  ACTUAL VALUES  SOURCE SRC 1 See page 6-14.  METERING  GE Multilin D30 Line Distance Protection System...
Page 364   OSCILLOGRAPHY See page 6-21.   MAINTENANCE See page 6-21.   ACTUAL VALUES  MODEL INFORMATION See page 6-22.  PRODUCT INFO   FIRMWARE REVISIONS See page 6-22.  D30 Line Distance Protection System GE Multilin...
Page 365: Contact Inputs
The state displayed will be that of the remote point unless the remote device has been established to be “Offline” in which case the value shown is the programmed default state for the remote input. GE Multilin D30 Line Distance Protection System...
Page 366: Remote Double-Point Status Inputs
The present state of the contact outputs is shown here. The first line of a message display indicates the ID of the contact output. For example, ‘Cont Op 1’ refers to the contact output in terms of the default name-array index. The second line of the display indicates the logic state of the contact output. D30 Line Distance Protection System GE Multilin...
Page 367: Virtual Outputs
The present state of the programmed remote devices is shown here. The message indicates ALL REMOTE DEVICES ONLINE whether or not all programmed remote devices are online. If the corresponding state is "No", then at least one required remote device is not online. GE Multilin D30 Line Distance Protection System...
Page 368: Digital Counters
  PATH: ACTUAL VALUES STATUS FLEX STATES Range: Off, On  FLEX STATES PARAM 1: Off  Range: Off, On PARAM 2: Off MESSAGE  Range: Off, On PARAM 256: Off MESSAGE D30 Line Distance Protection System GE Multilin...
Page 369: Ethernet
CALIBRATING • if the port is synchronized, but the peer delay mechanism is non-operational, and SYNCH’D (NO PDELAY) • if synchronized. SYNCHRONIZED GE Multilin D30 Line Distance Protection System...
Page 370: Direct Inputs
DIRECT DEVICES STATUS Range: Offline, Online  DIRECT DEVICES DIRECT DEVICE 1  STATUS STATUS: Offline Range: Offline, Online DIRECT DEVICE 2 MESSAGE STATUS: Offline  Range: Offline, Online DIRECT DEVICE 16 MESSAGE STATUS: Offline D30 Line Distance Protection System GE Multilin...
Page 371: Iec 61850 Goose Integers
“FAIL” message will be displayed. The “N/A” value appears if the local relay ID is set to a default value of “0”, the chan- nel is failed, or if the teleprotection inputs/outputs are not enabled. GE Multilin D30 Line Distance Protection System...
Page 372: Remaining Connection Status
Range: 0 to 4 MODBUS TCP (max 4) MESSAGE Range: 0 to 2 DNP (max 2) MESSAGE Range: 0 to 2 IEC-104 (max 2) MESSAGE Range: 0 to 4 PMU TCP (max 4) MESSAGE 6-10 D30 Line Distance Protection System GE Multilin...
Page 373: Metering Conventions
WATTS = Negative VARS = Positive PF = Lead PF = Lag PF = Lead Current UR RELAY 827239AC.CDR S=VI Generator Figure 6–1: FLOW DIRECTION OF SIGNED VALUES FOR WATTS AND VARS GE Multilin D30 Line Distance Protection System 6-11...
Page 374 -- - V   -- - V   -- - V   -- - V   -- - V   The above equations apply to currents as well. 6-12 D30 Line Distance Protection System GE Multilin...
Page 375 SYSTEM SETUP POWER SYSTEM FREQUENCY AND PHASE REFERENCE The example above is illustrated in the following figure. SYSTEM VOLTAGES SYMMETRICAL COMPONENTS WYE VTs DELTA VTs 827844A1.CDR Figure 6–3: MEASUREMENT CONVENTION FOR SYMMETRICAL COMPONENTS GE Multilin D30 Line Distance Protection System 6-13...
Page 376: Sources
0.000 0.0° SRC 1 PHASOR Ic: MESSAGE 0.000 0.0° SRC 1 PHASOR In: MESSAGE 0.000 0.0° SRC 1 ZERO SEQ I0: MESSAGE 0.000 0.0° SRC 1 POS SEQ I1: MESSAGE 0.000 0.0° 6-14 D30 Line Distance Protection System GE Multilin...
Page 377 RMS Vca: MESSAGE 0.00 SRC 1 PHASOR Vab: MESSAGE 0.000 0.0° SRC 1 PHASOR Vbc: MESSAGE 0.000 0.0° SRC 1 PHASOR Vca: MESSAGE 0.000 0.0° SRC 1 ZERO SEQ V0: MESSAGE 0.000 0.0° GE Multilin D30 Line Distance Protection System 6-15...
Page 378 APPARENT PWR MESSAGE 3: 0.000 SRC 1 APPARENT PWR MESSAGE a: 0.000 SRC 1 APPARENT PWR MESSAGE b: 0.000 SRC 1 APPARENT PWR MESSAGE c: 0.000 SRC 1 POWER FACTOR MESSAGE 3: 1.000 6-16 D30 Line Distance Protection System GE Multilin...
Page 379: Synchrocheck
The tracking frequency is displayed here. The frequency is tracked based on the selection of the reference source with the setting in the   menu. Refer to the FREQUENCY AND PHASE REFERENCE SETTINGS SYSTEM SETUP POWER SYSTEM Power System section of chapter 5 for additional details. GE Multilin D30 Line Distance Protection System 6-17...
Page 380: Flexelements
2 for additional details. The IEC 61850 GGIO3 analog input data points are displayed in this menu. The GGIO3 analog data values are received via IEC 61850 GOOSE messages sent from other devices. 6-18 D30 Line Distance Protection System GE Multilin...
Page 381: Transducer Inputs/Outputs
RTD INPUT xx  -50 °C Actual values for each RTD input channel that is enabled are displayed with the top line as the programmed channel ID and the bottom line as the value. GE Multilin D30 Line Distance Protection System 6-19...
Page 382: Records
If all 1024 event records have been filled, the oldest record will be removed as a new record is added. Each event record shows the event identifier/sequence number, cause, and date/time stamp associated with the event trigger. Refer to the menu for clearing event records.  COMMANDS CLEAR RECORDS 6-20 D30 Line Distance Protection System GE Multilin...
Page 383: Oscillography
BKR 1 ARCING AMP  menu for clearing breaker arcing current records. The COMMANDS CLEAR RECORDS BREAKER OPERATING TIME defined as the slowest operating time of breaker poles that were initiated to open. GE Multilin D30 Line Distance Protection System 6-21...
Page 384: Product Information
6.5PRODUCT INFORMATION 6.5.1 MODEL INFORMATION   PATH: ACTUAL VALUES PRODUCT INFO MODEL INFORMATION Range: standard GE Multilin order code format;  MODEL INFORMATION ORDER CODE LINE 1: example order code shown  D30-E00-HCL-F8H-H6A Range: standard GE Multilin order code format...
Page 385: Commands And
The states of up to 64 virtual inputs are changed here. The first line of the display indicates the ID of the virtual input. The second line indicates the current or selected status of the virtual input. This status will be a state off (logic 0) or on (logic 1). GE Multilin D30 Line Distance Protection System...
Page 386 The complete date, as a minimum, must be entered to allow execution of this command. The new time (if entered) and date will take effect at the moment the ENTER key is clicked. The timescale of the entered time should be local time, including daylight time where and when applicable. D30 Line Distance Protection System GE Multilin...
Page 387: Relay Maintenance
CLEAR SECURITY DATA: Default: No With the CyberSentry option, this setting is available to enable or disable the following commands: • Administrator Logoff: Selecting ‘Yes’ allows the Supervisor to forcefully logoff an administrator session. GE Multilin D30 Line Distance Protection System...
Page 388 Operator Logoff: Selecting ‘Yes’ allows the Supervisor to forcefully logoff an operator session. • Clear Security Data: Selecting ‘Yes’ allows the Supervisor to forcefully clear all the security logs and clears all the operands associated with the self-tests. D30 Line Distance Protection System GE Multilin...
Page 389: Targets Menu
The critical fail relay on the power supply module is de-energized. • All other output relays are de-energized and are prevented from further operation. • The faceplate In Service LED indicator is turned off. • event is recorded. RELAY OUT OF SERVICE GE Multilin D30 Line Distance Protection System...
Page 390 How often the test is performed: On power up and whenever the   PRODUCT SETUP INSTALLATION RELAY SETTINGS setting is altered • What to do: Program all settings and then set   to “Programmed”. PRODUCT SETUP INSTALLATION RELAY SETTINGS D30 Line Distance Protection System GE Multilin...
Page 391 Description of problem: The Ethernet connection has failed for the specified port. • How often the test is performed: Every five seconds. • What to do: Check the Ethernet port connection on the switch. MAINTENANCE ALERT: **Bad IRIG-B Signal** GE Multilin D30 Line Distance Protection System...
Page 392 How often the test is performed: Upon initiation of a contact output state change. • What to do: Verify the state of the output contact and contact the factory if the problem persists. D30 Line Distance Protection System GE Multilin...
Page 393 What to do: Contact the factory. d) WRONG TRANSCEIVER MESSAGES Description: The type of SFP does not match the CPU type. T-type CPU = All ports support fiber SFPs only Type: minor Target: latched GE Multilin D30 Line Distance Protection System...
Page 394 Brick. Where multiple UR-series devices have self-test errors, look for common causes. 7-10 D30 Line Distance Protection System GE Multilin...
Page 395 Brick output failing to respond to an output command can only be detected while the command is active, and so in this case the target is latched. A latched target can be unlatched by pressing the faceplate reset key if the command has ended, however the output may still be non-functional. GE Multilin D30 Line Distance Protection System 7-11...
Page 396 7.2 TARGETS 7 COMMANDS AND TARGETS 7-12 D30 Line Distance Protection System GE Multilin...
Page 397: Security
To add user accounts: Select the Security > User Management menu item to open the user management window. Enter a username in the User field. The username must be 4 to 20 characters in length. GE Multilin D30 Line Distance Protection System...
Page 398: Modifying User Privileges
The EnerVista security management system must be enabled To modify user privileges: Select the Security > User Management menu item to open the user management window. Locate the username in the User field. D30 Line Distance Protection System GE Multilin...
Page 399 The user is not granted write access to functions that are not checked, even if the Update Info field is checked. Admin The user is an EnerVista UR Setup administrator, therefore receiving all of the administrative rights. Exercise caution when granting administrator rights. Click OK to save the changes. GE Multilin D30 Line Distance Protection System...
Page 400: Cybersentry
(Administrator, Engineer, Supervisor, Observer, Operator) as login names and the associated passwords are stored on the UR device. As such, when using the local accounts, access is not user-attributable. D30 Line Distance Protection System GE Multilin...
Page 401 > Product Setup > Security, accessible from the top-level menu. NOTE No password or security information are displayed in plain text by the EnerVista software or UR device, nor are they ever transmitted without cryptographic protection. GE Multilin D30 Line Distance Protection System...
Page 402: Security Menu
This setting must following (Shared) Secret meet the CyberSentry password password requirements. section for requirements RADIUS Authentication method used by RADIUS EAP-TTLS EAP-TTLS EAP-TTLS Administrator Authentication server. Currently fixed to EAP-TTLS. Method D30 Line Distance Protection System GE Multilin...
Page 403 Change Text The specified role protected. All RADIUS users are password- following following Me1# and Administrator, protected. password password except for section for section for Supervisor, where requirements requireme it is only itself GE Multilin D30 Line Distance Protection System...
Page 404 |--------------- Supervisory see table notes see table notes |--------------- Display Properties Clear relay records |--------------- (settings) |--------------- Communications |--------------- Modbus user map |--------------- Real Time Clock |--------------- Oscillography |--------------- Data Logger |--------------- Demand D30 Line Distance Protection System GE Multilin...
Page 405 |--------------- Analogs IEC61850 GOOSE |--------------- Integers |------------ Transducer I/O |------------ Testing |------------ Front Panel Labels Designer |------------ Protection Summary Commands |------------ Virtual Inputs |------------ Clear Records |------------ Set date and time User Displays GE Multilin D30 Line Distance Protection System...
Page 406 Remote user IDs must reside on an external RADIUS server, and must be provided with the requisite user role (see the fol- lowing example). Users are specified in the RADIUS server configuration file for users. Roles are specified in the RADIUS server dictionary. Example: In the file ‘users’: exampleusername User-Password == "examplepassword" 8-10 D30 Line Distance Protection System GE Multilin...
Page 407: Theory Of Operation
(SIRs). The filter controls underestimation of the fault voltage magnitude to less than 1% of the nominal and prevents cer- tain phase angle anomalies that can be encountered under heavy CVT noise and high SIRs. GE Multilin D30 Line Distance Protection System...
Page 408: Distance Characteristics
The limit angle of the comparator is adjustable enabling the user to shape the characteristic as a mho or a lens as shown in the figures below.The memory-polarized mho characteristic has an excellent directional integrity built-in as explained in the Memory polarization section. D30 Line Distance Protection System GE Multilin...
Page 409 B ground element: I j  Z + I_0  K0  Z + I  K0M  Z – V (j  I_0 or j  I_2C)  e • C ground element: I GE Multilin D30 Line Distance Protection System...
Page 410 + I_0  K0  Z  K0M  Z  Z + I_0  K0  Z  K0M  Z C ground element: – V The blinders apply to the Quad characteristic only. D30 Line Distance Protection System GE Multilin...
Page 411 Table 9–4: DIRECTIONAL QUADRILATERAL GROUND DISTANCE FUNCTIONS CHARACTERISTIC COMPARATOR INPUTS LIMIT ANGLE j j I  Z – V j  I_0  e or j  I_2  e Reactance COMP LIMIT GE Multilin D30 Line Distance Protection System...
Page 412: Memory Polarization
The memory-polarized mho has an extra directional integrity built-in as illustrated below. The self-polarized mho character- istic is shifted in the reverse direction for a forward fault by an amount proportional to the source impedance, and in the for- ward direction for a reverse fault. D30 Line Distance Protection System GE Multilin...
Page 413: Distance Elements Analysis
Left Blinder RCA: 88° Nominal Secondary Voltage: 69.28 V Polarizing Current: Zero-sequence Right Blinder RCA: 88° Non-Homogeneity Correction Angle: 3° Distance Reach: 14  Directional RCA: 88° Left Blinder Reach: 5  Z0/Z1 Magnitude: 4.55 GE Multilin D30 Line Distance Protection System...
Page 414 Fault-type comparator difference angle = | 19.8° – 19.8° | = 0.0°  50° • All four comparators and the overcurrent supervision are satisfied. The MHO phase A ground element will operate for this fault. D30 Line Distance Protection System GE Multilin...
Page 415  K0M  Z = 57.0 V 108.7° – V  Z + I_0  K0  Z = 45.8 V 82.9° Overcurrent supervision: | 3  I_0 | = 4.09 A  3 A • GE Multilin D30 Line Distance Protection System...
Page 416 Fault-type comparator difference angle = | 19.8° – 19.8° | = 0.0°  50° • All six comparators and the overcurrent supervision are satisfied. The Quad Phase A ground element will operate for this fault. 9-10 D30 Line Distance Protection System GE Multilin...
Page 417: Phase Distance Applied To Power Transformers Description
Z3 XFRM VOL CONNECTION = None Z3 XFRM CUR CONNECTION = Yd1 Z1 XFRM VOL CONNECTION = Dy11 Z1 XFRM CUR CONNECTION = None 830717A1.CDR Figure 9–4: APPLICATIONS OF THE “PHS DIST XFMR VOL/CUR CONNECTION” SETTINGS GE Multilin D30 Line Distance Protection System 9-11...
Page 418  CA_21P – CA_21P Dy11 – ------ - V   AB_21P – AB_21P –   ------ - V BC_21P – BC_21P –   ------ - V CA_21P – CA_21P 9-12 D30 Line Distance Protection System GE Multilin...
Page 419 – – CA_21P CA_21P Yd11   – ------ - I – AB_21P AB_21P   – ------ - I – BC_21P BC_21P   – ------ - I – CA_21P CA_21P GE Multilin D30 Line Distance Protection System 9-13...
Page 420: Example
= 2.576 kA –27.6° primary or 42.93 A –27.6° secondary I = I – I And consequently it would see an apparent impedance of: = V / I = 30.05  85° primary or 0.687  85° secondary 9-14 D30 Line Distance Protection System GE Multilin...
Page 421 X, the relay shall be set to 0.687  85° secondary in order to reach to the fault shown in the figure. When installed at H, the relay shall be set to 2.569  88.4° to ensure exactly same coverage. See Chapter 9: Application of Settings for more information on setting calculations. GE Multilin D30 Line Distance Protection System 9-15...
Page 422: Ground Directional Overcurrent
Assume further the pickup setting of 0.25 A for both forward and reverse directions, and the “Negative-sequence” mode setting entered for the overcurrent unit of the element. The relay calculates the operating signal using the positive- sequence restraint: 9-16 D30 Line Distance Protection System GE Multilin...
Page 423 9 THEORY OF OPERATION 9.3 GROUND DIRECTIONAL OVERCURRENT I_op = |I_2| – |I_1| / 8 = 1.003 A > 0.25 A. The overcurrent unit will pickup and the element will operate in the forward direction. GE Multilin D30 Line Distance Protection System 9-17...
Page 424 100%. This means that fast distance pro- tection is not achievable. The adaptive D30's mechanism would guarantee security on external faults. Overreaching ground fault directional overcurrent functions (such as negative-sequence, ground or neutral) shall be used for dependability. 9-18 D30 Line Distance Protection System GE Multilin...
Page 425 The offset impedance can always be successfully selected to guarantee correct fault direction discrimination regardless of the degree of compensation and location of the series capacitors and the potential source. Refer to Chapter 9: Application of Settings for detailed recommendations on settings for series compensation applications. GE Multilin D30 Line Distance Protection System 9-19...
Page 426 The reach is not reduced HIGH-CURRENT INTERNAL FAULT Impedance Set reach Trajectory (no subsynchronous oscillations) Steady-state apparent impedance The reach is not reduced 837730A1.CDR Figure 9–8: DYNAMIC REACH FOR INTERNAL AND EXTERNAL FAULTS 9-20 D30 Line Distance Protection System GE Multilin...
Page 427: Fault Locator
Depending on the fault type, appropriate voltage and current signals are selected from the phase quantities before applying the two equations above (the superscripts denote phases, the subscripts denote stations). For AG faults:  (EQ 9.13) GE Multilin D30 Line Distance Protection System 9-21...
Page 428 (EQ 9.20) – – SYS0   Z -- - V – – SYS0 where Z is the equivalent zero-sequence impedance behind the relay as entered under the fault report setting menu. SYS0 9-22 D30 Line Distance Protection System GE Multilin...
Page 429 FAULT FAULT LOCATION 3I_0 LOCATOR 1 FAULT# RECLOSE SHOT VA or VAB VB or VBC VC or VCA Vn or V_0 SHOT # FROM 827094A5.CDR AUTO RECLOSURE Figure 9–10: FAULT LOCATOR SCHEME GE Multilin D30 Line Distance Protection System 9-23...
Page 430 9.5 FAULT LOCATOR 9 THEORY OF OPERATION 9-24 D30 Line Distance Protection System GE Multilin...
Page 431: Application Of
4 = 0.332 of power cycle is required by the phase instantaneous overcurrent element to operate. The above information should not be confused with the operating time, which includes some inherent delays such as a trip rated output contact. GE Multilin D30 Line Distance Protection System...
Page 432: Distance Elements (Stepped Distance Scheme)
Circuit loading limitations created by a long zone reach may be overcome by using lens or quadrilateral characteristics and/or a load encroachment supervising characteristic. Consider- 10-2 D30 Line Distance Protection System GE Multilin...
Page 433: Ground Distance
2_RELAY where: A is the local equivalent system B is the remote equivalent system L is the line d is the per-unit (pu) intended reach of the zone (typically 0.7 to 0.9). GE Multilin D30 Line Distance Protection System 10-3...
Page 434 However, even in this case, there is more uncertainty as compared with the phase distance elements because the zero- sequence impedance of the line and thus the zero-sequence-compensating factors may vary significantly due to weather and other conditions. 10-4 D30 Line Distance Protection System GE Multilin...
Page 435 The fifth distance zone can be used as an alarm zone, indicating that load impedance is approaching the zone characteristic. GE Multilin D30 Line Distance Protection System 10-5...
Page 436: Series Compensated Lines
D30 feature for dynamic reach control. If the adaptive reach control feature is used, the setting shall be set accordingly. PHS DIST Z1 VOLT LEVEL 10-6 D30 Line Distance Protection System GE Multilin...
Page 437: Ground Directional Overcurrent
Net inductive reactance from relay through far-end busbar = 10 – 4 = 6 ; the offset cannot be higher than 6 . • It is recommended to use 3.5  offset impedance. • 10.3.4 HIGH-SET PHASE OVERCURRENT The setting rules for high-set overcurrent protection are explained in the High-Set Overcurrent Elements section. GE Multilin D30 Line Distance Protection System 10-7...
Page 438: Phase Distance Through Power Transformers
= positive-sequence impedance of the transformer = transformer rated voltages = transformation ratio of the CTs = transformation ratio of the VTs Z1: Z1 reach setting (secondary ohms) Z3: Zone 3 reach setting (secondary ohms) 10-8 D30 Line Distance Protection System GE Multilin...
Page 439: Example
------------ -  0.8011 85 (EQ 10.9) 2625 "0.80" PHS DIST Z1 REACH: "85" PHS DIST Z1 RCA: "None" PHS DIST Z1 XMFR VOL CONNECTION: "Dy1" PHS DIST Z1 XMFR CUR CONNECTION: GE Multilin D30 Line Distance Protection System 10-9...
Page 440 ------------ - 2.601 89.4 (EQ 10.10) 13.8 2625 "2.60" PHS DIST Z3 REACH: "89" PHS DIST Z3 RCA: "Yd11" PHS DIST Z3 XMFR VOL CONNECTION: "None" PHS DIST Z3 XMFR CUR CONNECTION: 10-10 D30 Line Distance Protection System GE Multilin...
Page 441: Parameter Lists
SRC 2 In RMS Amps Source 2 neutral current RMS 6216 SRC 2 Ia Mag Amps Source 2 phase A current magnitude 6218 SRC 2 Ia Angle Degrees Source 2 phase A current angle GE Multilin D30 Line Distance Protection System...
Page 442 SRC 2 Vag RMS Volts Source 2 phase AG voltage RMS 6722 SRC 2 Vbg RMS Volts Source 2 phase BG voltage RMS 6724 SRC 2 Vcg RMS Volts Source 2 phase CG voltage RMS D30 Line Distance Protection System GE Multilin...
Page 443 Source 2 phase C real power 7208 SRC 2 Q Vars Source 2 three-phase reactive power 7210 SRC 2 Qa Vars Source 2 phase A reactive power 7212 SRC 2 Qb Vars Source 2 phase B reactive power GE Multilin D30 Line Distance Protection System...
Page 444 Synchrocheck 3 delta voltage 9226 Synchchk 3 Delta F Synchrocheck 3 delta frequency 9227 Synchchk 3 Delta Phs Degrees Synchrocheck 3 delta phase 9228 Synchchk 4 Delta V Volts Synchrocheck 4 delta voltage D30 Line Distance Protection System GE Multilin...
Page 445 RTD input 13 actual value 13565 RTD Inputs 14 Value RTD input 14 actual value 13566 RTD Inputs 15 Value RTD input 15 actual value 13567 RTD Inputs 16 Value RTD input 16 actual value GE Multilin D30 Line Distance Protection System...
Page 446 FlexElement 6 actual value 39180 FlexElement 7 Value FlexElement 7 actual value 39182 FlexElement 8 Value FlexElement 8 actual value 39184 FlexElement 9 Value FlexElement 9 actual value 39186 FlexElement 10 Value FlexElement 10 actual value D30 Line Distance Protection System GE Multilin...
Page 447 63507 Dist IcaZ Vca Ang[1] Degrees Distance IbaZ Vca angle 1 63508 Dist IcaZ Vca Ang[2] Degrees Distance IbaZ Vca angle 2 63509 Dist IcaZ Vca Ang[3] Degrees Distance IbaZ Vca angle 3 GE Multilin D30 Line Distance Protection System...
Page 448 IabZR V IabZR Ang[4] Degrees Distance IabZL Vab IabZL angle 4 63555 IabZR V IabZR Ang[5] Degrees Distance IabZL Vab IabZL angle 5 63556 IabZR V IbcZR Ang[1] Degrees Distance IbcZL Vbc IbcZL angle 1 D30 Line Distance Protection System GE Multilin...
Page 449 IcgZL V IcgZL Ang[3] Degrees Distance IcgZL Vcg IcgZL angle 3 63594 IcgZL V IcgZL Ang[4] Degrees Distance IcgZL Vcg IcgZL angle 4 63595 IcgZL V IcgZL Ang[5] Degrees Distance IcgZL Vcg IcgZL angle 5 GE Multilin D30 Line Distance Protection System...
Page 450: Flexinteger Items
IEC61850 GOOSE UInteger input 13 9994 GOOSE UInt Input 14 IEC61850 GOOSE UInteger input 14 9996 GOOSE UInt Input 15 IEC61850 GOOSE UInteger input 15 9998 GOOSE UInt Input 16 IEC61850 GOOSE UInteger input 16 A-10 D30 Line Distance Protection System GE Multilin...
Page 451: Modbus Communications
Broadcast mode is only recognized when associated with function code 05h. For any other function code, a packet with broadcast mode slave address 0 will be ignored. GE Multilin D30 Line Distance Protection System...
Page 452: Algorithm
No: go to 8; Yes: G (+) A --> A and continue. Is j = 8? No: go to 5; Yes: continue i + 1 --> i Is i = N? No: go to 3; Yes: continue A --> CRC D30 Line Distance Protection System GE Multilin...
Page 453: Modbus Function Codes
Modbus officially defines function codes from 1 to 127 though only a small subset is generally needed. The relay supports some of these functions, as summarized in the following table. Subsequent sections describe each function code in detail. FUNCTION CODE MODBUS DEFINITION GE MULTILIN DEFINITION Read holding registers Read actual values or settings Read holding registers...
Page 454: Execute Operation (Function Code 05H
DATA STARTING ADDRESS - low DATA STARTING ADDRESS - low DATA - high DATA - high DATA - low DATA - low CRC - low CRC - low CRC - high CRC - high D30 Line Distance Protection System GE Multilin...
Page 455: Store Multiple Settings (Function Code 10H
PACKET FORMAT EXAMPLE (HEX) SLAVE ADDRESS SLAVE ADDRESS FUNCTION CODE FUNCTION CODE CRC - low order byte ERROR CODE CRC - high order byte CRC - low order byte CRC - high order byte GE Multilin D30 Line Distance Protection System...
Page 456: File Transfers
Cleared Date to the present date and time. To read binary COMTRADE oscillography files, read the following filenames: OSCnnnn.CFG and OSCnnn.DAT Replace “nnn” with the desired oscillography trigger number. For ASCII format, use the following file names OSCAnnnn.CFG and OSCAnnn.DAT D30 Line Distance Protection System GE Multilin...
Page 457 “Number of Fault Reports' register. If the value changes, then the master reads all the new files. The contents of the file is in standard HTML notation and can be viewed via any commercial browser. GE Multilin D30 Line Distance Protection System...
Page 458: Modbus Password Operation
Command or setting password security access is restricted to the particular port or particular TCP/IP connection on which the entry was made. Passwords must be entered when accessing the relay through other ports or connections, and the passwords must be re-entered after disconnecting and re-connecting on TCP/IP. D30 Line Distance Protection System GE Multilin...
Page 459: Memory Mapping
0414 Virtual Input 21 State 0 to 1 F108 0 (Off) 0415 Virtual Input 22 State 0 to 1 F108 0 (Off) 0416 Virtual Input 23 State 0 to 1 F108 0 (Off) GE Multilin D30 Line Distance Protection System...
Page 460 ...Repeated for Digital Counter 3 0818 ...Repeated for Digital Counter 4 0820 ...Repeated for Digital Counter 5 0828 ...Repeated for Digital Counter 6 0830 ...Repeated for Digital Counter 7 0838 ...Repeated for Digital Counter 8 B-10 D30 Line Distance Protection System GE Multilin...
Page 461 1606 Field shared output operand states 0 to 65535 F500 1607 Field latching output open operand states 0 to 65535 F500 1608 Field latching output close operand states 0 to 65535 F500 GE Multilin D30 Line Distance Protection System B-11...
Page 462 Source 1 Differential Ground Current Magnitude 0 to 999999.999 0.001 F060 1824 Source 1 Differential Ground Current Angle -359.9 to 0 degrees F002 1825 Reserved (27 items) F001 1840 ...Repeated for Source 2 B-12 D30 Line Distance Protection System GE Multilin...
Page 463 Source 1 Phase B Reactive Power -1000000000000 to 0.001 F060 1000000000000 1C0E Source 1 Phase C Reactive Power -1000000000000 to 0.001 F060 1000000000000 1C10 Source 1 Three Phase Apparent Power -1000000000000 to 0.001 F060 1000000000000 GE Multilin D30 Line Distance Protection System B-13...
Page 464 0 to 1 F126 0 (No) 2229 Breaker 6 Arcing Current Clear Command 0 to 1 F126 0 (No) Passwords Unauthorized Access (Read/Write Command) 2230 Reset Unauthorized Access 0 to 1 F126 0 (No) B-14 D30 Line Distance Protection System GE Multilin...
Page 465 0 to 128 F156 0 (None) 2622 Remote double-point status input 1 name 1 to 64 F205 "Rem Ip 1" 2628 Remote double-point status input 1 events 0 to 1 F102 0 (Disabled) GE Multilin D30 Line Distance Protection System B-15...
Page 466 Oscillography Last Cleared Date 0 to 400000000 F050 3004 Oscillography Number Of Cycles Per Record 0 to 65535 F001 Oscillography Commands (Read/Write Command) 3005 Oscillography Force Trigger 0 to 1 F126 0 (No) B-16 D30 Line Distance Protection System GE Multilin...
Page 467 Security (Read/Write) 32CA Operator alphanumeric password entry F202 (none) Security (Read/Write Setting) 32D4 Observer alphanumeric password setting F202 (none) Security (Read Only) 32DE Observer alphanumeric password status 0 to 1 F102 0 (Disabled) GE Multilin D30 Line Distance Protection System B-17...
Page 468 DCMA Inputs 12 Value -9999999 to 9999999 F004 34D8 DCMA Inputs 13 Value -9999999 to 9999999 F004 34DA DCMA Inputs 14 Value -9999999 to 9999999 F004 34DC DCMA Inputs 15 Value -9999999 to 9999999 F004 B-18 D30 Line Distance Protection System GE Multilin...
Page 469 °C F002 3519 RTD Input 42 Value -32768 to 32767 °C F002 351A RTD Input 43 Value -32768 to 32767 °C F002 351B RTD Input 44 Value -32768 to 32767 °C F002 GE Multilin D30 Line Distance Protection System B-19...
Page 470 1 to 4 F001 380F ...Repeated for Field Unit 2 381E ...Repeated for Filed Unit 3 382D ...Repeated for Filed Unit 4 383C ...Repeated for Filed Unit 5 384B ...Repeated for Filed Unit 6 B-20 D30 Line Distance Protection System GE Multilin...
Page 471 ...Repeated for Field Contact Input 11 3979 ...Repeated for Field Contact Input 12 3984 ...Repeated for Field Contact Input 13 398F ...Repeated for Field Contact Input 14 399A ...Repeated for Field Contact Input 15 GE Multilin D30 Line Distance Protection System B-21...
Page 472 0 to 1 F102 1 (Enabled) 3BD2 ...Repeated for Field Contact Output 2 3C14 ...Repeated for Field Contact Output 3 3C56 ...Repeated for Field Contact Output 4 3C98 ...Repeated for Field Contact Output 5 B-22 D30 Line Distance Protection System GE Multilin...
Page 473 ...Repeated for Field Unit RTD 8 Field Unit Transducers (Read/Write Setting) (8 modules) 3F40 Field Unit Transducer 1 Name 0 to 1 F205 "TRD 1" 3F46 Field Unit Transducer 1 Origin 0 to 24 0 (none) GE Multilin D30 Line Distance Protection System B-23...
Page 474 0 to 3 F531 0 (English) 4050 Flash Message Time 0.5 to 10 F001 4051 Default Message Timeout 10 to 900 F001 4052 Default Message Intensity 0 to 3 F101 0 (25%) B-24 D30 Line Distance Protection System GE Multilin...
Page 475 DNP communications reserved (22 items) 0 to 1 F001 40E0 TCP port number for the IEC 60870-5-104 protocol 0 to 65535 F001 2404 40E1 IEC 60870-5-104 protocol function 0 to 1 F102 0 (Disabled) GE Multilin D30 Line Distance Protection System B-25...
Page 476 Clock Events Enable / Disable 0 to 1 F102 0 (Disabled) 41A8 Time Zone Offset from UTC –24 to 24 hours F002 41A9 Daylight Savings Time (DST) Function 0 to 1 F102 0 (Disabled) B-26 D30 Line Distance Protection System GE Multilin...
Page 477 ...Repeated for User-Programmable LED 25 430B ...Repeated for User-Programmable LED 26 430E ...Repeated for User-Programmable LED 27 4311 ...Repeated for User-Programmable LED 28 4314 ...Repeated for User-Programmable LED 29 4317 ...Repeated for User-Programmable LED 30 GE Multilin D30 Line Distance Protection System B-27...
Page 478 1 (Vag) 4505 Auxiliary VT 1 Secondary 25 to 240 F001 4506 Auxiliary VT 1 Ratio 1 to 24000 F060 4508 ...Repeated for VT Bank 2 4510 ...Repeated for VT Bank 3 B-28 D30 Line Distance Protection System GE Multilin...
Page 479 User-Definable Display 1 Bottom Line Text F202 ““ 4C14 Modbus Addresses of Display 1 Items (5 items) 0 to 65535 F001 4C19 Reserved (7 items) F001 4C20 ...Repeated for User-Definable Display 2 GE Multilin D30 Line Distance Protection System B-29...
Page 480 0 to 0.1 F002 4E2C Repeated for module number 2 4E58 Repeated for module number 3 4E84 Repeated for module number 4 4E80 Repeated for module number 5 4EDC Repeated for module number 6 B-30 D30 Line Distance Protection System GE Multilin...
Page 481 ...Repeated for RTD Input 41 5734 ...Repeated for RTD Input 42 5748 ...Repeated for RTD Input 43 575C ...Repeated for RTD Input 44 5770 ...Repeated for RTD Input 45 5784 ...Repeated for RTD Input 46 GE Multilin D30 Line Distance Protection System B-31...
Page 482 F102 0 (Disabled) 5911 Reserved (3 items) 0 to 1 F001 5914 ...Repeated for Phase Time Overcurrent 2 5928 ...Repeated for Phase Time Overcurrent 3 593C ...Repeated for Phase Time Overcurrent 4 B-32 D30 Line Distance Protection System GE Multilin...
Page 483 0 to 1 F001 5C11 ...Repeated for Neutral Instantaneous Overcurrent 2 5C22 ...Repeated for Neutral Instantaneous Overcurrent 3 5C33 ...Repeated for Neutral Instantaneous Overcurrent 4 5C44 ...Repeated for Neutral Instantaneous Overcurrent 5 GE Multilin D30 Line Distance Protection System B-33...
Page 484 5F7D Setting Group Function 0 to 1 F102 0 (Disabled) 5F7E Setting Group Events 0 to 1 F102 0 (Disabled) Setting Groups (Read Only) 5F7F Current Setting Group 0 to 5 F001 B-34 D30 Line Distance Protection System GE Multilin...
Page 485 0 to 1 F001 6311 ...Repeated for Negative Sequence Time Overcurrent 2 Negative Sequence Instantaneous Overcurrent (Read/Write Grouped Setting) (2 modules) 63C0 Negative Sequence Instantaneous OC 1 Function 0 to 1 F102 0 (Disabled) GE Multilin D30 Line Distance Protection System B-35...
Page 486 0.01 F001 10000 65DF Power Swing Detect Inner Right Blinder 0.1 to 500 ohms 0.01 F001 10000 65E0 Power Swing Detect Inner Left Blinder 0.1 to 500 ohms 0.01 F001 10000 B-36 D30 Line Distance Protection System GE Multilin...
Page 487 Phase Distance Zone 1 Function 0 to 1 F102 0 (Disabled) 7071 Phase Distance Zone 1 Current Supervision 0.05 to 30 0.001 F001 7072 Phase Distance Zone 1 Reach 0.02 to 500 ohms 0.01 F001 GE Multilin D30 Line Distance Protection System B-37...
Page 488 0.02 to 500 ohms 0.01 F001 717A Ground Distance Zone 1 Reverse Reach RCA 30 to 90 degrees F001 714B Reserved (7 items) 0 to 65535 F001 7152 ...Repeated for Ground Distance Zone 2 B-38 D30 Line Distance Protection System GE Multilin...
Page 489 0 (Calculated 3I0) 723E Neutral Directional Overcurrent 1 Offset 0 to 250 ohms 0.01 F001 723F Neutral Directional Overcurrent 1 Pos Seq Restraint 0 to 0.5 0.001 F001 7240 Reserved 0 to 1 F001 GE Multilin D30 Line Distance Protection System B-39...
Page 490 Broken Conductor 1 Function 0 to 1 F102 0 (Disabled) 77AB Broken Conductor 1 Source 0 to 5 F167 0 (SRC 1) 77AC Broken Conductor 1 I2/I1 Ratio 20 to 100 F001 B-40 D30 Line Distance Protection System GE Multilin...
Page 491 F001 7F05 Neutral Overvoltage 1 Block 0 to 4294967295 F300 7F07 Neutral Overvoltage 1 Target 0 to 2 F109 0 (Self-reset) 7F08 Neutral Overvoltage 1 Events 0 to 1 F102 0 (Disabled) GE Multilin D30 Line Distance Protection System B-41...
Page 492 0 to 2 F109 0 (Self-reset) 8A12 Digital Element 1 Events 0 to 1 F102 0 (Disabled) 8A13 Digital Element 1 Pickup LED 0 to 1 F102 1 (Enabled) 8A14 Reserved (2 items) F001 B-42 D30 Line Distance Protection System GE Multilin...
Page 493 Trip Bus 1 Reset Delay 0 to 600 0.01 F001 8ED5 Trip Bus 1 Input (16 items) 0 to 4294967295 F300 8EF5 Trip Bus 1 Latching 0 to 1 F102 0 (Disabled) GE Multilin D30 Line Distance Protection System B-43...
Page 494 Fault Report 1 System Z0 Magnitude 0.01 to 650.00 ohms 0.01 F001 9208 Fault Report 1 System Z0 Angle 25 to 90 degrees F001 920C Fault REM1-TAP Z1 Magnitude 0.01 to 250 ohms 0.01 F001 B-44 D30 Line Distance Protection System GE Multilin...
Page 495 ...Repeated for Direct Input/Output 10 9478 ...Repeated for Direct Input/Output 11 9484 ...Repeated for Direct Input/Output 12 9490 ...Repeated for Direct Input/Output 13 949C ...Repeated for Direct Input/Output 14 94A8 ...Repeated for Direct Input/Output 15 GE Multilin D30 Line Distance Protection System B-45...
Page 496 Teleprotection Number of Channels 1 to 2 F001 9993 Teleprotection Local Relay ID 0 to 255 F001 9994 Teleprotection Terminal 1 ID 0 to 255 F001 9995 Teleprotection Terminal 2 ID 0 to 255 F001 B-46 D30 Line Distance Protection System GE Multilin...
Page 497 Digital Counter 1 Block 0 to 4294967295 F300 A30C Digital Counter 1 Up 0 to 4294967295 F300 A30E Digital Counter 1 Down 0 to 4294967295 F300 A311 Digital Counter 1 Preset –2147483647 to F004 2147483647 GE Multilin D30 Line Distance Protection System B-47...
Page 498 ...Repeated for IEC 61850 GOOSE analog input 7 AA31 ...Repeated for IEC 61850 GOOSE analog input 8 AA38 ...Repeated for IEC 61850 GOOSE analog input 9 AA3F ...Repeated for IEC 61850 GOOSE analog input 10 B-48 D30 Line Distance Protection System GE Multilin...
Page 499 4 to 32 F001 AF01 GOOSE analog scan period 100 to 5000 F001 1000 IEC 61850 GGIO4 analog input points configuration settings (read/write) AF10 IEC 61850 GGIO4 analog input 1 value F600 GE Multilin D30 Line Distance Protection System B-49...
Page 500 “LDInst” B08D IEC 61850 LPHD Location F204 “Location” B0B5 Include non-IEC 61850 Data 0 to 1 F102 0 (Disabled) B0B6 IEC 61850 Server Data Scanning Function 0 to 1 F102 0 (Disabled) B-50 D30 Line Distance Protection System GE Multilin...
Page 501 ...Repeated for Received Analog 10 B224 ...Repeated for Received Analog 11 B226 ...Repeated for Received Analog 12 B228 ...Repeated for Received Analog 13 B22A ...Repeated for Received Analog 14 B22C ...Repeated for Received Analog 15 GE Multilin D30 Line Distance Protection System B-51...
Page 502 ...Repeated for Module 2 B940 ...Repeated for Module 3 B960 ...Repeated for Module 4 B980 ...Repeated for Module 5 B9A0 ...Repeated for Module 6 B9C0 ...Repeated for Module 7 B9E0 ...Repeated for Module 8 B-52 D30 Line Distance Protection System GE Multilin...
Page 503 ...Repeated for Contact Input 38 BC30 ...Repeated for Contact Input 39 BC38 ...Repeated for Contact Input 40 BC40 ...Repeated for Contact Input 41 BC48 ...Repeated for Contact Input 42 BC50 ...Repeated for Contact Input 43 GE Multilin D30 Line Distance Protection System B-53...
Page 504 ...Repeated for Contact Input 91 BDD8 ...Repeated for Contact Input 92 BDE0 ...Repeated for Contact Input 93 BDE8 ...Repeated for Contact Input 94 BDF0 ...Repeated for Contact Input 95 BDF8 ...Repeated for Contact Input 96 B-54 D30 Line Distance Protection System GE Multilin...
Page 505 ...Repeated for Virtual Input 42 C028 ...Repeated for Virtual Input 43 C034 ...Repeated for Virtual Input 44 C040 ...Repeated for Virtual Input 45 C04C ...Repeated for Virtual Input 46 C058 ...Repeated for Virtual Input 47 GE Multilin D30 Line Distance Protection System B-55...
Page 506 ...Repeated for Virtual Output 29 C218 ...Repeated for Virtual Output 30 C220 ...Repeated for Virtual Output 31 C228 ...Repeated for Virtual Output 32 C230 ...Repeated for Virtual Output 33 C238 ...Repeated for Virtual Output 34 B-56 D30 Line Distance Protection System GE Multilin...
Page 507 ...Repeated for Virtual Output 83 C3C8 ...Repeated for Virtual Output 84 C3D0 ...Repeated for Virtual Output 85 C3D8 ...Repeated for Virtual Output 86 C3E0 ...Repeated for Virtual Output 87 C3E8 ...Repeated for Virtual Output 88 GE Multilin D30 Line Distance Protection System B-57...
Page 508 ...Repeated for Direct Output 18 C636 ...Repeated for Direct Output 19 C639 ...Repeated for Direct Output 20 C63C ...Repeated for Direct Output 21 C63F ...Repeated for Direct Output 22 C642 ...Repeated for Direct Output 23 B-58 D30 Line Distance Protection System GE Multilin...
Page 509 ...Repeated for Direct Input 14 C8C8 ...Repeated for Direct Input 15 C8CC ...Repeated for Direct Input 16 C8D0 ...Repeated for Direct Input 17 C8D4 ...Repeated for Direct Input 18 C8D8 ...Repeated for Direct Input 19 GE Multilin D30 Line Distance Protection System B-59...
Page 510 ...Repeated for Device 8 CC28 ...Repeated for Device 9 CC4D ...Repeated for Device 10 CC72 ...Repeated for Device 11 CC97 ...Repeated for Device 12 CCBC ...Repeated for Device 13 CCE1 ...Repeated for Device 14 B-60 D30 Line Distance Protection System GE Multilin...
Page 511 ...Repeated for Remote Input 26 D0A4 ...Repeated for Remote Input 27 D0AE ...Repeated for Remote Input 28 D0B8 ...Repeated for Remote Input 29 D0C2 ...Repeated for Remote Input 30 D0CC ...Repeated for Remote Input 31 GE Multilin D30 Line Distance Protection System B-61...
Page 512 ...Repeated for Remote Output 13 D254 ...Repeated for Remote Output 14 D258 ...Repeated for Remote Output 15 D25C ...Repeated for Remote Output 16 D260 ...Repeated for Remote Output 17 D264 ...Repeated for Remote Output 18 B-62 D30 Line Distance Protection System GE Multilin...
Page 513 IEC 61850 GGIO2.CF.SPCSO1.ctlModel Value 0 to 2 F001 D321 IEC 61850 GGIO2.CF.SPCSO2.ctlModel Value 0 to 2 F001 D322 IEC 61850 GGIO2.CF.SPCSO3.ctlModel Value 0 to 2 F001 D323 IEC 61850 GGIO2.CF.SPCSO4.ctlModel Value 0 to 2 F001 GE Multilin D30 Line Distance Protection System B-63...
Page 514 IEC 61850 GGIO2.CF.SPCSO55.ctlModel Value 0 to 2 F001 D357 IEC 61850 GGIO2.CF.SPCSO56.ctlModel Value 0 to 2 F001 D358 IEC 61850 GGIO2.CF.SPCSO57.ctlModel Value 0 to 2 F001 D359 IEC 61850 GGIO2.CF.SPCSO58.ctlModel Value 0 to 2 F001 B-64 D30 Line Distance Protection System GE Multilin...
Page 515 Reserved F001 DC9F ...Repeated for Contact Output 2 DCAE ...Repeated for Contact Output 3 DCBD ...Repeated for Contact Output 4 DCCC ...Repeated for Contact Output 5 DCDB ...Repeated for Contact Output 6 GE Multilin D30 Line Distance Protection System B-65...
Page 516 ...Repeated for Contact Output 55 DFC9 ...Repeated for Contact Output 56 DFD8 ...Repeated for Contact Output 57 DFE7 ...Repeated for Contact Output 58 DFF6 ...Repeated for Contact Output 59 E005 ...Repeated for Contact Output 60 B-66 D30 Line Distance Protection System GE Multilin...
Page 517 0 to 2 F109 0 (Self-reset) EC0D Synchrocheck 1 Events 0 to 1 F102 0 (Disabled) EC0E Synchrocheck 1 Block 0 to 4294967295 F300 EC10 Synchrocheck 1 Frequency Hysteresis 0 to 0.1 0.01 F001 GE Multilin D30 Line Distance Protection System B-67...
Page 518 ED00 FlexLogic displays active 0 to 1 F102 1 (Enabled) ED01 Undefined F205 (none) ED07 Last settings change date 0 to 4294967295 F050 ED09 Template bitmask (750 items) 0 to 65535 F001 B-68 D30 Line Distance Protection System GE Multilin...
Page 519: Data Formats
0 = 1 & 3 Pole, 1 = 1 Pole, 2 = 3 Pole-A, 3 = 3 Pole-B Positive values indicate lagging power factor; negative values indicate leading. F083 ENUMERATION: SELECTOR MODES 0 = Time-Out, 1 = Acknowledge GE Multilin D30 Line Distance Protection System B-69...
Page 520 0 = Auxiliary A, 1 = Auxiliary B 0 = Instantaneous, 1 = Timed, 2 = Linear 0 = Definite Time, 1 = FlexCurve A, 2 = FlexCurve B, F116 3 = FlexCurve C ENUMERATION: NEUTRAL OVERVOLTAGE CURVES B-70 D30 Line Distance Protection System GE Multilin...
Page 521 Ground Distance Zone 3 Ground Distance Zone 4 F122 Ground Distance Zone 5 ENUMERATION: ELEMENT INPUT SIGNAL TYPE Load Encroachment 0 = Phasor, 1 = RMS Power Swing Detect SRC1 VT Fuse Failure GE Multilin D30 Line Distance Protection System B-71...
Page 522 Digital Element 37 Non-volatile Latch 9 Digital Element 38 Non-volatile Latch 10 Digital Element 39 Non-volatile Latch 11 Digital Element 40 Non-volatile Latch 12 Digital Element 41 Non-volatile Latch 13 Digital Element 42 B-72 D30 Line Distance Protection System GE Multilin...
Page 523 0 = No, 1 = Yes RTD Input 36 RTD Input 37 F127 RTD Input 38 ENUMERATION: LATCHED OR SELF-RESETTING RTD Input 39 0 = Latched, 1 = Self-Reset RTD Input 40 GE Multilin D30 Line Distance Protection System B-73...
Page 524 0 = Disabled, 1 = Current 46 A, 2 = Voltage 280 V, Module Failure 06 3 = Current 4.6 A, 4 = Current 2 A, 5 = Notched 4.6 A, Module Failure 07 6 = Notched 2 A B-74 D30 Line Distance Protection System GE Multilin...
Page 525 Unauthorized Access System Integrity Recovery bitmask type bitmask type bitmask type bitmask type System Integrity Recovery 06 null System Integrity Recovery 07 F147 ENUMERATION: LINE LENGTH UNITS 0 = km, 1 = miles GE Multilin D30 Line Distance Protection System B-75...
Page 526 0 = 3-Pole, 1 = 1-Pole F154 ENUMERATION: DISTANCE DIRECTION F159 0 = Forward, 1 = Reverse, 2 = Non-Directional ENUMERATION: BREAKER AUX CONTACT KEYING 0 = 52a, 1 = 52b, 2 = None B-76 D30 Line Distance Protection System GE Multilin...
Page 527 –1 to 1 mA 0 to 5 mA F183 0 to 10 mA ENUMERATION: AC INPUT WAVEFORMS 0 to 20 mA bitmask definition 4 to 20 mA 8 samples/cycle 16 samples/cycle 32 samples/cycle 64 samples/cycle GE Multilin D30 Line Distance Protection System B-77...
Page 528 User-programmable key 10 F205 Value Up User-programmable key 11 TEXT12: 12-CHARACTER ASCII TEXT Value Down User-programmable key 12 Message Up User-programmable key 13 F206 Message Down User-programmable key 14 TEXT6: 6-CHARACTER ASCII TEXT B-78 D30 Line Distance Protection System GE Multilin...
Page 529 ENUMERATION: DIRECTIONAL POLARIZING MMXU1.MX.VA.phsB.cVal.mag.f MMXU1.MX.VA.phsC.cVal.mag.f 0 = Voltage, 1 = Current, 2 = Dual MMXU1.MX.PF.phsA.cVal.mag.f MMXU1.MX.PF.phsB.cVal.mag.f F231 MMXU1.MX.PF.phsC.cVal.mag.f ENUMERATION: POLARIZING VOLTAGE MMXU2.MX.TotW.mag.f 0 = Calculated V0, 1 = Measured VX MMXU2.MX.TotVAr.mag.f MMXU2.MX.TotVA.mag.f MMXU2.MX.TotPF.mag.f GE Multilin D30 Line Distance Protection System B-79...
Page 530 MMXU3.MX.Hz.mag.f MMXU4.MX.A.phsB.cVal.ang.f MMXU3.MX.PPV.phsAB.cVal.mag.f MMXU4.MX.A.phsC.cVal.mag.f MMXU3.MX.PPV.phsAB.cVal.ang.f MMXU4.MX.A.phsC.cVal.ang.f MMXU3.MX.PPV.phsBC.cVal.mag.f MMXU4.MX.A.neut.cVal.mag.f MMXU3.MX.PPV.phsBC.cVal.ang.f MMXU4.MX.A.neut.cVal.ang.f MMXU3.MX.PPV.phsCA.cVal.mag.f MMXU4.MX.W.phsA.cVal.mag.f MMXU3.MX.PPV.phsCA.cVal.ang.f MMXU4.MX.W.phsB.cVal.mag.f MMXU3.MX.PhV.phsA.cVal.mag.f MMXU4.MX.W.phsC.cVal.mag.f MMXU3.MX.PhV.phsA.cVal.ang.f MMXU4.MX.VAr.phsA.cVal.mag.f MMXU3.MX.PhV.phsB.cVal.mag.f MMXU4.MX.VAr.phsB.cVal.mag.f MMXU3.MX.PhV.phsB.cVal.ang.f MMXU4.MX.VAr.phsC.cVal.mag.f MMXU3.MX.PhV.phsC.cVal.mag.f MMXU4.MX.VA.phsA.cVal.mag.f MMXU3.MX.PhV.phsC.cVal.ang.f MMXU4.MX.VA.phsB.cVal.mag.f MMXU3.MX.A.phsA.cVal.mag.f MMXU4.MX.VA.phsC.cVal.mag.f MMXU3.MX.A.phsA.cVal.ang.f MMXU4.MX.PF.phsA.cVal.mag.f MMXU3.MX.A.phsB.cVal.mag.f MMXU4.MX.PF.phsB.cVal.mag.f B-80 D30 Line Distance Protection System GE Multilin...
Page 531 MMXU5.MX.PF.phsC.cVal.mag.f GGIO4.MX.AnIn16.mag.f MMXU6.MX.TotW.mag.f GGIO4.MX.AnIn17.mag.f MMXU6.MX.TotVAr.mag.f GGIO4.MX.AnIn18.mag.f MMXU6.MX.TotVA.mag.f GGIO4.MX.AnIn19.mag.f MMXU6.MX.TotPF.mag.f GGIO4.MX.AnIn20.mag.f MMXU6.MX.Hz.mag.f GGIO4.MX.AnIn21.mag.f MMXU6.MX.PPV.phsAB.cVal.mag.f GGIO4.MX.AnIn22.mag.f MMXU6.MX.PPV.phsAB.cVal.ang.f GGIO4.MX.AnIn23.mag.f MMXU6.MX.PPV.phsBC.cVal.mag.f GGIO4.MX.AnIn24.mag.f MMXU6.MX.PPV.phsBC.cVal.ang.f GGIO4.MX.AnIn25.mag.f MMXU6.MX.PPV.phsCA.cVal.mag.f GGIO4.MX.AnIn26.mag.f MMXU6.MX.PPV.phsCA.cVal.ang.f GGIO4.MX.AnIn27.mag.f MMXU6.MX.PhV.phsA.cVal.mag.f GGIO4.MX.AnIn28.mag.f MMXU6.MX.PhV.phsA.cVal.ang.f GGIO4.MX.AnIn29.mag.f MMXU6.MX.PhV.phsB.cVal.mag.f GGIO4.MX.AnIn30.mag.f MMXU6.MX.PhV.phsB.cVal.ang.f GGIO4.MX.AnIn31.mag.f GE Multilin D30 Line Distance Protection System B-81...
Page 532 GOOSE dataset item GGIO3.ST.UIntIn4.stVal None GGIO3.ST.UIntIn5.q GGIO3.ST.Ind1.q GGIO3.ST.UIntIn5.stVal GGIO3.ST.Ind1.stVal GGIO3.ST.UIntIn6.q GGIO3.ST.Ind2.q GGIO3.ST.UIntIn6.stVal GGIO3.ST.Ind2.stVal GGIO3.ST.UIntIn7.q   GGIO3.ST.UIntIn7.stVal GGIO1.ST.Ind64q GGIO3.ST.UIntIn8.q GGIO1.ST.Ind64.stVal GGIO3.ST.UIntIn8.stVal GGIO3.MX.AnIn1.mag.f GGIO3.ST.UIntIn9.q GGIO3.MX.AnIn2.mag.f GGIO3.ST.UIntIn9.stVal GGIO3.MX.AnIn3.mag.f GGIO3.ST.UIntIn10.q GGIO3.MX.AnIn4.mag.f GGIO3.ST.UIntIn10.stVal GGIO3.MX.AnIn5.mag.f GGIO3.ST.UIntIn11.q GGIO3.MX.AnIn6.mag.f GGIO3.ST.UIntIn11.stVal B-82 D30 Line Distance Protection System GE Multilin...
Page 533 0 = None, 1 = Dependability Biased, 2 = Security Biased F239 ENUMERATION: REAL TIME CLOCK DAYLIGHT SAVINGS F263 TIME START DAY INSTANCE ENUMERATION: PROCESS BUS SYSTEM STATUS 0 = N/A, 1 = OK, 2 = Fail value instance First GE Multilin D30 Line Distance Protection System B-83...
Page 534 IDs. The operate bit for element ID [56] ACTIVE SETTING GROUP (1 to 6) X is bit [X mod 16] in register [X/16]. [62] MISCELLANEOUS EVENTS (see F146 for range) [64 to 127] ELEMENT STATES B-84 D30 Line Distance Protection System GE Multilin...
Page 535 ENUMERATION: DNP OBJECTS 20, 22, AND 23 DEFAULT VARIATION F511 BITFIELD: 3-PHASE SIMPLE ELEMENT STATE bitmask default variation 0 = Operate, 1 = Operate A, 2 = Operate B, 3 = Operate C GE Multilin D30 Line Distance Protection System B-85...
Page 536 Corresponds to the Modbus address of the value used when this PDIF4.ST.Op.general parameter is selected. Only certain values may be used as Flex- PDIS1.ST.Str.general Analogs (basically all metering quantities used in protection). PDIS1.ST.Op.general PDIS2.ST.Str.general PDIS2.ST.Op.general PDIS3.ST.Str.general B-86 D30 Line Distance Protection System GE Multilin...
Page 537 PIOC12.ST.Str.general PIOC38.ST.Op.general PIOC12.ST.Op.general PIOC39.ST.Str.general PIOC13.ST.Str.general PIOC39.ST.Op.general PIOC13.ST.Op.general PIOC40.ST.Str.general PIOC14.ST.Str.general PIOC40.ST.Op.general PIOC14.ST.Op.general PIOC41.ST.Str.general PIOC15.ST.Str.general PIOC41.ST.Op.general PIOC15.ST.Op.general PIOC42.ST.Str.general PIOC16.ST.Str.general PIOC42.ST.Op.general PIOC16.ST.Op.general PIOC43.ST.Str.general PIOC17.ST.Str.general PIOC43.ST.Op.general PIOC17.ST.Op.general PIOC44.ST.Str.general PIOC18.ST.Str.general PIOC44.ST.Op.general PIOC18.ST.Op.general PIOC45.ST.Str.general PIOC19.ST.Str.general PIOC45.ST.Op.general PIOC19.ST.Op.general PIOC46.ST.Str.general GE Multilin D30 Line Distance Protection System B-87...
Page 538 PIOC65.ST.Str.general PTOC19.ST.Op.general PIOC65.ST.Op.general PTOC20.ST.Str.general PIOC66.ST.Str.general PTOC20.ST.Op.general PIOC66.ST.Op.general PTOC21.ST.Str.general PIOC67.ST.Str.general PTOC21.ST.Op.general PIOC67.ST.Op.general PTOC22.ST.Str.general PIOC68.ST.Str.general PTOC22.ST.Op.general PIOC68.ST.Op.general PTOC23.ST.Str.general PIOC69.ST.Str.general PTOC23.ST.Op.general PIOC69.ST.Op.general PTOC24.ST.Str.general PIOC70.ST.Str.general PTOC24.ST.Op.general PIOC70.ST.Op.general PTOV1.ST.Str.general PIOC71.ST.Str.general PTOV1.ST.Op.general PIOC71.ST.Op.general PTOV2.ST.Str.general PIOC72.ST.Str.general PTOV2.ST.Op.general PIOC72.ST.Op.general PTOV3.ST.Str.general B-88 D30 Line Distance Protection System GE Multilin...
Page 539 PTUV6.ST.Str.general RBRF19.ST.OpIn.general PTUV6.ST.Op.general RBRF20.ST.OpEx.general PTUV7.ST.Str.general RBRF20.ST.OpIn.general PTUV7.ST.Op.general RBRF21.ST.OpEx.general PTUV8.ST.Str.general RBRF21.ST.OpIn.general PTUV8.ST.Op.general RBRF22.ST.OpEx.general PTUV9.ST.Str.general RBRF22.ST.OpIn.general PTUV9.ST.Op.general RBRF23.ST.OpEx.general PTUV10.ST.Str.general RBRF23.ST.OpIn.general PTUV10.ST.Op.general RBRF24.ST.OpEx.general PTUV11.ST.Str.general RBRF24.ST.OpIn.general PTUV11.ST.Op.general RFLO1.MX.FltDiskm.mag.f PTUV12.ST.Str.general RFLO2.MX.FltDiskm.mag.f PTUV12.ST.Op.general RFLO3.MX.FltDiskm.mag.f PTUV13.ST.Str.general RFLO4.MX.FltDiskm.mag.f PTUV13.ST.Op.general RFLO5.MX.FltDiskm.mag.f GE Multilin D30 Line Distance Protection System B-89...
Page 540 CSWI12.ST.Loc.stVal GGIO1.ST.Ind16.stVal CSWI12.ST.Pos.stVal GGIO1.ST.Ind17.stVal CSWI13.ST.Loc.stVal GGIO1.ST.Ind18.stVal CSWI13.ST.Pos.stVal GGIO1.ST.Ind19.stVal CSWI14.ST.Loc.stVal GGIO1.ST.Ind20.stVal CSWI14.ST.Pos.stVal GGIO1.ST.Ind21.stVal CSWI15.ST.Loc.stVal GGIO1.ST.Ind22.stVal CSWI15.ST.Pos.stVal GGIO1.ST.Ind23.stVal CSWI16.ST.Loc.stVal GGIO1.ST.Ind24.stVal CSWI16.ST.Pos.stVal GGIO1.ST.Ind25.stVal CSWI17.ST.Loc.stVal GGIO1.ST.Ind26.stVal CSWI17.ST.Pos.stVal GGIO1.ST.Ind27.stVal CSWI18.ST.Loc.stVal GGIO1.ST.Ind28.stVal CSWI18.ST.Pos.stVal GGIO1.ST.Ind29.stVal CSWI19.ST.Loc.stVal GGIO1.ST.Ind30.stVal CSWI19.ST.Pos.stVal GGIO1.ST.Ind31.stVal B-90 D30 Line Distance Protection System GE Multilin...
Page 541 GGIO1.ST.Ind69.stVal GGIO1.ST.Ind122.stVal GGIO1.ST.Ind70.stVal GGIO1.ST.Ind123.stVal GGIO1.ST.Ind71.stVal GGIO1.ST.Ind124.stVal GGIO1.ST.Ind72.stVal GGIO1.ST.Ind125.stVal GGIO1.ST.Ind73.stVal GGIO1.ST.Ind126.stVal GGIO1.ST.Ind74.stVal GGIO1.ST.Ind127.stVal GGIO1.ST.Ind75.stVal GGIO1.ST.Ind128.stVal GGIO1.ST.Ind76.stVal MMXU1.MX.TotW.mag.f GGIO1.ST.Ind77.stVal MMXU1.MX.TotVAr.mag.f GGIO1.ST.Ind78.stVal MMXU1.MX.TotVA.mag.f GGIO1.ST.Ind79.stVal MMXU1.MX.TotPF.mag.f GGIO1.ST.Ind80.stVal MMXU1.MX.Hz.mag.f GGIO1.ST.Ind81.stVal MMXU1.MX.PPV.phsAB.cVal.mag.f GGIO1.ST.Ind82.stVal MMXU1.MX.PPV.phsAB.cVal.ang.f GGIO1.ST.Ind83.stVal MMXU1.MX.PPV.phsBC.cVal.mag.f GGIO1.ST.Ind84.stVal MMXU1.MX.PPV.phsBC.cVal.ang.f GE Multilin D30 Line Distance Protection System B-91...
Page 542 MMXU2.MX.PPV.phsCA.cVal.mag.f MMXU3.MX.W.phsA.cVal.mag.f MMXU2.MX.PPV.phsCA.cVal.ang.f MMXU3.MX.W.phsB.cVal.mag.f MMXU2.MX.PhV.phsA.cVal.mag.f MMXU3.MX.W.phsC.cVal.mag.f MMXU2.MX.PhV.phsA.cVal.ang.f MMXU3.MX.VAr.phsA.cVal.mag.f MMXU2.MX.PhV.phsB.cVal.mag.f MMXU3.MX.VAr.phsB.cVal.mag.f MMXU2.MX.PhV.phsB.cVal.ang.f MMXU3.MX.VAr.phsC.cVal.mag.f MMXU2.MX.PhV.phsC.cVal.mag.f MMXU3.MX.VA.phsA.cVal.mag.f MMXU2.MX.PhV.phsC.cVal.ang.f MMXU3.MX.VA.phsB.cVal.mag.f MMXU2.MX.A.phsA.cVal.mag.f MMXU3.MX.VA.phsC.cVal.mag.f MMXU2.MX.A.phsA.cVal.ang.f MMXU3.MX.PF.phsA.cVal.mag.f MMXU2.MX.A.phsB.cVal.mag.f MMXU3.MX.PF.phsB.cVal.mag.f MMXU2.MX.A.phsB.cVal.ang.f MMXU3.MX.PF.phsC.cVal.mag.f MMXU2.MX.A.phsC.cVal.mag.f MMXU4.MX.TotW.mag.f MMXU2.MX.A.phsC.cVal.ang.f MMXU4.MX.TotVAr.mag.f MMXU2.MX.A.neut.cVal.mag.f MMXU4.MX.TotVA.mag.f MMXU2.MX.A.neut.cVal.ang.f MMXU4.MX.TotPF.mag.f B-92 D30 Line Distance Protection System GE Multilin...
Page 543 MMXU5.MX.Hz.mag.f MMXU6.MX.A.phsB.cVal.ang.f MMXU5.MX.PPV.phsAB.cVal.mag.f MMXU6.MX.A.phsC.cVal.mag.f MMXU5.MX.PPV.phsAB.cVal.ang.f MMXU6.MX.A.phsC.cVal.ang.f MMXU5.MX.PPV.phsBC.cVal.mag.f MMXU6.MX.A.neut.cVal.mag.f MMXU5.MX.PPV.phsBC.cVal.ang.f MMXU6.MX.A.neut.cVal.ang.f MMXU5.MX.PPV.phsCA.cVal.mag.f MMXU6.MX.W.phsA.cVal.mag.f MMXU5.MX.PPV.phsCA.cVal.ang.f MMXU6.MX.W.phsB.cVal.mag.f MMXU5.MX.PhV.phsA.cVal.mag.f MMXU6.MX.W.phsC.cVal.mag.f MMXU5.MX.PhV.phsA.cVal.ang.f MMXU6.MX.VAr.phsA.cVal.mag.f MMXU5.MX.PhV.phsB.cVal.mag.f MMXU6.MX.VAr.phsB.cVal.mag.f MMXU5.MX.PhV.phsB.cVal.ang.f MMXU6.MX.VAr.phsC.cVal.mag.f MMXU5.MX.PhV.phsC.cVal.mag.f MMXU6.MX.VA.phsA.cVal.mag.f MMXU5.MX.PhV.phsC.cVal.ang.f MMXU6.MX.VA.phsB.cVal.mag.f MMXU5.MX.A.phsA.cVal.mag.f MMXU6.MX.VA.phsC.cVal.mag.f MMXU5.MX.A.phsA.cVal.ang.f MMXU6.MX.PF.phsA.cVal.mag.f MMXU5.MX.A.phsB.cVal.mag.f MMXU6.MX.PF.phsB.cVal.mag.f GE Multilin D30 Line Distance Protection System B-93...
Page 544 XSWI4.ST.Pos.stVal XSWI5.ST.Loc.stVal F616 XSWI5.ST.Pos.stVal ENUMERATION: IEC 61850 GOOSE DATASET ITEMS XSWI6.ST.Loc.stVal Enumeration GOOSE dataset items XSWI6.ST.Pos.stVal None XSWI7.ST.Loc.stVal GGIO1.ST.Ind1.q XSWI7.ST.Pos.stVal GGIO1.ST.Ind1.stVal XSWI8.ST.Loc.stVal GGIO1.ST.Ind2.q XSWI8.ST.Pos.stVal GGIO1.ST.Ind2.stVal XSWI9.ST.Loc.stVal GGIO1.ST.Ind3.q XSWI9.ST.Pos.stVal GGIO1.ST.Ind3.stVal XSWI10.ST.Loc.stVal GGIO1.ST.Ind4.q XSWI10.ST.Pos.stVal B-94 D30 Line Distance Protection System GE Multilin...
Page 545 GGIO1.ST.Ind23.q GGIO1.ST.Ind49.stVal GGIO1.ST.Ind23.stVal GGIO1.ST.Ind50.q GGIO1.ST.Ind24.q GGIO1.ST.Ind50.stVal GGIO1.ST.Ind24.stVal GGIO1.ST.Ind51.q GGIO1.ST.Ind25.q GGIO1.ST.Ind51.stVal GGIO1.ST.Ind25.stVal GGIO1.ST.Ind52.q GGIO1.ST.Ind26.q GGIO1.ST.Ind52.stVal GGIO1.ST.Ind26.stVal GGIO1.ST.Ind53.q GGIO1.ST.Ind27.q GGIO1.ST.Ind53.stVal GGIO1.ST.Ind27.stVal GGIO1.ST.Ind54.q GGIO1.ST.Ind28.q GGIO1.ST.Ind54.stVal GGIO1.ST.Ind28.stVal GGIO1.ST.Ind55.q GGIO1.ST.Ind29.q GGIO1.ST.Ind55.stVal GGIO1.ST.Ind29.stVal GGIO1.ST.Ind56.q GGIO1.ST.Ind30.q GGIO1.ST.Ind56.stVal GGIO1.ST.Ind30.stVal GGIO1.ST.Ind57.q GE Multilin D30 Line Distance Protection System B-95...
Page 546 GGIO1.ST.Ind76.q GGIO1.ST.Ind102.stVal GGIO1.ST.Ind76.stVal GGIO1.ST.Ind103.q GGIO1.ST.Ind77.q GGIO1.ST.Ind103.stVal GGIO1.ST.Ind77.stVal GGIO1.ST.Ind104.q GGIO1.ST.Ind78.q GGIO1.ST.Ind104.stVal GGIO1.ST.Ind78.stVal GGIO1.ST.Ind105.q GGIO1.ST.Ind79.q GGIO1.ST.Ind105.stVal GGIO1.ST.Ind79.stVal GGIO1.ST.Ind106.q GGIO1.ST.Ind80.q GGIO1.ST.Ind106.stVal GGIO1.ST.Ind80.stVal GGIO1.ST.Ind107.q GGIO1.ST.Ind81.q GGIO1.ST.Ind107.stVal GGIO1.ST.Ind81.stVal GGIO1.ST.Ind108.q GGIO1.ST.Ind82.q GGIO1.ST.Ind108.stVal GGIO1.ST.Ind82.stVal GGIO1.ST.Ind109.q GGIO1.ST.Ind83.q GGIO1.ST.Ind109.stVal GGIO1.ST.Ind83.stVal GGIO1.ST.Ind110.q B-96 D30 Line Distance Protection System GE Multilin...
Page 547 MMXU1.MX.TotW.mag.f MMXU2.MX.PhV.phsC.cVal.ang.f MMXU1.MX.TotVAr.mag.f MMXU2.MX.A.phsA.cVal.mag.f MMXU1.MX.TotVA.mag.f MMXU2.MX.A.phsA.cVal.ang.f MMXU1.MX.TotPF.mag.f MMXU2.MX.A.phsB.cVal.mag.f MMXU1.MX.Hz.mag.f MMXU2.MX.A.phsB.cVal.ang.f MMXU1.MX.PPV.phsAB.cVal.mag.f MMXU2.MX.A.phsC.cVal.mag.f MMXU1.MX.PPV.phsAB.cVal.ang.f MMXU2.MX.A.phsC.cVal.ang.f MMXU1.MX.PPV.phsBC.cVal.mag.f MMXU2.MX.A.neut.cVal.mag.f MMXU1.MX.PPV.phsBC.cVal.ang.f MMXU2.MX.A.neut.cVal.ang.f MMXU1.MX.PPV.phsCA.cVal.mag.f MMXU2.MX.W.phsA.cVal.mag.f MMXU1.MX.PPV.phsCA.cVal.ang.f MMXU2.MX.W.phsB.cVal.mag.f MMXU1.MX.PhV.phsA.cVal.mag.f MMXU2.MX.W.phsC.cVal.mag.f MMXU1.MX.PhV.phsA.cVal.ang.f MMXU2.MX.VAr.phsA.cVal.mag.f MMXU1.MX.PhV.phsB.cVal.mag.f MMXU2.MX.VAr.phsB.cVal.mag.f MMXU1.MX.PhV.phsB.cVal.ang.f MMXU2.MX.VAr.phsC.cVal.mag.f MMXU1.MX.PhV.phsC.cVal.mag.f MMXU2.MX.VA.phsA.cVal.mag.f GE Multilin D30 Line Distance Protection System B-97...
Page 548 MMXU3.MX.VA.phsB.cVal.mag.f MMXU5.MX.PhV.phsA.cVal.mag.f MMXU3.MX.VA.phsC.cVal.mag.f MMXU5.MX.PhV.phsA.cVal.ang.f MMXU3.MX.PF.phsA.cVal.mag.f MMXU5.MX.PhV.phsB.cVal.mag.f MMXU3.MX.PF.phsB.cVal.mag.f MMXU5.MX.PhV.phsB.cVal.ang.f MMXU3.MX.PF.phsC.cVal.mag.f MMXU5.MX.PhV.phsC.cVal.mag.f MMXU4.MX.TotW.mag.f MMXU5.MX.PhV.phsC.cVal.ang.f MMXU4.MX.TotVAr.mag.f MMXU5.MX.A.phsA.cVal.mag.f MMXU4.MX.TotVA.mag.f MMXU5.MX.A.phsA.cVal.ang.f MMXU4.MX.TotPF.mag.f MMXU5.MX.A.phsB.cVal.mag.f MMXU4.MX.Hz.mag.f MMXU5.MX.A.phsB.cVal.ang.f MMXU4.MX.PPV.phsAB.cVal.mag.f MMXU5.MX.A.phsC.cVal.mag.f MMXU4.MX.PPV.phsAB.cVal.ang.f MMXU5.MX.A.phsC.cVal.ang.f MMXU4.MX.PPV.phsBC.cVal.mag.f MMXU5.MX.A.neut.cVal.mag.f MMXU4.MX.PPV.phsBC.cVal.ang.f MMXU5.MX.A.neut.cVal.ang.f MMXU4.MX.PPV.phsCA.cVal.mag.f MMXU5.MX.W.phsA.cVal.mag.f MMXU4.MX.PPV.phsCA.cVal.ang.f MMXU5.MX.W.phsB.cVal.mag.f B-98 D30 Line Distance Protection System GE Multilin...
Page 549 MMXU6.MX.W.phsC.cVal.mag.f GGIO5.ST.UIntIn6.stVal MMXU6.MX.VAr.phsA.cVal.mag.f GGIO5.ST.UIntIn7.q MMXU6.MX.VAr.phsB.cVal.mag.f GGIO5.ST.UIntIn7.stVal MMXU6.MX.VAr.phsC.cVal.mag.f GGIO5.ST.UIntIn8.q MMXU6.MX.VA.phsA.cVal.mag.f GGIO5.ST.UIntIn8.stVal MMXU6.MX.VA.phsB.cVal.mag.f GGIO5.ST.UIntIn9.q MMXU6.MX.VA.phsC.cVal.mag.f GGIO5.ST.UIntIn9.stVal MMXU6.MX.PF.phsA.cVal.mag.f GGIO5.ST.UIntIn10.q MMXU6.MX.PF.phsB.cVal.mag.f GGIO5.ST.UIntIn10.stVal MMXU6.MX.PF.phsC.cVal.mag.f GGIO5.ST.UIntIn11.q GGIO4.MX.AnIn1.mag.f GGIO5.ST.UIntIn11.stVal GGIO4.MX.AnIn2.mag.f GGIO5.ST.UIntIn12.q GGIO4.MX.AnIn3.mag.f GGIO5.ST.UIntIn12.stVal GGIO4.MX.AnIn4.mag.f GGIO5.ST.UIntIn13.q GGIO4.MX.AnIn5.mag.f GGIO5.ST.UIntIn13.stVal GGIO4.MX.AnIn6.mag.f GGIO5.ST.UIntIn14.q GE Multilin D30 Line Distance Protection System B-99...
Page 550 PIOC3.ST.Str.general PIOC29.ST.Op.general PIOC3.ST.Op.general PIOC30.ST.Str.general PIOC4.ST.Str.general PIOC30.ST.Op.general PIOC4.ST.Op.general PIOC31.ST.Str.general PIOC5.ST.Str.general PIOC31.ST.Op.general PIOC5.ST.Op.general PIOC32.ST.Str.general PIOC6.ST.Str.general PIOC32.ST.Op.general PIOC6.ST.Op.general PIOC33.ST.Str.general PIOC7.ST.Str.general PIOC33.ST.Op.general PIOC7.ST.Op.general PIOC34.ST.Str.general PIOC8.ST.Str.general PIOC34.ST.Op.general PIOC8.ST.Op.general PIOC35.ST.Str.general PIOC9.ST.Str.general PIOC35.ST.Op.general PIOC9.ST.Op.general PIOC36.ST.Str.general PIOC10.ST.Str.general PIOC36.ST.Op.general PIOC10.ST.Op.general PIOC37.ST.Str.general B-100 D30 Line Distance Protection System GE Multilin...
Page 551 PIOC56.ST.Str.general PTOC10.ST.Op.general PIOC56.ST.Op.general PTOC11.ST.Str.general PIOC57.ST.Str.general PTOC11.ST.Op.general PIOC57.ST.Op.general PTOC12.ST.Str.general PIOC58.ST.Str.general PTOC12.ST.Op.general PIOC58.ST.Op.general PTOC13.ST.Str.general PIOC59.ST.Str.general PTOC13.ST.Op.general PIOC59.ST.Op.general PTOC14.ST.Str.general PIOC60.ST.Str.general PTOC14.ST.Op.general PIOC60.ST.Op.general PTOC15.ST.Str.general PIOC61.ST.Str.general PTOC15.ST.Op.general PIOC61.ST.Op.general PTOC16.ST.Str.general PIOC62.ST.Str.general PTOC16.ST.Op.general PIOC62.ST.Op.general PTOC17.ST.Str.general PIOC63.ST.Str.general PTOC17.ST.Op.general PIOC63.ST.Op.general PTOC18.ST.Str.general GE Multilin D30 Line Distance Protection System B-101...
Page 552 PTRC3.ST.Tr.general RBRF10.ST.OpIn.general PTRC3.ST.Op.general RBRF11.ST.OpEx.general PTRC4.ST.Tr.general RBRF11.ST.OpIn.general PTRC4.ST.Op.general RBRF12.ST.OpEx.general PTRC5.ST.Tr.general RBRF12.ST.OpIn.general PTRC5.ST.Op.general RBRF13.ST.OpEx.general PTRC6.ST.Tr.general RBRF13.ST.OpIn.general PTRC6.ST.Op.general RBRF14.ST.OpEx.general PTUV1.ST.Str.general RBRF14.ST.OpIn.general PTUV1.ST.Op.general RBRF15.ST.OpEx.general PTUV2.ST.Str.general RBRF15.ST.OpIn.general PTUV2.ST.Op.general RBRF16.ST.OpEx.general PTUV3.ST.Str.general RBRF16.ST.OpIn.general PTUV3.ST.Op.general RBRF17.ST.OpEx.general PTUV4.ST.Str.general RBRF17.ST.OpIn.general PTUV4.ST.Op.general RBRF18.ST.OpEx.general B-102 D30 Line Distance Protection System GE Multilin...
Page 553 CSWI3.ST.Loc.stVal CSWI29.ST.Pos.stVal CSWI3.ST.Pos.stVal CSWI30.ST.Loc.stVal CSWI4.ST.Loc.stVal CSWI30.ST.Pos.stVal CSWI4.ST.Pos.stVal XSWI1.ST.Loc.stVal CSWI5.ST.Loc.stVal XSWI1.ST.Pos.stVal CSWI5.ST.Pos.stVal XSWI2.ST.Loc.stVal CSWI6.ST.Loc.stVal XSWI2.ST.Pos.stVal CSWI6.ST.Pos.stVal XSWI3.ST.Loc.stVal CSWI7.ST.Loc.stVal XSWI3.ST.Pos.stVal CSWI7.ST.Pos.stVal XSWI4.ST.Loc.stVal CSWI8.ST.Loc.stVal XSWI4.ST.Pos.stVal CSWI8.ST.Pos.stVal XSWI5.ST.Loc.stVal CSWI9.ST.Loc.stVal XSWI5.ST.Pos.stVal CSWI9.ST.Pos.stVal XSWI6.ST.Loc.stVal CSWI10.ST.Loc.stVal XSWI6.ST.Pos.stVal CSWI10.ST.Pos.stVal XSWI7.ST.Loc.stVal GE Multilin D30 Line Distance Protection System B-103...
Page 554 Mode 4 (3 Pole - B) 1001 XCBR3.ST.Loc.stVal 1002 XCBR3.ST.Pos.stVal 1003 XCBR4.ST.Loc.stVal F623 1004 XCBR4.ST.Pos.stVal ENUMERATION: RTC Synchronizing Source Configuration 1005 XCBR5.ST.Loc.stVal Enumeration Item 1006 XCBR5.ST.Pos.stVal None 1007 XCBR6.ST.Loc.stVal PP/IRIG-B/PTP/SNTP 1008 XCBR6.ST.Pos.stVal IRIG-B/PP/PTP/SNTP PP/PTP/IRIG-B/SNTP B-104 D30 Line Distance Protection System GE Multilin...
Page 555 Network Port 1 Port 2 PTP Clock Network Port 2 Port 3 PTP Clock Network Port 3 IRIG-B SNTP F625 ENUMERATION: PTP STATE Enumeration Item Disabled No Signal Calibrating Synchronized Synchronized (No PDelay) GE Multilin D30 Line Distance Protection System B-105...
Page 556 B.4 MEMORY MAPPING APPENDIX B B-106 D30 Line Distance Protection System GE Multilin...
Page 557: Iec 61850
System Specification Description (SSD) file. The entire substation con- figuration is stored in a Substation Configuration Description (SCD) file. The SCD file is the combination of the individ- ual ICD files and the SSD file. GE Multilin D30 Line Distance Protection System...
Page 558: Server Data Organization
GGIO4 (4 to 32) and the choice of the FlexAnalog values that determine the value of the GGIO4 analog inputs. Clients can utilize polling or the IEC 61850 unbuffered reporting feature available from GGIO4 in order to obtain the analog values provided by GGIO4. D30 Line Distance Protection System GE Multilin...
Page 559: Mmxu: Analog Measured Values
The following list describes the protection elements for all UR-series relays. The D30 relay will contain a subset of protec- tion elements from this list. • PDIF: bus differential, transformer instantaneous differential, transformer percent differential, current differential GE Multilin D30 Line Distance Protection System...
Page 560 IEC 61850 control model. • XCBR1.CO.BlkCls: This is where IEC 61850 clients can issue block close commands to the breaker. Direct control with normal security is the only supported IEC 61850 control model. D30 Line Distance Protection System GE Multilin...
Page 561: Server Features And Configuration
D30. This attribute is programmed through the setting and its LOCATION default value is “Location”. This value should be changed to describe the actual physical location of the D30. GE Multilin D30 Line Distance Protection System...
Page 562: Logical Node Name Prefixes
The exact structure and values of the supported IEC 61850 logical nodes can be seen by connecting to a D30 relay with an MMS browser, such as the “MMS Object Explorer and AXS4-MMS” DDE/OPC server from Sisco Inc. D30 Line Distance Protection System GE Multilin...
Page 563: Generic Substation Event Services: Gsse And Goose
The configurable GOOSE feature allows for the configuration of the datasets to be transmitted or received from the D30. The D30 supports the configuration of eight (8) transmission and reception datasets, allowing for the optimization of data transfer between devices. GE Multilin D30 Line Distance Protection System...
Page 564 “GGIO1.ST.Ind1.stVal” to indicate the status value for GGIO1 status indication 1. ITEM 2 The transmission dataset now contains a set of quality flags and a single point status Boolean value. The reception dataset on the receiving device must exactly match this structure. D30 Line Distance Protection System GE Multilin...
Page 565 The value of remote input 1 (Boolean on or off) in the receiving device will be determined by the GGIO1.ST.Ind1.stVal value in the sending device. The above settings will be automatically populated by the EnerVista UR Setup software when a com- plete SCD file is created by third party substation configurator software. GE Multilin D30 Line Distance Protection System...
Page 566: Ethernet Mac Address For Gsse/Goose
DatSet - the name of the associated dataset, and GoCBRef - the reference (name) of the associated GOOSE control block. These strings are automatically populated and interpreted by the D30; no settings are required. C-10 D30 Line Distance Protection System GE Multilin...
Page 567: Iec 61850 Implementation Via Enervista Ur Setup
An ICD file is generated for the D30 by the EnerVista UR Setup software that describe the capabilities of the IED. The ICD file is then imported into a system configurator along with other ICD files for other IEDs (from GE or other ven- dors) for system configuration.
Page 568: Configuring Iec 61850 Settings
It can also import a system SCL file (SCD) to set communication configuration parame- ters (that is, required addresses, reception GOOSE datasets, IDs of incoming GOOSE datasets, etc.) for the IED. The IED configurator functionality is implemented in the GE Multilin EnerVista UR Setup software. C.5.2 CONFIGURING IEC 61850 SETTINGS Before creating an ICD file, the user can customize the IEC 61850 related settings for the IED.
Page 569: About Icd Files
Although configurable transmission GOOSE can also be created and altered by some third-party system con- figurators, we recommend configuring transmission GOOSE for GE Multilin IEDs before creating the ICD, and strictly within EnerVista UR Setup software or the front panel display (access through the Settings > Product Setup > Com- munications >...
Page 570 Furthermore, it defines the capabilities of an IED in terms of communication services offered and, together with its LNType, instantiated data (DO) and its default or configuration values. There should be only one IED section in an ICD since it only describes one IED. C-14 D30 Line Distance Protection System GE Multilin...
Page 571 Other ReportControl elements DOI (name) SDI (name) DAI (name) Text Other DOI elements SDI (name) DAI (name) Text Other LN elements Other LDevice elements 842797A1.CDR Figure 0–4: ICD FILE STRUCTURE, IED NODE GE Multilin D30 Line Distance Protection System C-15...
Page 572 BDA (name, bType, type) Other BDA elements Other BDA elements Other DAType elements Other DAType elements EnumType (id) Text EnumVal (ord) Other EnumVal elements Other EnumType elements 842798A1.CDR Figure 0–5: ICD FILE STRUCTURE, DATATYPETEMPLATES NODE C-16 D30 Line Distance Protection System GE Multilin...
Page 573: Creating An Icd File With Enervista Ur Setup
C.5.5 ABOUT SCD FILES System configuration is performed in the system configurator. While many vendors (including GE Multilin) are working their own system configuration tools, there are some system configurators available in the market (for example, Siemens DIGSI version 4.6 or above and ASE Visual SCL Beta 0.12).
Page 574 Like ICD files, the Header node identifies the SCD file and its version, and specifies options for the mapping of names to signals. The Substation node describes the substation parameters: Substation PowerSystemResource EquipmentContainer Power Transformer GeneralEquipment EquipmentContainer VoltageLevel Voltage PowerSystemResource Function SubFunction GeneralEquipment 842792A1.CDR Figure 0–7: SCD FILE STRUCTURE, SUBSTATION NODE C-18 D30 Line Distance Protection System GE Multilin...
Page 575 IdInst is the instance identification of the logical device within the IED on which the control block is located, and cbName is the name of the control block. GE Multilin D30 Line Distance Protection System...
Page 576: Importing An Scd File With Enervista Ur Setup
The following procedure describes how to update the D30 with the new configuration from an SCD file with the EnerVista UR Setup software. Right-click anywhere in the files panel and select the Import Contents From SCD File item. Select the saved SCD file and click Open. C-20 D30 Line Distance Protection System GE Multilin...
Page 577 The software will open the SCD file and then prompt the user to save a UR-series settings file. Select a location and name for the URS (UR-series relay settings) file. If there is more than one GE Multilin IED defined in the SCD file, the software prompt the user to save a UR-series set- tings file for each IED.
Page 578: Acsi Conformance
REPORTING Buffered report control M7-1 sequence-number M7-2 report-time-stamp M7-3 reason-for-inclusion M7-4 data-set-name M7-5 data-reference M7-6 buffer-overflow M7-7 entryID M7-8 BufTm M7-9 IntgPd M7-10 Unbuffered report control M8-1 sequence-number M8-2 report-time-stamp M8-3 reason-for-inclusion C-22 D30 Line Distance Protection System GE Multilin...
Page 579: Acsi Services Conformance Statement
UR FAMILY PUBLISHER SERVER (CLAUSE 7) ServerDirectory APPLICATION ASSOCIATION (CLAUSE 8) Associate Abort Release LOGICAL DEVICE (CLAUSE 9) LogicalDeviceDirectory LOGICAL NODE (CLAUSE 10) LogicalNodeDirectory GetAllDataValues DATA (CLAUSE 11) GetDataValues SetDataValues GetDataDirectory GetDataDefinition GE Multilin D30 Line Distance Protection System C-23...
Page 580 LOG CONTROL BLOCK GetLCBValues SetLCBValues QueryLogByTime QueryLogByEntry GetLogStatusValues GENERIC SUBSTATION EVENT MODEL (GSE) (CLAUSE 18, ANNEX C) GOOSE-CONTROL-BLOCK (CLAUSE 18) SendGOOSEMessage GetReference GetGOOSEElementNumber GetGoCBValues SetGoCBValues GSSE-CONTROL-BLOCK (ANNEX C) SendGSSEMessage GetReference GetGSSEElementNumber GetGsCBValues C-24 D30 Line Distance Protection System GE Multilin...
Page 581 (SendGOOSEMessage or SendGSSEMessage) NOTE c9: shall declare support if TP association is available c10: shall declare support for at least one (SendMSVMessage or SendUSVMessage) GE Multilin D30 Line Distance Protection System C-25...
Page 582: Logical Nodes
GGIO: Generic process I/O GLOG: Generic log GSAL: Generic security application I: LOGICAL NODES FOR INTERFACING AND ARCHIVING IARC: Archiving IHMI: Human machine interface ISAF: Safety alarm function ITCI: Telecontrol interface ITMI: Telemonitoring interface C-26 D30 Line Distance Protection System GE Multilin...
Page 583 PSCH: Protection scheme PSDE: Sensitive directional earth fault PTEF: Transient earth fault PTOC: Time overcurrent PTOF: Overfrequency PTOV: Overvoltage PTRC: Protection trip conditioning PTTR: Thermal overload PTUC: Undercurrent PTUF: Underfrequency PTUV: Undervoltage GE Multilin D30 Line Distance Protection System C-27...
Page 584 T: LOGICAL NODES FOR INSTRUMENT TRANSFORMERS TANG: Angle TAXD: Axial displacement TCTR: Current transformer TDST: Distance TFLW: Liquid flow TFRQ: Frequency TGSN: Generic sensor THUM: Humidity TLVL: Media level TMGF: Magnetic field TMVM: Movement sensor C-28 D30 Line Distance Protection System GE Multilin...
Page 585 ZLIN: Power overhead line ZMOT: Motor ZREA: Reactor ZRES: Resistor ZRRC: Rotating reactive component ZSAR: Surge arrestor ZSCR: Semi-conductor controlled rectifier ZSMC: Synchronous machine ZTCF: Thyristor controlled frequency converter ZTRC: Thyristor controlled reactive component GE Multilin D30 Line Distance Protection System C-29...
Page 586 C.7 LOGICAL NODES APPENDIX C C-30 D30 Line Distance Protection System GE Multilin...
Page 587: Iec 60870-5-104
Balanced Transmision Not Present (Balanced Transmission Only)   Unbalanced Transmission One Octet  Two Octets  Structured  Unstructured Frame Length (maximum length, number of octets): Not selectable in companion IEC 60870-5-104 standard GE Multilin D30 Line Distance Protection System...
Page 588  <18> := Packed start events of protection equipment with time tag M_EP_TB_1  <19> := Packed output circuit information of protection equipment with time tag M_EP_TC_1  <20> := Packed single-point information with status change detection M_SP_NA_1 D30 Line Distance Protection System GE Multilin...
Page 589  <103> := Clock synchronization command (see Clause 7.6 in standard) C_CS_NA_1  <104> := Test command C_TS_NA_1  <105> := Reset process command C_RP_NA_1  <106> := Delay acquisition command C_CD_NA_1  <107> := Test command with time tag CP56Time2a C_TS_TA_1 GE Multilin D30 Line Distance Protection System...
Page 590 •Blank boxes indicate functions or ASDU not used. •‘X’ if only used in the standard direction TYPE IDENTIFICATION CAUSE OF TRANSMISSION MNEMONIC <1> M_SP_NA_1 <2> M_SP_TA_1 <3> M_DP_NA_1 <4> M_DP_TA_1 <5> M_ST_NA_1 <6> M_ST_TA_1 <7> M_BO_NA_1 <8> M_BO_TA_1 <9> M_ME_NA_1 D30 Line Distance Protection System GE Multilin...
Page 591 M_ME_TD_1 <35> M_ME_TE_1 <36> M_ME_TF_1 <37> M_IT_TB_1 <38> M_EP_TD_1 <39> M_EP_TE_1 <40> M_EP_TF_1 <45> C_SC_NA_1 <46> C_DC_NA_1 <47> C_RC_NA_1 <48> C_SE_NA_1 <49> C_SE_NB_1 <50> C_SE_NC_1 <51> C_BO_NA_1 <58> C_SC_TA_1 <59> C_DC_TA_1 <60> C_RC_TA_1 GE Multilin D30 Line Distance Protection System...
Page 592 F_FR_NA_1 <121> F_SR_NA_1 <122> F_SC_NA_1 <123> F_LS_NA_1 <124> F_AF_NA_1 <125> F_SG_NA_1 <126> F_DR_TA_1*) BASIC APPLICATION FUNCTIONS Station Initialization:  Remote initialization Cyclic Data Transmission:  Cyclic data transmission Read Procedure:  Read procedure D30 Line Distance Protection System GE Multilin...
Page 593  Mode B: Local freeze with counter interrogation  Mode C: Freeze and transmit by counter-interrogation commands  Mode D: Freeze by counter-interrogation command, frozen values reported simultaneously  Counter read  Counter freeze without reset GE Multilin D30 Line Distance Protection System...
Page 594 Maximum number of outstanding I-format APDUs k and latest acknowledge APDUs (w): PARAMETER DEFAULT REMARKS SELECTED VALUE VALUE 12 APDUs Maximum difference receive sequence number to send state variable 12 APDUs 8 APDUs 8 APDUs Latest acknowledge after receiving I-format APDUs D30 Line Distance Protection System GE Multilin...
Page 595: Point List
The IEC 60870-5-104 data points are configured through the    SETTINGS PRODUCT SETUP COMMUNICATIONS DNP / menu. Refer to the Communications section of Chapter 5 for additional details. IEC104 POINT LISTS GE Multilin D30 Line Distance Protection System...
Page 596 D.1 IEC 60870-5-104 PROTOCOL APPENDIX D D-10 D30 Line Distance Protection System GE Multilin...
Page 597: Dnp V3.00 Device Profile
Maximum Data Link Re-tries: Maximum Application Layer Re-tries:  None  None  Fixed at 3  Configurable  Configurable Requires Data Link Layer Confirmation:  Never  Always  Sometimes  Configurable GE Multilin D30 Line Distance Protection System...
Page 598 FlexLogic. The On/Off times and Count value are ignored. “Pulse Off” and “Latch Off” operations put the appropriate Virtual Input into the “Off” state. “Trip” and “Close” operations both put the appropriate Virtual Input into the “On” state. D30 Line Distance Protection System GE Multilin...
Page 599  16 Bits (Counter 8) Default Variation: 1  32 Bits (Counters 0 to 7, 9)  Point-by-point list attached  Other Value: _____  Point-by-point list attached Sends Multi-Fragment Responses:  Yes  No GE Multilin D30 Line Distance Protection System...
Page 600: E.1.2 Implementation Table
Otherwise, static object requests sent with qualifiers 00, 01, 06, 07, or 08, will be responded with qualifiers 00 or 01 (for change- event objects, qualifiers 17 or 28 are always responded.) Note 3: Cold restarts are implemented the same as warm restarts – the D30 is not restarted, but the DNP process is restarted. D30 Line Distance Protection System GE Multilin...
Page 601 Otherwise, static object requests sent with qualifiers 00, 01, 06, 07, or 08, will be responded with qualifiers 00 or 01 (for change- event objects, qualifiers 17 or 28 are always responded.) Note 3: Cold restarts are implemented the same as warm restarts – the D30 is not restarted, but the DNP process is restarted. GE Multilin D30 Line Distance Protection System...
Page 602 Otherwise, static object requests sent with qualifiers 00, 01, 06, 07, or 08, will be responded with qualifiers 00 or 01 (for change- event objects, qualifiers 17 or 28 are always responded.) Note 3: Cold restarts are implemented the same as warm restarts – the D30 is not restarted, but the DNP process is restarted. D30 Line Distance Protection System GE Multilin...
Page 603 Otherwise, static object requests sent with qualifiers 00, 01, 06, 07, or 08, will be responded with qualifiers 00 or 01 (for change- event objects, qualifiers 17 or 28 are always responded.) Note 3: Cold restarts are implemented the same as warm restarts – the D30 is not restarted, but the DNP process is restarted. GE Multilin D30 Line Distance Protection System...
Page 604: Dnp Point Lists
Change Event Variation reported when variation 0 requested: 2 (Binary Input Change with Time), Configurable Change Event Scan Rate: 8 times per power system cycle Change Event Buffer Size: 500 Default Class for All Points: 1 D30 Line Distance Protection System GE Multilin...
Page 605: Binary And Control Relay Output
Virtual Input 59 Virtual Input 28 Virtual Input 60 Virtual Input 29 Virtual Input 61 Virtual Input 30 Virtual Input 62 Virtual Input 31 Virtual Input 63 Virtual Input 32 Virtual Input 64 GE Multilin D30 Line Distance Protection System...
Page 606: Counters
A counter freeze command has no meaning for counters 8 and 9. D30 Digital Counter values are represented as 32-bit integers. The DNP 3.0 protocol defines counters to be unsigned integers. Care should be taken when interpreting negative counter values. E-10 D30 Line Distance Protection System GE Multilin...
Page 607: Analog Inputs
Change Event Variation reported when variation 0 requested: 1 (Analog Change Event without Time) Change Event Scan Rate: defaults to 500 ms Change Event Buffer Size: 256 Default Class for all Points: 2 GE Multilin D30 Line Distance Protection System E-11...
Page 608 E.2 DNP POINT LISTS APPENDIX E E-12 D30 Line Distance Protection System GE Multilin...
Page 609: Change Notes
04 January 2011 11-2237 1601-0109-W1 5.9x 12 January 2011 11-2227 1601-0109-X1 6.0x 21 December 2011 11-2840 1601-0109-X2 6.0x 5 April 2012 12-3254 1601-0109-Y1 7.0x 30 September 2012 12-3529 1601-0109-Y2 7.0x 11 November 2012 12-3601 GE Multilin D30 Line Distance Protection System...
Page 610: Changes To The Manual
Added new CyberSentry security section and main menu, local passwords, session settings, restore defaults, and supervisory subsections to Chapter 5 Update Update Actual Values main menu to include Real Time Clock Synchronization submenu D30 Line Distance Protection System GE Multilin...
Page 611 Changed part numbers. Removed copyright from title page. Updated ISO 9001 badge. Copyrig Copyrig Update Changed copyright to GE Multilin Inc. and updated part number Update Updated Figure 1-2 UR Concept Block Diagram to version A3 Update Updated Figure 1-3 UR-Series Scan Operation to version A3...
Page 612 Delete Delete section 8.2.1 Settings Templates because it is a duplication of section 4.2.1 Settings Templates F-14 F-14 Update Changed company name to GE Multilin in warranty Table F–5: MAJOR UPDATES FOR D30 MANUAL REVISION X1 PAGE PAGE CHANGE DESCRIPTION...
Page 613 5-149 Update Updated NEUTRAL DIRECTIONAL OVERCURRENT section 5-159 5-159 Update Updated NEGATIVE-SEQUENCE DIRECTIONAL OVERCURRENT section 5-196 5-196 Update Updated VT FUSE FAILURE section Update Updated OVERCURRENT SUPERVISION section Update Updated CONFIGURABLE GOOSE section GE Multilin D30 Line Distance Protection System...
Page 614 Table F–11: MAJOR UPDATES FOR D30 MANUAL REVISION T1 (Sheet 1 of 2) PAGE PAGE CHANGE DESCRIPTION (S3) (T1) Title Title Update Manual part number to 1601-0116-T1 Update Updated ORDERING section 3-13 Added PROCESS BUS MODULES section D30 Line Distance Protection System GE Multilin...
Page 615 Update Updated IEEE C37.94 INTERFACE section 3-40 Added MANAGED ETHERNET SWITCH MODULES section Update Updated PASSWORD SECURITY section (now titled SECURITY) 5-31 Added ETHERNET SWITCH sub-section 5-41 5-42 Update Updated USER-PROGRAMMABLE PUSHBUTTONS section GE Multilin D30 Line Distance Protection System...
Page 616 Updated DIRECT INPUTS AND OUTPUTS section 5-68 5-71 Update Updated FLEXLOGIC™ OPERANDS table 5-178 Added TRIP BUS section 6-18 6-18 Update Updated FAULT REPORTS section Update Updated RELAY SELF-TESTS section 8-19 Added FAULT LOCATOR section D30 Line Distance Protection System GE Multilin...
Page 617 Updated MODBUS MEMORY MAP section for revision 5.0x Update Updated Appendix C: IEC 61850 COMMUNICATIONS Update Updated DNP V3.00 DEVICE PROFILE section Update Updated DNP IMPLEMENTATION TABLE section Update Updated BINARY INPUT POINTS section E-10 E-10 Update Updated COUNTERS section GE Multilin D30 Line Distance Protection System...
Page 618 CHANGE DESCRIPTION (M1) (M2) Title Title Update Manual part number to 1601-0116-M2 3-27 3-27 Update Updated RS422 INTERFACE section 4-14 4-14 Update Updated INVALID PASSWORD ENTRY sub-section Update Updated PASSWORD SECURITY section F-10 D30 Line Distance Protection System GE Multilin...
Page 619 Updated AUTORECLOSE section 5-155 5-158 Update Updated VT FUSE FAILURE sub-section 5-163 5-166 Update Updated REMOTE INPUTS section 5-165 5-168 Update Updated DIRECT INPUTS/OUTPUTS section 5-172 Added TELEPROTECTION INPUTS/OUTPUTS section Added TELEPROTECTION INPUTS section GE Multilin D30 Line Distance Protection System F-11...
Page 620 Updated MODBUS MEMORY MAP for release 4.8x Update Updated IEC 60870-5-104 POINT LIST sub-section Update Updated BINARY INPUT POINTS section E-13 Update Updated BINARY AND CONTROL RELAY OUTPUT POINTS section E-15 E-11 Update Updated ANALOG INPUTS section F-12 D30 Line Distance Protection System GE Multilin...
Page 621: Abbreviations
.EVT ....Filename extension for event recorder files EXT ....Extension, External F ..... Field FAIL....Failure FD ....Fault Detector FDH....Fault Detector high-set FDL ....Fault Detector low-set FLA....Full Load Current FO ....Fiber Optic GE Multilin D30 Line Distance Protection System F-13...
Page 622 FSK ....Frequency-Shift Keying FTP ....File Transfer Protocol FxE....FlexElement™ FWD ....Forward G ....Generator GE ....General Electric GND ....Ground GNTR ..... Generator GOOSE ..General Object Oriented Substation Event GPS....Global Positioning System HARM..... Harmonic / Harmonics HCT....
Page 623 RX (Rx) ..Receive, Receiver s ..... second S..... Sensitive SAT ....CT Saturation SBO....Select Before Operate SCADA... Supervisory Control and Data Acquisition SEC....Secondary SEL ....Select / Selector / Selection SENS ..... Sensitive GE Multilin D30 Line Distance Protection System F-15...
Page 624 VTLOS ... Voltage Transformer Loss Of Signal WDG ....Winding WH ....Watt-hour w/ opt....With Option WRT ....With Respect To X..... Reactance XDUCER ..Transducer XFMR ..... Transformer Z ..... Impedance, Zone F-16 D30 Line Distance Protection System GE Multilin...
Page 625: F.3.1 Ge Multilin Warranty
24 months from date of shipment from factory. In the event of a failure covered by warranty, GE Multilin will undertake to repair or replace the relay providing the warrantor determined that it is defective and it is returned with all transportation charges prepaid to an authorized service centre or the factory.
Page 626: Warranty
F.3 WARRANTY APPENDIX F F-18 D30 Line Distance Protection System GE Multilin...
Page 627 ......5-23, 5-24, 5-25, 5-30, 5-43, 5-44 BINARY OUTPUT POINTS ..........E-9 specifications ............2-17, 2-18 BLOCK DIAGRAM .............. 1-3 UCA/MMS ..............5-223 BLOCK SETTING ............... 5-5 web server ..............5-42 BREAKER ARCING CURRENT GE Multilin D30 Line Distance Protection System...
Page 628 Modbus registers ............B-37 DCMA INPUTS ..............6-19 phase ..............2-9, 5-123 Modbus registers ..........B-18, B-67 quad characteristic ........5-126, 5-127, 5-133 settings ............... 5-233 settings ................ 5-122 specifications..............2-15 stepped distance ............10-2 DCMA OUTPUTS DISTURBANCE DETECTOR D30 Line Distance Protection System GE Multilin...
Page 629 FORCE CONTACT OUTPUTS ......... 5-241 FAST TRANSIENT TESTING ..........2-19 FORCE TRIGGER ............6-21 FAULT LOCATOR FORM-A RELAY logic ................9-23 high impedance circuits ..........3-14 Modbus registers ............B-15 outputs ............3-13, 3-14, 3-18 GE Multilin D30 Line Distance Protection System...
Page 630 IRIG-B ..............2-15, 3-24 remote inputs ......... 2-15, 5-222, 5-223, 5-224 G.703 ............ 3-28, 3-29, 3-30, 3-33 RTD inputs ............2-15, 3-20 GE TYPE IAC CURVES ..........5-150 virtual ................5-218 GROUND CURRENT METERING ........6-15 INSPECTION CHECKLIST ..........1-1 GROUND DIRECTIONAL SUPERVISION ......
Page 631 CT/VT ..............3-11, 5-6 logic ................5-158 direct inputs/outputs ............3-27 Modbus registers ............B-33 insertion ..............3-6, 3-7 settings ............... 5-158 order codes ..............2-6 specifications ..............2-10 power supply ..............3-10 NON-VOLATILE LATCHES GE Multilin D30 Line Distance Protection System...
Page 632 ............4-5 Modbus registers ............B-36 lost password ..........4-28, 5-9, 5-10 settings ............. 5-137, 5-141 Modbus ................B-8 specifications ..............2-12 Modbus registers ..........B-14, B-24 POWER SYSTEM overview ................ 1-18 Modbus registers ............B-29 D30 Line Distance Protection System GE Multilin...
Page 633 ..............2-17 SOURCE FREQUENCY ............ 6-17 wiring ................3-21 SOURCE TRANSFER SCHEMES ........5-174 RS422 SOURCES configuration ..............3-31 description ............... 5-5 timing ................3-32 example use of .............. 5-81 two-channel application ..........3-31 GE Multilin D30 Line Distance Protection System...
Page 634 Modbus registers ............ B-9, B-55 data ..............4-11, 4-12 settings ................ 5-218 overview ................ 4-10 VIRTUAL OUTPUTS rules ................4-12 actual values ..............6-5 TRACKING FREQUENCY ........6-17, B-42 FlexLogic operands ............5-105 viii D30 Line Distance Protection System GE Multilin...
Page 635 WEBSITE ................1-1 VT FUSE FAILURE logic ................5-210 Modbus registers ............B-47 settings ............... 5-209 VT INPUTS ............3-12, 5-6, 5-79 ZERO SEQUENCE CORE BALANCE ........ 3-12 VT WIRING ..............3-12 VTFF GE Multilin D30 Line Distance Protection System...
Page 636 INDEX D30 Line Distance Protection System GE Multilin...

GE D30 series Instruction Manual

1 Getting Started

2 Product Description

3 Hardware

4 Human Interfaces

5 Settings

6 Actual Values

7 Commands and

8 Security

9 Theory of Operation

10 Application of

Settings 10.1.1 Introduction

Parameter Lists

Modbus Communications

Modbus Rtu Protocol

Modbus Function Codes

File Transfers

Memory Mapping

Iec 61850

Overview

Server Data Organization

Quick Links

Related Manuals for GE D30 series

Summary of Contents for GE D30 series
