- Page 1 ProSAFE 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports Hardware Installation Guide Models GS510TLP and GS510TPP February 2017 202-11734-01 350 E. Plumeria Drive San Jose, CA 95134...
- Page 2 For the current EU Declaration of Conformity, visit http://kb.netgear.com/app/answers/detail/a_id/11621. Compliance For regulatory compliance information, visit http://www.netgear.com/about/regulatory. See the regulatory compliance document before connecting the power supply. Trademarks NETGEAR, Inc., NETGEAR, and the NETGEAR Logo are trademarks of NETGEAR, Inc. Any non-NETGEAR trademarks are used for reference purposes only.
-
Page 3: Table Of Contents
Contents Chapter 1 Introduction Overview........................5 Features.........................5 Safety Instructions and Warnings................7 Chapter 2 Hardware Overview Hardware Description..................10 Front Panel......................10 Back Panel......................11 LEDs.......................11 Switch Hardware Interfaces.................12 RJ-45 Ports for 10/100/1000M BASE-T Connectivity........13 Reset Button....................13 Factory Defaults Button...................13 Chapter 3 Installation Step 1: Prepare the site..................15 Step 2: Protect Against Electrostatic Discharge...........15 Step 3: Unpack the Switch...................16 Step 4: Install the Switch..................17... -
Page 4: Chapter 1 Introduction
This hardware installation guide is for the following NETGEAR ProSAFE Smart Managed Switches: • Model GS510TLP ProSAFE 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports (75W total PoE power budget) • Model GS510TPP ProSAFE 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports (190W total PoE power budget) These models provide eight 10/100/1000M BASE-T RJ-45 copper ports plus two dedicated SFP 1G ports. -
Page 5: Overview
Smart Control Center program for very basic setup. For more information, see the user manual that you can download from downloadcenter.netgear.com. You can install the switch freestanding or rack mounted in a wiring closet or equipment room. The switch is IEEE compliant and offers low latency for high-speed networking. - Page 6 ProSAFE 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports GS510TLP (no fan) GS510TPP (fan) • Acoustic noise: 32 dBA (GS510TTP). • 20 Gbps switch fabric full duplex non-blocking. • 500 Desktop Case. • AutoSensing and autonegotiating capabilities for all ports.
-
Page 7: Safety Instructions And Warnings
Any device that is located outdoors and connected to this product must be properly grounded and surge protected. To the extend permissible by applicable law, failure to follow these guidelines could result in damage to your NETGEAR product which may not be covered by NETGEAR’s warranty. • Observe and follow service markings: Do not service any product except as explained in your system documentation. - Page 8 ProSAFE 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports 115V, 60 Hz in most of North and South America and some Far Eastern countries such as South Korea and Taiwan 100V, 50 Hz in eastern Japan and 100V, 60 Hz in western Japan 230V, 50 Hz in most of Europe, the Middle East, and the Far East •...
-
Page 9: Chapter 2 Hardware Overview
Hardware Overview This chapter describes the switch hardware features. The chapter includes the following sections: • Hardware Description • Switch Hardware Interfaces... -
Page 10: Hardware Description

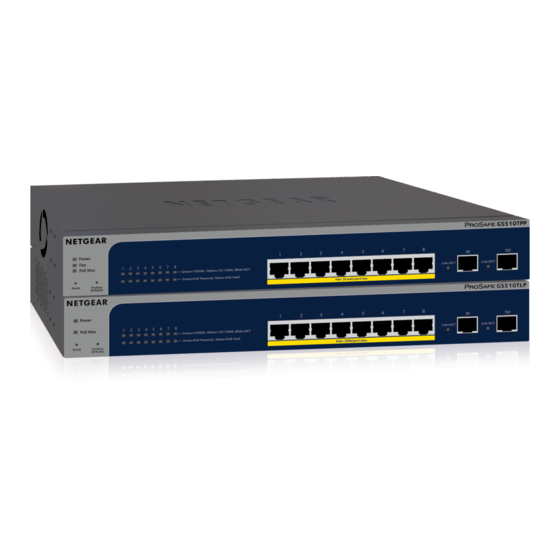

This section describes the switch hardware features. Front Panel The switch provides eight 10/100/1000M BASE-T RJ-45 PoE ports and 2 dedicated SFP ports.The following figures show the front panel. Figure 1. GS510TLP front view Number Description Power PoE Max LED (see LEDs on page 11). -
Page 11: Back Panel
1000M SFP Ports Back Panel The switch integrates a fixed, internal power supply unit (PSU). The back panel contains a Kensington™ lock slot and the AC power connector. Figure 3. GS510TLP back panel Number Description Kensington lock slot AC power connector Figure 4. -
Page 12: Switch Hardware Interfaces
ProSAFE 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports Table 1. LEDs on switch Description Power LED • Solid green . The device is powered on. • Solid amber. The device is booting. • Off. Power is not supplied to the device. Fan LED (GS510TPP only) •... -
Page 13: Rj-45 Ports For 10/100/1000M Base-T Connectivity
ProSAFE 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports RJ-45 Ports for 10/100/1000M BASE-T Connectivity All RJ-45 copper ports support autosensing. When you insert a cable into an RJ-45 port, the switch automatically ascertains the maximum speed (10 Mbps, 100 Mbps, or 1 Gbps) and duplex mode (half-duplex or full-duplex) of the attached device. -
Page 14: Chapter 3 Installation
Installation This chapter describes the installation procedures for the switch. Switch installation involves the steps described in the following sections: • Step 1: Prepare the site • Step 2: Protect Against Electrostatic Discharge • Step 3: Unpack the Switch • Step 4: Install the Switch •... -
Page 15: Step 1: Prepare The Site
ProSAFE 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports Step 1: Prepare the site Before you install the switch, ensure that the operating environment meets the site requirements that are listed in the following table. Table 2. Site Requirements Characteristics Requirements Mounting... -
Page 16: Step 3: Unpack The Switch
Handle all sensitive components in a static-safe area. If possible, use antistatic floor pads, workbench pads, and an antistatic grounding strap. Step 3: Unpack the Switch The following figure shows the package contents for the GS510TLP.The package contents for the GS510TPP are the same. Figure 5. Switch package contents Check the contents of the boxes to make sure that all items are present before installing the switch. -
Page 17: Step 4: Install The Switch
Quick installation guide Resource CD with NETGEAR Smart Control Center utility If any item is missing or damaged, contact your local NETGEAR reseller for replacement. Step 4: Install the Switch You can install the switch on a flat surface, attach it to a wall, attach it to a rectangular or rectangular pole or table leg, or mount it in a standard 19-inch (48.26-centimeter) network equipment rack. -
Page 18: Install The Switch On A Flat Surface
ProSAFE 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports Note Rack installation for the both GS510TLP and GS510TPP is the same. Install the Switch on a Flat Surface The switch ships with four self-adhesive rubber footpads. To install the switch on a flat surface: Stick one rubber footpad on each of the four concave spaces on the bottom of the switch. -
Page 19: Optional Step 6: Install Sfp Transceiver Modules
The following optional procedure describes how to install an optional SFP transceiver module into one of the SFP ports of the switch. Note Contact your NETGEAR sales office to purchase these modules. If you do not want to install an SFP module, skip this procedure. To install an SFP transceiver module: Insert the transceiver into the SFP port. -
Page 20: Step 8: Apply Ac Power And Check The Leds
Center program (which requires a Windows computer) for very basic setup. For more information about managing the switch, see the installation guide on the resource CD and the user manual that you can download from downloadcenter.netgear.com. Note The switch’s default IP address is 192.168.0.239 and its default subnet mask is 255.255.255.0. -
Page 21: Chapter 4 Applications
Applications The switch is designed to provide flexibility in configuring network connections. The switch can be used as your only network traffic-distribution device or with 10 Mbps, 100 Mbps, and 1 Gbps hubs, routers, and switches. This chapter includes the following sections: •... -
Page 22: Desktop Switching
ProSAFE 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports Desktop Switching You can use the switch as a desktop switch to build a small network that provides up to 1 Gbps access to a file server. With 1G connections, the switch always functions in full-duplex mode. Any switch port that is connected to a computer or file server can provide up to 2 Gbps bidirectional throughput. -
Page 23: Connect Poe Equipment In A Business Environment
ProSAFE 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports Supplied power is prioritized in ascending port order, up to the total power budget of the device. If the power requirements for the attached devices exceed the total power budget of the switch, the power to the device on the highest-numbered PoE port is disabled to make sure that the devices connected to the higher-priority, lower-numbered PoE ports are supported first. - Page 24 ProSAFE 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports Figure 8. Sample switch surveilliance and security application Line color Description Green PoE (such as security cameras) Black Non-PoE (such as ReadyNAS or Internet) Applications...
-
Page 25: Chapter 5 Troubleshooting
Troubleshooting This chapter provides information about troubleshooting the switch. The chapter includes the following sections: • Troubleshooting Chart • Additional Troubleshooting Suggestions... -
Page 26: Troubleshooting Chart
ProSAFE 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports Troubleshooting Chart The following table lists symptoms, causes, and solutions for possible problems. Table 3. Troubleshooting Chart Sympton Cause Solution Power LED is off. No power is received. •... -
Page 27: Additional Troubleshooting Suggestions
Switch integrity. If necessary, verify the integrity of the switch by resetting it. To reset the switch, disconnect the AC power from the switch and then reconnect the AC power. If the problem continues, contact NETGEAR technical support. For more information, visit the support website at support.netgear.com.
