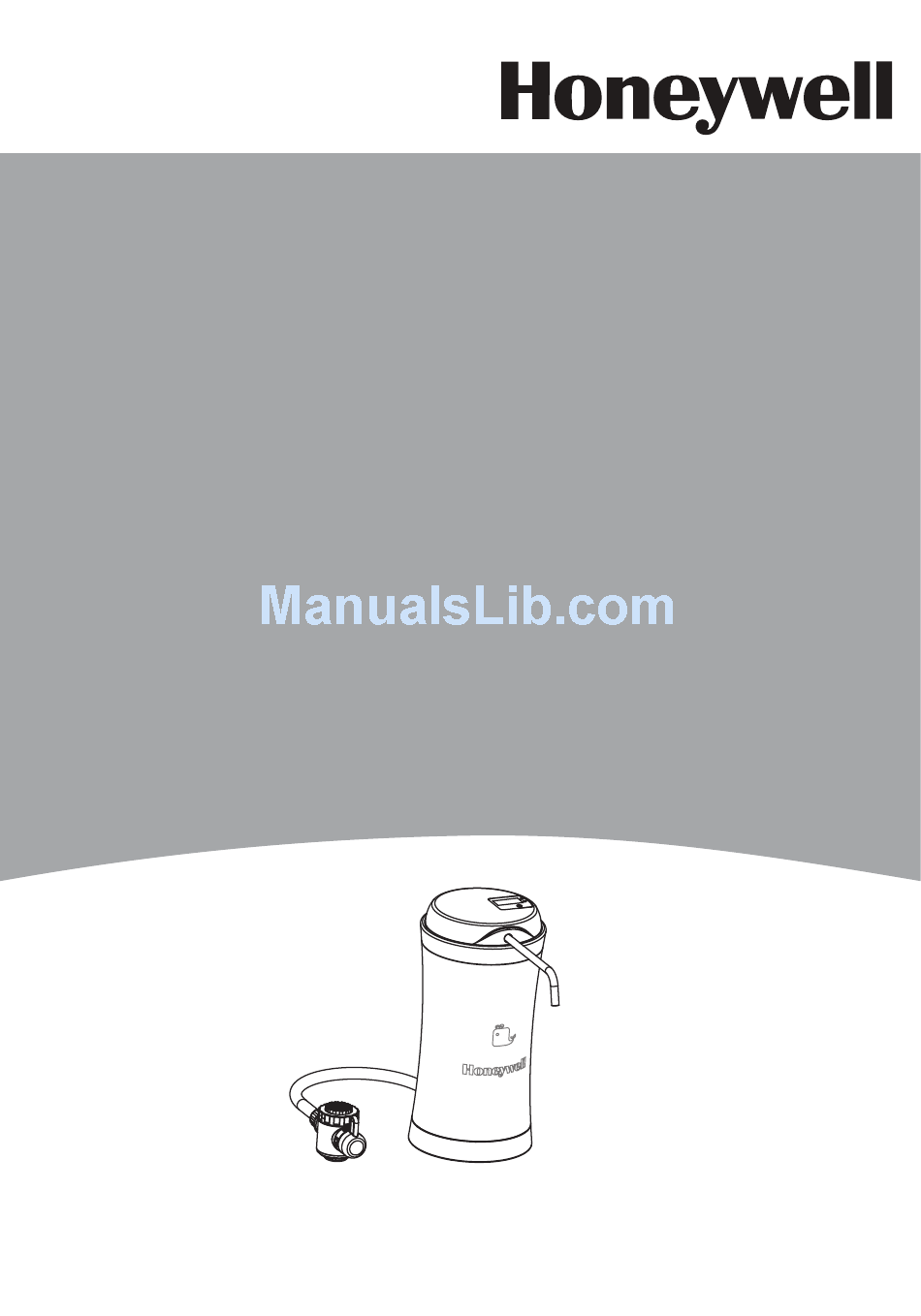

- Page 1 HU-30 Desktop Water Purifier Installation & Operation Instruction Manual Honeywell Environmental & Combustion Controls (Tianjin) Co., Ltd.
-
Page 3: Table Of Contents
Content Important Notes for Users ------------------------------------------ 1 Safety Notices --------------------------------------------------------- 1 Operation Instruction------------------------------------------------- 2 Technical Parameter------------------------------------------------- 2 Parts --------------------------------------------------------------------- 3 Usage Method --------------------------------------------------------- 4 Electronic device and application--------------------------------- 4 Changing cartridge --------------------------------------------------- 5 Troubleshooting guide----------------------------------------------- 7 Installation method --------------------------------------------------- 7... -
Page 4: Important Notes For Users
• Repair and maintenance of the water purifier and replacement cartridge or parts should be carried out using replacement parts approved by Honeywell Environmental and Automated Control Products (Tianjin) Co., Ltd. Quality issues, reduced perfor- mance or loss or damage to property arising from the use of unauthorized parts or accessories would not be covered by warranty. -
Page 5: Operation Instruction
Operation Instruction • Regularly check the water purifier and water pipe parts to ensure that there is no water leakage; • Drain water for 5-10 seconds if the water purifier has not been in use for 24 hours. If it has not been used for more than 5 days (3 days in the case of summer), drain water for 2 to 3 minutes before resuming usage. -
Page 6: Parts
Parts 9. Digital panel 8. Top cover 7. Upper cover 10. Water outlet bend 6. Machine 5. Cartridge (inside the machine) 4. Hose 3. Nut 2. Water segregator 1. Water segregator switch 11. Bubbler 12. Tightening nut 14. Foot pad 13. -
Page 7: Usage Method
Usage Method Turning on for the first time after installation: 1. Turn the tap to fully-opened position. 2. The water segregator switch is in a “Purified” (i.e. purified water) position. The water will flow into the water purifier. Due carbon granules and air bubbles, the initial water flow will show slight turbidity. -
Page 8: Changing Cartridge
Press the button to set the value. There are three settings – 1,000 liters, 1,500 liters and 2000 liters. Upon completion of setting press the button for 3 seconds to save. If there is no action for 10 seconds after pressing the button the display will exit “Setting” mode and no value will be saved. - Page 9 Turn off the tap before changing the cartridge. 1. Incline the water purifier in a position of about 45 degrees to drain any residual water in the water outlet. See the illustration below: Draining of residual water: 2. Hold the upper cover and turn it anti-clockwise in order to remove it from the machine. upper cover 3.
-
Page 10: Troubleshooting Guide
Troubleshooting guide Malfunction Causes Solution There is leakage of water 1. Is the water segregator’s 1. Tighten the water from the joint between the adapter securely fastened? segregator’s adapter until it water segregator’s adapter 2. Is the washer placed cannot be tightened any further. and the tap properly? 2. - Page 11 The tap’s thread does not match that of the adapters. Selecting the correct adapter for the tap in your kitchen The following concerns the type of adapter to be used for the tap in your home: If the tap has neither external nor internal groove (thread) and its end has a diameter of between 15 mm and 25 mm, metallic adapter may be used.
- Page 12 If the tap has neither external nor internal groove (thread) and its end has a diameter of between 15 mm and 25 mm, universal adapter may be used. Its installation method is as follows: 1. Install the M22*1 adapter on the water segregator as shown in the illustration; 2.
- Page 13 Connecting the hose with the water segregator: 1. Turn the locking nut on the water segregator to remove it; connect the hose to it; 2. Insert the hose over the water segregator’s water outlet and push it forcefully; 3. Lock the hose tight with the water segregator’s locking nut. Connecting hose with the water filter: 1.
- Page 14 Connecting the water outlet bend with the water purifier: 1. Align the water outlet bend with the hope on the top cover and push it in to the end. Change of battery: 1. Shut the tap’s inlet switch and remove the upper cover from the machine; 2.
- Page 16 Automation and Control Solutions Honeywell Environmental and Combustion Controls (Tianjin) Co., Ltd. Address: No. 158, Nanhai Road, Tianjin Economic and Technological Development Zone Tel: 022-66287000 The contents of this manual are subject to change without prior notice. 50097009-001 REV.A...
